Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

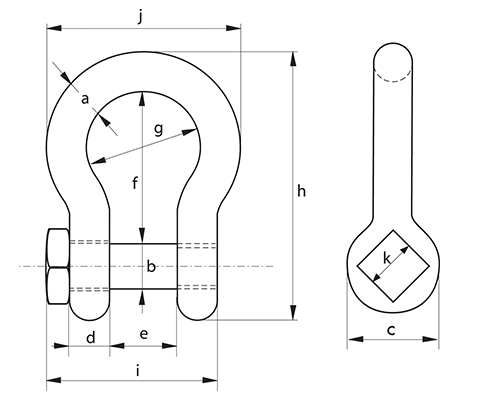

Specifications — Full Dimensions by Size
This part already clears a 5:1 requirement. At 6:1 it is more conservative than the 5:1 commonly specified for wire rope and synthetic sling systems, so the published WLL above satisfies a 5:1 specification as it stands. We do not publish a higher WLL at 5:1, because that capacity is not certified by the manufacturer.
| WLL (lb)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | i (in)(mm) | j (in)(mm) | k (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,4092 | 0.740.34 | 1/213.5 | 5/816 | 1 11/3234 | 1/213 | 7/822 | 251 | 1 1/432 | 3 17/3290 | 2 1/457.5 | 2 5/1659 | 7/822 | GPGHVK13 |
| 7,1653.25 | 1.400.63 | 5/816 | 3/419 | 1 9/1640 | 5/816 | 1 1/1627 | 2 17/3264 | 1 11/1643 | 4 11/32110 | 2 25/3271 | 2 15/1675 | 1 1/1627 | GPGHVK16 |
| 10,4714.75 | 2.211.00 | 3/419 | 7/822 | 1 13/1646 | 3/419 | 1 7/3231 | 376 | 251 | 5 3/32129 | 3 7/3282 | 3 1/289 | 1 1/432 | GPGHVK19 |
| 14,3306.5 | 3.171.44 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 3 9/3283 | 2 9/3258 | 5 21/32144 | 3 21/3293 | 4 1/32102 | 1 1/432 | GPGHVK22 |
| 18,7398.5 | 4.862.21 | 125 | 1 1/828 | 2 5/1659 | 31/3225 | 1 11/1643 | 3 3/495 | 2 11/1668 | 6 15/32164 | 4 1/4108 | 4 21/32118 | 1 13/3236 | GPGHVK25 |
| 20,9439.5 | 7.013.18 | 1 1/828 | 1 1/432 | 2 5/867 | 1 3/3228 | 1 27/3247 | 4 1/4108 | 2 15/1675 | 7 5/16186 | 4 23/32120 | 5 5/32131 | 1 5/841 | GPGHVK28 |
| 26,45512 | 9.524.32 | 1 1/432 | 1 3/835 | 2 7/873 | 1 1/432 | 251 | 4 17/32115 | 3 9/3283 | 7 29/32201 | 5 13/32137 | 5 25/32147 | 1 31/3250 | GPGHVK32 |
| 29,76213.5 | 12.55.67 | 1 3/835 | 1 1/238 | 3 1/879 | 1 3/835 | 2 1/457 | 5 1/4133 | 3 5/892 | 8 15/16227 | 5 7/8149 | 6 3/8162 | 1 31/3250 | GPGHVK35 |
| 37,47817 | 16.27.36 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5 3/4146 | 3 29/3299 | 9 13/16249 | 6 15/32164 | 6 7/8175 | 2 3/860 | GPGHVK38 |
| 55,11525 | 27.312.4 | 1 3/445 | 250 | 4 3/32104 | 1 25/3245 | 2 29/3274 | 7178 | 4 31/32126 | 11 13/16300 | 7 9/16192 | 8 1/2216 | 2 3/860 | GPGHVK45 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

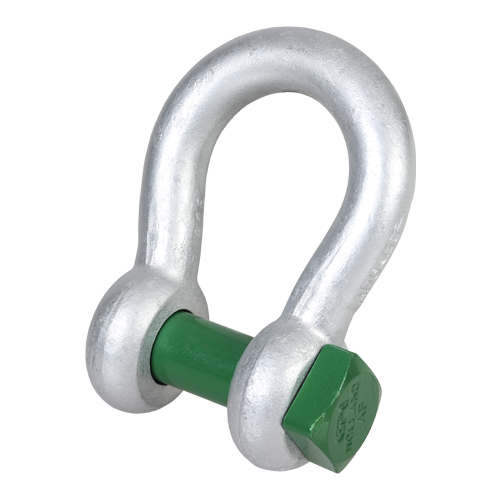

The Green Pin G-4164 Fishing Bow Shackle (Square Head) features a square head pin for easy wrench tightening in wet, cold marine conditions. Designed for the commercial fishing industry where reliable, tool-accessible connections are essential.
Key Features
- Square head pin for wrench tightening in harsh conditions
- Forged alloy steel, hot-dip galvanized
- Bow shape for multi-directional loading
- Individually proof tested at 2x WLL
Common Applications
- Commercial fishing gear rigging
- Marine deck hardware connections
- Aquaculture and offshore operations
Why Green Pin?
Green Pin fishing shackles are engineered for the demands of commercial fishing. Van Beest's marine-grade galvanizing and individual proof testing deliver reliability at sea.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 10 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 13 mm (1/2") | GPGHVK13 | $17.15 | ✓ In Stock | ||
| 16 mm (5/8") | GPGHVK16 | $21.45 | ✓ In Stock | ||
| 19 mm (3/4") | GPGHVK19 | $33.90 | ✓ In Stock | ||
| 22 mm (7/8") | GPGHVK22 | $47.55 | ✓ In Stock | ||
| 25 mm (1") | GPGHVK25 | $61.60 | ✓ In Stock | ||
| 28 mm (1-1/8") | GPGHVK28 | $115.50 | ✓ In Stock | ||
| 32 mm (1-1/4") | GPGHVK32 | $121.00 | ✓ In Stock | ||
| 35 mm (1-3/8") | GPGHVK35 | $189.00 | ✓ In Stock | ||
| 38 mm (1-1/2") | GPGHVK38 | $318.00 | ✓ In Stock | ||
| 45 mm (1-3/4") | GPGHVK45 | $412.50 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
