Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

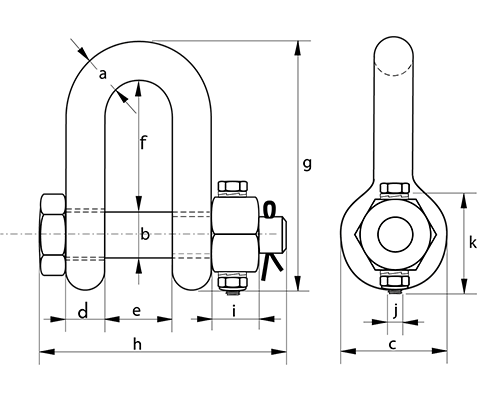

Specifications — Full Dimensions by Size
This part already clears a 5:1 requirement. At 6:1 it is more conservative than the 5:1 commonly specified for wire rope and synthetic sling systems, so the published WLL above satisfies a 5:1 specification as it stands. We do not publish a higher WLL at 5:1, because that capacity is not certified by the manufacturer.
| WLL (lb)(t) | Weight (lb)(kg) | a (in)(mm) | b (in)(mm) | c (in)(mm) | d (in)(mm) | e (in)(mm) | f (in)(mm) | g (in)(mm) | h (in)(mm) | i (in)(mm) | j | k (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4,4092 | 0.850.39 | 1/213.5 | 5/816 | 1 11/3234 | 1/213 | 7/822 | 1 11/1643 | 3 7/3282 | 3 5/3280 | 1/213 | M6 | 1 3/835 | GPGDMB13FN |
| 7,1653.25 | 1.480.67 | 5/816 | 3/419 | 1 9/1640 | 5/816 | 1 1/1627 | 251 | 3 13/1697 | 3 27/3298 | 21/3217 | M6 | 1 9/1640 | GPGDMB16FN |
| 10,4714.75 | 2.391.08 | 3/419 | 7/822 | 1 13/1646 | 3/419 | 1 7/3231 | 2 5/1659 | 4 13/32112 | 4 17/32115 | 3/419 | M6 | 1 25/3245 | GPGDMB19FN |
| 14,3306.5 | 3.661.66 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 2 7/873 | 5 9/32134 | 5 1/8130 | 7/822 | M8 | 1 31/3250 | GPGDMB22FN |
| 18,7398.5 | 5.422.46 | 125 | 1 1/828 | 2 5/1659 | 31/3225 | 1 11/1643 | 3 11/3285 | 6 1/16154 | 5 29/32150 | 31/3225 | M8 | 2 5/3255 | GPGDMB25FN |
| 20,9439.5 | 7.513.40 | 1 1/828 | 1 1/432 | 2 5/867 | 1 3/3228 | 1 27/3247 | 3 17/3290 | 6 5/8168 | 6 17/32166 | 1 1/1627 | M10 | 2 3/860 | GPGDMB28FN |
| 26,45512 | 9.954.51 | 1 1/432 | 1 3/835 | 2 7/873 | 1 1/432 | 251 | 3 11/1694 | 7 3/32180 | 7 1/4184 | 1 3/1630 | M10 | 2 9/1665 | GPGDMB32FN |
| 29,76213.5 | 13.56.10 | 1 3/835 | 1 1/238 | 3 1/879 | 1 3/835 | 2 1/457 | 4 17/32115 | 8 7/32209 | 7 3/4197 | 1 5/1633 | M10 | 2 3/470 | GPGDMB35FN |
| 37,47817 | 16.87.63 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5127 | 9 1/16230 | 7 15/16202 | 3/419 | M8 | 2 15/1675 | GPGDMB38FN |
| 55,11525 | 29.213.3 | 1 3/445 | 250 | 4 3/32104 | 1 25/3245 | 2 29/3274 | 5 7/8149 | 10 21/32271 | 9 9/16243 | 29/3223 | M8 | 3 17/3290 | GPGDMB45FN |
| 77,16135 | 40.918.5 | 250 | 2 1/457 | 4 13/32112 | 1 31/3250 | 3 9/3283 | 6 23/32171 | 12 1/16306 | 10 19/32269 | 1 1/3226 | M10 | 3 15/16100 | GPGDMB50FN |
| 93,69642.5 | 57.225.9 | 2 1/457 | 2 9/1665 | 5 3/16132 | 2 1/457 | 3 3/495 | 7 15/32190 | 12 1/16346 | 11 27/32301 | 1 5/3229 | M12 | 4 11/32110 | GPGDMB57FN |
| 121,25455 | 77.935.3 | 2 1/265 | 2 3/470 | 5 23/32145 | 2 9/1665 | 4 1/8105 | 8203 | 14 13/16376 | 12 15/16329 | 1 1/432 | M12 | 4 23/32120 | GPGDMB65FN |
| 187,39285 | 11753.0 | 375 | 3 1/483 | 6 9/16167 | 2 15/1675 | 5127 | 9 1/32229 | 16 7/8429 | 15381 | 1 17/3239 | M12 | 5 1/2140 | GPGDMB75FN |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. A column shown without a unit carries a designation rather than a measurement — a thread callout or a part type — so it reads the same in both views.

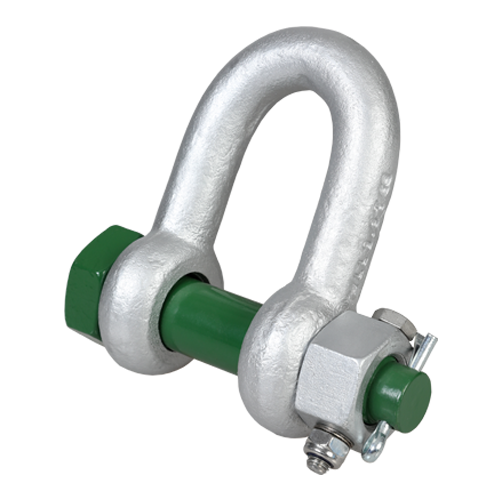

The Green Pin G-4133 Dee Shackle (Flat Nut) is a standard dee shackle with flat nut pin closure. The dee shape provides optimal inline load alignment for chain and wire rope connections, while the flat nut prevents pin rotation.
Key Features
- Flat nut pin for secure, non-rotating closure
- Dee shape for inline loading
- Forged alloy steel, quenched and tempered
- Hot-dip galvanized
- Individually proof tested at 2x WLL
Common Applications
- Inline chain and wire rope connections
- General purpose lifting and rigging
- Construction, marine, and industrial applications
Why Green Pin?
The G-4133 is a workhorse dee shackle trusted by riggers worldwide. Individually proof tested by Van Beest with full traceability.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 14 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 13 mm (1/2") | GPGDMB13FN | $56.25 | ✓ In Stock | ||
| 16 mm (5/8") | GPGDMB16FN | $59.10 | ✓ In Stock | ||
| 19 mm (3/4") | GPGDMB19FN | $63.35 | ✓ In Stock | ||
| 22 mm (7/8") | GPGDMB22FN | $71.50 | ✓ In Stock | ||
| 25 mm (1") | GPGDMB25FN | $98.40 | ✓ In Stock | ||
| 28 mm (1-1/8") | GPGDMB28FN | $144.50 | ✓ In Stock | ||
| 32 mm (1-1/4") | GPGDMB32FN | $176.50 | ✓ In Stock | ||
| 35 mm (1-3/8") | GPGDMB35FN | $227.50 | ✓ In Stock | ||
| 38 mm (1-1/2") | GPGDMB38FN | $307.00 | ✓ In Stock | ||
| 45 mm (1-3/4") | GPGDMB45FN | $459.00 | ✓ In Stock | ||
| 50 mm (2") | GPGDMB50FN | $596.00 | ✓ In Stock | ||
| 57 mm (2-1/4") | GPGDMB57FN | $1,305.00 | ✓ In Stock | ||
| 65 mm (2-1/2") | GPGDMB65FN | $1,555.00 | ✓ In Stock | ||
| 75 mm (3") | GPGDMB75FN | $1,980.00 | ✓ In Stock |
