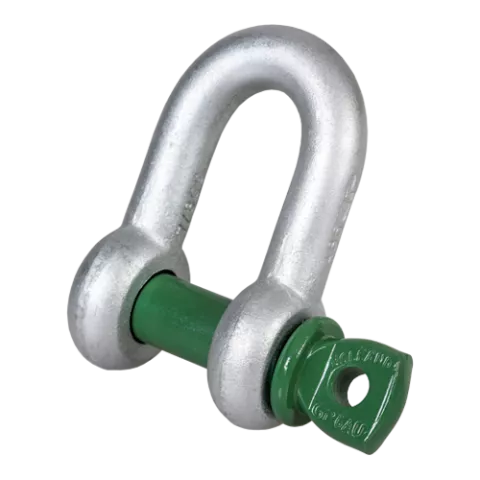

The Green Pin Dee Shackle SC (Screw Pin) is a screw pin chain shackle for quick-connect inline rigging. The dee shape keeps loads aligned on-axis, while the screw pin threads in by hand for fast rigging changes.
Key Features
- Screw pin for tool-free connection
- Dee shape for inline load alignment
- Forged alloy steel, quenched and tempered
- Hot-dip galvanized for corrosion resistance
- Individually proof tested at 2x WLL with certificate
- EN 13889 Type B compliant
Common Applications
- Temporary inline rigging connections
- Chain-to-hardware connections
- Construction and industrial lifting
- Sling assembly work
Why Green Pin?
Green Pin screw pin dee shackles offer fast rigging changes with the strength riggers trust. Every shackle is forged, proof tested, and traceable by Van Beest.
Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.33 | 0.050.02 | 3/165 | 1/46 | 15/3212 | 3/165 | 3/89.5 | 3/419 | 1 5/1633 | 1 5/3229.5 | GPGDBB05 | |
| 0.5 | 0.100.04 | 1/47 | 5/168 | 5/816 | 9/327 | 15/3212 | 7/822.5 | 1 5/841.5 | 1 1/238 | GPGDBB06 | |
| 0.75 | 0.200.09 | 5/169 | 3/810 | 25/3220 | 11/329 | 17/3213.5 | 1 1/1627 | 251 | 1 27/3246.5 | GPGDBB08 | |
| 1 | 0.270.12 | 3/810 | 7/1611 | 29/3223 | 13/3210 | 21/3217 | 1 1/432 | 2 5/1659 | 2 1/854 | GPGDBB10 | |
| 1.5 | 0.380.17 | 7/1611 | 1/213 | 31/3225 | 7/1611 | 3/419 | 1 15/3237 | 2 5/867 | 2 11/3259.5 | GPGDBB11 | |
| 2 | 0.700.32 | 1/213.5 | 5/816 | 1 11/3234 | 1/213 | 7/822 | 1 11/1643 | 3 7/3282 | 2 7/873 | GPGDBB13 | |
| 3.25 | 1.200.54 | 5/816 | 3/419 | 1 9/1640 | 5/816 | 1 1/1627 | 251 | 3 13/1697 | 3 1/289 | GPGDBB16 | |
| 4.75 | 1.920.87 | 3/419 | 7/822 | 1 13/1646 | 3/419 | 1 7/3231 | 2 5/1659 | 4 13/32112 | 4 1/16103 | GPGDBB19 | |
| 6.5 | 2.951.34 | 7/822 | 125 | 2 1/1652 | 7/822 | 1 13/3236 | 2 7/873 | 5 9/32134 | 4 11/16119 | GPGDBB22 | |
| 8.5 | 4.592.08 | 125 | 1 1/828 | 2 5/1659 | 31/3225 | 1 11/1643 | 3 11/3285 | 6 1/16154 | 5 13/32137 | GPGDBB25 | |
| 9.5 | 6.112.77 | 1 1/828 | 1 1/432 | 2 5/867 | 1 3/3228 | 1 27/3247 | 3 17/3290 | 6 5/8168 | 6 1/32153 | GPGDBB28 | |
| 12 | 8.213.72 | 1 1/432 | 1 3/835 | 2 7/873 | 1 1/432 | 251 | 3 11/1694 | 7 3/32180 | 6 11/16170 | GPGDBB32 | |
| 13.5 | 12.05.44 | 1 3/835 | 1 1/238 | 3 1/879 | 1 3/835 | 2 1/457 | 4 17/32115 | 8 7/32209 | 7 5/16186 | GPGDBB35 | |
| 17 | 15.16.85 | 1 1/238 | 1 5/842 | 3 15/3288 | 1 1/238 | 2 3/860 | 5127 | 9 1/16230 | 8203 | GPGDBB38 | |
| 25 | 25.211.5 | 1 3/445 | 250 | 4 3/32104 | 1 25/3245 | 2 29/3274 | 5 7/8149 | 10 21/32271 | 9 9/16243 | GPGDBB45 | |
| 35 | 34.815.8 | 250 | 2 1/457 | 4 13/32112 | 1 31/3250 | 3 9/3283 | 6 23/32171 | 12 1/16306 | 10 23/32272 | GPGDBB50 | |
| 42.5 | 54.324.6 | 2 1/457 | 2 9/1665 | 5 3/16132 | 2 1/457 | 3 3/495 | 7 15/32190 | 13 5/8346 | 12 7/32310 | GPGDBB57 | |
| 55 | 72.032.7 | 2 1/265 | 2 3/470 | 5 23/32145 | 2 9/1665 | 4 1/8105 | 8203 | 14 13/16376 | 13 17/32344 | GPGDBB65 |
Dimensions sourced directly from manufacturer catalog pages.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 12 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 2 Ton (3/8") | G-4151-2T | $6.44 | ✓ In Stock | ||
| 3-1/4 Ton (1/2") | G-4151-3.25T | $0.87 | ✓ In Stock | ||
| 4-3/4 Ton (5/8") | G-4151-4.75T | $16.10 | ✓ In Stock | ||
| 6-1/2 Ton (3/4") | G-4151-6.5T | $0.87 | ✓ In Stock | ||
| 8-1/2 Ton (7/8") | G-4151-8.5T | $0.87 | ✓ In Stock | ||
| 9-1/2 Ton (1") | G-4151-9.5T | $0.87 | ✓ In Stock | ||
| 12 Ton (1-1/8") | G-4151-12T | $0.87 | ✓ In Stock | ||
| 13-1/2 Ton (1-1/4") | G-4151-13.5T | $0.87 | ✓ In Stock | ||
| 17 Ton (1-3/8") | G-4151-17T | $0.87 | ✓ In Stock | ||
| 25 Ton (1-1/2") | G-4151-25T | $0.87 | ✓ In Stock | ||
| 35 Ton (1-3/4") | G-4151-35T | $0.87 | ✓ In Stock | ||
| 55 Ton (2") | G-4151-55T | $6.44 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
