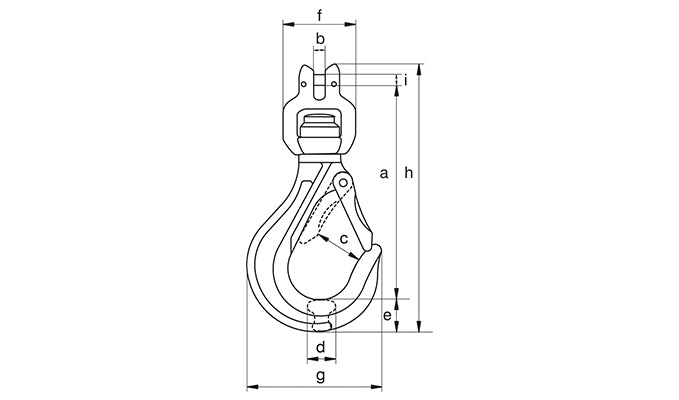

Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Chain dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2,4691.12 | 1,9840.9 | 1.230.56 | 7/326 | 4 31/32126 | 9/327 | 1 1/3226 | 19/3215 | 25/3220 | 2 7/3256 | 2 27/3272 | 6 1/4159 | 5/168 | GPCSECA6 |
| 4,4092 | 3,5271.6 | 2.180.99 | 1/4-5/167 - 8 | 6 1/16154 | 11/329 | 1 3/1630 | 25/3220 | 31/3225 | 2 9/1665 | 3 7/1687 | 7 23/32196 | 11/329 | GPCSECA7/8 |
| 7,0543.2 | 5,6432.56 | 4.301.95 | 3/810 | 7 13/32190 | 15/3212 | 1 5/1633 | 15/1624 | 1 5/3229 | 3 1/879 | 4 3/16106 | 9 7/16240 | 1/213 | GPCSECA10 |
| 11,9045.4 | 9,5234.32 | 7.803.54 | 1/213 | 8 13/16224 | 19/3214 | 1 15/3237 | 1 1/432 | 1 17/3239 | 3 25/3296 | 5 1/4133 | 11 17/32293 | 5/816 | GPCSECA13 |
| 18,0778.2 | 14,4626.56 | 14.66.61 | 5/816 | 10 5/8270 | 3/418 | 1 23/3244 | 1 9/1640 | 1 3/444 | 4 3/4121 | 6 1/2165 | 13 25/32350 | 25/3220 | GPCSECA16 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.
The Green Pin CSO Sling Hook (Eye) is a Grade 8 eye-type sling hook designed for wire rope and synthetic sling connections. The eye connection accepts shackles, links, and sling thimbles, providing a versatile lower end fitting for overhead lifting assemblies.
Key Features
- Eye connection for shackles, links, and sling thimbles
- Grade 8 alloy steel for high working load limits
- Wide hook throat for fast load engagement
- Safety latch prevents accidental disengagement
- EN 1677-2 compliant
- Individually proof tested with certificate
Common Applications
- Wire rope sling assemblies
- Synthetic sling-to-hook connections
- General purpose overhead lifting
- Multi-leg sling lower end fittings
Why Green Pin?
Green Pin eye sling hooks provide the versatile connection point riggers need for mixed-media sling assemblies. Every hook is individually proof tested by Van Beest with full traceability documentation.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 5 mm (3/16") | GPCSECA5 | $75.45 | ✓ In Stock | ||
| 6 mm (1/4") | CSECA6J | $154.00 | ✓ In Stock | ||
| 7/8 mm | GPCSECA7/8 | $172.50 | ✓ In Stock | ||
| 10 mm (3/8") | GPCSECA10 | $200.00 | ✓ In Stock | ||
| 13 mm (1/2") | CSECA13J | $302.50 | ✓ In Stock | ||
| 16 mm (5/8") | GPCSECA16 | $479.50 | ✓ In Stock |
