Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

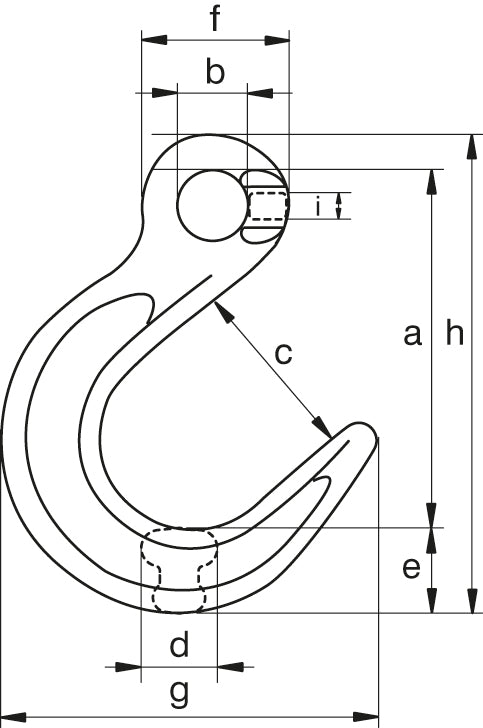

| WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | Chain dia (in)(mm) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | I (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2,4691.12 | 1,9840.9 | 0.730.33 | 7/326 | 3 21/3293 | 3/419 | 1 7/848 | 21/3217 | 13/1621 | 1 1/238 | 3 13/1697 | 4 7/8124 | 9/327 | GPCFO6 |
| 4,4092 | 3,5271.6 | 1.720.78 | 1/4 - 5/167 - 8 | 4 29/32125 | 31/3225 | 2 17/3264 | 7/822 | 1 3/3228 | 1 31/3250 | 5 3/32129 | 6 1/2165 | 11/329 | GPCFO7/8 |
| 7,0543.2 | 5,6432.56 | 3.311.50 | 3/810 | 6 3/16157 | 1 11/3234 | 3 1/879 | 1 1/1627 | 1 3/835 | 2 9/1665 | 6 11/32161 | 8 3/16208 | 7/1611 | GPCFO10 |
| 11,9045.4 | 9,5234.32 | 6.623.00 | 1/213 | 7 15/32190 | 1 23/3244 | 3 3/495 | 1 3/835 | 1 25/3245 | 3 5/1684 | 7 25/32198 | 10254 | 1/213 | GPCFO13 |
| 18,0778.2 | 14,4626.56 | 9.184.16 | 5/816 | 8 1/16205 | 1 3/835 | 3 3/495 | 1 25/3245 | 2 2/1652 | 3 15/3288 | 8 1/32204 | 11 3/16284 | 15/1624 | GPCFO16 |
| 28,21912.8 | 22,57510.24 | 17.27.80 | 3/418 - 20 | 9 1/4235 | 1 9/1640 | 4 3/8111 | 2 3/3253 | 2 5/3255 | 3 5/892 | 8 31/32228 | 12 13/32315 | 31/3225 | GPCFO18/20 |
| 34,17115.5 | 27,33712.4 | 21.89.87 | 7/822 | 10 7/16265 | 1 13/1646 | 4 27/32123 | 2 19/3266 | 2 25/3271 | 4 11/32110 | 10 5/32258 | 10 9/16268 | 1 1/432 | GPCFO22 |
| 47,61921.6 | 38,09517.28 | 30.413.8 | 126 | 12305 | 2 1/854 | 5 1/4133 | 2 9/1665 | 3 3/1681 | 4 23/32120 | 10 29/32277 | 16 17/32420 | 1 5/1633 | GPCFO26 |
| 72,31132.8 | 57,84926.24 | 54.024.5 | 1 1/432 | 12 7/8327 | 2 3/860 | 6 3/32155 | 3 5/1684 | 3 25/3296 | 5 5/32131 | 13 1/8333 | 18 1/16459 | 1 3/835 | GPCFO32 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.
The Green Pin CFO Foundry Hook (Eye) is a Grade 8 eye-type foundry hook with an extra-wide throat opening designed for handling large, irregularly shaped loads. The generous hook opening easily accepts heavy castings, molds, ladles, and other bulky items common in foundry and heavy industrial operations.
Key Features
- Extra-wide throat opening for oversized and irregular loads
- Eye-type connection for direct attachment to slings or chain
- Grade 8 alloy steel for high-capacity lifting
- Safety latch prevents accidental release
- Individually proof tested with certificate
- EN 1677-2 compliant
Common Applications
- Foundry operations — ladles, molds, and castings
- Steel mill and heavy industrial material handling
- Lifting irregular and oversized loads
- Applications requiring wide hook throat clearance
Why Green Pin?
Green Pin foundry hooks deliver the wide-throat capacity heavy industry demands with Van Beest's signature quality — individually proof tested, fully traceable, and built to last in the harshest environments.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 6 mm (1/4") | GPCFO6 | $39.20 | ✓ In Stock | ||
| 7/8 mm | GPCFO7/8 | $49.90 | ✓ In Stock | ||
| 10 mm (3/8") | GPCFO10 | $87.05 | ✓ In Stock | ||
| 13 mm (1/2") | GPCFO13 | $125.00 | ✓ In Stock | ||
| 16 mm (5/8") | CFO16R | $139.50 | ✓ In Stock | ||
| 18/20 mm | CFO18/20R | $422.50 | ✓ In Stock | ||
| 22 mm (7/8") | CFO22R | $557.00 | ✓ In Stock | ||
| 26 mm (1") | CFO26R | $833.00 | ✓ In Stock | ||
| 32 mm (1-1/4") | CFO32R | $2,425.00 | ✓ In Stock |
