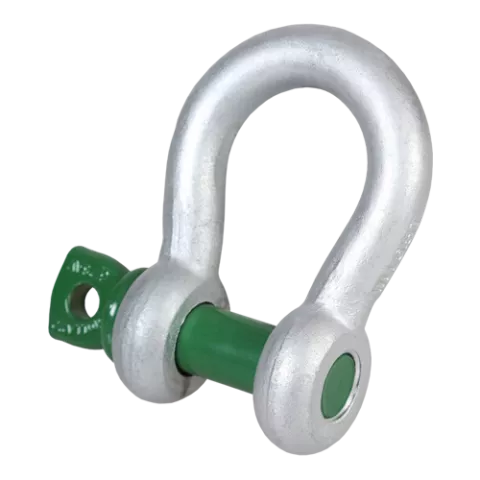

Green Pin Bow Shackle SC (Screw Pin)

The Green Pin Bow Shackle SC is a screw pin anchor shackle designed for applications requiring frequent connection and disconnection. The screw pin threads in and out by hand for fast rigging changes, while the bow shape accommodates slings from multiple directions.

Key Features

• Screw pin for quick, tool-free connection and disconnection
• Forged alloy steel body, quenched and tempered
• Hot-dip galvanized for corrosion resistance
• Bow shape allows multi-directional sling loading
• Individually proof tested at 2× WLL with certificate
• Meets EN 13889 Type A standard

Common Applications

• Temporary rigging connections requiring frequent changes
• Construction and industrial lifting
• Sling-to-hardware connections
• General purpose overhead lifting

Why Green Pin?

Green Pin screw pin shackles offer the perfect balance of convenience and safety. Van Beest's industry-leading quality control ensures every shackle meets its rated capacity with full proof test certification and traceability.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
