Extreema / EXS46 / Orange Extreema® XS Endless Round Sling / 46,000 lbs WLL

ExtreemaSKU: EXS46X02

Specifications

BrandExtreema
CoreDyneema®
CoverHMPE
Core diameter1.14 in (core)
Vertical WLL46,000
Choker WLL36,800
Vertical basket WLL92,000
Design factor ?A design factor of 5:1 means breaking strength ÷ 5 = WLL. Never lift above the WLL.5:1
D/d ratio1:1
StandardsEN 1492-2
Country of originNetherlands

Capacities are for a single sling at the stated design factor. Basket ratings assume vertical legs; reduce for sling angle. Inspect before every use per ASME B30.9. Extreema recommends fitting sling protection at every bearing point, for all slings.

Sizes & part numbers

Part numberSize / lengthVertical WLLPriceQtyAdd to cart
EXS46X022 ft46,000 lb$238.50
EXS46X033 ft46,000 lb$305.50
EXS46X044 ft46,000 lb$372.50
EXS46X066 ft46,000 lb$506.50
EXS46X088 ft46,000 lb$640.50
EXS46X1010 ft46,000 lb$741.00
EXS46X1212 ft46,000 lb$875.00
EXS46X1414 ft46,000 lb$1,009.00
EXS46X1616 ft46,000 lb$1,143.00
EXS46X1818 ft46,000 lb$1,277.00
EXS46X2020 ft46,000 lb$1,412.50
EXS46X3030 ft46,000 lb$2,100.00
Using this sling in a bridle or a basket? Work out the leg length, headroom, sling angle and tension in each leg with our free Sling Calculator — it also shows the smallest sling and the shackle that fit the lift.Leg lengths are bearing point to bearing point and do not include master links or other in-line hardware.

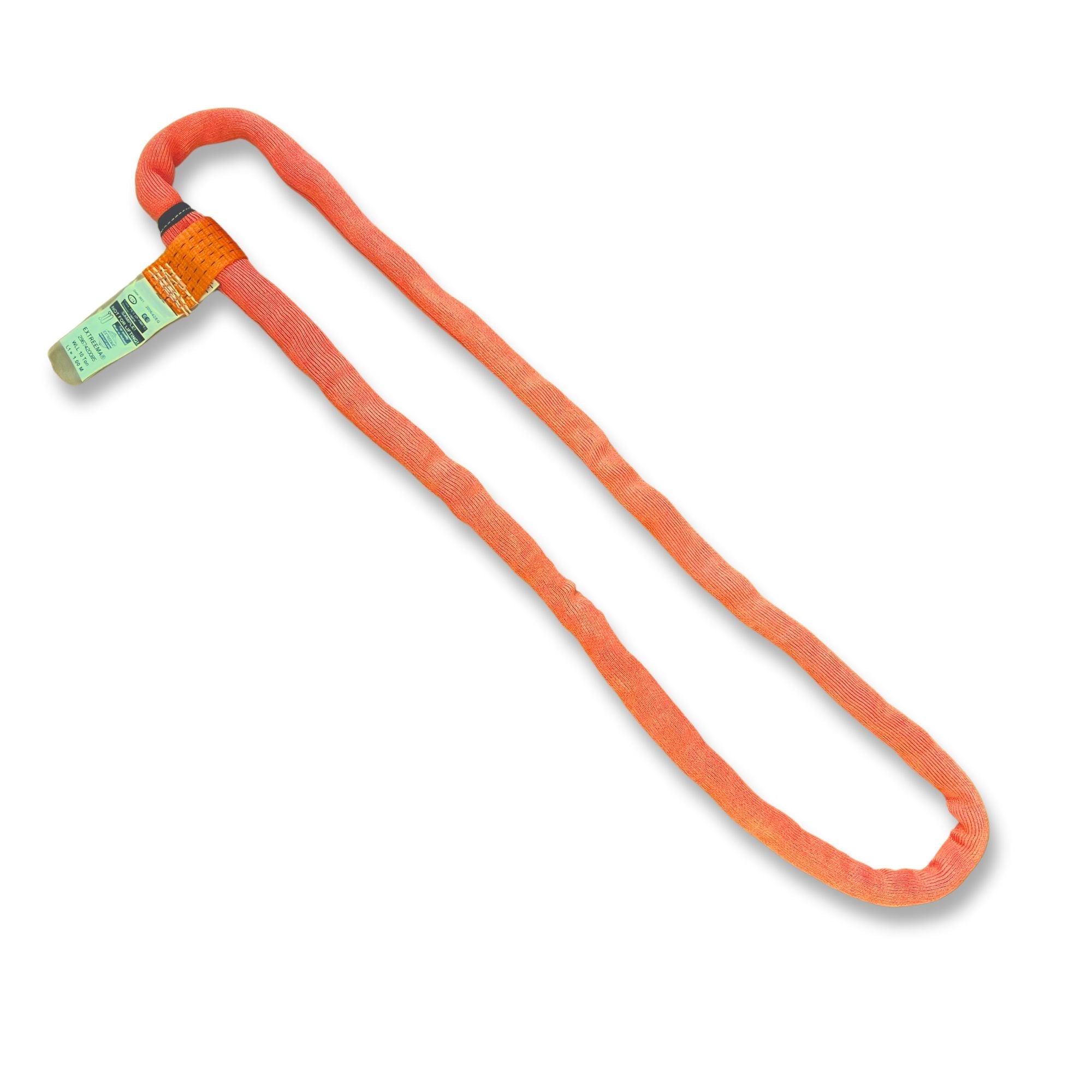

The Extreema EXS46 Orange XS Endless Round Sling (46,000 lbs WLL) is an ultra-compact, high-performance HMPE roundsling with a Dyneema® fiber core and a colored Extreema® L-series HMPE cover. The XS series packs dramatically higher capacity into a smaller, lighter package than standard polyester roundslings — with a D:d ratio of 1 and exceptional flexibility.

Key Features

  • 46,000 lbs vertical WLL (safety factor 5) — Orange color-coded
  • Dyneema® core with a seamless HMPE Extreema® L-series cover
  • Ultra-thin, ultra-light, extremely small diameter (D:d = 1)
  • Endless construction; excellent cut and abrasion resistance
  • Manufactured to EN 1492-2; includes label with user manual

Common Applications

  • Heavy overhead and offshore lifting where sling weight and bulk must be minimized
  • Confined spaces and tight rigging configurations
  • Bull rigging and leveling lifts — short lengths available

Recommended cut/abrasion protection: EP-L/C3. Note: the 1 ft length is not manufactured in the 46,000 lb size — available from 2 ft up.

Using this sling in a bridle or a basket? Work out the leg length, headroom, sling angle and tension in each leg with our free Sling Calculator — it also shows the smallest sling and the shackle that fit the lift.Leg lengths are bearing point to bearing point and do not include master links or other in-line hardware.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Recommended Sling Protection for This Sling

Abrasion, cutting and snagging retire more synthetic slings than overload ever does. These are the correct sleeve widths for this sling body — wrap-around, hook and loop closure, fitted or removed without breaking down the assembly. Shown in the 1 m (39 in) length; other lengths are on the sleeve page.

EP-C3 protective sling sleeve
Good EP-C3 — 180 mm (7.1 in)
Cordura® sleeve — abrasion & snag protection
EP-C3 / 1 m (39 in)
$201.74
EP-L3 protective sling sleeve
Better EP-L3 — 180 mm (7.1 in)
HMPE sleeve — maximum cut resistance
EP-L3 / 1 m (39 in)
$252.18
EXCP protective sling sleeve
Good EXCP
Cordura® sleeve — abrasion & snag protection
EXCP/85/500
$323.98

Sleeves are protection only — they carry no working load limit of their own and do not change the rating of the sling or hardware. Made to order, 3 to 5 week lead time. Need a different length, or corner protection instead? Email sales@slingcenter.com.

Order Sheet — 12 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Stock Qty Add
2 ft EXS46X02 $238.50 ✓ In Stock
3 ft EXS46X03 $305.50 ✓ In Stock
4 ft EXS46X04 $372.50 ✓ In Stock
6 ft EXS46X06 $506.50 ✓ In Stock
8 ft EXS46X08 $640.50 ✓ In Stock
10 ft EXS46X10 $741.00 ✓ In Stock
12 ft EXS46X12 $875.00 ✓ In Stock
14 ft EXS46X14 $1,009.00 ✓ In Stock
16 ft EXS46X16 $1,143.00 ✓ In Stock
18 ft EXS46X18 $1,277.00 ✓ In Stock
20 ft EXS46X20 $1,412.50 ✓ In Stock
30 ft EXS46X30 $2,100.00 ✓ In Stock

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.

Chat with our AI rigging specialist

Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.

Prefer to email?

Send to: sales@slingcenter.com

Include:

  • What you are lifting (shape, material, fragility)
  • Load weight (lb)
  • Length / reach needed
  • Pick points — smooth lugs, sharp edges, or a hook?
  • Environment — indoor, outdoor, heat, saltwater, chemicals?
  • Quantity and timeline
  • Your phone number if you want a callback

Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.

Why SlingCenter

American Express Apple Pay Diners ClubDiscoverGoogle Pay Mastercard PayPalShop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Enter your zip to see delivery estimates at checkout.

Go to Cart to Estimate
Extreema® XS — nothing else like it

A sling rated 30,000 lb shouldn’t take two people to carry.

  • Big roundslings and wire rope are heavy and awkward to drag around all day.
  • Fat slings are limited to the bow of a shackle — they need a wide seat to get their full rating.
  • Wire rope loses half its strength bent over a pin.
  • At this capacity nothing else is made shorter than 5–6 ft.
See every Extreema® XS size
Extreema XS EXS30 roundslingExtreema® XS3030,000 lb Polyester roundsling ENR9Polyester ENR931,000 lb Wire rope sling1-1/4″ wire rope30,000 lb
Weight, 10 ft4.4 lb20 lb29 lb + eyes
Thickness0.87″ core2-1/8″1-1/4″
Shortest length1 ft6 ft5 ft 6 in
Smallest pin for 100% rating0.87″ (D:d 1:1)1-1/2″ pin, 3-1/4″ wide seat31-1/4″ (D:d 25:1); 50% at 1:1
Seats on a shacklePin or bowBow onlyEye on pin or bow

Extreema® XS 2026 chart; Liftex ENR9 listing; WSTDA RS-1 connection-hardware table (size 9); 1-1/4″ EIPS IWRC mechanical-splice sling, Type I minimum length and D/d efficiency table. Wire rope weight 2.89 lb/ft before eyes and sleeves.
