Overview

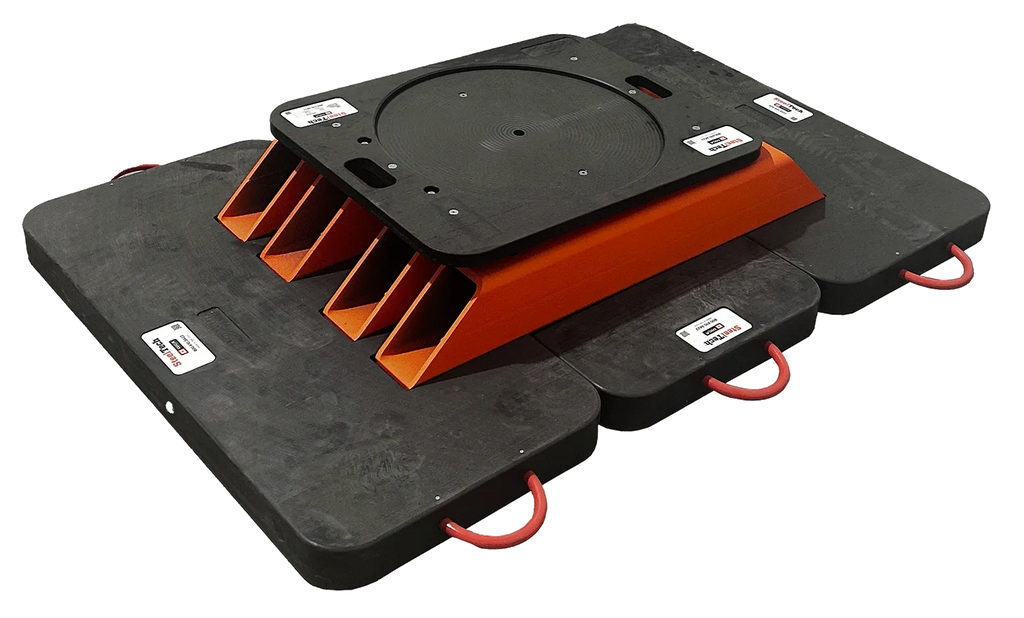

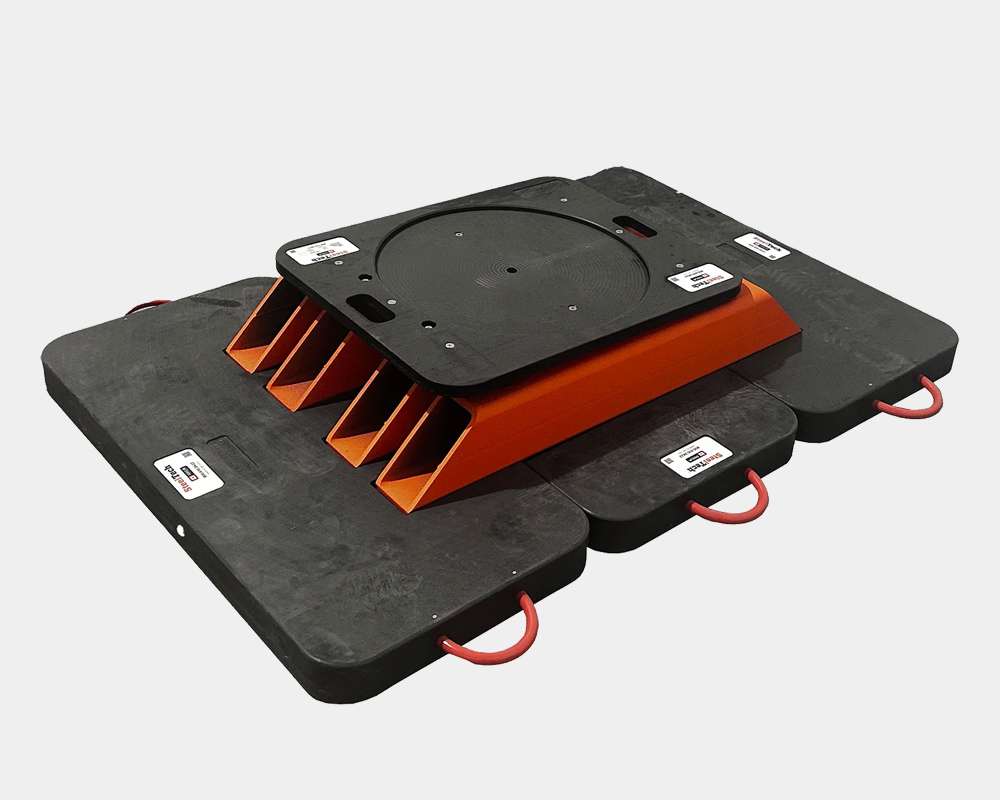

The DICA SteelTech Dunnage Pad System is a patent-pending modular steel dunnage system combining steel and DICA's engineered thermoplastic, designed for the daily challenges concrete pump operators face. Deployable by a single person to reduce ground bearing pressure, it uses the lightest weight steel and lowest-cost parts to create a unified, repeatable, long-lasting solution.
Engineered and manufactured in the USA by DICA.
Features
- One-person modular system — 3 SafetyTech base pads + 4 steel tubes + 1 locking top pad (8 parts total).
- Fully engaged system reduces ground bearing pressures efficiently.
- Designed for the small outrigger floats common on concrete pump trucks.
- Materials never rot, warp, splinter, delaminate, deteriorate or waterlog.
- Fast setup: align base pad grooves, place steel tubes (holes up), slide top pad until locking pins seat in the tube holes.
Applications
Concrete pump trucks with small outrigger floats; pump operators needing dunnage that locks together for maximum weight distribution.
Available Sizes & Configurations
Two kits: DUNST-60-13-21 (60,000 lbs / 13.5 sq ft) and DUNST-110-18-21 (110,000 lbs / 18 sq ft). See the Technical Specifications tab below for component-level details.
Lead Time
Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — Both Kits
| Part # | Total Area(sq ft) | Total Capacity(lbs) | Total Parts | Total Weight(lbs) |
|---|---|---|---|---|
| DUNST-60-13-21 | 13.5 | 60,000 | 8 | 315 |
| DUNST-110-18-21 | 18 | 110,000 | 8 | 500 |
Component Breakdown
| Kit | Top Pad w/ Steel Plate(qty 1) | Steel Tubes(qty 4) | SafetyTech Base Pads(qty 3) |
|---|---|---|---|
| DUNST-60-13-21 | 24 x 24 in, 2 in thick, 75 lbs | 0.25 in wall, 4 x 4 in, 32 in long, 30 lbs each | 18 x 36 in, 2 in thick, 40 lbs each |
| DUNST-110-18-21 | 24 x 30 in, 2 in thick, 92 lbs | 0.375 in wall, 4 x 6 in, 39.5 in long, 60 lbs each | 21 x 42 in, 3 in thick, 83 lbs each |
Specifications sourced directly from DICA manufacturer catalog. Patent-pending modular system · Engineered and manufactured in the USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
