Overview

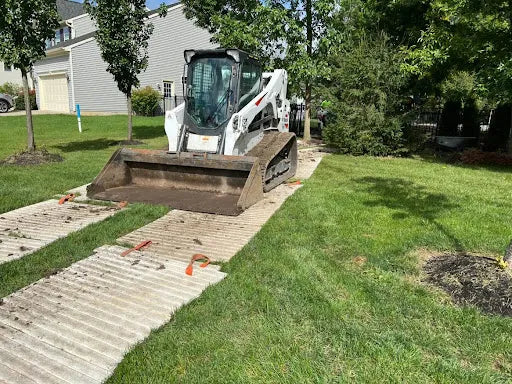

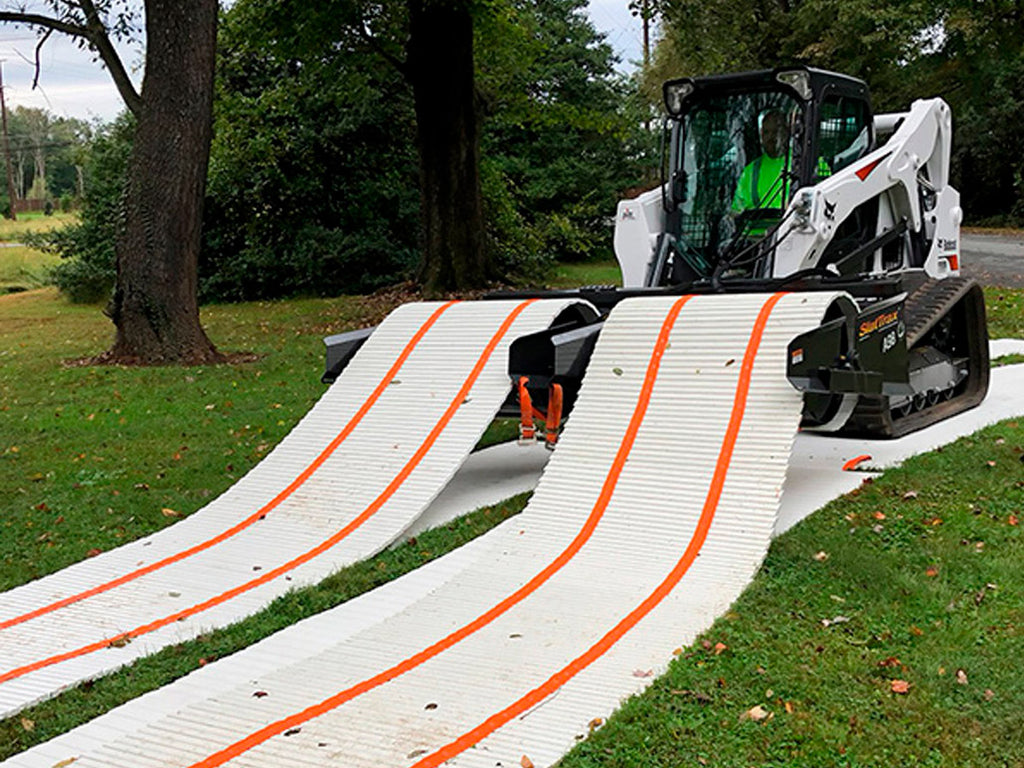

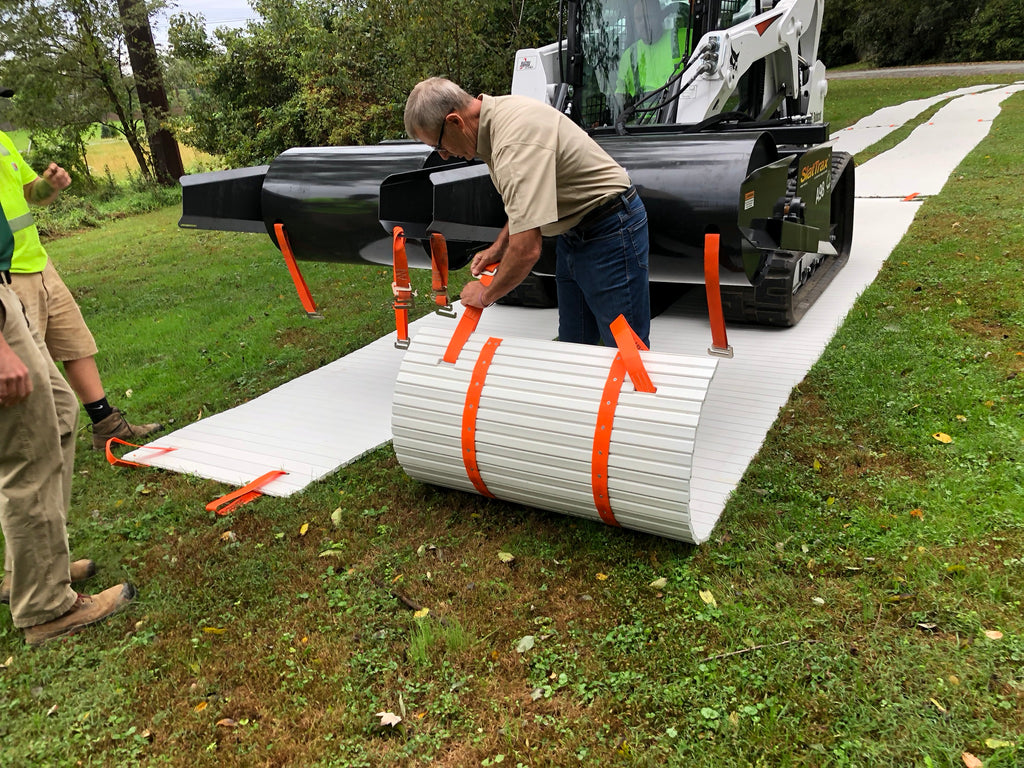

DICA SlatTrax® hydraulic spool systems deploy or retrieve 100 feet of temporary roadway in under 2 minutes with fewer crew members and less effort than plastic ground protection mats or plywood. Recycled-HDPE Trax roll out from truck- or trailer-mounted hydraulic spools — available as adjustable-spread dual-spool systems (36" and 42") or a single-spool system (48"), each including a full set of Trax. Additional rolled-format road spools are available to extend any hydraulic system.
Manufactured by DICA, USA-made.
Features
- Deploy or retrieve dual-Trax 100-ft sections in under 2 minutes.
- Adjustable-spread dual-spool design (36"/42" systems) matches roadway spread to your equipment track width.
- Sections link together for stability; grip straps for handling; individual slats easily replaced.
- Recycled HDPE — tough and highly resistant to compression-load damage; usable on grass, turf, sand, and hardscape.
- SlatTrax DIY pallet product also works with the hydraulic systems.
- One-year warranty on system equipment; financing available on all SlatTrax systems.
Applications
Roadways for equipment and personnel, lawn protection, hardscape protection, rut prevention, work platforms, and staging areas. Suitable for skid loaders, Dingos, stump grinders, bucket trucks, excavators, spider lift cranes, lifts, and tracked and wheeled equipment up to 40 tons (rubber tracks/wheels preferred; avoid steel tracks).
Available Sizes & Configurations
Three hydraulic systems (Trax included) and three additional rolled-format road spools. See the Technical Specifications tab below.
Lead Time
Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications and hydraulic attachment details with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Hydraulic System Products (Roads Included)
| System | Description | Width(in) | Single or Dual Spool | Hydraulic Attachment(lbs) | Total w/ Trax(lbs) |
|---|---|---|---|---|---|
| 36" Trax System | Adjustable Spread Dual Spool System | 36 | Dual | 1,050 | 2,850 |
| 42" Trax System | Adjustable Spread Dual Spool System | 42 | Dual | 1,075 | 3,155 |
| 48" Trax System | Single Spool System | 48 | Single | 365 | 1,476 |
Additional Road Spools for the Hydraulic System
| Part # | Description | Width(in) | Section Length(ft) | Overall Length(ft) | Weight(lbs) |
|---|---|---|---|---|---|
| SLT-36-4-25-RF | (1) Spool, 36" Rolled Format Trax for 36" Hydraulic System | 36 | 25 | 100 | 900 |
| SLT-42-4-25-RF | (1) Spool, 42" Rolled Format Trax for 42" Hydraulic System | 42 | 25 | 100 | 1,040 |
| SLT-48-8-12.5-RF | (1) Spool, 48" Rolled Format Trax for 48" Hydraulic System | 48 | 12.5 | 100 | 1,120 |
Specifications sourced directly from DICA manufacturer catalog. Recycled HDPE slats · One-year warranty on system equipment · Financing available · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
