Overview

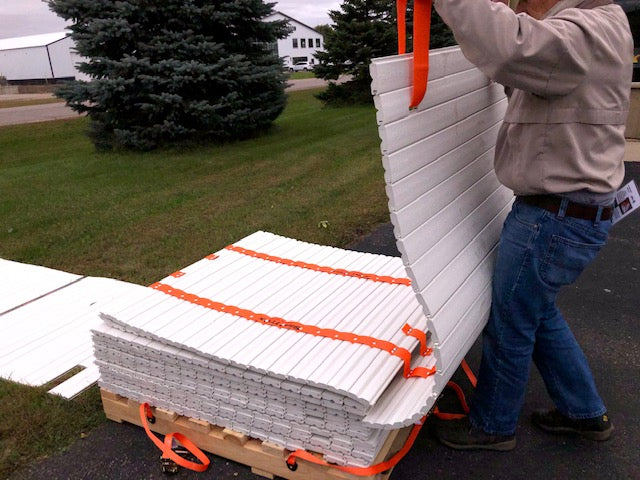

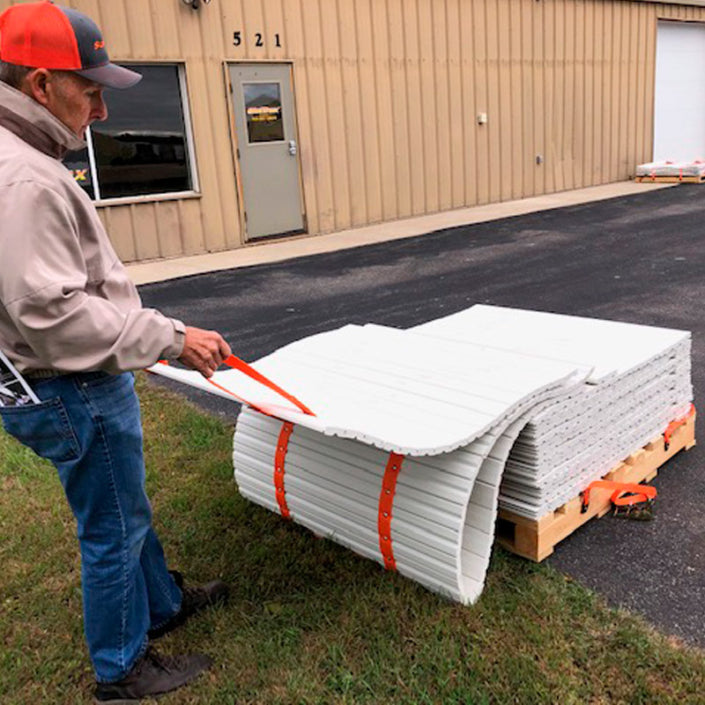

DICA SlatTrax® temporary roadways deploy or retrieve 100 feet of roadway in minutes with fewer crew members and less effort than plastic ground protection mats or plywood. Made from recycled HDPE plastic slats, the manual DIY Pallet System gives crews a complete 100-ft roadway delivered on a pallet — and the DIY product also works with SlatTrax hydraulic systems.
Manufactured by DICA, USA-made.
Features

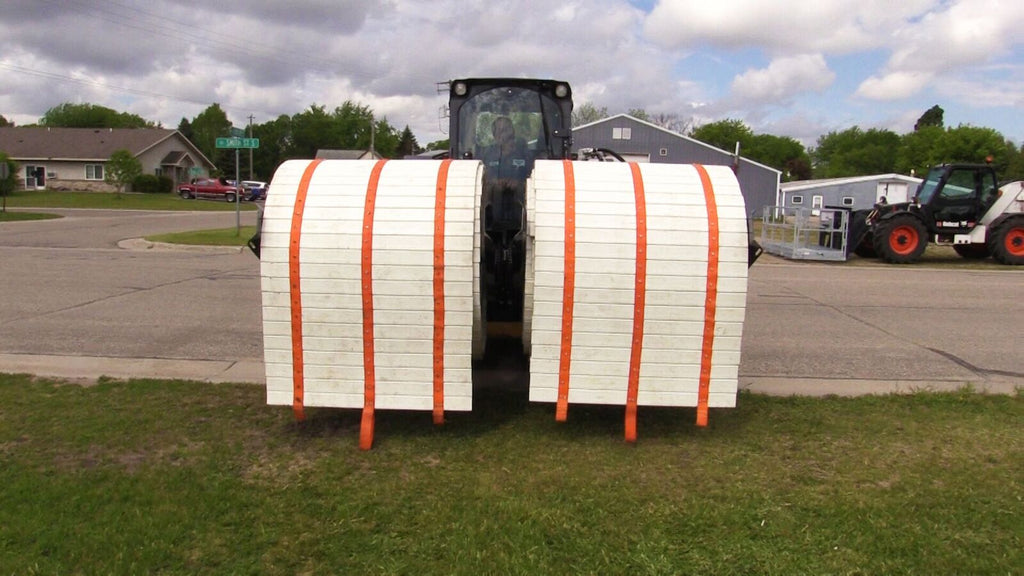

- Deploy or retrieve 100-ft sections in minutes; dual-Trax deployment in under 2 minutes with hydraulic systems.
- Recycled HDPE — tough and highly resistant to compression-load damage.
- Sections link together for stability; grip straps for handling; individual slats easily replaced.
- Usable on grass, turf fields, sand, and hardscape.
- Compatible with SlatTrax hydraulic spool systems.
- Financing available on all SlatTrax systems.
Applications
Roadways for equipment and personnel, lawn protection, hardscape protection, rut prevention, work platforms, and staging areas. Suitable for skid loaders, Dingos, stump grinders, bucket trucks, excavators, spider lift cranes, lifts, and tracked and wheeled equipment up to 40 tons (rubber tracks/wheels preferred; avoid steel tracks).
Available Sizes & Configurations
Three widths — 36", 42" and 48" — each with eight 12.5-ft sections for 100 ft overall. See the Technical Specifications tab below.
Lead Time
Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — All 3 DIY Systems
| Part # | Description | Width(in) | Section Length(ft) | Overall Length(ft) | Total Weight(lbs) |
|---|---|---|---|---|---|
| SLT-36-8-12.5-DIY-R | 36" Wide SlatTrax DIY Pallet System | 36 | 12.5 | 100 | 860 |
| SLT-42-8-12.5-DIY-R | 42" Wide SlatTrax DIY Pallet System | 42 | 12.5 | 100 | 980 |
| SLT-48-8-12.5-DIY-R | 48" Wide SlatTrax DIY Pallet System | 48 | 12.5 | 100 | 1,120 |
Specifications sourced directly from DICA manufacturer catalog. Recycled HDPE slats · Rated for tracked and wheeled equipment up to 40 tons (rubber preferred) · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
