Overview

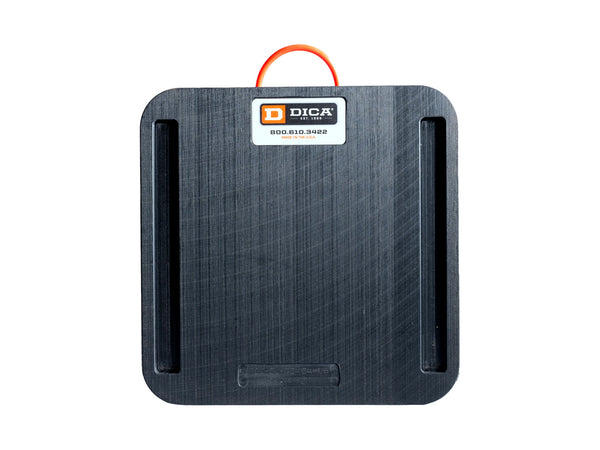

DICA ProStack Slot Lock Cribbing Pads are 24" x 24" x 1.5" SafetyTech base pads engineered with recessed slots that receive the end flanges of ProStack Slot Lock Cribbing Blocks. The result is a fully interlocked cribbing stack with a 100,000 lb working load limit and 500 psi max allowable pressure.
Manufactured by DICA, USA-made and 100% Guaranteed Unbreakable.
Features
- Recessed slots mechanically lock ProStack Slot Lock Blocks to the base pad.
- 100,000 lb working load limit with 500 psi max allowable pressure.
- Available in Black or Hi-Viz Yellow.
- Engineered thermoplastic — will not absorb water, splinter, or crack.
- TuffGrip® Handles for safe, ergonomic handling.
- 100% USA Made by DICA, family owned and operated since 1988.
Standards & Compliance
- ASME B30.5 compliant (crane outrigger pads)
- 100% Guaranteed Unbreakable by DICA
- Made in USA
Available Sizes & Configurations
See the Technical Specifications tab below for the complete size matrix.
Lead Time
Standard lead time: 1 business day. Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — Slot Lock Cribbing Pads
| Model | Color | Dimensions(W x L x H, in) | Approx Area(sq ft) | Weight(lbs) | Working Load Limit(lbs) | Max Pressure(psi) |
|---|---|---|---|---|---|---|
| PSC-SL-D2424-1.5 | Black | 24 x 24 x 1.5 | 4 | 29 | 100,000 | 500 |
| PSC-SL-D2424-1.5-Y | Hi-Viz Yellow | 24 x 24 x 1.5 | 4 | 29 | 100,000 | 500 |
Slot Lock pad designed to interlock with ProStack Slot Lock Cribbing Blocks. Standards: ASME B30.5 · 100% Guaranteed Unbreakable · Made in USA. 1 business day standard lead time.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 2 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| Black | DICA-PSC-SL-D2424-1.5 | $225.75 | ✓ In Stock | ||
| Hi-Viz Yellow | DICA-PSC-SL-D2424-1.5-Y | $271.95 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
