Overview

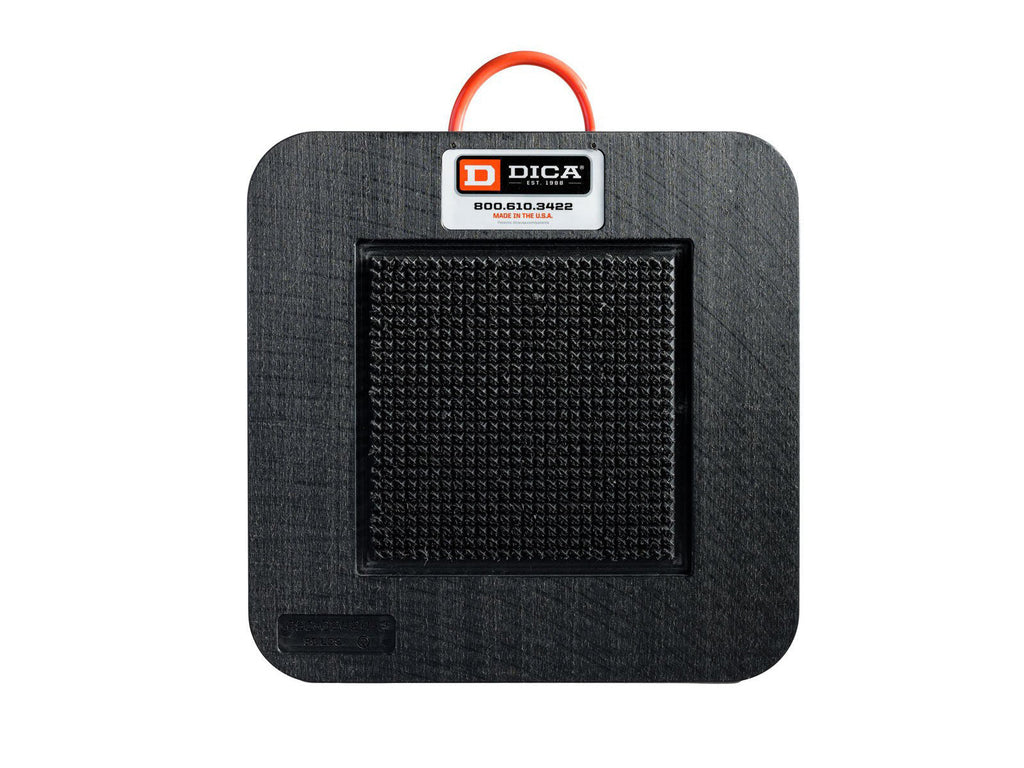

DICA ProStack Pyramid Lock Cribbing Pads are companion base pads to the ProStack 12"x12"x6" PYRAMID LOCK Cribbing Blocks. The pyramid pattern machined into the SafetyTech base pad meshes with the pyramid pattern molded into the ProStack Blocks — creating a stable, fully interlocked cribbing setup. When level, 1-4 layers of ProStack blocks can be safely stacked to meet height requirements.
Manufactured by DICA, USA-made and 100% Guaranteed Unbreakable.
Features
- Pyramid-pattern interlock with ProStack Cribbing Blocks (sold separately)
- Available as 24x24 square or 36, 42, 48-inch round
- Crush rating 500 psi (premium engineered thermoplastic)
- Working Load Limit up to 130,000 lbs
- Supports 1-4 layers of ProStack blocks when level
- Patented TuffGrip handles where applicable
- 100% Guaranteed Unbreakable by DICA
- Made in USA
Standards & Compliance
- ASME B30.5 reference compliance for crane outrigger / cribbing support
- 100% Guaranteed Unbreakable by DICA
- Made in USA
Available Sizes & Configurations
See the Technical Specifications tab below for size, weight, and load capacity matrix.
Lead Time
PSC-D2424-2: typically 9 business days. PSC-DR36-2 / DR42-2 / DR48-2: typically 19 business days. Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — ProStack Pyramid Lock Cribbing Pads
| Model | Dimensions(in) | Shape | Approx Area(sq ft) | Weight(lbs) | Working Load Limit(lbs) | Crush Rating(psi) |
|---|---|---|---|---|---|---|
| PSC-D2424-2 | 24 x 24 x 2 | Square | 4 | 38 | 80,000 | 500 |
| PSC-DR36-2 | 36 dia. x 2 | Round | 7 | 68 | 100,000 | 500 |
| PSC-DR42-2 | 42 dia. x 2 | Round | 9.5 | 92 | 115,000 | 500 |
| PSC-DR48-2 | 48 dia. x 2 | Round | 12.5 | 120 | 130,000 | 500 |
Pyramid pattern interlocks with ProStack Cribbing Blocks (sold separately) to create a stable cribbing setup. Standards: 100% Guaranteed Unbreakable · Made in USA. Lead time: PSC-D2424-2 typically 9 business days; round models 19 business days.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 4 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 24" x 24" x 2" (Square) | PSC-D2424-2 | $305.55 | ✓ In Stock | ||
| 36" diameter x 2" (Round) | PSC-DR36-2 | $651.00 | ✓ In Stock | ||
| 42" diameter x 2" (Round) | PSC-DR42-2 | $905.10 | ✓ In Stock | ||
| 48" diameter x 2" (Round) | PSC-DR48-2 | $1,025.85 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
