Overview

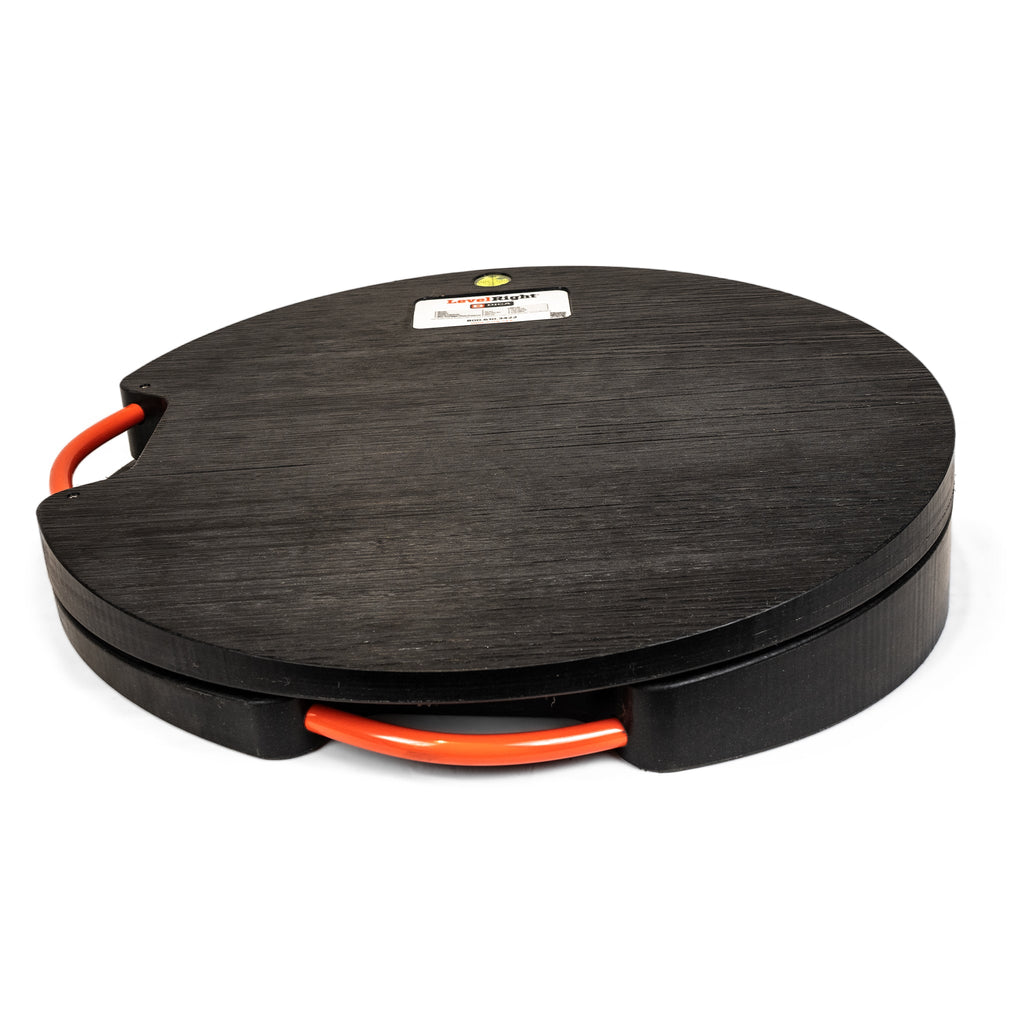

The DICA LevelRight is a patent-pending rotating leveling pad designed to compensate for uneven ground conditions under a crane or aerial-lift outrigger. The rotating top deck adjusts to the angle of the outrigger float, distributing load evenly and reducing the risk of point-loading the pad surface.
Manufactured by DICA, USA-made and 100% Guaranteed Unbreakable.
Features
- Patent-pending rotating top-deck leveling adjustment
- Compensates for uneven ground beneath the outrigger float
- Four diameters: 12", 24", 30", 35"
- Rated capacity up to 450,000 lbs
- Designed for use with other supporting cribbing materials
- Made in USA
- 100% Guaranteed Unbreakable by DICA
Standards & Compliance
- ASME B30.5 reference compliance for crane outrigger support
- 100% Guaranteed Unbreakable by DICA
- Made in USA
Available Sizes & Configurations
See the Technical Specifications tab below for diameter, weight, capacity, and max outrigger float pressure.
Lead Time
Typically 1 business day for stock sizes. Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — LevelRight Adjustable Leveling Pad — Specifications
| Model | Diameter x Height(in) | Approx Area(sq ft) | Weight(lbs) | Rated Capacity(lbs) | Max Outrigger Float Pressure(psi) |
|---|---|---|---|---|---|
| LRST-12 | 12 x 3 | 0.75 | 13 | 350,000 | 800 |
| LRST-24 | 24 x 4 | 3 | 50 | 350,000 | 800 |
| LRST-30 | 30 x 4 | 5 | 86 | 450,000 | 1,000 |
| LRST-35 | 35 x 4 | 7 | 120 | 450,000 | 1,000 |
Patent-pending rotating leveling adjustment. Standards: ASME B30.5 reference compliance · 100% Guaranteed Unbreakable · Made in USA. Typically 1 business day lead time for stock sizes.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
