Overview

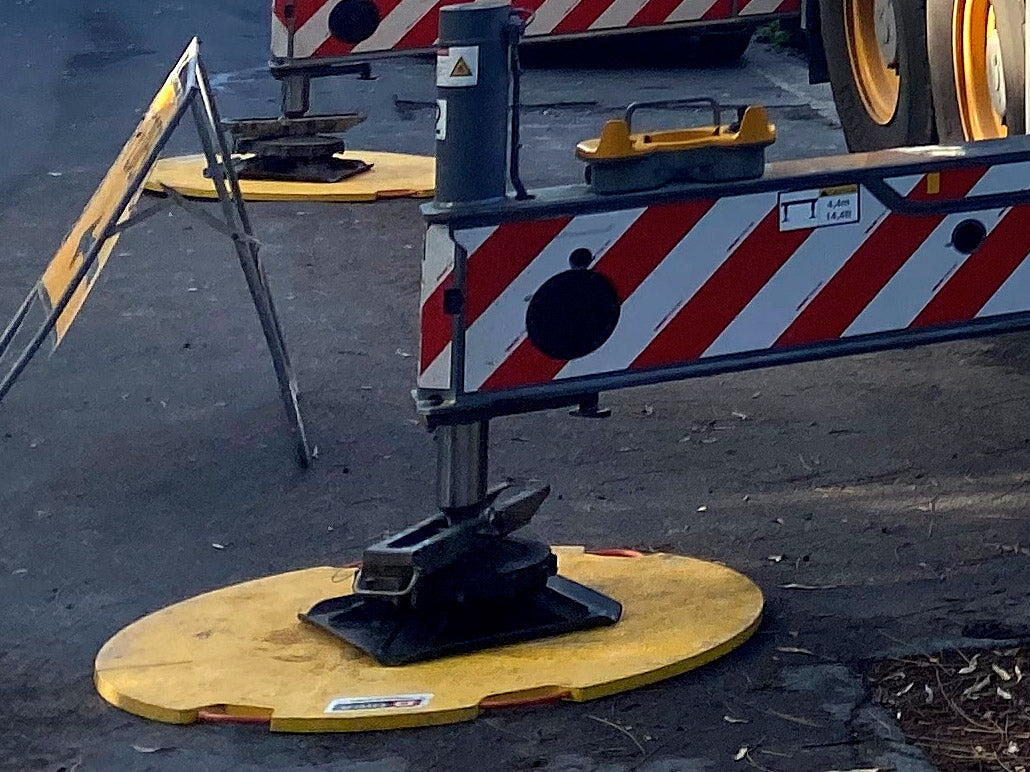

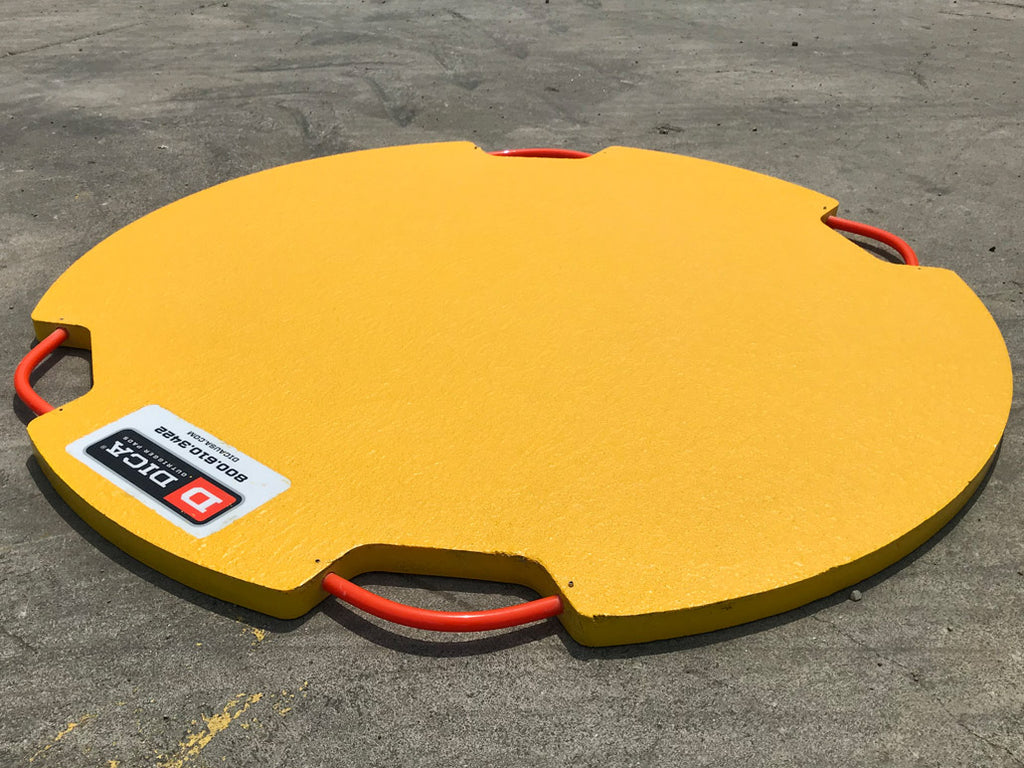

The DICA FiberTech Round Outrigger Pad is designed to be moved by hand while providing greater rigidity at a lower overall pad weight. Built with 13+ layers of quad axial continuous glass fibers and vinyl ester resin, FiberTech pads deliver exceptional structural strength and stiffness to distribute outrigger loads over larger areas. A one-inch thick FiberTech pad weighs 25% less than a three-inch thick SafetyTech pad of the same area and provides the same load distribution performance.
Manufactured by DICA, USA-made.
Features
- Up to 600 psi crush rating and working load limits up to 170,000 lbs.
- FRP construction (vinylester polymer reinforced with fiberglass) — non-conductive.
- Recessed TuffGrip® Handles and industrial grade safety texturing standard.
- Easy to clean; does not absorb bacteria or pollutants — eliminates site-to-site contamination.
- 20+ year service life; unaffected by fluids, chemicals, or UV; will not rust or degrade in extreme heat, cold, or maritime environments.
- Operating temperature range: -40°F to 131°F (-40°C to +55°C).
Applications

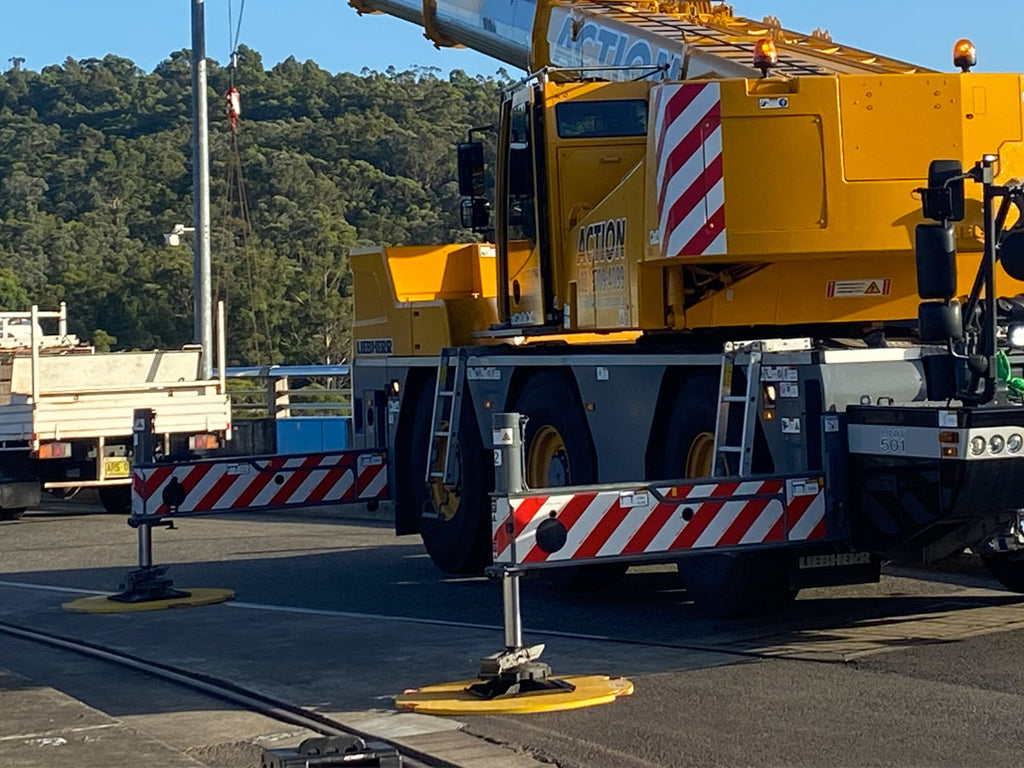

Concrete pump trucks, aerial lifts, digger derricks, boom trucks, self-erecting tower cranes, mobile substations, rock crushers, scaffolding, service trucks, tow trucks, forestry trucks, well drilling trucks, knuckle boom cranes, and carrier-mounted tower cranes. Typical use: medium-sized equipment with outrigger reaction forces up to 100,000 lbs.
Available Sizes & Configurations
Three round models — 36", 42" and 48" diameter, all 1" thick. See the Technical Specifications tab below for dimensions, weight, working load limit, and crush rating per model.
Lead Time
Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — All 3 Models
| Model | Diameter(in) | Thickness(in) | Approx Area(sq ft) | Weight(lbs) | Crush Rating(psi) | Working Load Limit(lbs) |
|---|---|---|---|---|---|---|
| FTR36-1 | 36 | 1 | 7 | 75 | 600 | 130,000 |
| FTR42-1 | 42 | 1 | 9.5 | 105 | 600 | 150,000 |
| FTR48-1 | 48 | 1 | 12.5 | 140 | 600 | 170,000 |
Dimensions sourced directly from DICA manufacturer catalog. Crush Rating = maximum allowable pressure; Working Load Limit = maximum allowable load based on the application. Operating range -40°F to 131°F · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
