Overview

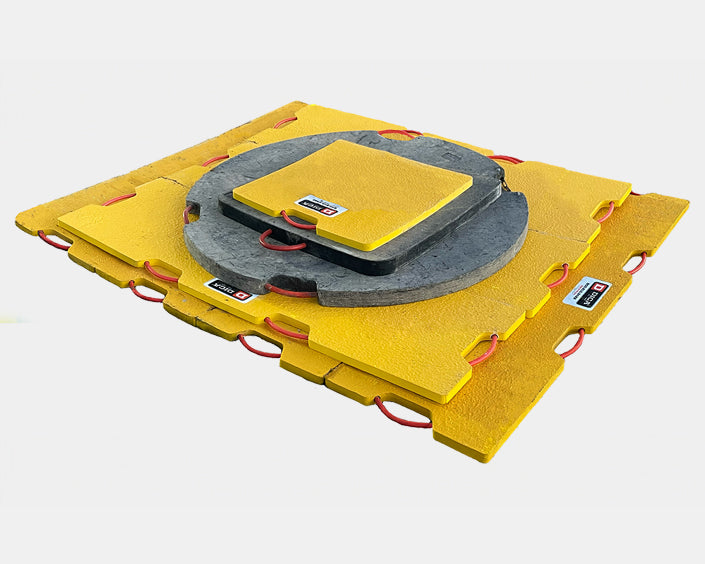

DICA FiberTech® MultiPad Systems are engineered multi-pad support systems for pump operators (concrete pump trucks and cranes). Individual FiberTech pads are assembled by hand on site to increase set-up strength, stiffness, and effective bearing area — no secondary equipment required. Built with a minimum of 13 layers of quadaxial fiberglass fabric and optimized for component weight, storage, and handling.
Manufactured by DICA, USA-made.
Features
- Six standard configurations, 12–30 sq ft of effective bearing area.
- Rated for Maximum Outrigger Reaction Forces (MORF) of 60,000 to 110,000 lbs.
- Hand-deployable — assembled on site without secondary equipment.
- TuffGrip® Handles and industrial grade safety texturing standard.
- FRP will not absorb moisture, gain weight, crack, rot or deteriorate — part lifespan measured in decades.
- Custom configurations available — ask when requesting a quote.
System Components
Systems are built from these FiberTech components: FT1848-1-S (70 lbs), FT1848-1.5-S (105 lbs), FT1860-1-S (85 lbs), FT1860-1.5-S (130 lbs), D2424-2-CR top pad (36 lbs), and FTR36-1 round pad. Note: MPS-24-90, MPS-24-110 and MPS-30-110 use a customer-provided top layer.
Applications

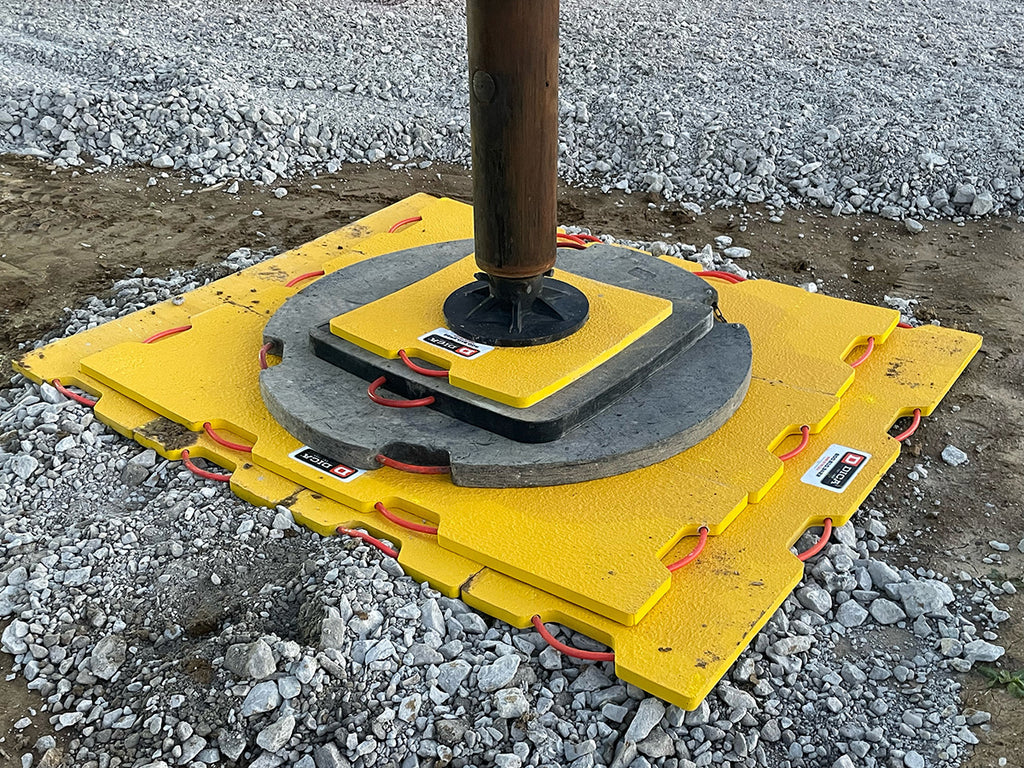

Concrete pump trucks and cranes (outrigger support), plus other heavy equipment requiring stable outrigger support on various or uneven ground conditions, in all weather.
Available Sizes & Configurations
Six standard systems — MPS-12-60 through MPS-30-110. See the Technical Specifications tab below for the layer-by-layer build of each system.
Lead Time
Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications and configuration with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — All 6 Systems
| Model | System(sq ft) | Rated Capacity(lbs MORF) | Top Layer | Layer 3 | Layer 2 | Layer 1 (Bottom) | Total Weight(lbs) |
|---|---|---|---|---|---|---|---|
| MPS-12-60 | 12 | 60,000 | D2424-2-CR | — | — | FT1848-1-S (2) | 176 |
| MPS-18-75 | 18 | 75,000 | D2424-2-CR | — | FT1848-1-S (2) | FT1848-1-S (3) | 491 |
| MPS-22-85 | 22.5 | 85,000 | D2424-2-CR | — | FT1848-1-S (2) | FT1860-1-S (3) | 431 |
| MPS-24-90 | 24 | 90,000 | Customer Provided | FTR36-1 | FT1860-1-S (2) | FT1848-1-S (4) | 530 |
| MPS-24-110 | 24 | 110,000 | Customer Provided | FTR36-1 | FT1860-1.5-S (2) | FT1848-1.5-S (4) | 760 |
| MPS-30-110 | 30 | 110,000 | Customer Provided | FTR36-1 | FT1848-1.5-S (3) | FT1860-1.5-S (4) | 890 |
Component key: FT1848-1-S (70 lbs) · FT1848-1.5-S (105 lbs) · FT1860-1-S (85 lbs) · FT1860-1.5-S (130 lbs) · D2424-2-CR (36 lbs) · FTR36-1 (80 lbs). Specifications sourced directly from DICA manufacturer catalog. Custom configurations available. Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
