Overview

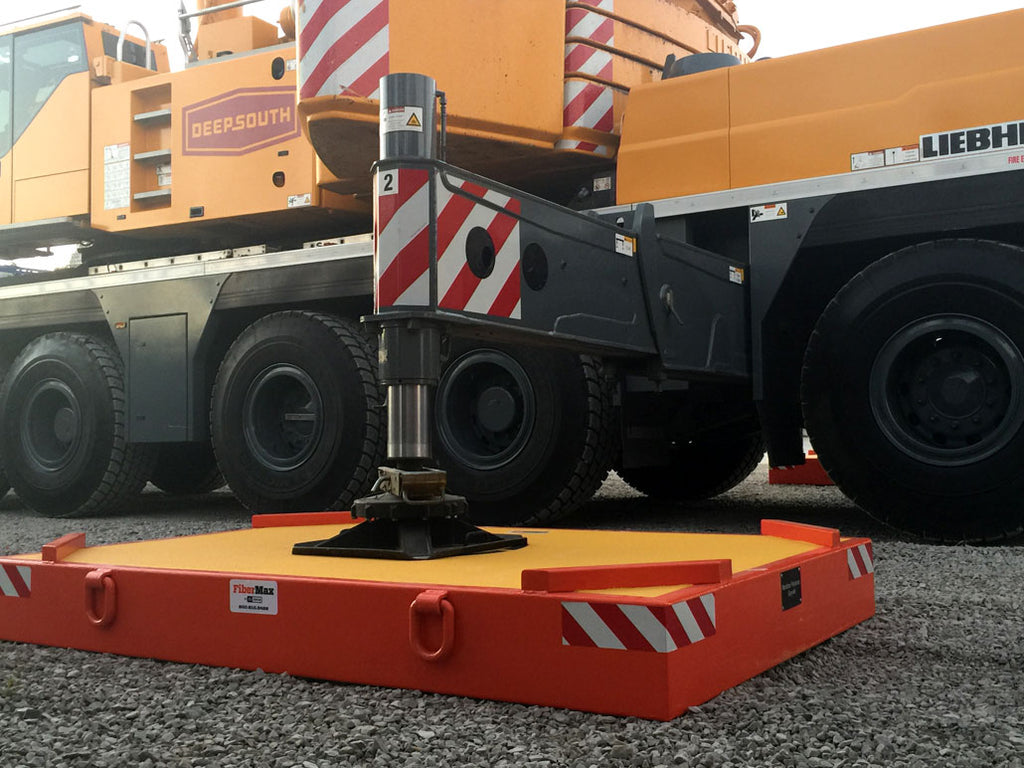

DICA FiberMax® Crane Pads provide similar strength and stiffness characteristics as steel crane mats but weigh up to 60% less — lowering transportation costs and speeding setup and teardown. Made from Fiber Reinforced Polymer (FRP) with a patented unibody, bi-directional internal core that distributes load in all directions. Designed to support and stabilize mobile cranes up to 500 tons, with crush ratings up to 1,000 psi and rated capacities up to 400,000 lbs.
Manufactured by DICA, USA-made.
Features
- Crush ratings up to 1,000 psi; rated capacities up to 400,000 lbs; supports cranes up to 500 tons.
- Up to 60% lighter than steel — sandwich FRP construction with bi-directional shear webs and closed-cell foam core.
- Unaffected by fluids, chemicals, or UV; will not rust, rot, or degrade; minimum 20+ year service life.
- Nonabsorbent and easy to clean — eliminates site-to-site contamination.
- D-Rings installed standard; multiple lifting and hardware options available.
- 12" FiberMax approved for Liebherr LTM 1500-8.1 when reaction forces are 400,000 lbs or less.
Hardware & Accessories (available at quote)
- FO-D — D-Ring
- FO-LL — Lifting Lugs
- FO-CLP — Crosby D-Rings (Crosby Lifting Points)

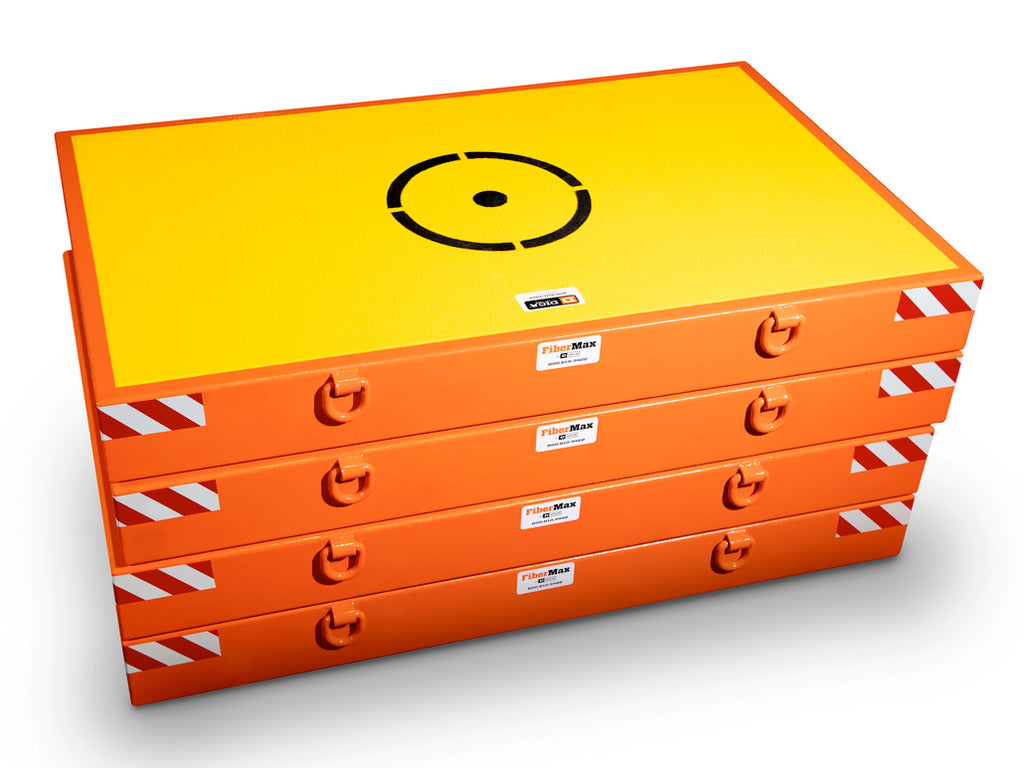

- FO-MDLP — Stack & Pin System
- FO-STCC — Corner Cribbing
- FO-STCC-HD — Corner Cribbing for HD Pads
Hardware and accessories are quoted with the pads — mention the items you need when requesting a quote.
Applications

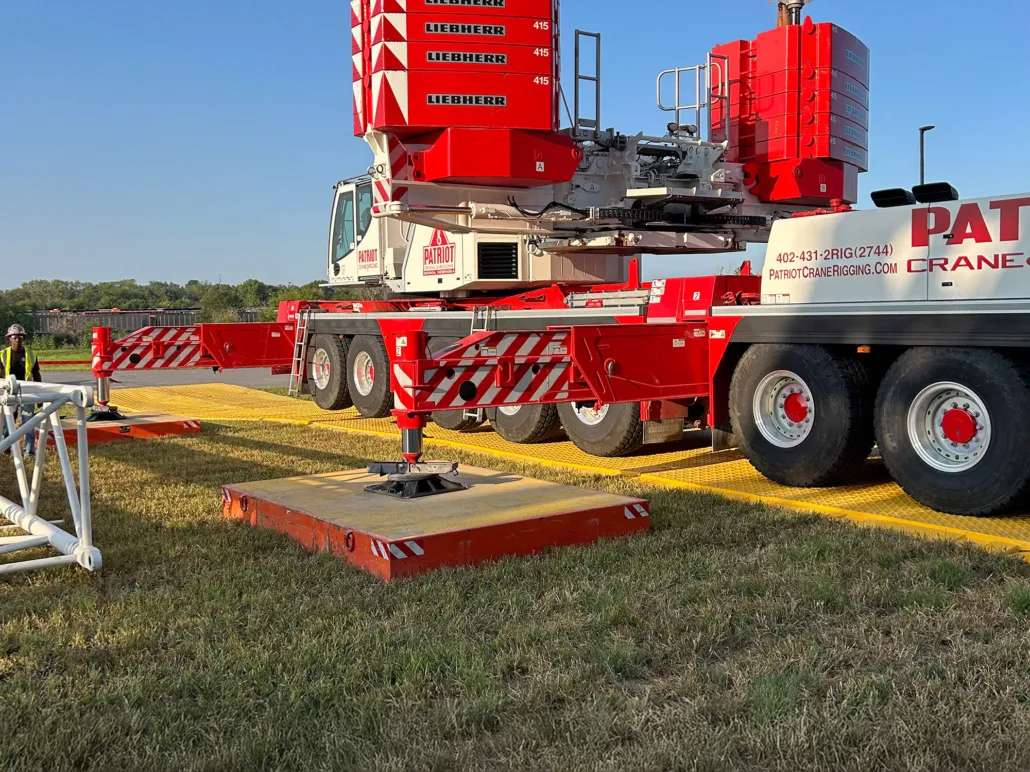

Hydraulic mobile cranes, all-terrain cranes, self-erecting tower cranes, concrete pump trucks, larger aerial lifts and digger derricks, mobile substations, rock crushers, and carrier-mounted tower cranes. Typical use: medium-to-large equipment with reaction forces of 100,000 lbs and greater.
Available Sizes & Configurations
13 models across four thicknesses — 6", 6.75" (HD), 10" and 12". Stock items: FM5x4x6, FM6x4x6, FM7x5x6-HD, FM8x5x10. See the Technical Specifications tab below for the complete size matrix.
Lead Time
Stock items typically ship fastest; all lead times confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications and hardware options with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — All 13 Models
| Model | Dimensions(W x L x H) | Approx Area(sq ft) | Weight(lbs) | Crush Rating(psi) | Max Rated Capacity(lbs) |
|---|---|---|---|---|---|
| FM5x4x6* | 5 ft x 4 ft x 6 in | 20 | 520 | 500 | 175,000 |
| FM6x4x6* | 6 ft x 4 ft x 6 in | 24 | 600 | 500 | 175,000 |
| FM6x5x6 | 6 ft x 5 ft x 6 in | 30 | 775 | 500 | 175,000 |
| FM7x5x6 | 7 ft x 5 ft x 6 in | 35 | 825 | 500 | 175,000 |
| FM6x5x6-HD | 6 ft x 5 ft x 6.75 in | 30 | 850 | 600 | 250,000 |
| FM7x5x6-HD* | 7 ft x 5 ft x 6.75 in | 35 | 1,030 | 600 | 250,000 |
| FM8x5x6-HD | 8 ft x 5 ft x 6.75 in | 40 | 1,150 | 600 | 250,000 |
| FM8x5x10* | 8 ft x 5 ft x 10 in | 40 | 1,400 | 1,000 | 325,000 |
| FM8x6x10 | 8 ft x 6 ft x 10 in | 48 | 1,700 | 1,000 | 325,000 |
| FM9x6x10 | 9 ft x 6 ft x 10 in | 54 | 1,800 | 1,000 | 325,000 |
| FM9x7x10 | 9 ft x 7 ft x 10 in | 63 | 2,200 | 1,000 | 325,000 |
| FM9x6x12 | 9 ft x 6 ft x 12 in | 54 | 1,950 | 1,000 | 400,000 |
| FM10.5x7.5x12 | 10.5 ft x 7.5 ft x 12 in | 79 | 2,800 | 1,000 | 400,000 |
* = Stock item. Dimensions sourced directly from DICA manufacturer catalog. Crush Rating = maximum allowable pressure; Maximum Rated Capacity = maximum force that can be applied to the pad for warranty purposes. Hardware/accessories: FO-D D-Ring, FO-LL Lifting Lugs, FO-CLP Crosby D-Rings, FO-MDLP Stack & Pin System, FO-STCC Corner Cribbing, FO-STCC-HD Corner Cribbing for HD Pads. Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
