Overview

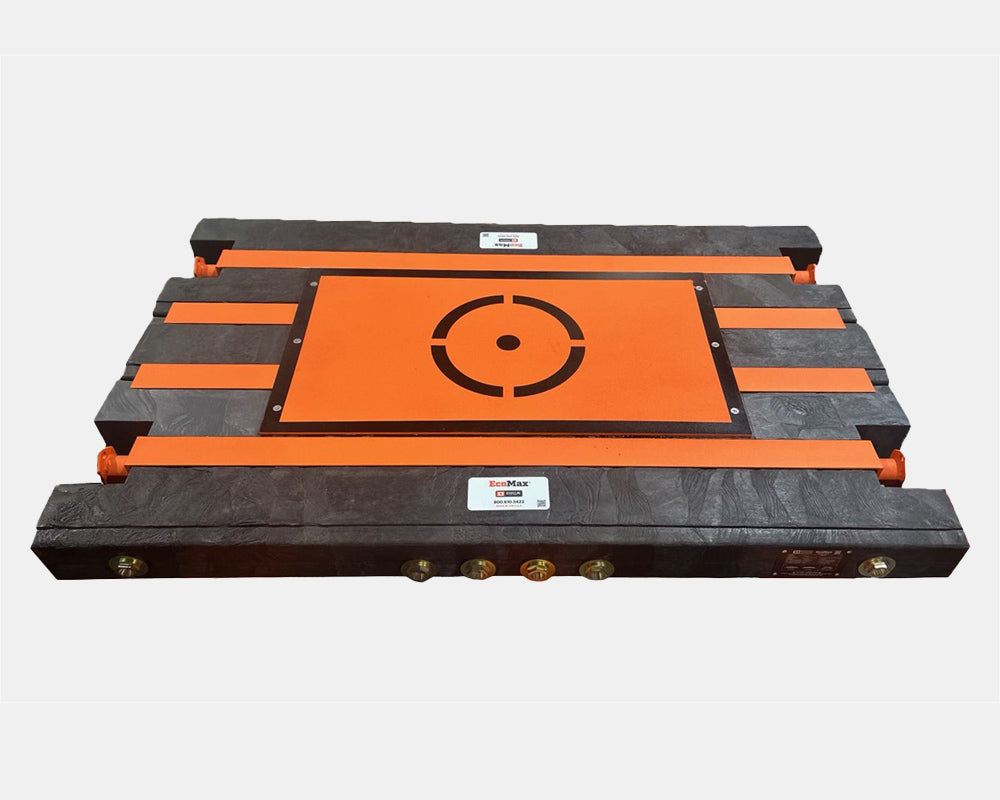

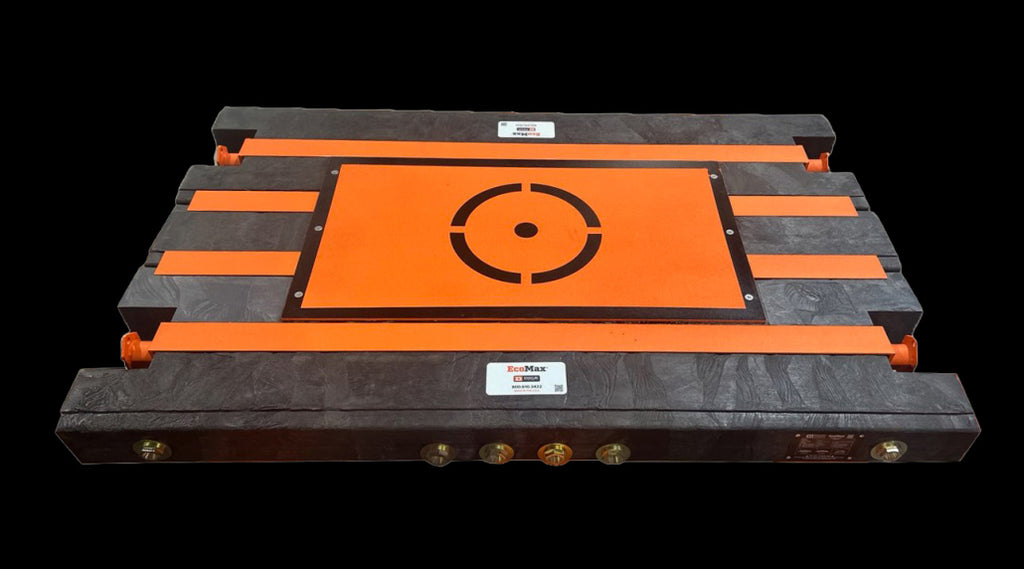

DICA EcoMax® Crane Pads combine the stiffness of steel I-beams with the durability of fiber-reinforced composite (FRC) material in a patented design optimized for cost, durability and performance. Made in the USA using recycled plastics, with steel tie rods and through-bolts for structural integrity and optimal load distribution.
Manufactured by DICA, USA-made.
⚠️ Critical Load Rating & Bridging Restrictions
Three distinct load ratings apply depending on the support configuration. Only Fully Supported and perpendicular Bridged use are approved.
- Fully Supported: 160,000 lbs rated capacity / 400 psi maximum pressure.
- Bridged — supporting surface perpendicular to I-beams: 80,000 lbs / 300 psi.
- Bridged — supporting surface parallel to I-beams: PROHIBITED (0 lbs — not approved). Never use the pad when the supporting surface runs parallel to the internal I-beams.
Outrigger floats must remain within the designated operating area: 45" x 25" on the EM24-6.
Features
- Patented steel-composite design — steel I-beams + FRC + steel tie rods + recycled plastics.
- Easy setup and teardown — deploy or retrieve in minutes.
- Through-bolt positioning for optimal load distribution; engineered to reduce ground bearing pressures.

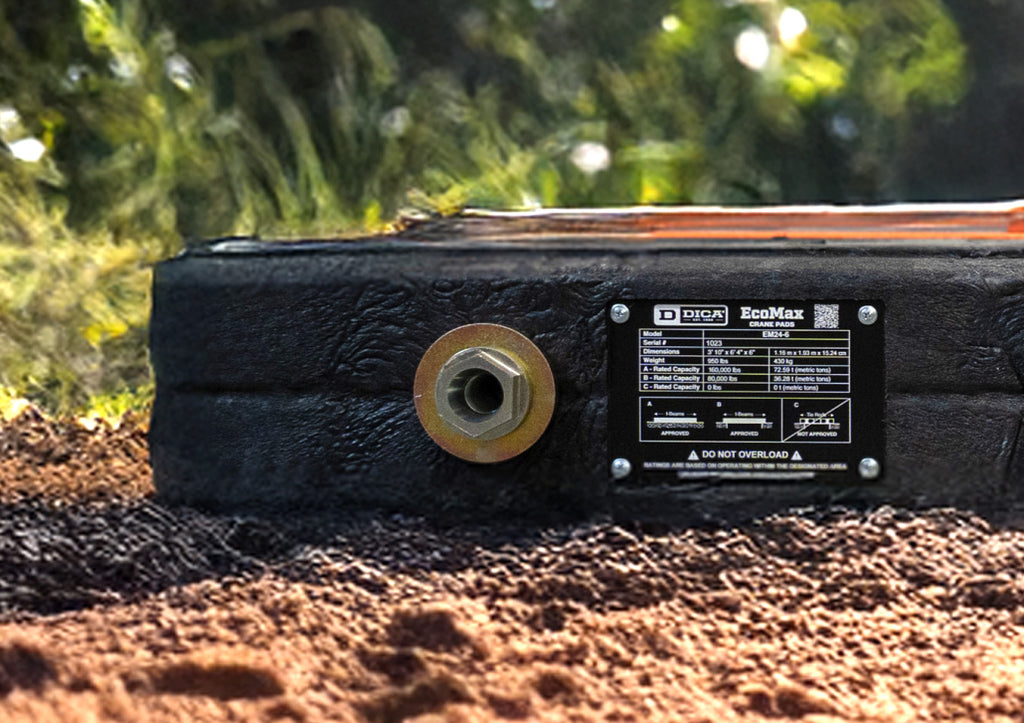

- Official DICA rating plate on every pad (certification/compliance documentation).
- Consistent performance regardless of age, usage, or environment.
Applications
Truck cranes, all-terrain cranes, self-erecting tower cranes, concrete pump trucks, and aerial lifts.
Available Sizes & Configurations
Single model EM24-6 — 3'10" x 6'4" x 6", 24 sq ft, 950 lbs. See the Technical Specifications tab below.
Lead Time
Confirmed at quote.
How to Order
Click "Request a Quote" to get current pricing, availability, and freight to your location. Our team confirms specifications with the manufacturer before order placement.
Have technical questions? Chat with our AI rigging specialist (bottom-right) or email sales@slingcenter.com.
Specifications — EcoMax EM24-6
| Specification | Value |
|---|---|
| Model | EM24-6 |
| Thickness | 6 in |
| Dimensions | 3 ft 10 in x 6 ft 4 in x 6 in |
| Approx Area | 24 sq ft |
| Weight | 950 lbs |
| Crush Rating | 400 psi |
| Fully Supported Capacity | 160,000 lbs |
| Bridged Perpendicular Capacity | 80,000 lbs (300 psi) |
| Bridged Parallel Capacity | 0 lbs — NOT APPROVED |
| Designated Operating Area | 45 in x 25 in |
| Material | Steel I-beams + fiber-reinforced composite (recycled plastics), steel tie rods |
Specifications sourced directly from DICA manufacturer catalog. Official DICA rating plate on every pad · Made in USA.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
