Manufacturer Documents
- 📄 Spec sheet (PDF)
- 📄 Catalog pages — imperial (PDF)
- 📄 Catalog pages — metric (PDF)
- ⚠ Applications & warnings (PDF)
- ↗ Manufacturer product page
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

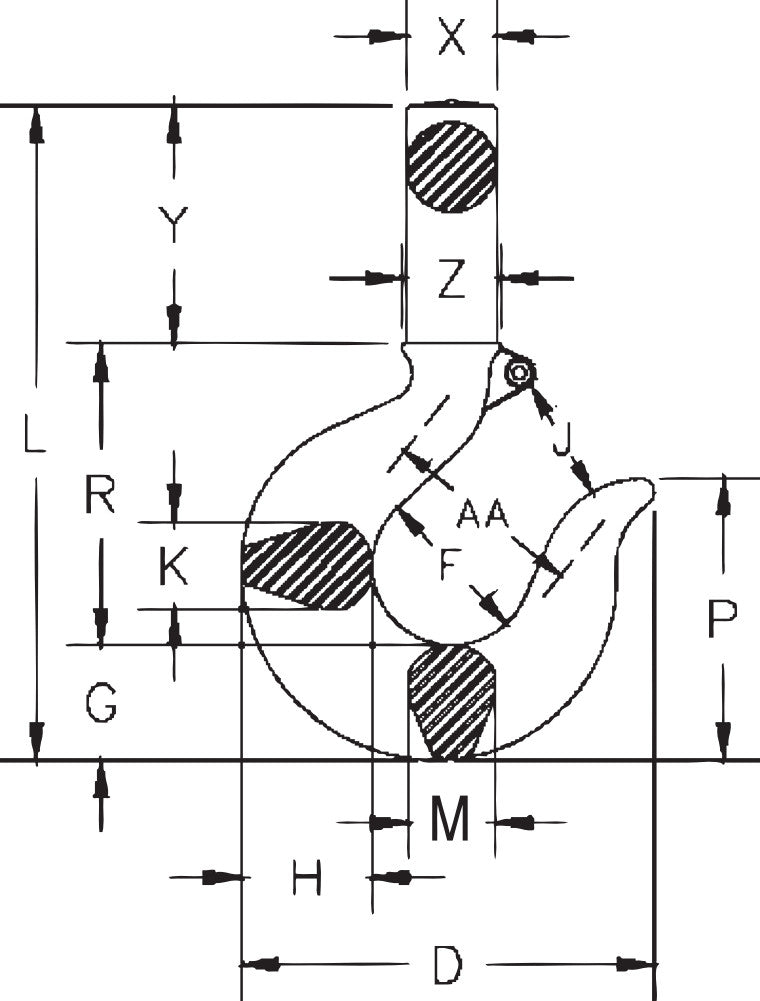

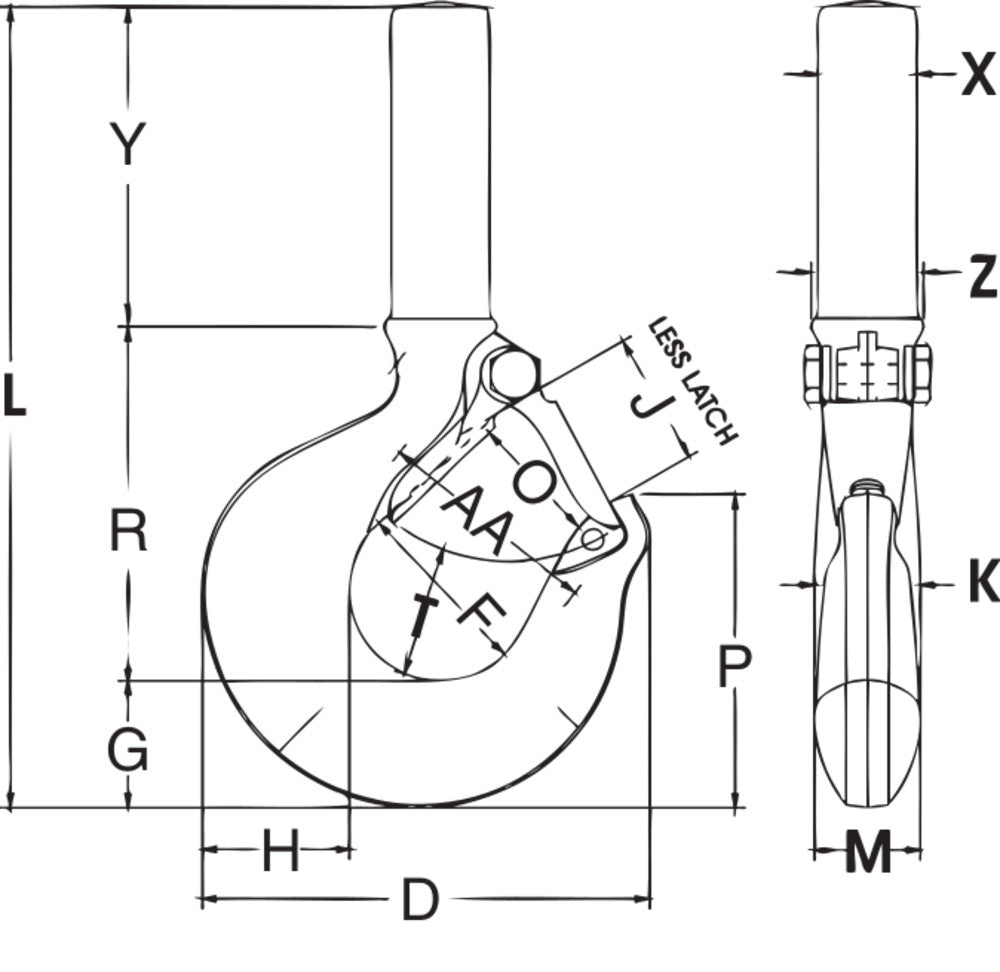

Specifications — Full Dimensions by Size
Manufacturer’s wording: “4.5:1 – 4:1 (varies by size)”
| Size | WLL AS PUBLISHED (t) | WLL 5:1(t) SlingCenter derate | Design Factor | Weight (lb)(kg) | D (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | J (in)(mm) | K (in)(mm) | L (in)(mm) | M (in)(mm) | O (in)(mm) | P (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | 1 | 0.9 | 4.5:1 | 0.670.3 | 2.8672.6 | 1.2531.8 | 0.7318.5 | 0.8120.6 | 0.9323.6 | 0.6316.0 | 5.15130.8 | 0.6316.0 | 0.9223.4 | 1.9549.5 | 1028701 |
| F | 1.5 | 1.35 | 4.5:1 | 0.980.4 | 3.1580.0 | 1.3835.1 | 0.8421.3 | 0.9423.9 | 0.9724.6 | 0.7118.0 | 5.68144.3 | 0.7118.0 | 0.9624.4 | 2.2256.4 | 1028710 |
| G | 2 | 1.8 | 4.5:1 | 1.540.7 | 3.5991.2 | 1.538.1 | 1.025.4 | 1.1629.5 | 1.0626.9 | 0.8822.4 | 6.36161.5 | 0.8822.4 | 1.0626.9 | 2.4562.2 | 1028723 |
| H | 3 | 2.7 | 4.5:1 | 1.990.9 | 3.99101.3 | 1.6341.4 | 1.1328.7 | 1.3133.3 | 1.1930.2 | 0.9423.9 | 7.13181.1 | 0.9423.9 | 1.1529.2 | 2.7870.6 | 1028732 |
| I | 5 | 4.5 | 4.5:1 | 4.111.9 | 4.84122.9 | 2.050.8 | 1.4436.6 | 1.6341.4 | 1.538.1 | 1.3133.3 | 8.63219.2 | 1.1328.7 | 1.4135.8 | 3.4788.1 | 1028741 |
| J | 7 | 6.3 | 4.5:1 | 8.093.7 | 6.27159.3 | 2.563.5 | 1.8146.0 | 2.0652.3 | 1.7845.2 | 1.6642.2 | 10.43264.9 | 1.4436.6 | 1.6942.9 | 4.57116.1 | 1028750 |
| K | 11 | 9.9 | 4.5:1 | 14.36.5 | 7.54191.5 | 3.076.2 | 2.2557.1 | 2.6366.8 | 2.4161.2 | 1.8847.8 | 12.51317.8 | 1.6341.4 | 2.2256.4 | 5.25133.3 | 1028765 |
| L | 15 | 13.5 | 4.5:1 | 22.410.2 | 8.33211.6 | 3.2582.5 | 2.5965.8 | 2.9474.7 | 2.6266.5 | 2.1955.6 | 15.97405.6 | 1.9449.3 | 2.4261.5 | 5.89149.6 | 1028792 |
| N | 22 | 19.8 | 4.5:1 | 38.417.4 | 10.38263.7 | 4.25107.9 | 3.076.2 | 3.588.9 | 3.4186.6 | 2.6968.3 | 18.15461.0 | 2.3860.5 | 3.1780.5 | 6.87174.5 | 1028801 |
| O | 30 | 24 | 4:1 | 68.130.9 | 13.63346.2 | 5.0127.0 | 3.6693.0 | 4.63117.6 | 4.0101.6 | 3.076.2 | 23.09586.5 | 3.076.2 | 3.2783.1 | 8.79223.3 | 1024803 |
| P | 37 | 29.6 | 4:1 | 14364.9 | 14.07357.4 | 5.38136.7 | 4.63117.6 | 5.0127.0 | 4.25107.9 | 3.6291.9 | 32.12815.8 | 3.1981.0 | 3.2883.3 | 11.38289.1 | 1024849 |
| S | 45 | 36 | 4:1 | 17378.5 | 15.45392.4 | 6.0152.4 | 5.12130.0 | 5.5139.7 | 4.75120.6 | 3.7294.5 | 34.12866.6 | 3.2582.5 | 3.6291.9 | 12.62320.5 | 1024885 |
| T | 60 | 48 | 4:1 | 249112.9 | 18.47469.1 | 7.0177.8 | 6.06153.9 | 6.5165.1 | 5.75146.0 | 4.44112.8 | 36.06915.9 | 3.9199.3 | 4.54115.3 | 14.81376.2 | 1024929 |
| U | 75 | 60 | 4:1 | 337152.9 | 20.62523.7 | 7.75196.8 | 6.77172.0 | 7.25184.1 | 6.5165.1 | 5.25133.3 | 41.151045.2 | 4.25107.9 | 4.92125.0 | 16.52419.6 | 1024983 |
| W | 100 | 80 | 4:1 | 552250.4 | 22.94582.7 | 6.81173.0 | 8.71221.2 | 9.88251.0 | 5.88149.4 | 5.5139.7 | 42.121069.8 | 5.5139.7 | 4.48113.8 | 17.37441.2 | 1025027 |
| X | 150 | 120 | 4:1 | 707320.7 | 24.34618.2 | 6.75171.4 | 9.37238.0 | 10.94277.9 | 6.0152.4 | 6.0152.4 | 45.751162.0 | 6.0152.4 | 4.61117.1 | 17.68449.1 | 1025063 |
| Y | 200 | 160 | 4:1 | 879398.7 | 26.68677.7 | 7.5190.5 | 10.0254.0 | 11.79299.5 | 6.6167.6 | 7.0177.8 | 50.51282.7 | 7.0177.8 | 4.96126.0 | 19.74501.4 | 1025081 |
| Z | 300 | 240 | 4:1 | 1284582.4 | 30.13765.3 | 9.5241.3 | 10.94277.9 | 12.91327.9 | 8.0203.2 | 7.25184.1 | 57.441459.0 | 7.25184.1 | 7.12180.8 | 22.69576.3 | 1025090 |
The design factor is not the same across this range. The manufacturer certifies different sizes differently, so the Design Factor column states the one that governs each size — check the size you are actually buying. The first WLL column is the manufacturer’s published figure for that size and is the rating of record, the figure marked on the product. The 5:1 column is calculated by SlingCenter from that row’s own design factor, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. Where a size is already certified at 5:1 or better, its published Working Load Limit stands unchanged and is marked as such — we never restate a Working Load Limit upward, including where the arithmetic would allow it. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

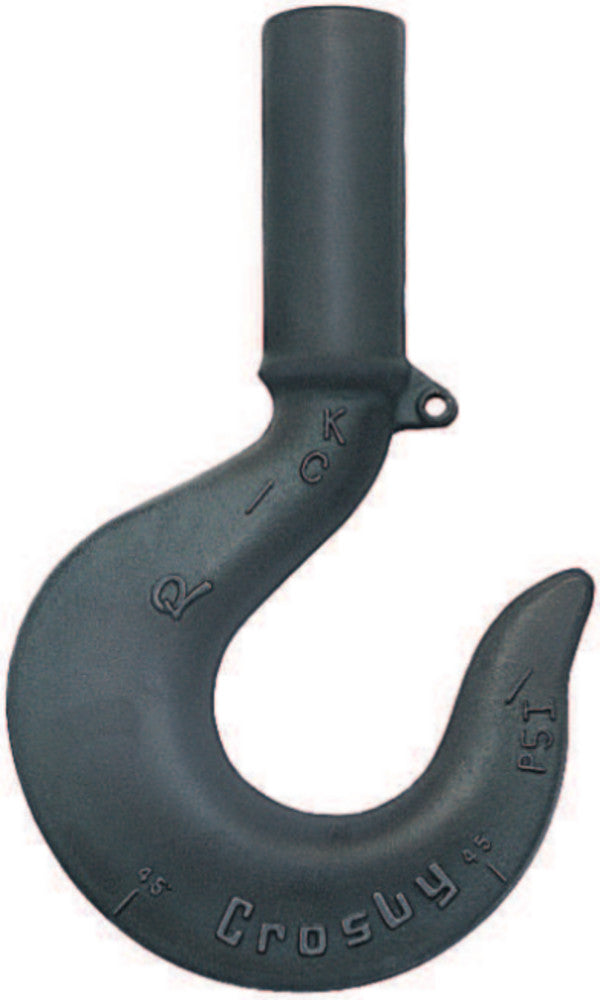

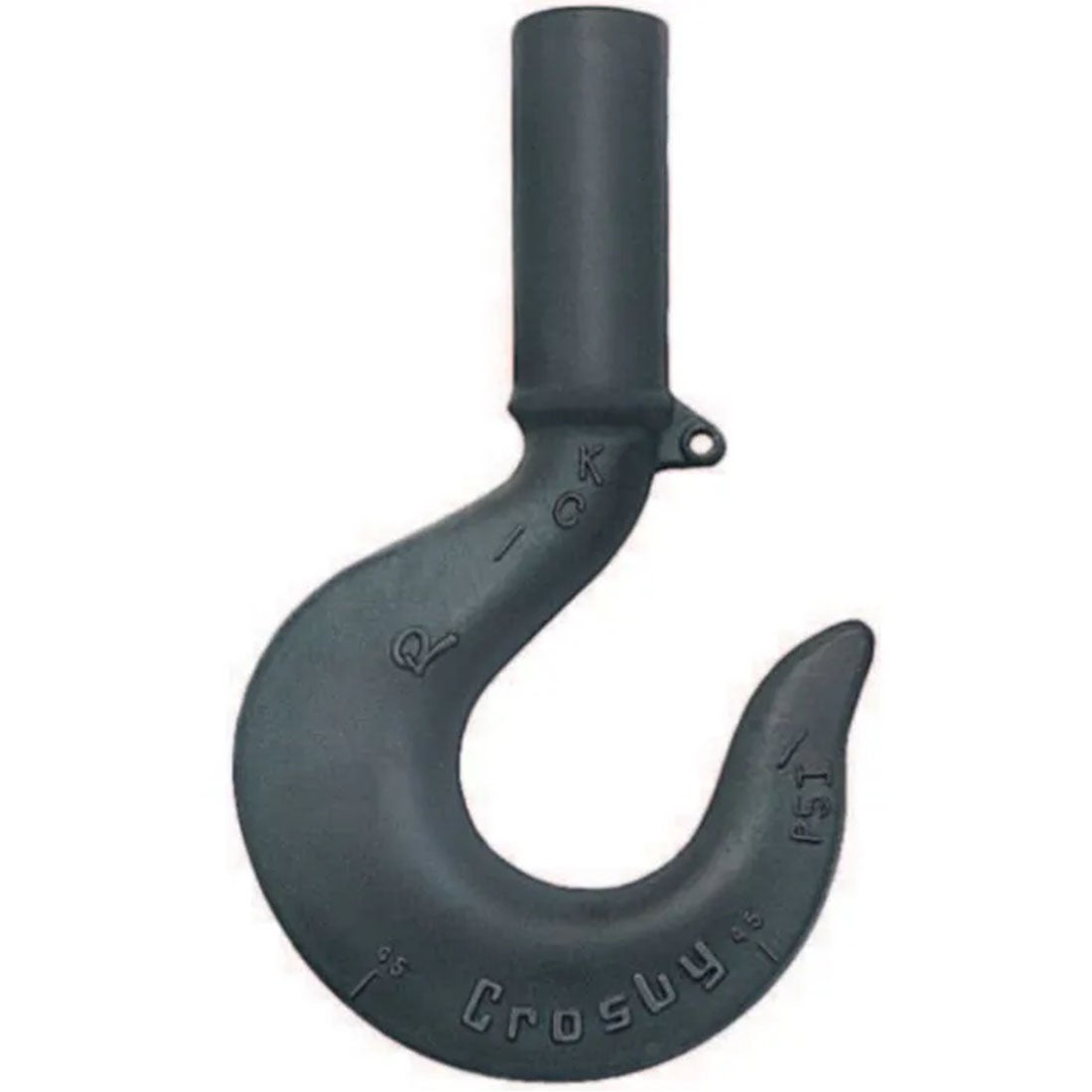

The Crosby S-319 shank hook is a versatile lifting hook with a straight shank for insertion into chain links, fittings, or custom mounting points. The forged alloy steel construction provides reliable overhead lifting performance.
Key Features
- Straight shank design for versatile mounting
- Forged alloy steel
- Available with or without safety latch
- Proof tested at 2x WLL
Common Applications
- Chain sling assemblies
- Custom rigging configurations
- Overhead lifting
Standards & Compliance
Meets ASME B30.10. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 17 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| D (WLL 1) | 1028701 | $21.16 | ✓ In Stock | ||
| F (WLL 1.5) | 1028710 | $27.10 | ✓ In Stock | ||
| G (WLL 2) | 1028723 | $32.00 | ✓ In Stock | ||
| H (WLL 3) | 1028732 | $47.00 | ✓ In Stock | ||
| I (WLL 5) | 1028741 | $78.40 | ✓ In Stock | ||
| J (WLL 7) | 1028750 | $155.20 | Quote | ||
| K (WLL 11) | 1028765 | $290.00 | Quote | ||
| L (WLL 15) | 1028792 | $399.00 | Quote | ||
| N (WLL 22) | 1028801 | $795.00 | Quote | ||
| O (WLL 30) | 1024803 | $1,789.00 | Quote | ||
| P (WLL 37) | 1024849 | $5,142.00 | Quote | ||
| S (WLL 45) | 1024885 | $6,728.00 | Quote | ||
| T (WLL 60) | 1024929 | $12,592.00 | Quote | ||
| U (WLL 75) | 1024983 | $17,486.00 | Quote | ||
| W (WLL 100) | 1025027 | $24,485.00 | Quote | ||
| X (WLL 150) | 1025063 | $38,460.00 | Quote | ||
| Y (WLL 200) | 1025081 | $52,520.00 | Quote |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
