Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.

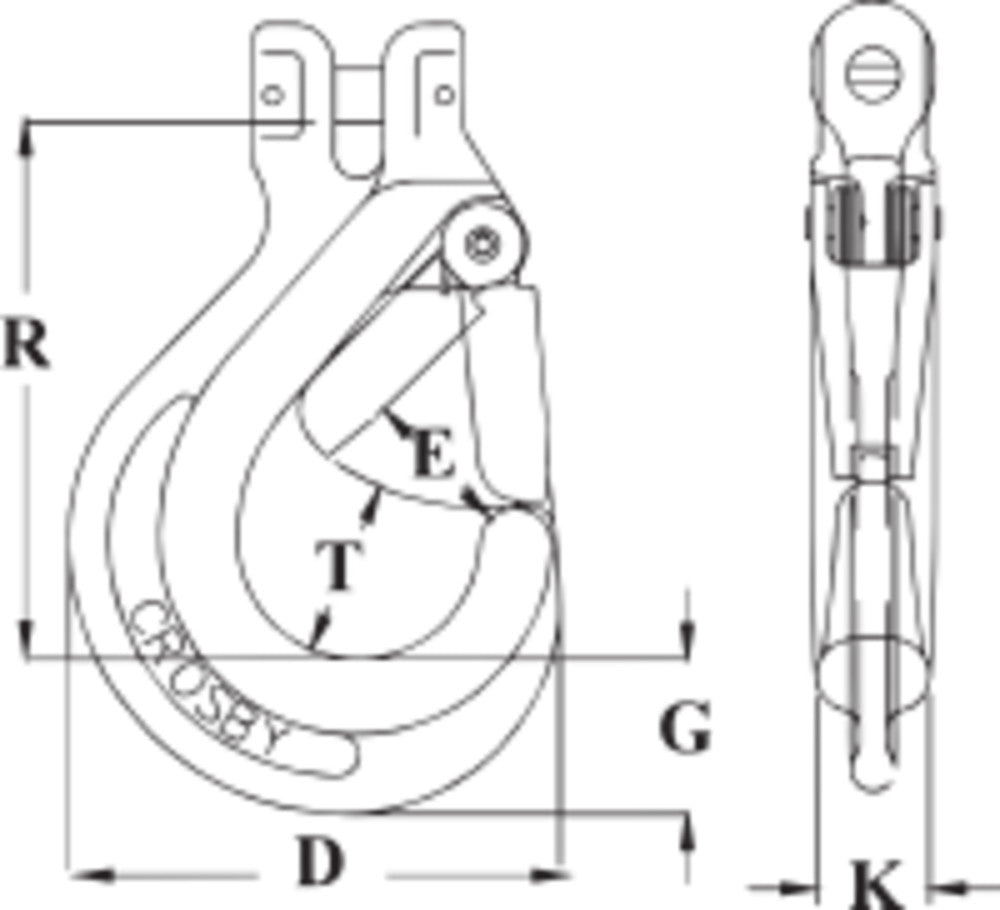

| Size | WLL 4:1 (lb) | WLL 5:1(lb) SlingCenter derate | Weight (lb)(kg) | D (in)(mm) | E (in)(mm) | G (in)(mm) | K (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|
| — (6 mm) | 2,500 | 2000 | 0.690.3 | 2.666.0 | 0.8120.6 | 0.7920.1 | 0.6316.0 | 1225020 |
| 1/4-5/16 (7-8 mm) | 4,500 | 3600 | 1.530.7 | 3.588.9 | 1.0827.4 | 1.127.9 | 0.8120.6 | 1225021 |
| 3/8 (10 mm) | 7,100 | 5680 | 2.841.3 | 4.35110.5 | 1.4236.1 | 1.1629.5 | 0.9423.9 | 1225091 |
| 1/2 (13 mm) | 12,000 | 9600 | 5.172.3 | 5.45138.4 | 1.5238.6 | 1.6742.4 | 1.1629.5 | 1225161 |
| 5/8 (16 mm) | 18,100 | 14480 | 9.04.1 | 6.56166.6 | 1.9148.5 | 2.0552.1 | 1.538.1 | 1225162 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

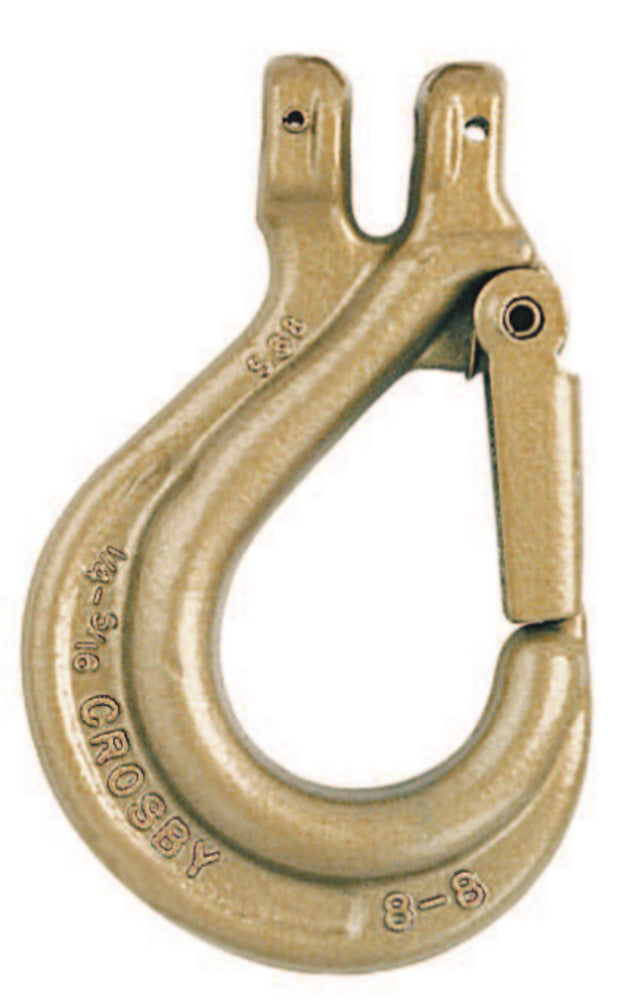

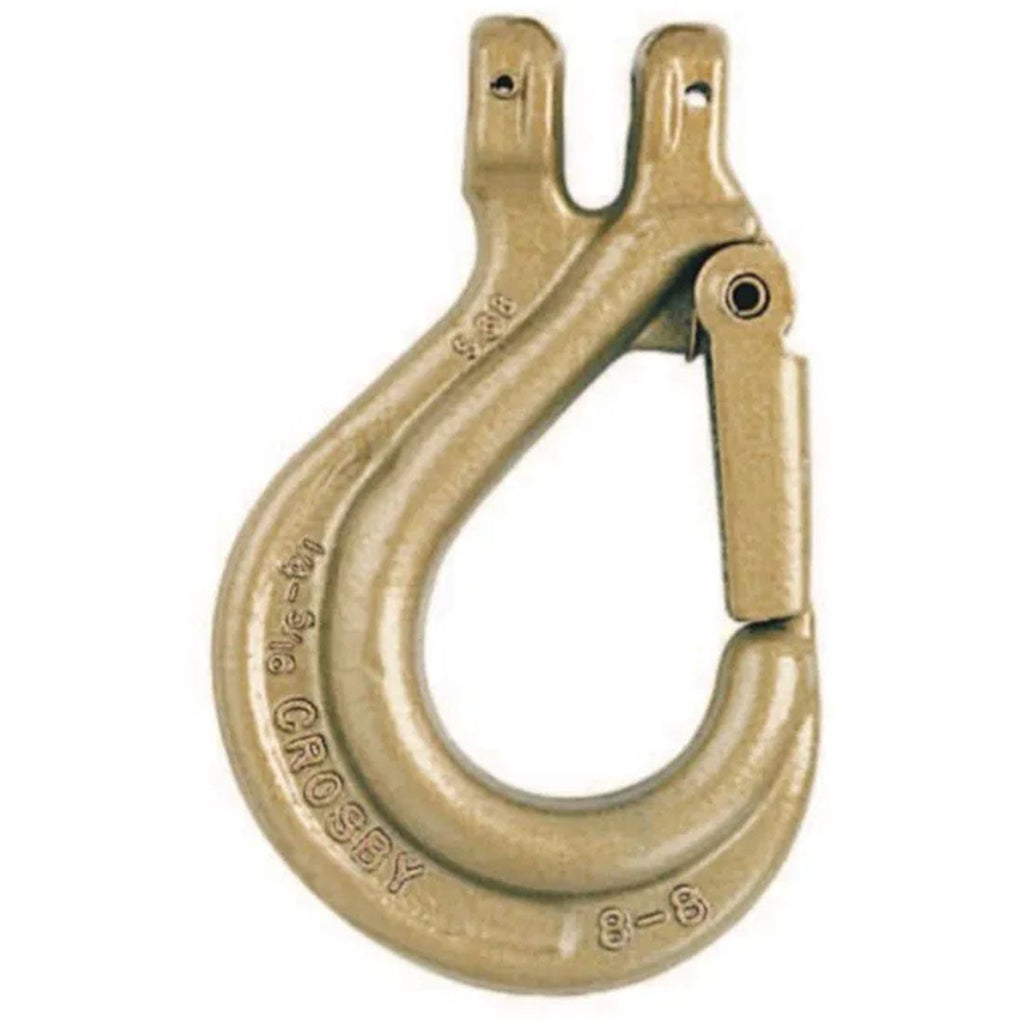

The Crosby S-314A Grade 80 clevis sling hook with latch is a chain sling bottom hook with clevis bolt connection and spring-loaded safety latch. The Grade 80 alloy steel construction is designed for chain sling assemblies.
Key Features
- Clevis bolt connection for rigid attachment
- Spring-loaded safety latch
- Grade 80 alloy steel
- Integrated latch design
Common Applications
- Grade 80 chain sling bottom hooks
- Overhead lifting with chain slings
- Industrial material handling
Standards & Compliance
Meets ASME B30.10. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/4-5/16 (WLL 4,500 lb) | 1225021 | $128.80 | ✓ In Stock | ||
| 3/8 (WLL 7,100 lb) | 1225091 | $165.70 | ✓ In Stock | ||
| 1/2 (WLL 12,000 lb) | 1225161 | $255.00 | ✓ In Stock | ||
| 5/8 (WLL 18,100 lb) | 1225162 | $396.00 | ✓ In Stock | ||
| — (WLL 2,500 lb) | 1225020 | $112.70 | Quote |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
