Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

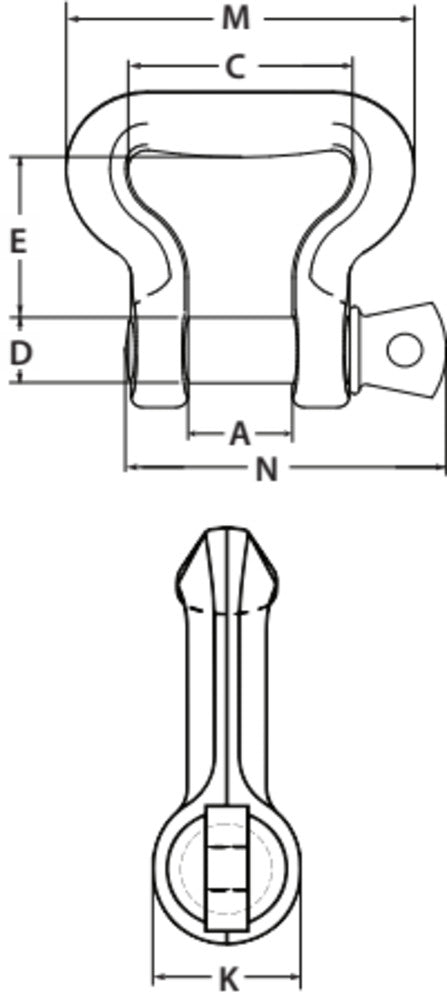

Specifications — Full Dimensions by Size
| Size | WLL (lb)(t) | Weight (lb)(kg) | Webbing width (in)(mm) | Eye width (in)(mm) | A (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | K (in)(mm) | M (in)(mm) | N (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. 1 & 2 | 6,5032.95 | 1.20.54 | 250 | 250 | 1.0626.9 | 2.563.5 | 0.7519.1 | 1.6241.1 | 1.2231.0 | 3.8497.5 | 3.3485.0 | 1021048 |
| No. 3 | 8,9944.08 | 1.50.68 | 375 | 1.535 | 1.2531.8 | 2.051.0 | 0.8822.4 | 1.538.1 | 1.4135.8 | 3.3886.0 | 3.97101 | 1021057 |
| No. 4 | 12,5005.67 | 2.51.13 | 4100 | 250 | 1.4436.6 | 2.563.5 | 1.025.4 | 2.051.0 | 1.6241.1 | 4.22107 | 4.5114 | 1021066 |
| No. 5 & 6 | 16,9757.7 | 4.31.95 | 6150 | 375 | 1.6942.9 | 3.6292.0 | 1.1328.7 | 2.7570.0 | 1.8446.7 | 5.64143 | 5.13130 | 1021075 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton.

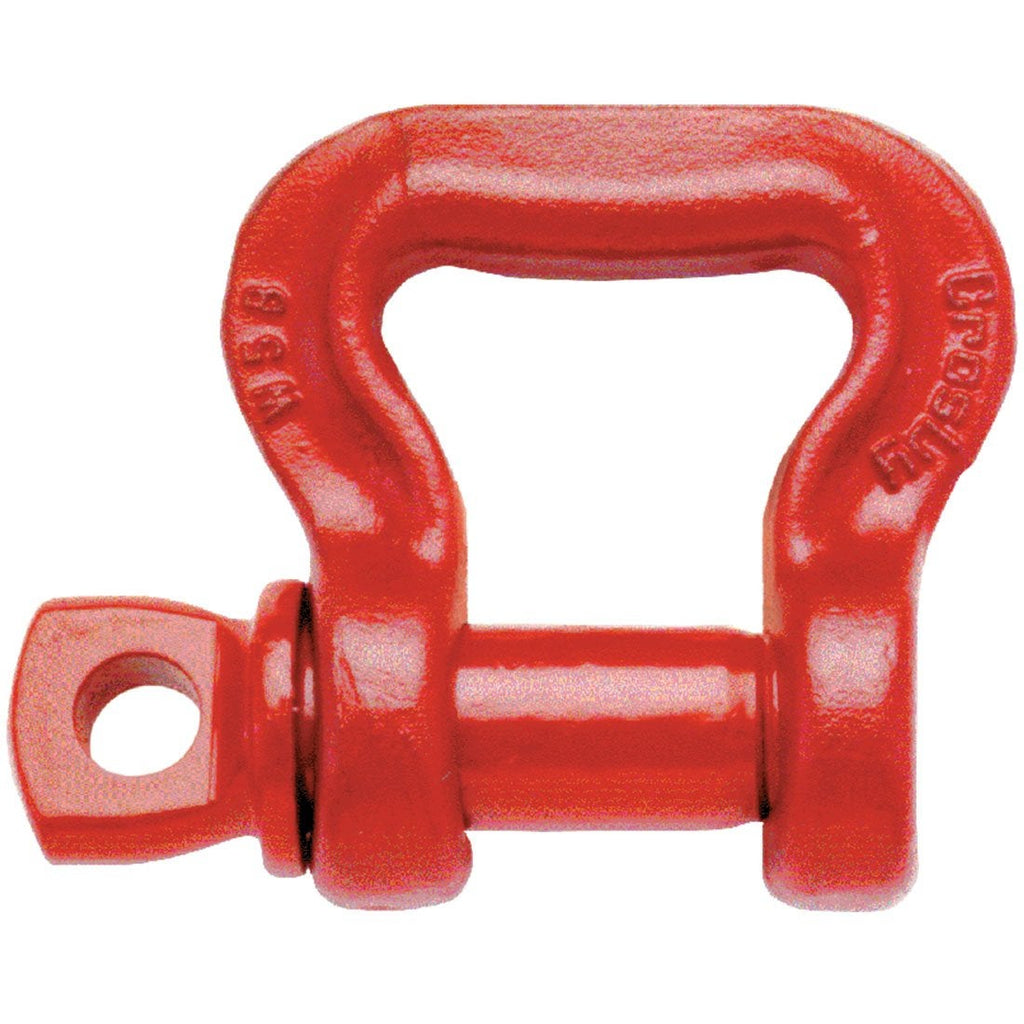

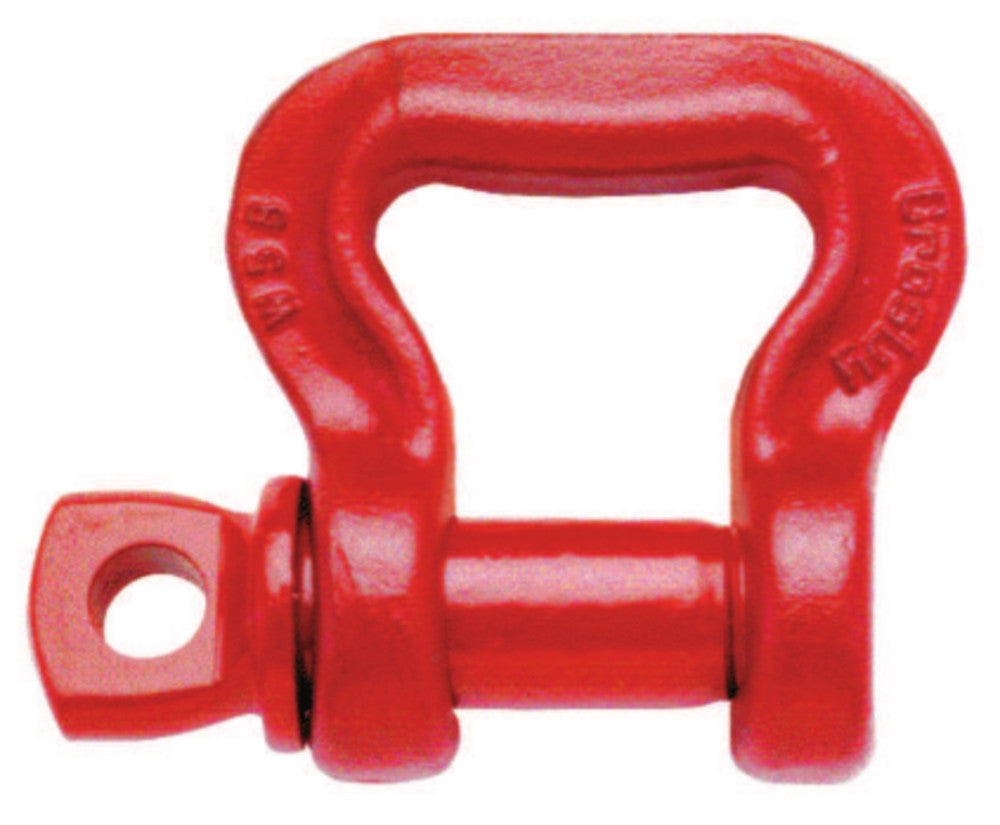

The Crosby® S-281 Sling Saver® is an alloy web sling shackle. It replaces a conventional shackle at the sling eye and gives the webbing a wide, radiused bearing surface instead of a round pin — which is what protects the eye and keeps the rated capacity of the sling.
Selecting one: go by the EYE width, not the body width
This is where the wrong part gets ordered. A web sling’s eye is usually tapered narrower than its body, so it will fit a hook. A 4" sling does not have a 4" eye.
| Round sling size | Webbing width | Eye width | Ply | WLL |
|---|---|---|---|---|
| No. 1 & 2 | 2" (50 mm) | 2" (50 mm) | 2 | 2.95 t |
| No. 3 | 3" (75 mm) | 1.5" (35 mm) | 2 | 4.08 t |
| No. 4 | 4" (100 mm) | 2" (50 mm) | 2 | 5.67 t |
| No. 5 & 6 | 6" (150 mm) | 3" (75 mm) | 2 | 7.70 t |
Note the 2" sling: eye and body are the same width, because a 2" sling is not normally tapered. Every width above that is. Crosby states the condition directly — “For 3" and larger webbing width, tapered eye is required.” If your 3", 4" or 6" sling has an untapered eye, it will not fit the shackle this table points you to.
Measure the eye, or tell us the sling and we will match it. Email sales@slingcenter.com.
Ratings and standards
- 5:1 design factor. Maximum proof load is 2 times the Working Load Limit.
- Designed for Type III (eye & eye), Class 7, 2-ply web slings.
- Working Load Limits are in metric tonnes as published by Crosby — 2.95 t, 4.08 t, 5.67 t and 7.70 t. Some resellers list this family as 3.25 / 4.5 / 6.25 / 8.5 ton against the same stock numbers; those are US short tons converted from Crosby’s metric figures. The capacity is the same, the unit is not.
- All alloy construction.
- Meets the minimum stock diameter, thickness and effective contact width in the Web Sling & Tie Down Association Recommended Standard Specification for Synthetic Polyester Round Slings, WSTDA-RS1.
Full dimensions for every size are in the specification table below.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
