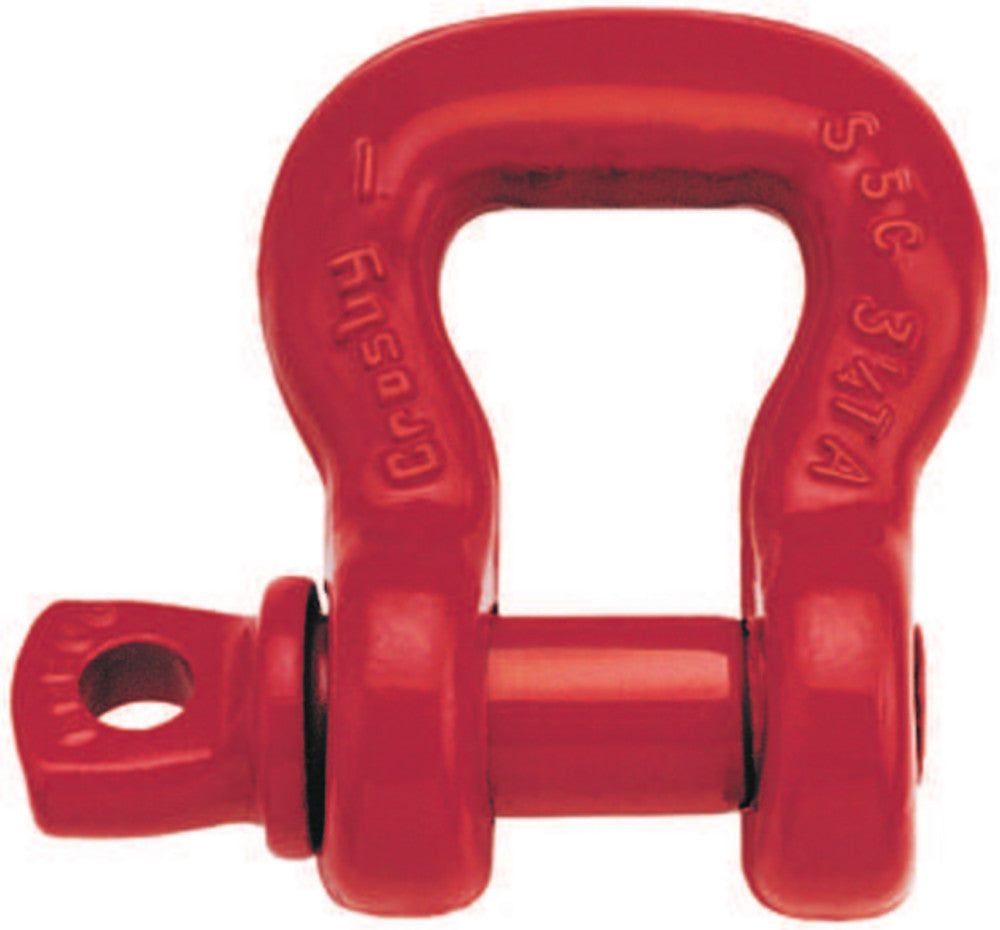

The Crosby S-253 is a screw-pin Sling Saver shackle designed for use with both synthetic web slings and round slings, offering quick connect/disconnect via the screw pin. The increased radius of the bow provides a wider sling bearing surface for better load distribution across internal fibers, allowing 100% of the sling's rated Working Load Limit to be achieved. The larger-diameter bolt (pin) further improves load distribution.
Key Features
- Screw-pin Sling Saver shackle for quick connection changes
- Suitable for synthetic web slings and round slings
- All-alloy construction; wide bow for improved load distribution
- Working Load Limit: 3.25 t up to 50 t (7 sizes, Stock No. 1020575 through 1020629)
- Larger-diameter pin for better load distribution
- Product Identification Code (PIC) for material traceability; Red Pin mark of genuine Crosby
- Meets or exceeds ASME B30.26 and WSTDA-RS1; 5:1 design factor; proof load 2.5x WLL
Common Applications
- Synthetic web and round sling terminations
- Bridle and general rigging connections requiring quick sling changes
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

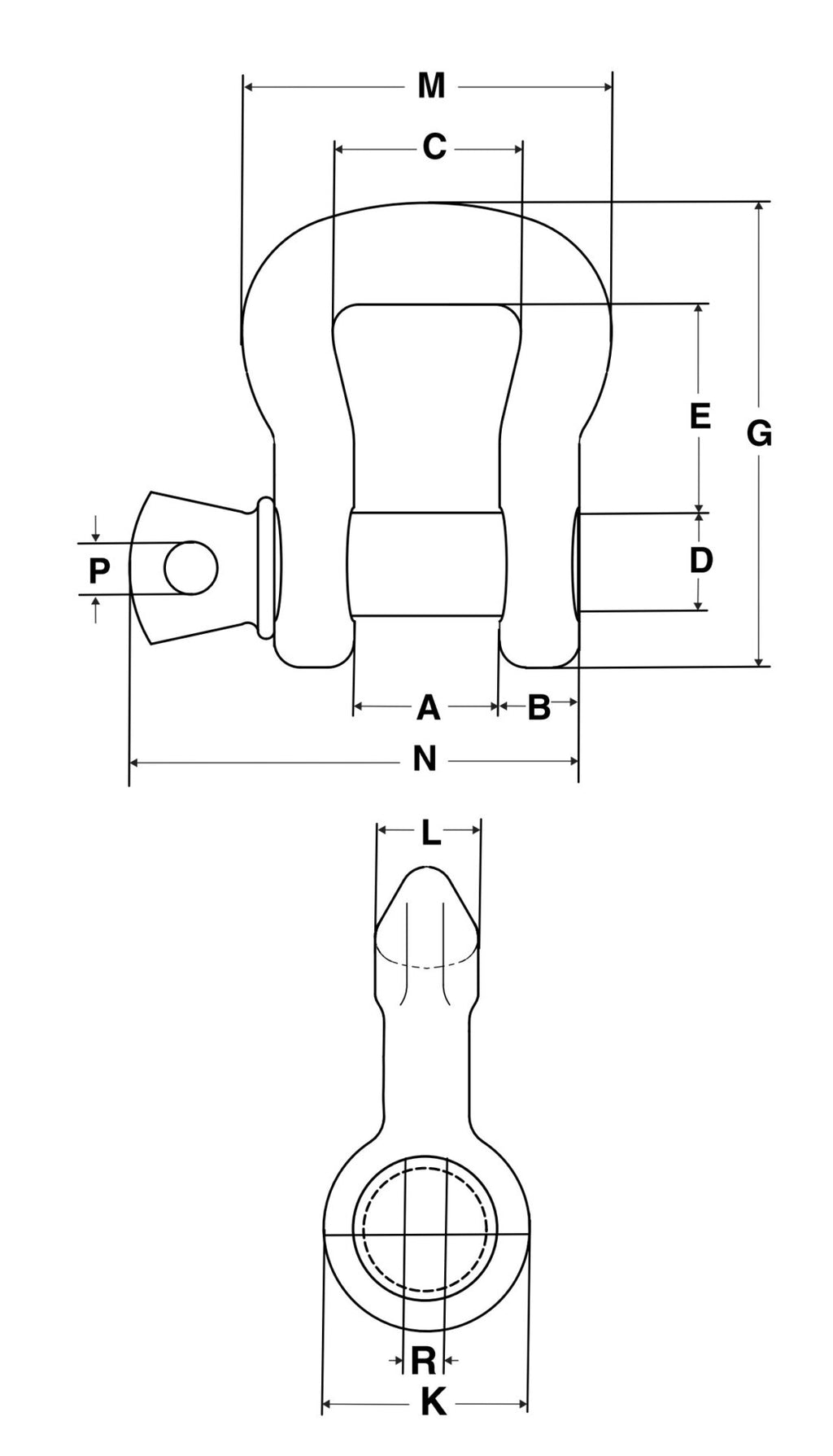

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | G (in)(mm) | K (in)(mm) | L (in)(mm) | M (in)(mm) | N (in)(mm) | P (in)(mm) | R (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 3.25 | 5:1 | 1.40.64 | 0.8822.4 | 0.6215.7 | 1.3835.1 | 0.7519.0 | 1.538.1 | 3.3885.9 | 1.538.1 | 0.7519.0 | 2.6968.3 | 3.2281.8 | 0.4411.2 | 1.025.4 | 1020575 |
| 1-1/2 | 6.5 | 5:1 | 2.21.0 | 1.2531.8 | 0.7519.0 | 1.7544.4 | 0.8822.4 | 1.8847.8 | 4.15105.4 | 1.8146.0 | 1.025.4 | 3.3885.9 | 4.03102.4 | 0.512.7 | 1.1930.2 | 1020584 |
| 2 | 8.75 | 5:1 | 3.81.72 | 1.3835.1 | 0.8822.4 | 2.2557.1 | 1.025.4 | 2.8171.4 | 5.5139.7 | 2.0953.1 | 1.1228.4 | 4.19106.4 | 4.5114.3 | 0.512.7 | 1.4436.6 | 1020593 |
| 3 | 12.5 | 5:1 | 7.33.31 | 1.6241.1 | 1.1228.4 | 3.2582.5 | 1.2531.8 | 3.0677.7 | 6.34161.0 | 2.6266.5 | 1.3835.1 | 5.62142.7 | 5.59142.0 | 0.6215.7 | 1.8146.0 | 1020602 |
| 4 | 20.5 | 5:1 | 15.26.89 | 2.1253.8 | 1.3835.1 | 4.5114.3 | 1.538.1 | 5.25133.3 | 9.45240.0 | 3.1279.2 | 1.7544.4 | 7.5190.5 | 6.88174.8 | 0.7519.0 | 2.1354.1 | 1020611 |
| 5 | 35 | 5:1 | 30.813.97 | 2.563.5 | 1.7544.4 | 5.5139.7 | 2.050.8 | 6.34161.0 | 11.5292.1 | 4.19106.4 | 2.2557.1 | 9.19233.4 | 8.66220.0 | 1.025.4 | 2.8873.2 | 1020620 |
| 6 | 50 | 5:1 | 52.023.59 | 3.076.2 | 2.1253.8 | 6.5165.1 | 2.2557.1 | 7.7195.6 | 13.75349.2 | 4.75120.6 | 2.7569.8 | 11.0279.4 | 10.22259.6 | 1.2231.0 | 3.1981.0 | 1020629 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1 (WLL 3.25) | 1020575 | $62.70 | ✓ In Stock | ||
| 1-1/2 (WLL 6.5) | 1020584 | $67.80 | ✓ In Stock | ||
| 2 (WLL 8.75) | 1020593 | $89.50 | ✓ In Stock | ||
| 3 (WLL 12.5) | 1020602 | $194.40 | ✓ In Stock | ||
| 4 (WLL 20.5) | 1020611 | $398.00 | ✓ In Stock | ||
| 5 (WLL 35) | 1020620 | $651.00 | ✓ In Stock | ||
| 6 (WLL 50) | 1020629 | $1,500.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
