Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
Open the catalog page (PDF)
| Size | WLL 4:1 (lb) | WLL 5:1(lb) SlingCenter derate | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | L (in)(mm) | N (in)(mm) | P (in)(mm) | R (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 (7 mm) | 2600 | 2080 | 0.380.17 | 0.512.7 | 0.7519.1 | 0.512.7 | 0.317.9 | 0.389.7 | 0.7519.1 | 1.025.4 | 0.8120.6 | 2.8171.4 | 1.3835.1 | 1.6642.2 | 1.538.1 | 1013021 |
| 5/16-3/8 (8-10 mm) | 5400 | 4320 | 0.810.37 | 0.5614.2 | 1.025.4 | 0.6316.0 | 0.4411.2 | 0.4711.9 | 1.025.4 | 1.1930.2 | 1.025.4 | 3.5389.7 | 1.7544.5 | 2.2557.2 | 1.9148.5 | 1013049 |
| 7/16 (11 mm) | 7200 | 5760 | 1.250.57 | 0.6917.5 | 1.1328.7 | 0.6917.5 | 0.5614.2 | 0.5915.0 | 1.0927.7 | 1.3133.3 | 1.1930.2 | 4.06103.1 | 2.050.8 | 2.563.5 | 2.1955.6 | 1013067 |
| 1/2 (13 mm) | 9200 | 7360 | 1.560.71 | 0.8120.6 | 1.2531.8 | 0.7519.1 | 0.6316.0 | 0.6817.3 | 1.2531.8 | 1.4436.6 | 1.3133.3 | 4.53115.1 | 2.2557.2 | 2.7569.9 | 2.4762.7 | 1013085 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

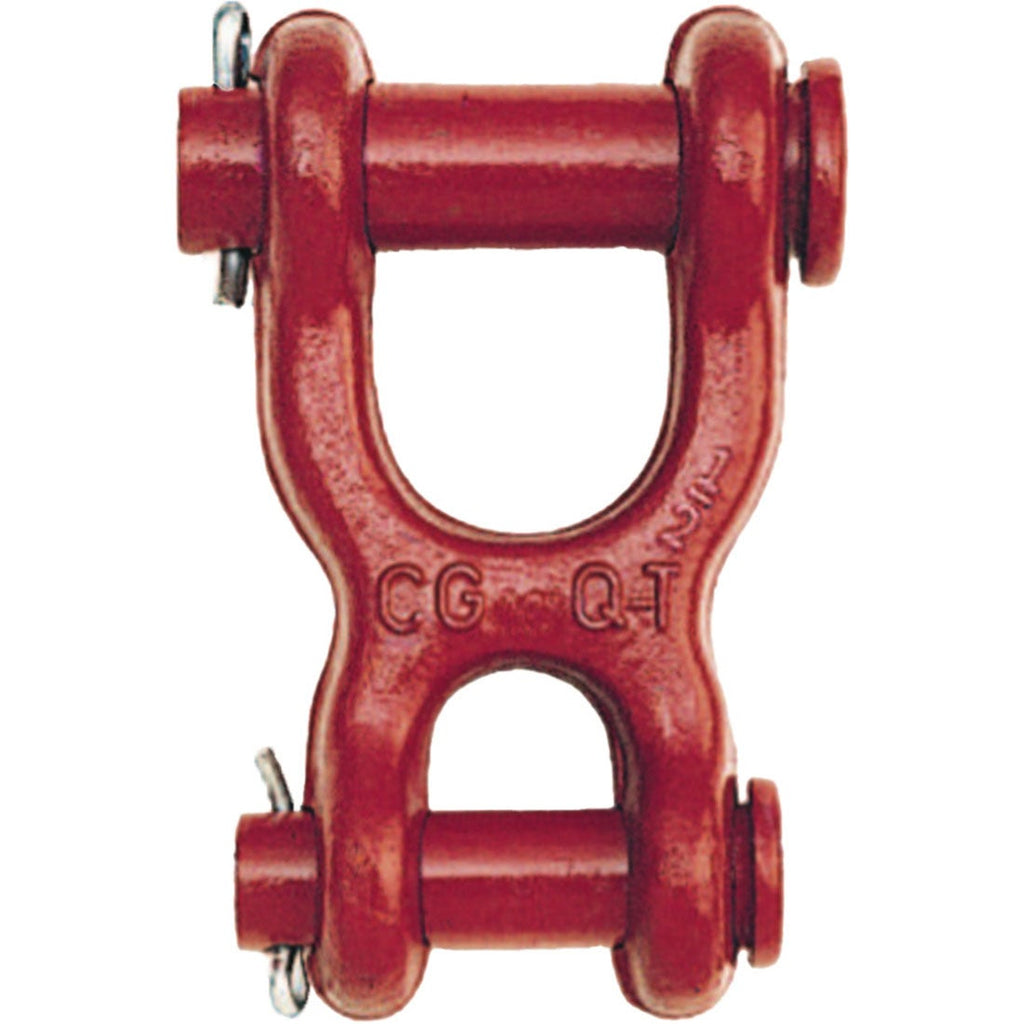

The Crosby S-247 Double Clevis Link is a load securement fitting for linking Grade 3 and Grade 4 chain to rings, end links, eye hooks, pad eyes, tractor eye bolts and similar attachments. The body is forged and heat-treated carbon steel; all pins are alloy steel, quenched and tempered.
Key Features
- Forged, heat-treated carbon steel body
- Alloy steel pins, quenched & tempered
- Quick and easy assembly
- Ultimate load is 4 times the Working Load Limit
Intended Use
- Grade 3 and Grade 4 chain connections
- Load securement and transport tie-down
Important Limitation
Not suitable for use with Grade 80 or Grade 100 chain and chain slings used in overhead lifting. This is a load securement fitting, not an overhead lifting component. Source: Crosby & Gunnebo Industries Catalog, Imperial 2025-2026, p.293.
Origin
Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 4 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/4 (WLL 2,600 lb) | 1013021 | $36.40 | ✓ In Stock | ||
| 5/16-3/8 (WLL 5,400 lb) | 1013049 | $50.20 | ✓ In Stock | ||
| 7/16 (WLL 7,200 lb) | 1013067 | $69.10 | ✓ In Stock | ||
| 1/2 (WLL 9,200 lb) | 1013085 | $87.90 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
