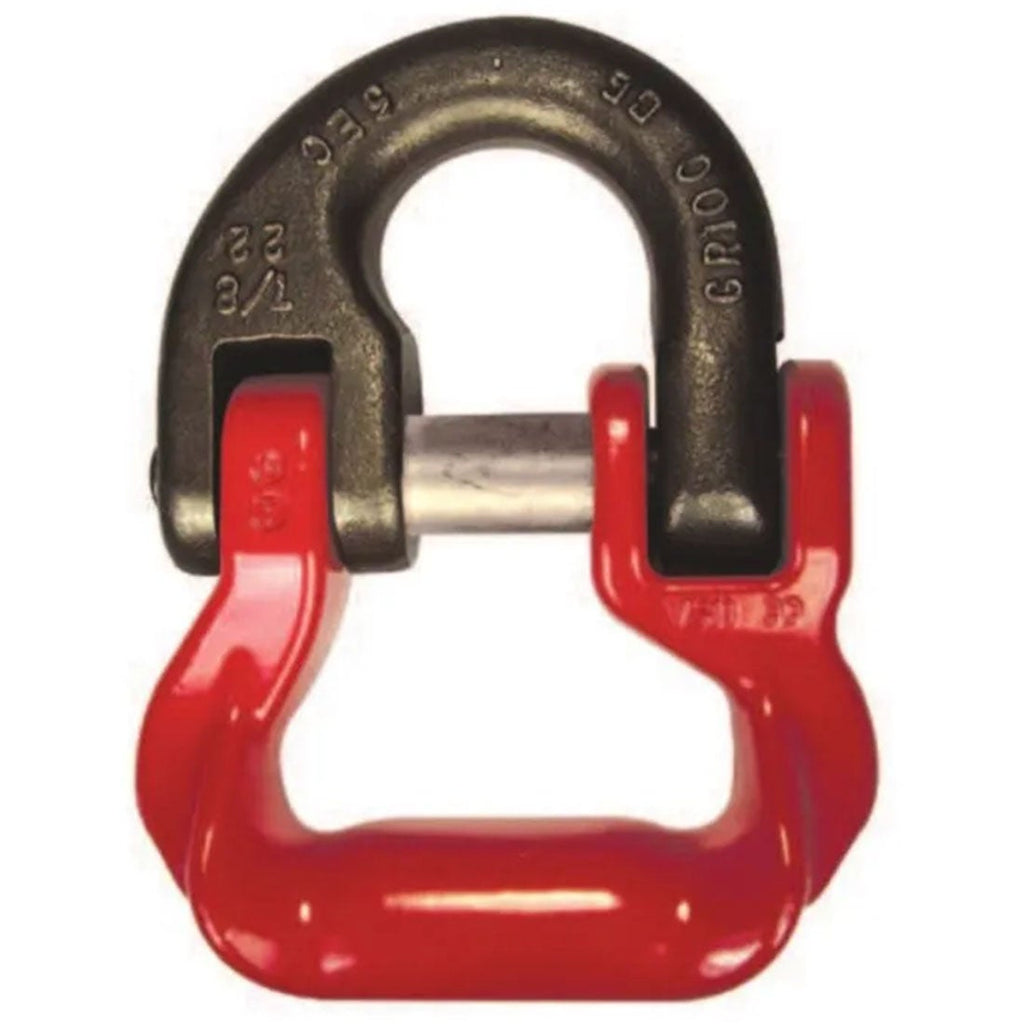

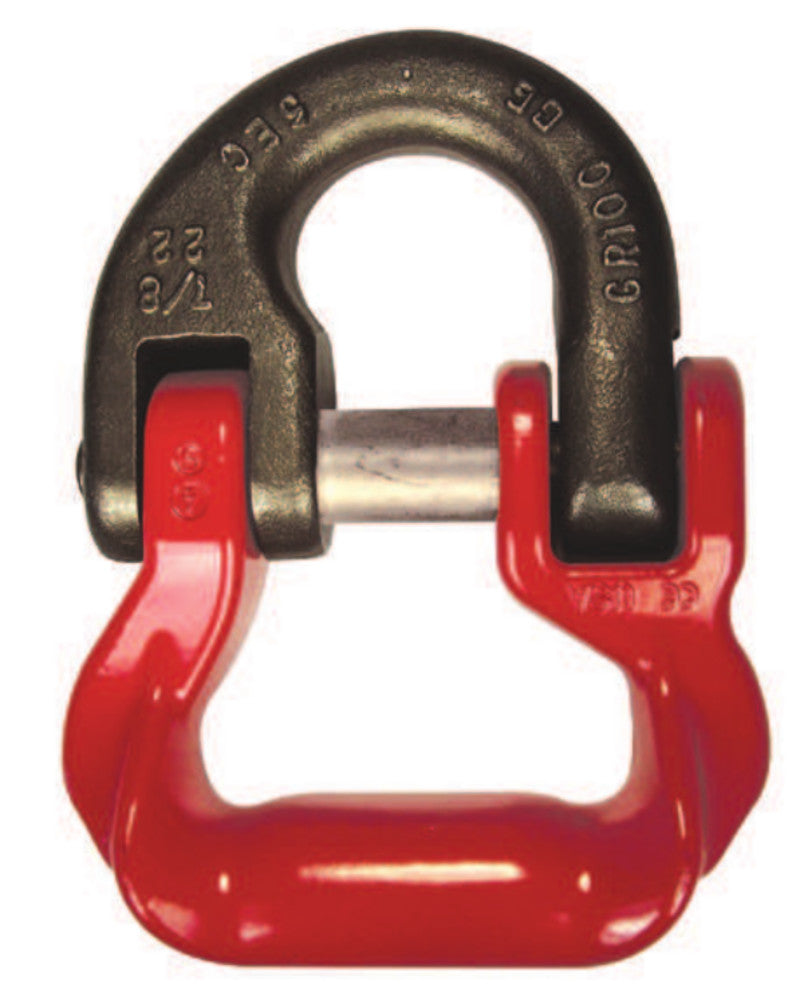

The Crosby S-237 high performance sling connector provides a superior connection point for synthetic round slings and web slings. The contoured body distributes load evenly across the sling eye, preventing the bunching and edge damage that shortens sling life when connected to standard hardware.
Key Features
- Contoured body for even sling load distribution
- Prevents bunching and edge damage
- Extends synthetic sling service life
- Forged steel construction
- Proof tested at 2x WLL
Common Applications
- Synthetic round sling connections
- Web sling terminations
- Multi-leg sling assemblies
- Applications where sling protection is critical
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (lb)(lb) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | E (in)(mm) | G (in)(mm) | H (in)(mm) | L (in)(mm) | N (in)(mm) | R (in)(mm) | S (in)(mm) | W (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Frame 5 | 5000 | 5:1 | 1.140.52 | 0.8822.4 | 1.4236.1 | 2.050.8 | 3.1880.8 | 1.025.4 | 0.820.3 | 4.2106.7 | 1.0426.4 | 2.9274.2 | 0.4812.2 | 1.3835.1 | 1020695 |
| Frame 10 | 10000 | 5:1 | 2.961.34 | 1.4236.1 | 1.5238.6 | 2.7569.8 | 4.13104.9 | 1.2531.8 | 0.9824.9 | 5.68144.3 | 1.7143.4 | 3.94100.1 | 0.7519.0 | 1.7544.4 | 1020704 |
| Frame 15 | 15000 | 5:1 | 4.752.15 | 1.6341.4 | 1.5840.1 | 2.7569.8 | 4.37111.0 | 1.3835.1 | 1.127.9 | 6.49164.8 | 2.0451.8 | 4.46113.3 | 0.9323.6 | 1.8847.8 | 1020713 |
| Frame 25 | 25000 | 5:1 | 8.593.9 | 2.050.8 | 2.3359.2 | 3.7595.2 | 6.0152.4 | 1.7544.4 | 1.4135.8 | 7.97202.4 | 2.2757.7 | 5.51140.0 | 1.0626.9 | 2.2557.1 | 1020722 |
| Frame 30 | 30000 | 5:1 | 9.244.19 | 2.050.8 | 2.255.9 | 3.7595.2 | 6.19157.2 | 1.7544.4 | 1.4135.8 | 7.84199.1 | 2.2757.7 | 5.38136.7 | 1.0626.9 | 2.3860.5 | 1020731 |
| Frame 40 | 40000 | 5:1 | 15.77.12 | 2.2557.1 | 2.9173.9 | 4.75120.6 | 7.25184.1 | 2.2557.1 | 1.7845.2 | 9.45240.0 | 2.4462.0 | 6.45163.8 | 1.2231.0 | 3.0978.5 | 1020740 |
| Frame 60 | 60000 | 5:1 | 26.011.79 | 2.5665.0 | 3.3685.3 | 5.75146.0 | 9.13231.9 | 2.3158.7 | 1.8647.2 | 11.08281.4 | 3.0778.0 | 7.72196.1 | 1.538.1 | 3.1680.3 | 1020759 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| Frame 5 (WLL 5,000 lb) | 1020695 | $181.60 | ✓ In Stock | ||
| Frame 10 (WLL 10,000 lb) | 1020704 | $311.00 | ✓ In Stock | ||
| Frame 15 (WLL 15,000 lb) | 1020713 | $350.00 | ✓ In Stock | ||
| Frame 25 (WLL 25,000 lb) | 1020722 | $576.00 | ✓ In Stock | ||
| Frame 30 (WLL 30,000 lb) | 1020731 | $650.00 | ✓ In Stock | ||
| Frame 40 (WLL 40,000 lb) | 1020740 | $1,073.00 | ✓ In Stock | ||
| Frame 60 (WLL 60,000 lb) | 1020759 | $1,890.00 | ✓ In Stock |
