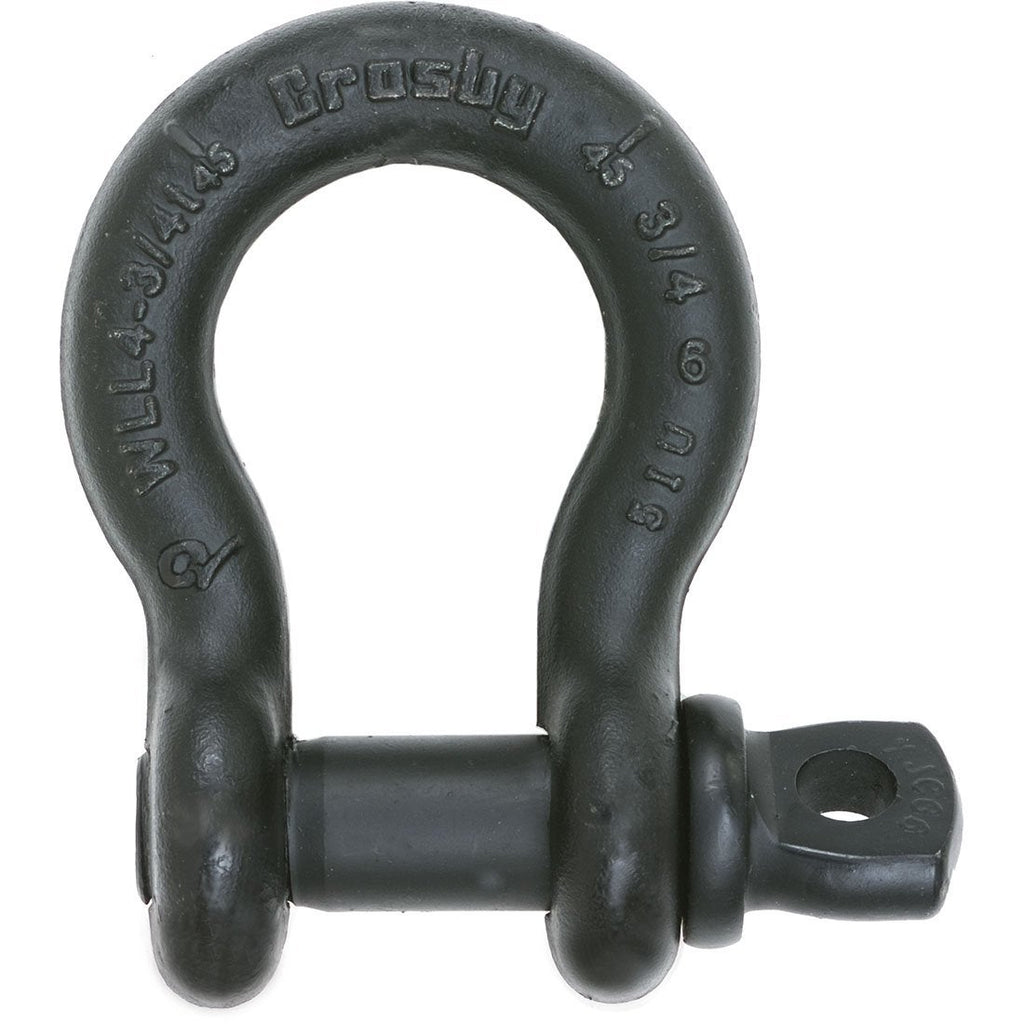

The Crosby S-209T theatrical screw pin anchor shackle is designed specifically for entertainment rigging applications. Featuring a black powder coat finish that blends with stage and arena rigging, this shackle meets the demanding safety requirements of the entertainment industry while maintaining the performance standards Crosby is known for.
Key Features
- Black powder coat finish — blends with theatrical rigging
- Rated for entertainment industry overhead lifting
- Forged steel, quenched and tempered
- Screw pin for quick rigging changes
- Proof tested at 2x WLL
- 5:1 design factor
Common Applications
- Theater and stage rigging
- Arena and concert production
- Film and television set rigging
- Convention and event installations
Standards & Compliance
Designed for entertainment rigging per ANSI E1.2. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

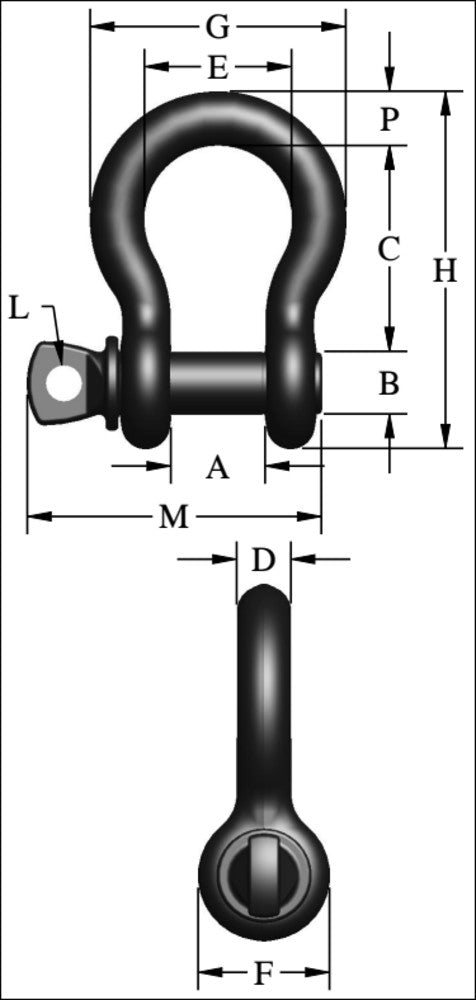

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | L (in)(mm) | M (in)(mm) | P (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8 | 1 | 6:1 | 0.310.14 | 0.6616.8 | 0.4411.2 | 1.4536.8 | 0.389.7 | 1.0326.2 | 0.9223.4 | 1.7945.5 | 2.563.5 | 0.256.3 | 2.0652.3 | 0.389.7 | 1018706 |
| 7/16 | 1.5 | 6:1 | 0.380.17 | 0.7519.0 | 0.512.7 | 1.6942.9 | 0.4411.2 | 1.1629.5 | 1.0626.9 | 2.0451.8 | 2.9173.9 | 0.317.9 | 2.3760.2 | 0.4411.2 | 1018724 |
| 1/2 | 2 | 6:1 | 0.720.33 | 0.8120.6 | 0.6316.0 | 1.8847.8 | 0.512.7 | 1.3133.3 | 1.1830.0 | 2.3158.7 | 3.2883.3 | 0.389.7 | 2.6968.3 | 0.512.7 | 1018742 |
| 5/8 | 3.25 | 6:1 | 1.370.62 | 1.0626.9 | 0.7519.0 | 2.3860.5 | 0.6215.7 | 1.6942.9 | 1.538.1 | 2.9374.4 | 4.19106.4 | 0.4411.2 | 3.3484.8 | 0.6917.5 | 1018760 |
| 3/4 | 4.75 | 6:1 | 2.351.07 | 1.2531.8 | 0.8822.4 | 2.8171.4 | 0.7519.0 | 2.050.8 | 1.8146.0 | 3.588.9 | 4.97126.2 | 0.512.7 | 3.97100.8 | 0.8120.6 | 1018778 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 3/8" (1 Ton WLL) | 1018706 | $20.95 | ✓ In Stock | ||
| 7/16" | 1018724 | $22.95 | ✓ In Stock | ||
| 1/2" | 1018742 | $27.95 | ✓ In Stock | ||
| 5/8" | 1018760 | $48.95 | ✓ In Stock | ||
| 3/4" | 1018778 | $69.95 | ✓ In Stock |
