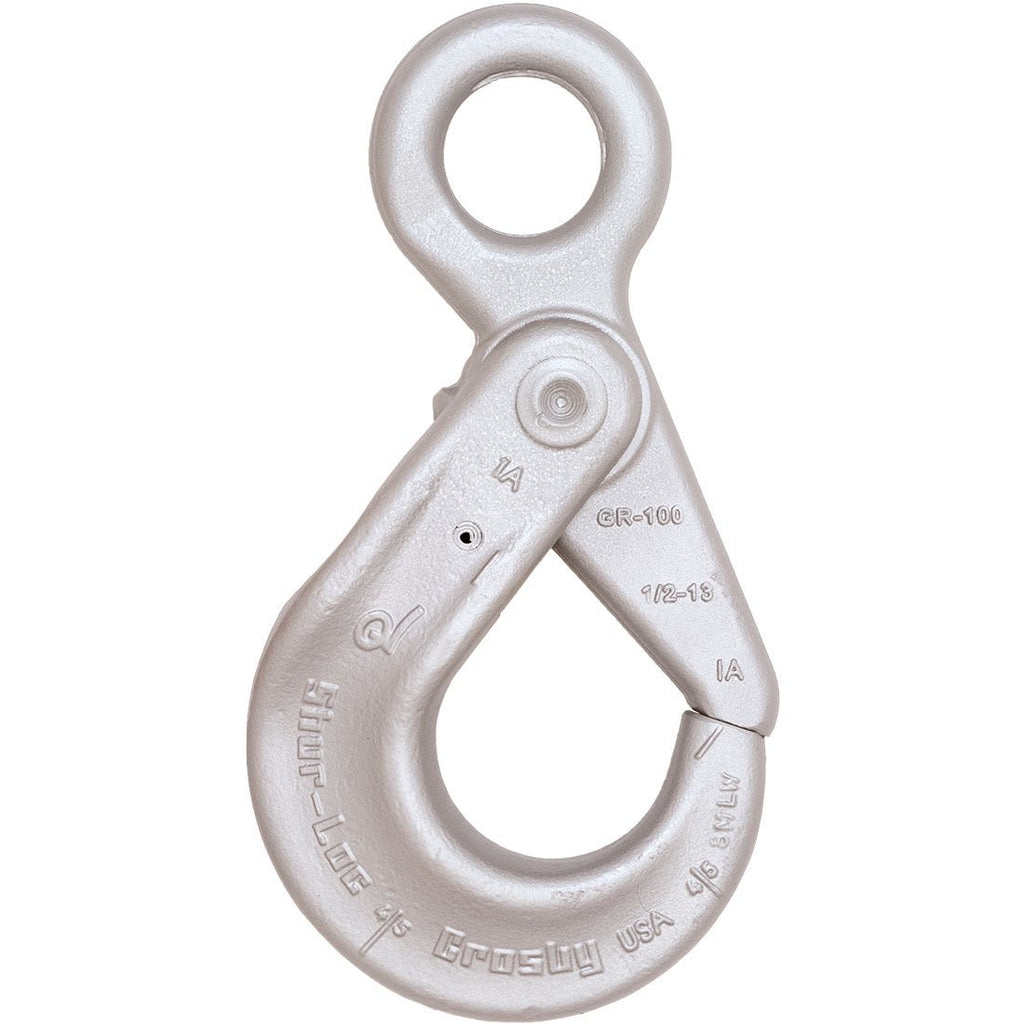

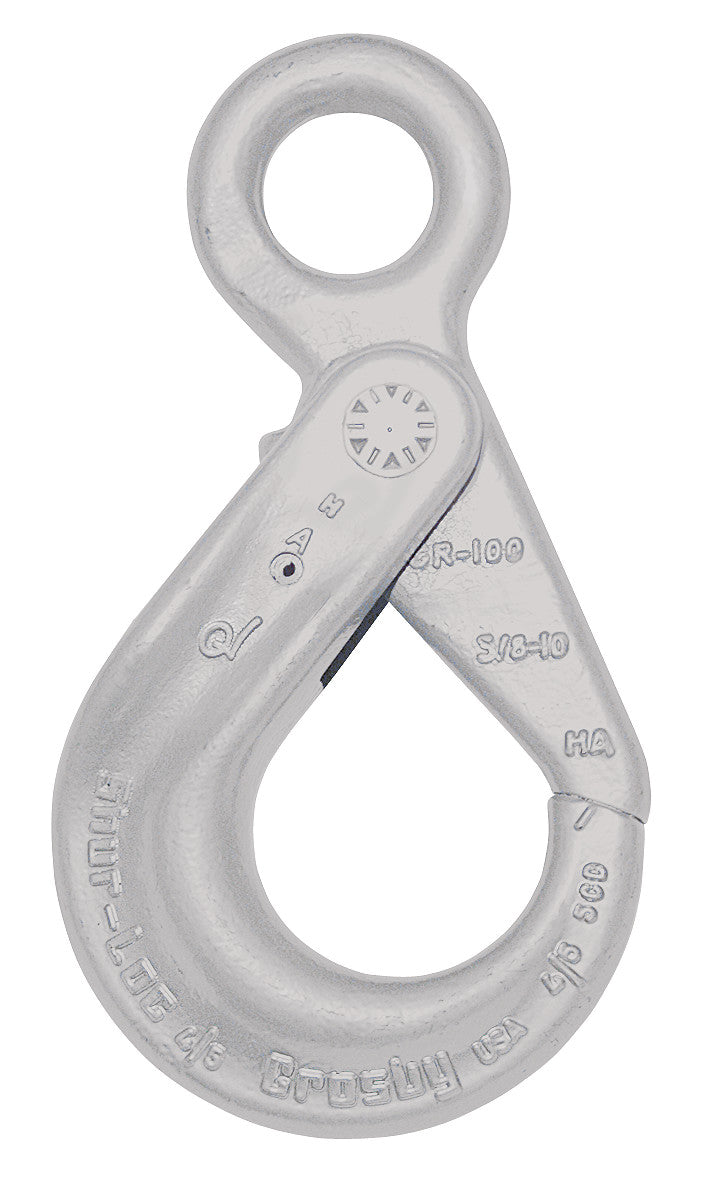

The Crosby S-1316 Shur-Loc® eye hook features a self-closing, self-locking safety latch with an eye-type top connection. The Shur-Loc mechanism automatically secures loads without manual latch engagement, providing maximum safety in overhead lifting.
Key Features
- Shur-Loc® self-closing, self-locking latch
- Eye connection for sling attachment
- Automatic safety — no manual engagement needed
- Forged alloy steel
Common Applications
- Safety-critical overhead lifting
- Automated material handling
- Sling assemblies requiring automatic latch
Standards & Compliance
Meets ASME B30.10. Made in the USA by Crosby.
Dimensional Specifications

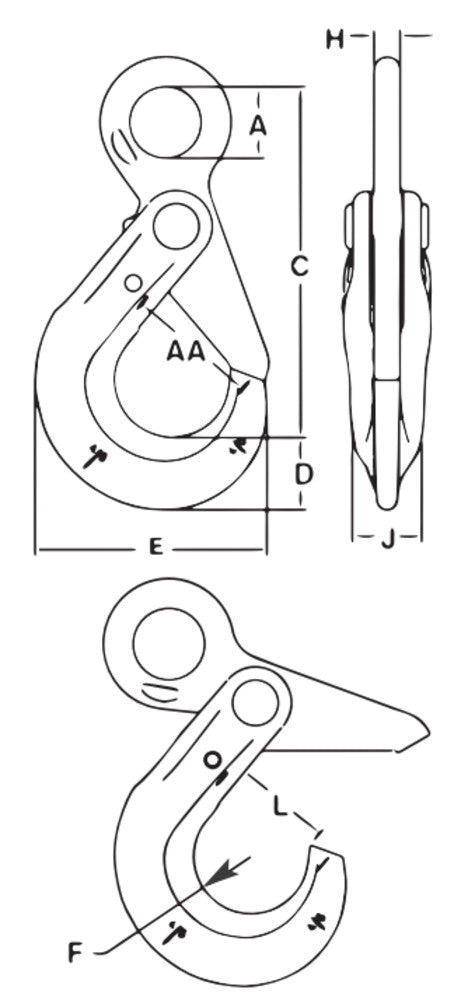

Dimensions below are keyed to the Crosby engineering drawing shown in the product images. All dimensions in inches and weight in pounds; WLL as listed.
| Chain Size (in) | WLL — Grade 100 (lb) 4:1 | WLL — 5:1 (lb) | Frame Code | Stock No. | Wt (lb) | A | C | D | E | F | H | J | L | AA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9/32–5/16 | 5,700 | 4,560 | G | 1022914 | 1.80 | 1.08 | 5.31 | 1.10 | 3.50 | — | 0.87 | 0.39 | 0.81 | 2.00 |
| 3/8 | 8,800 | 7,040 | H | 1022923 | 3.40 | 1.30 | 6.57 | 1.17 | 4.39 | — | 1.10 | 0.51 | 0.94 | 2.50 |
| 1/2 | 15,000 | 12,000 | I | 1022932 | 6.00 | 1.65 | 8.23 | 1.67 | 5.45 | — | 1.26 | 0.67 | 1.16 | 3.00 |
| 5/8 | 22,600 | 18,000 | J | 1022941 | 15.10 | 2.20 | 10.06 | 2.04 | 6.56 | — | 1.50 | 0.87 | 1.50 | 3.50 |
| 3/4 | 35,300 | 28,240 | — | 1022952 | 19.00 | 2.60 | 10.77 | 2.22 | 7.76 | — | 2.01 | 0.87 | 2.03 | 5.00 |
Dimensions per the Crosby S-1316 Shur-Loc Eye Hook catalog. Design factor 4:1 (Grade 100 chain) or 5:1 (standard alloy chain). Proof load 2× WLL. The 1" size (WLL 59,700 lb, stock no. 1022944) is available from Crosby but the 1" variant SKU on this listing (1049417) requires correction — contact us to order the 1" size. Column F is not applicable for this model.
Product Specifications
Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.
Available on request
- Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
- Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
- DNV / ABS / NORSOK documentation for offshore or subsea applications.
- Custom configurations — non-standard lengths, colors, hardware combinations.
Email sales@slingcenter.com with your SKU or order number.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 9/32" - 5/16" (WLL 5,700 lbs) | 1022914 | $269.95 | ✓ In Stock | ||
| 3/8" (WLL 8,800 lbs) | 1022923 | $342.95 | ✓ In Stock | ||
| 1/2" (WLL 15,000 lbs) | 1022932 | $496.95 | ✓ In Stock | ||
| 5/8" (WLL 22,600 lbs) | 1022941 | $828.95 | ✓ In Stock | ||
| 3/4" (WLL 35,300 lbs) | 1022952 | $1,232.95 | ✓ In Stock | ||
| 1" (WLL 59,700 lbs) | 1022944 | $90.11 | ✓ In Stock |
