Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
Open the catalog page (PDF)

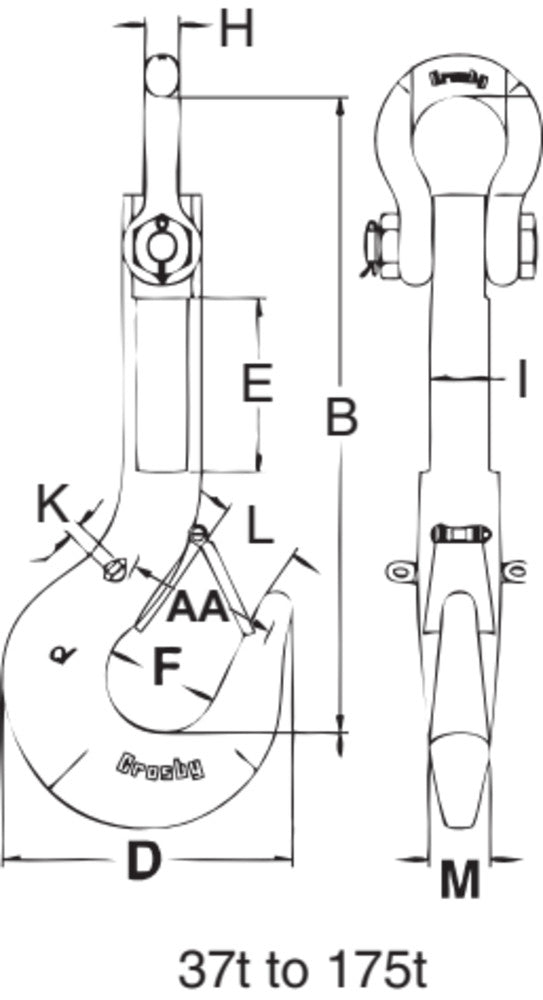

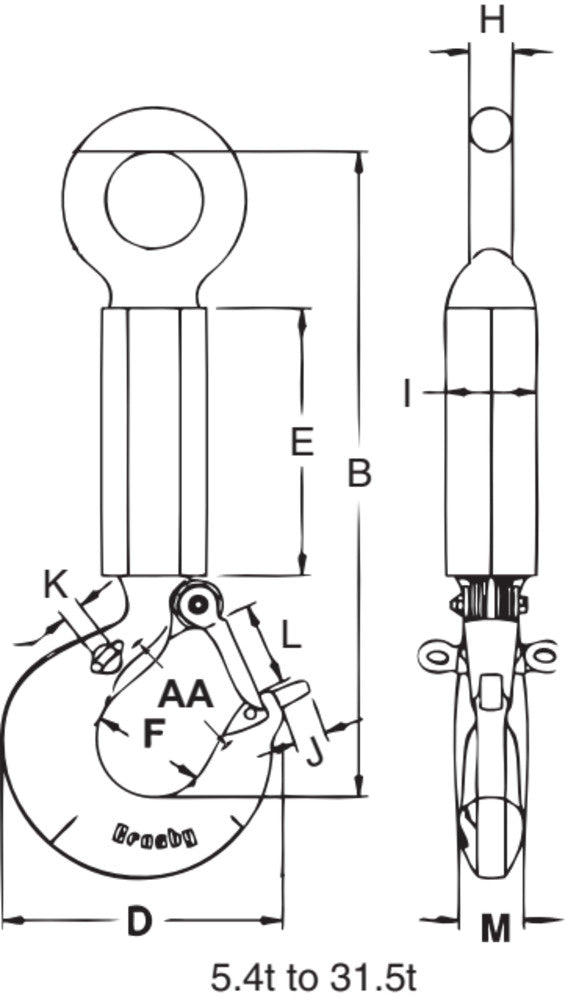

| Size | WLL 4:1 (lb)(t) | WLL 5:1(lb)(t) SlingCenter derate | Weight (lb)(kg) | I (in)(mm) | E (in)(mm) | B (in)(mm) | D (in)(mm) | J (in)(mm) | F (in)(mm) | M (in)(mm) | H (in)(mm) | L (in)(mm) | K (in)(mm) | AA (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IA | 11,9045.4 t | 9,5234.32 | 219.5 | 2.5665 | 9.84250 | 16.57421 | 4.84123 | 0.399.9 | 2.051 | 1.1329 | 0.8822 | 1.3635 | 0.256.4 | 2.563.5 | 1297722 |
| KA | 25,35311.5 t | 20,2829.2 | 3315 | 2.5665 | 9.84250 | 20.39518 | 7.54192 | 1.1830 | 3.076 | 1.6341 | 1.2532 | 2.0853 | 0.389.7 | 4.0101.6 | 1297792 |
| LA | 35,27316 t | 28,21912.8 | 4218 | 2.5665 | 9.84250 | 21.65550 | 8.34212 | 1.1830 | 3.2583 | 1.9449 | 1.3835 | 2.2758 | 0.389.7 | 4.0101.6 | 1297806 |
| NA | 48,50122 t | 38,80117.6 | 6831 | 3.3585 | 9.84250 | 23.94608 | 10.34263 | 1.7745 | 4.25108 | 2.3860 | 1.5940 | 3.0277 | 0.7519 | 5.0127.0 | 1297862 |
| OA | 69,44531.5 t | 55,55625.2 | 9744 | 3.3585 | 9.84250 | 26.0660 | 13.62346 | -- | 5.0127 | 3.076 | 1.8948 | 3.62106 | 0.7519 | 6.5165.1 | 1298042 |
| PA | 81,57037 t | 65,25629.6 | 9744 | 3.1580 | 9.25235 | 32.58828 | 14.06357 | -- | 5.38137 | 3.076 | 1.8447 | 3.7595 | 0.7519 | 7.0177.8 | 1298049 |
| SA | 99,20745 t | 79,36636 | 19890 | 3.1580 | 9.25235 | 34.07865 | 15.44392 | -- | 6.0152 | 3.2583 | 1.8447 | 4.25108 | 0.7519 | 8.0203.2 | 1298057 |
| TA | 132,27760 t | 105,82148 | 289131 | 3.5490 | 8.46215 | 37.06941 | 18.5470 | -- | 7.0178 | 3.9199 | 2.0853 | 5.12130 | 0.7519 | 10.0254.0 | 1298087 |
| WA | 220,462100 t | 176,36980 | 668303 | 5.51140 | 11.81300 | 46.671185 | 23.0584 | -- | 6.81173 | 5.5140 | 2.7169 | 4.88124 | 0.7519 | 12.0304.8 | 1298103 |
| XA | 330,693150 t | 264,554120 | 871395 | 5.91150 | 9.06230 | 48.531233 | 24.38619 | -- | 6.75171 | 6.0152 | 3.6292 | 5.38137 | 0.7519 | 13.0330.2 | 1298117 |
| YA | 385,808175 t | 308,646140 | 1135515 | 6.69170 | 10.04255 | 52.241326 | 26.69678 | -- | 7.5191 | 7.0178 | 4.0102 | -- | 0.7519 | 13.0330.2 | 1298130 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

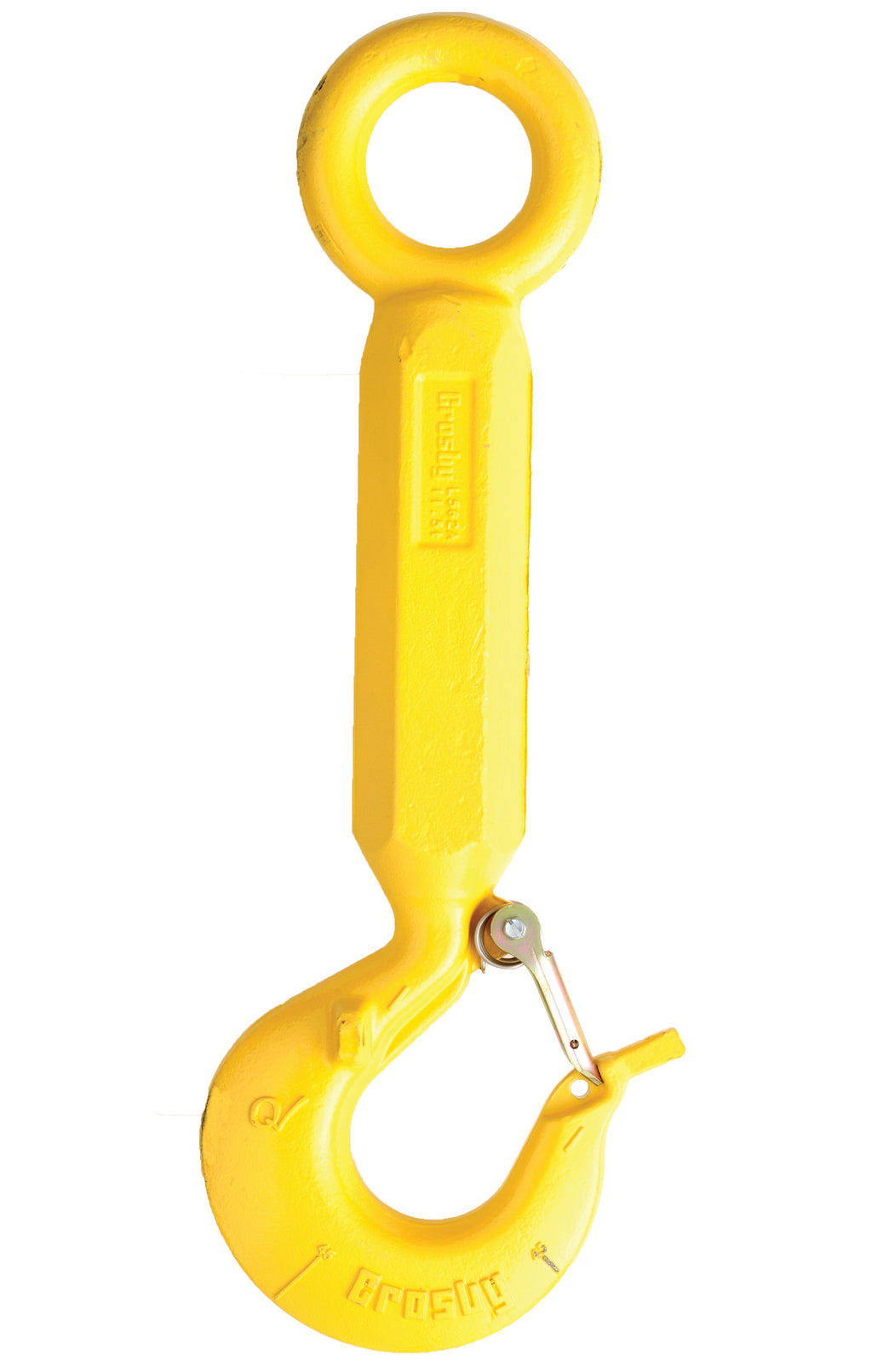

The Crosby L-562A ROV eye shank hook is purpose-built for subsea operations using remotely operated vehicles. The eye shank design provides secure connection while the oversized features enable manipulation by ROV arms in deep-water environments.
Key Features
- Eye shank for secure subsea connection
- ROV-compatible oversized design
- Forged alloy steel
- Subsea-rated construction
Common Applications
- Subsea lifting and positioning
- ROV-operated rigging
- Offshore oil & gas operations
Standards & Compliance
Engineered to Crosby offshore specifications. Made in the USA.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 11 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| IA (WLL 5.4 t) | 1297722 | $1,260.00 | ✓ In Stock | ||
| KA (WLL 11.5 t) | 1297792 | $2,314.00 | ✓ In Stock | ||
| LA (WLL 16 t) | 1297806 | $3,671.00 | ✓ In Stock | ||
| NA (WLL 22 t) | 1297862 | $4,917.00 | ✓ In Stock | ||
| OA (WLL 31.5 t) | 1298042 | $9,050.00 | ✓ In Stock | ||
| PA (WLL 37 t) | 1298049 | $10,689.00 | ✓ In Stock | ||
| SA (WLL 45 t) | 1298057 | $11,067.00 | ✓ In Stock | ||
| TA (WLL 60 t) | 1298087 | $13,615.00 | ✓ In Stock | ||
| WA (WLL 100 t) | 1298103 | $27,754.00 | ✓ In Stock | ||
| XA (WLL 150 t) | 1298117 | $33,726.00 | ✓ In Stock | ||
| YA (WLL 175 t) | 1298130 | $47,172.00 | ✓ In Stock |
