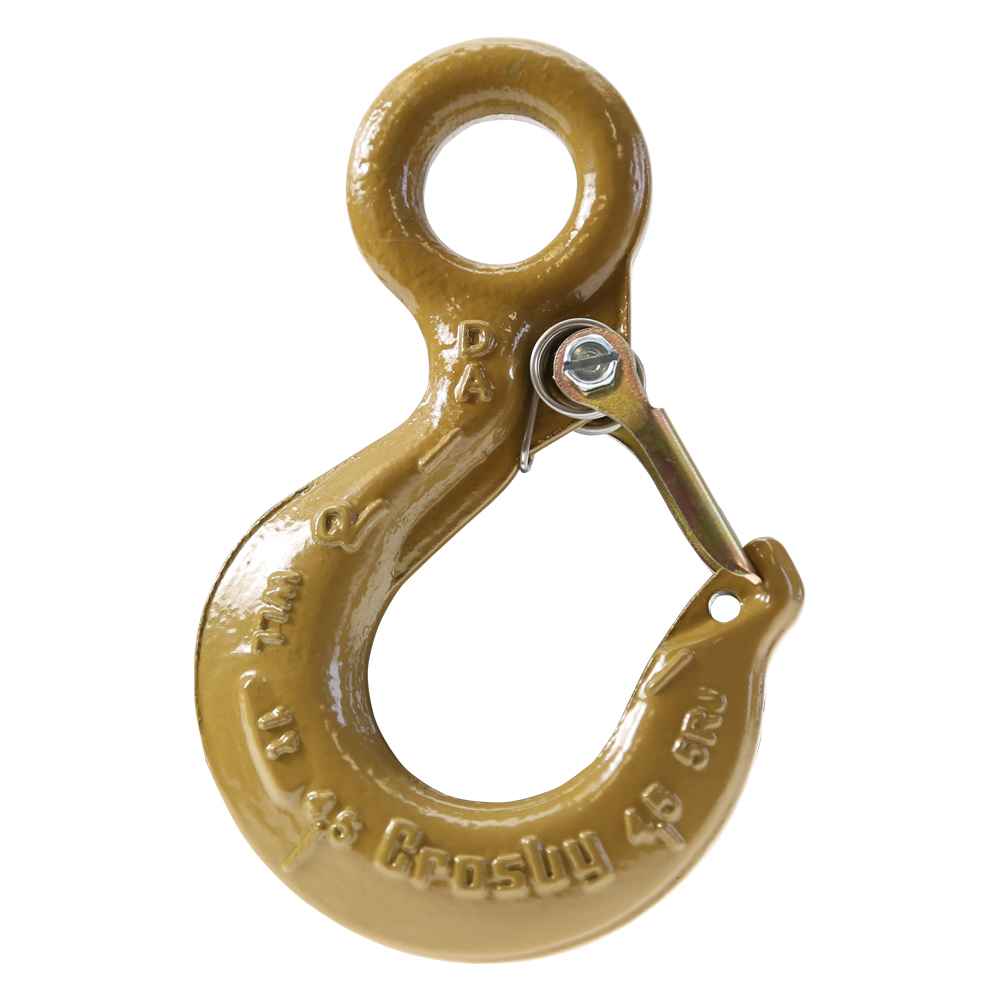

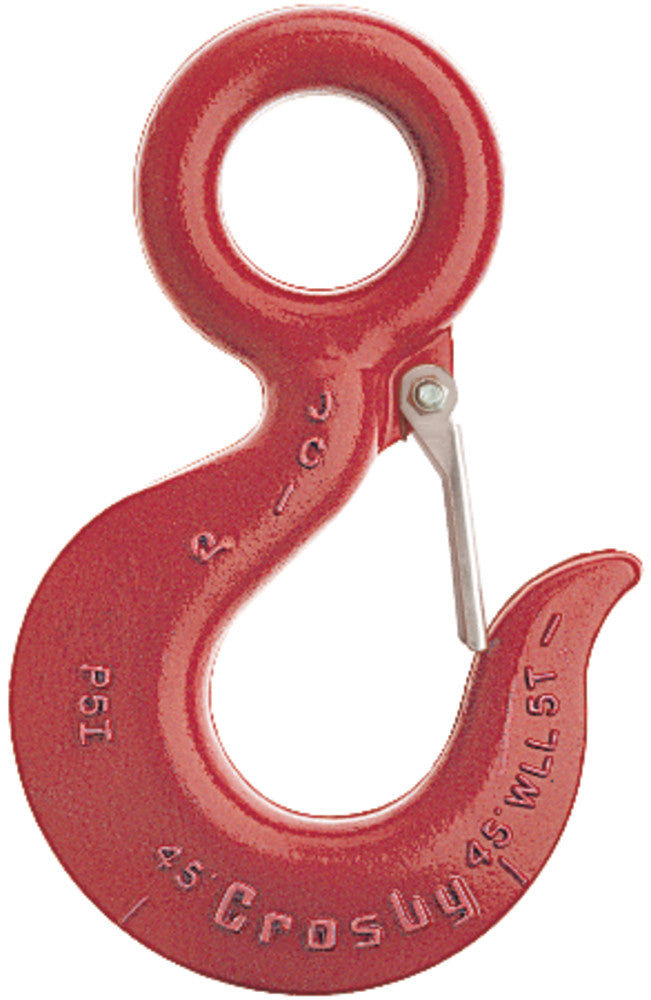

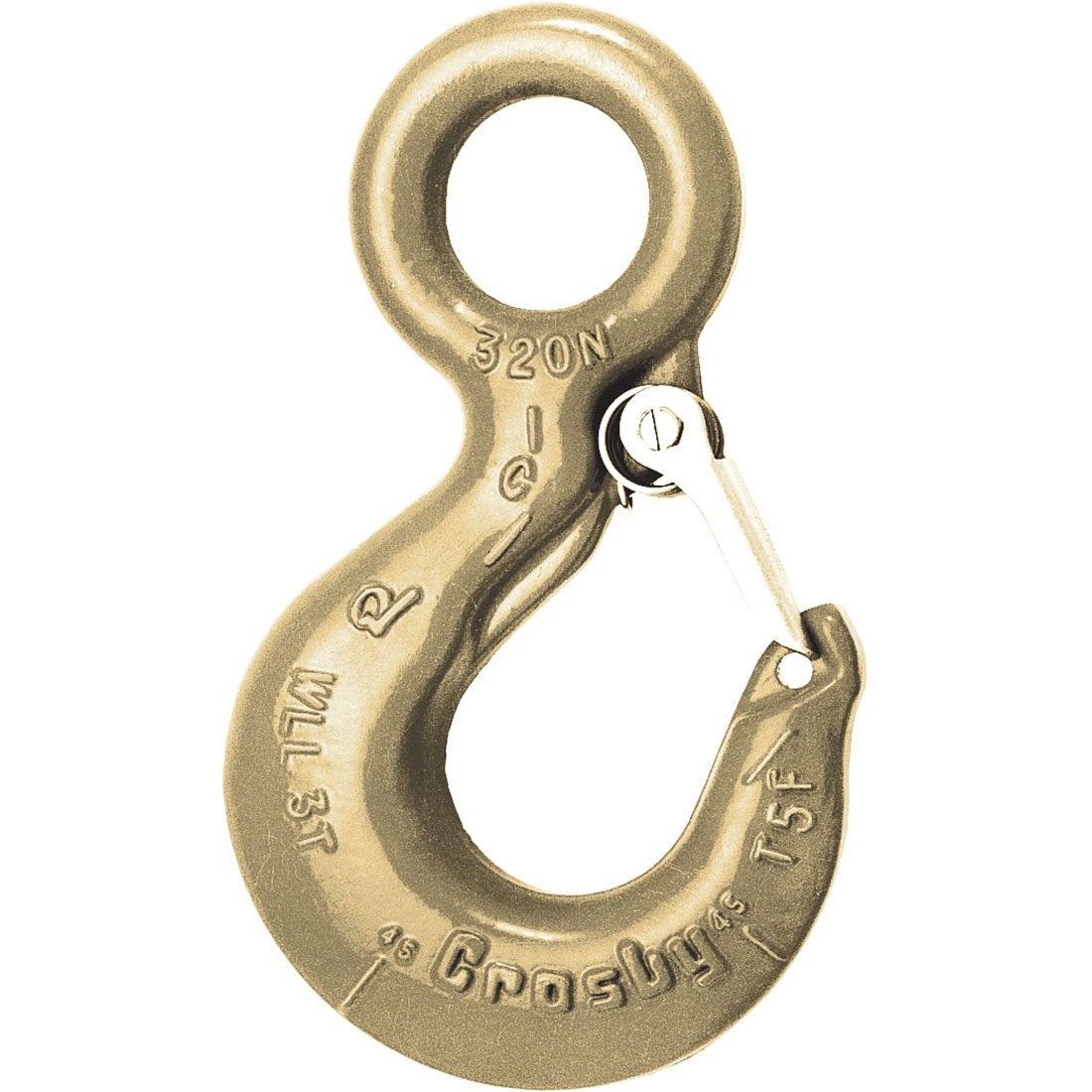

The Crosby L-320AN alloy eye hook with latch is designed for overhead lifting with an eye-type top connection. The spring-loaded safety latch prevents accidental load disengagement. Forged alloy steel provides high capacity in a compact form.
Key Features
- Eye connection for sling and wire rope attachment
- Spring-loaded safety latch (S-4320 latch kit)
- Forged alloy steel – Quenched & Tempered

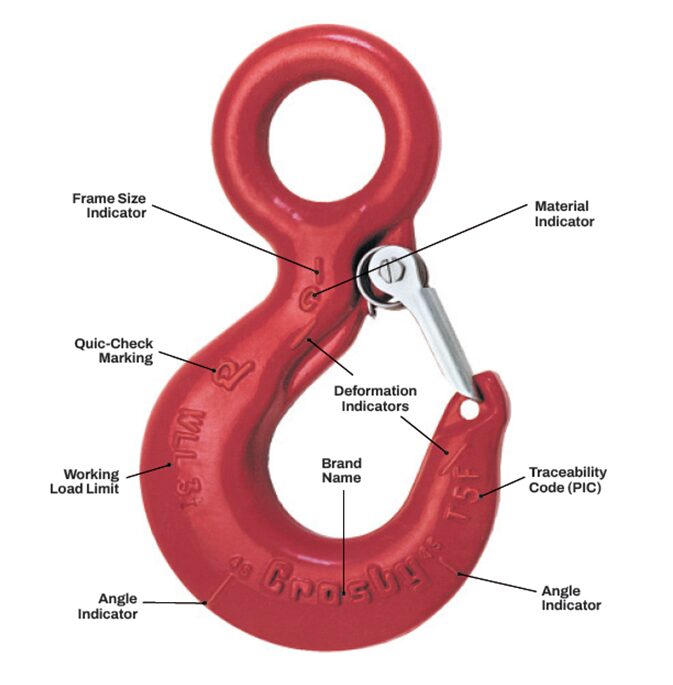

- QUIC-CHECK® deformation and angle indicators cast into the hook
- Load rated – permanently marked with the Working Load Limit
Common Applications
- Overhead lifting and hoisting
- Sling assembly bottom hooks
- Industrial material handling
Standards & Compliance
- Meets the performance requirements of ASME B30.10
- 5:1 Design Factor (1 t through 22 t alloy)
- Proof tested to 2.5× the Working Load Limit
- Fatigue rated to 20,000 cycles at 1.5× the Working Load Limit
- Made in the USA by Crosby
Dimensional Specifications

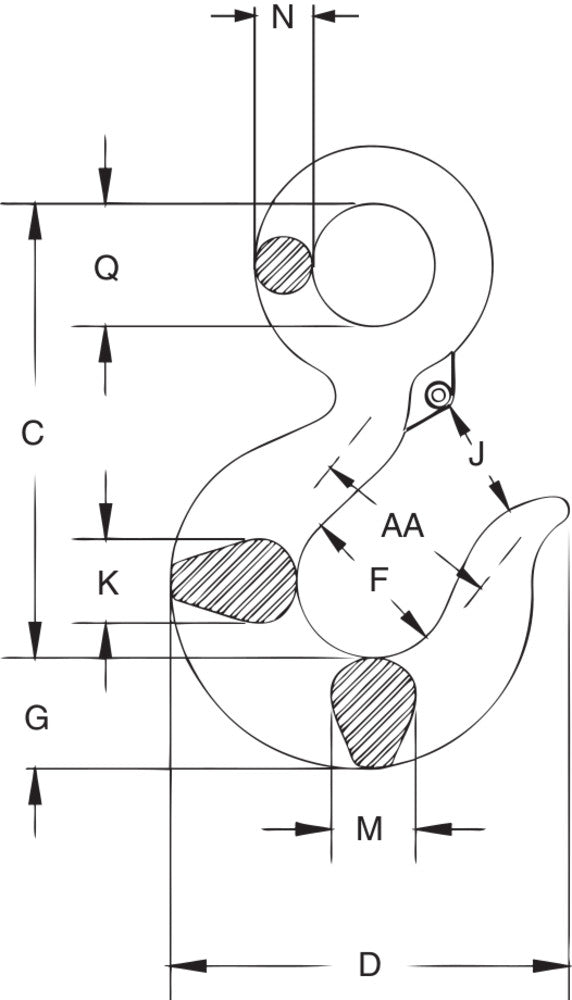

Dimensions below are keyed to the Crosby engineering drawing shown in the product images. All dimensions are in inches and weight in pounds; Working Load Limit (WLL) is for the alloy L-320AN hook.
| WLL (Alloy) | Hook ID | Crosby Stock No. | Wt (lb) | C | D | F | G | J | K | M | N | Q | AA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 t / 2,000 lb | D | 1022380 | 0.61 | 3.34 | 2.86 | 1.26 | 0.73 | 0.93 | 0.63 | 0.63 | 0.36 | 0.75 | 1.50 |
| 1.5 t / 3,000 lb | F | 1022391 | 0.89 | 3.79 | 3.15 | 1.38 | 0.84 | 0.97 | 0.71 | 0.71 | 0.42 | 0.91 | 2.00 |
| 2 t / 4,000 lb | G | 1022402 | 1.44 | 4.24 | 3.55 | 1.50 | 1.00 | 1.00 | 0.88 | 0.88 | 0.50 | 1.13 | 2.00 |
| 3 t / 6,000 lb | H | 1022413 | 2.07 | 4.84 | 3.99 | 1.62 | 1.13 | 1.19 | 0.94 | 0.94 | 0.56 | 1.29 | 2.00 |
| 5 t / 10,000 lb | I | 1022424 | 4.30 | 5.91 | 4.88 | 2.00 | 1.44 | 1.53 | 1.46 | 1.33 | 0.72 | 1.56 | 2.50 |
| 7 t / 14,000 lb | J | 1022435 | 8.30 | 7.51 | 6.26 | 2.50 | 1.81 | 1.75 | 1.66 | 1.53 | 0.91 | 2.03 | 3.00 |
| 11 t / 22,000 lb | K | 1022446 | 15.00 | 9.16 | 8.54 | 3.00 | 2.25 | 2.41 | 1.88 | 1.63 | 1.11 | 2.44 | 4.00 |
| 15 t / 30,000 lb | L | 1022457 | 20.77 | 10.19 | 8.39 | 3.26 | 2.59 | 2.62 | 2.19 | 1.94 | 1.27 | 2.84 | 4.00 |
| 22 t / 44,000 lb | N | 1022468 | 39.50 | 12.82 | 10.38 | 4.26 | 3.00 | 3.41 | 2.69 | 2.38 | 1.57 | 3.50 | 5.00 |
Dimensions per the Crosby L-320N / L-320 Eye Hooks catalog (Hooks & Swivels). Design factor 5:1 (1–22 t alloy); proof load 2.5× WLL. The 22 t “D” dimension is taken from Crosby’s metric specification (262 mm ≈ 10.38 in), correcting a typographic error in Crosby’s published imperial table. Latch-clearance dimensions (O, T) are shown on the additional Crosby diagrams — contact us if you need them.
Product Specifications
Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.
Available on request
- Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
- Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
- DNV / ABS / NORSOK documentation for offshore or subsea applications.
- Custom configurations — non-standard lengths, colors, hardware combinations.
Email sales@slingcenter.com with your SKU or order number.
Standards & Compliance
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
