Crosby IPPE Plate Lifting Clamp / #2702020

CrosbySKU: 2703862

WLL: 3 t (WLL 3 t (per pair))
Price:
Sale price$2,095.00

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Find my size:

Type the load and we will highlight every size rated for it. Or click any row to pick that size.

Rated as a below-the-hook lifting device. The manufacturer states: “Design Factor based on EN 13155 and ASME B30.20”
ASME B30.20 and EN 13155 are the standards for lifting clamps and other below-the-hook devices. The Working Load Limit stamped on each clamp by the manufacturer is the governing figure.

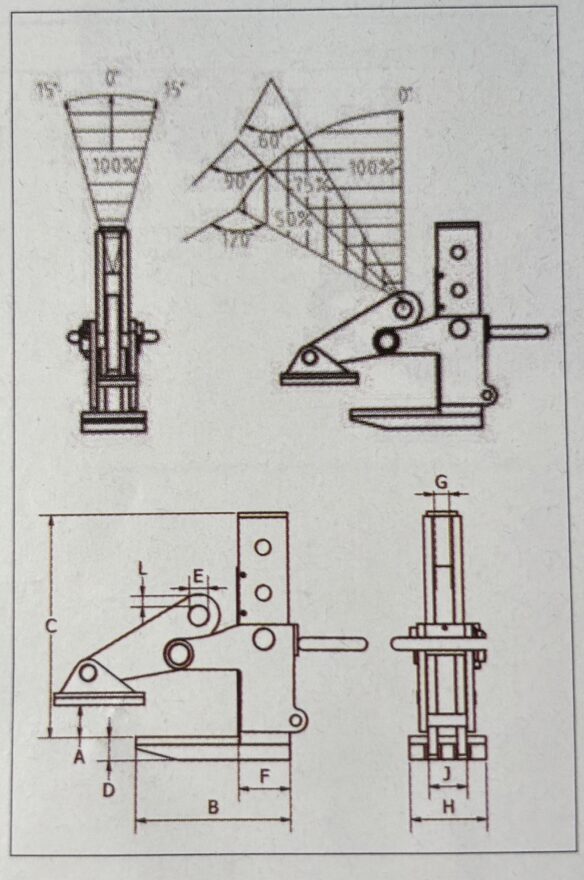

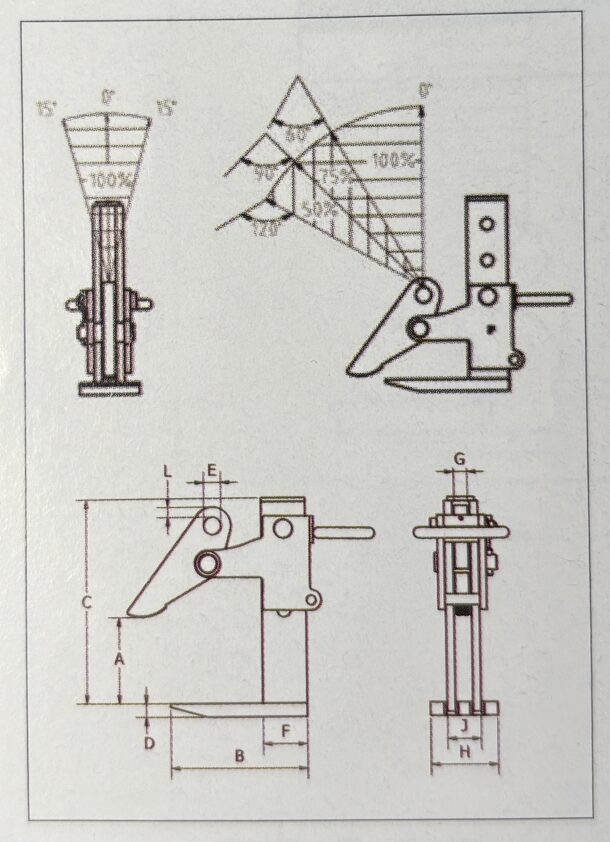

The dimensioned drawing for this part, with every letter callout used in the table, is on the manufacturer’s own catalog page.
Open the catalog page (PDF)
Dimension Legend
A
Jaw opening / grip range - material thickness (in)
Stock #SizeWLL PER PAIR (t)Design
Factor
Weight (lb)(kg)A (in)(mm)B (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)H (in)(mm)J (in)(mm)L (in)(mm)
27038623 t3EN 13155 / ASME B30.2025.011.340 - 7.130.0 - 181.18.03204.012.68322.10.7920.11.0225.92.666.00.7920.13.94100.11.9750.00.5915.0
27038716 t6EN 13155 / ASME B30.2035.015.880 - 7.130.0 - 181.18.66220.013.39340.10.9824.91.1830.02.9173.90.7920.15.51140.02.3659.90.5113.0
27038889 t9EN 13155 / ASME B30.205424.490 - 7.130.0 - 181.19.76247.914.37365.00.9824.91.3434.03.5489.90.7920.17.48190.02.7670.10.5113.0
270392112 t12EN 13155 / ASME B30.207232.660 - 7.130.0 - 181.110.31261.914.8375.91.1830.01.5739.93.5489.90.9824.97.87199.92.7670.10.7118.0

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

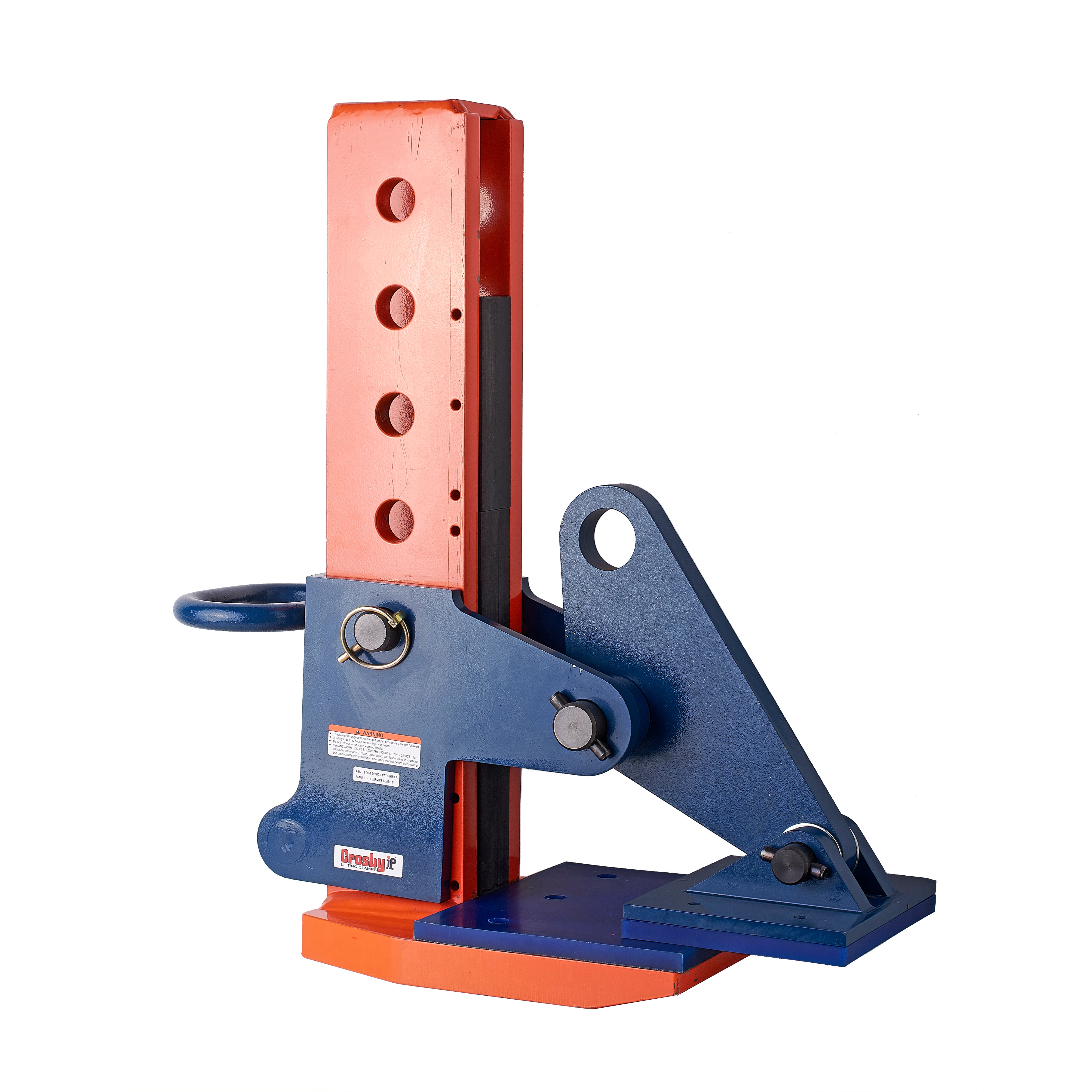

The Crosby IPPE plate lifting clamp is designed for lifting steel plates in the horizontal position. The cam-action mechanism provides automatic grip that increases with load, and the wide jaw opening accommodates a range of plate thicknesses.

Key Features

  • Horizontal plate lifting design
  • Cam-action automatic grip
  • Wide jaw opening for various plate thicknesses
  • Hardened steel jaws
  • Proof tested at 2x WLL

Common Applications

  • Horizontal steel plate lifting
  • Steel fabrication and processing
  • Plate storage and handling
  • Manufacturing material handling

Standards & Compliance

Meets ASME B30.20. Manufactured by Crosby.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 4 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Weight ▴▾ Stock Qty Add
3 t (WLL 3 t (per pair)) 2703862 $2,095.00 28.0 lb ✓ In Stock
12 t (WLL 12 t (per pair)) 2703921 $6,182.00 105.0 lb ✓ In Stock
6 t (WLL 6 t (per pair)) 2703871 $2,390.00 35.94 lb ✓ In Stock
9 t (WLL 9 t (per pair)) 2703888 $2,687.00 54.67 lb ✓ In Stock

Weights are approximate shipping weights.
