Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
Terminations and weld-on fittings are commonly rated by efficiency, or by the strength of the assembly they are built into, rather than by a WLL design factor. Confirm the governing figure for your application before use, or email sales@slingcenter.com.
Open the catalog page (PDF)
| Size | WLL (lb)(t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | J (in)(mm) | L (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.75 t | 1,6530.75 t | EN 13155 / ASME B30.20 | 6.613.0 | 0 - 1.000.0 - 25.4 | 1.5739.9 | 5.83148.1 | 8.66220.0 | 1.9750.0 | 5.12130.0 | 2.7269.1 | 1.333.0 | 0.8722.1 | 2705461 |
| 1.5 t | 3,3061.5 t | EN 13155 / ASME B30.20 | 13.25.99 | 0 - 1.000.0 - 25.4 | 2.3659.9 | 7.99202.9 | 10.04255.0 | 1.9750.0 | 6.22158.0 | 2.8772.9 | 1.3835.1 | 1.127.9 | 2705462 |
| 3 t | 6,6133 t | EN 13155 / ASME B30.20 | 23.210.52 | 0 - 1.560.0 - 39.6 | 3.1580.0 | 8.94227.1 | 12.8325.1 | 2.7670.1 | 7.4188.0 | 4.41112.0 | 1.538.1 | 1.2632.0 | 2705463 |
| 4.5 t | 9,9204.5 t | EN 13155 / ASME B30.20 | 55.124.99 | 0 - 1.560.0 - 39.6 | 4.41112.0 | 11.18284.0 | 16.26413.0 | 2.7670.1 | 9.88251.0 | 4.57116.1 | 3.1580.0 | 1.5739.9 | 2705464 |
| 12 t | 26,45512 t | EN 13155 / ASME B30.20 | 93.342.32 | 0 - 1.560.0 - 39.6 | 4.92125.0 | 18.35466.1 | 19.29490.0 | 3.5489.9 | 12.48317.0 | 3.5489.9 | 3.5489.9 | 1.8547.0 | 2705467 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 t = 2,204.62 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Lowercase t is the metric tonne (1,000 kg / 2,204.62 lb), the manufacturer’s own notation — not the US short ton. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

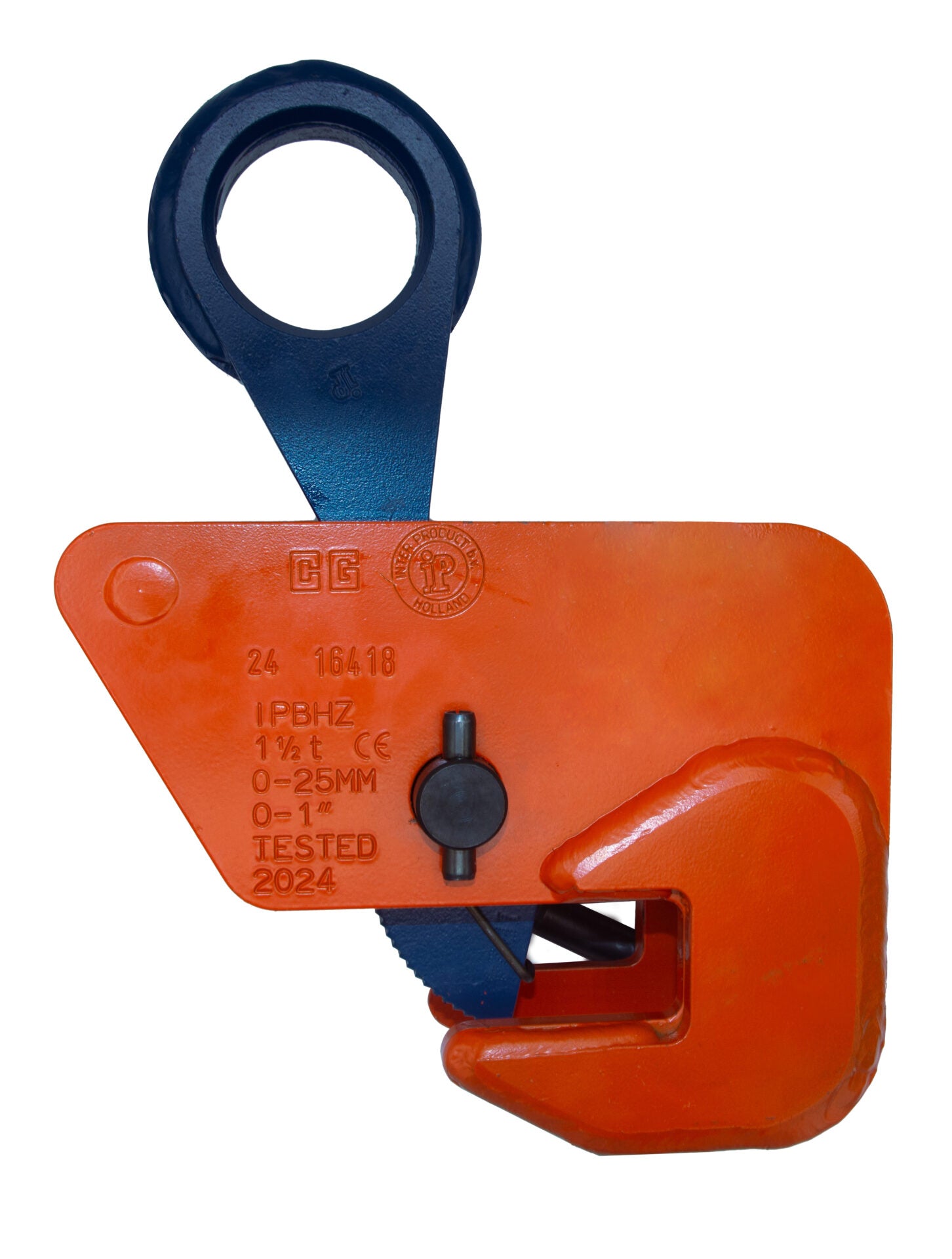

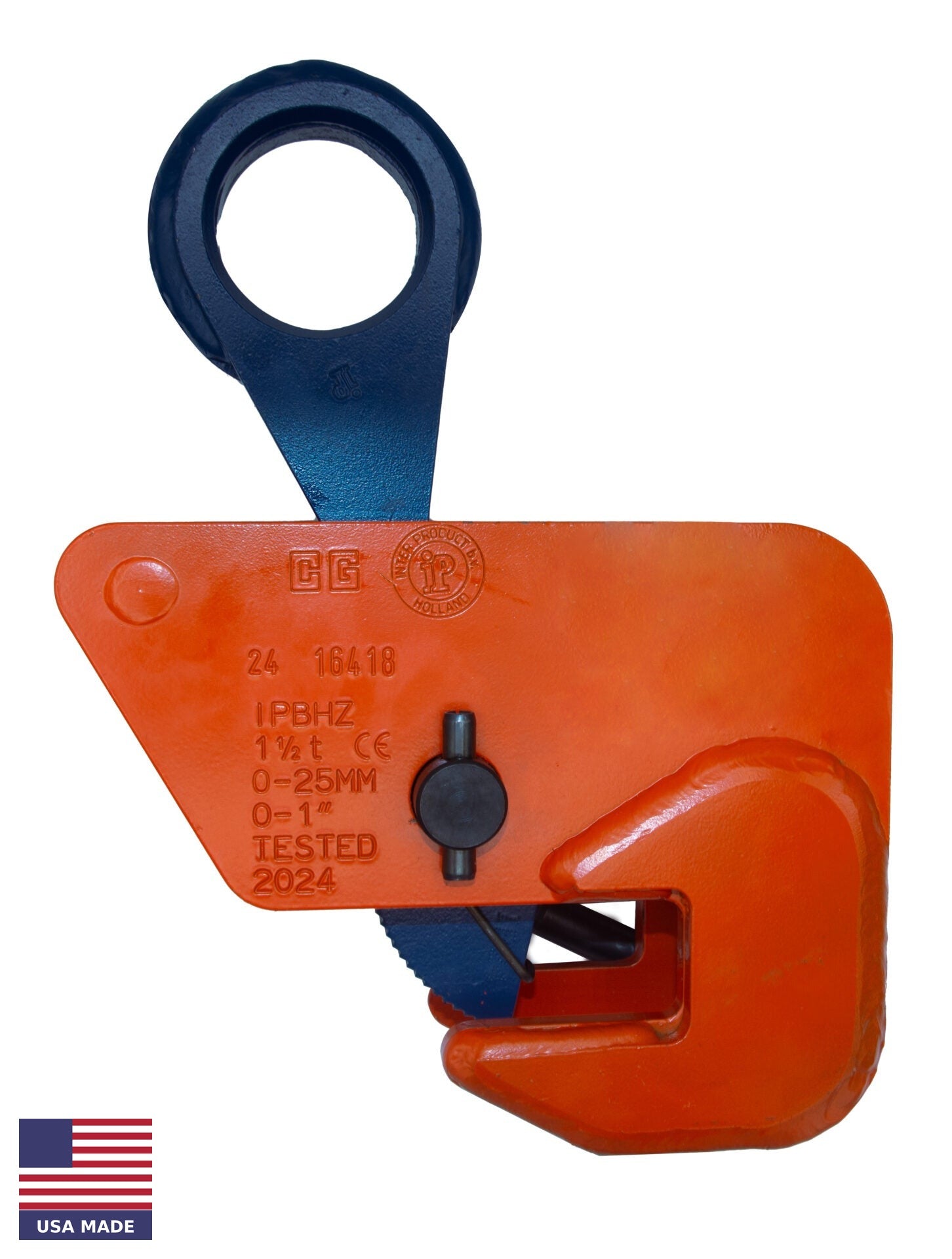

The Crosby IPBHZ beam lifting clamp is designed for lifting and positioning structural steel beams, H-beams, and I-beams. The clamp engages the beam flange securely and allows controlled positioning during steel erection and construction.
Key Features
- Designed specifically for structural beam flanges
- Secure cam-action clamping
- Quick engagement and release
- Hardened steel jaws
- Proof tested at 2x WLL
Common Applications
- Structural steel erection
- Beam lifting and positioning
- Steel fabrication shops
- Construction site steel handling
Standards & Compliance
Meets ASME B30.20. Manufactured by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 0.75 t (WLL 0.75 t) | 2705461 | $970.00 | ✓ In Stock | ||
| 1.5 t (WLL 1.5 t) | 2705462 | $1,317.00 | ✓ In Stock | ||
| 3 t (WLL 3 t) | 2705463 | $1,510.00 | ✓ In Stock | ||
| 4.5 t (WLL 4.5 t) | 2705464 | $2,618.00 | ✓ In Stock | ||
| 12 t (WLL 12 t) | 2705467 | $8,648.00 | Quote |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
