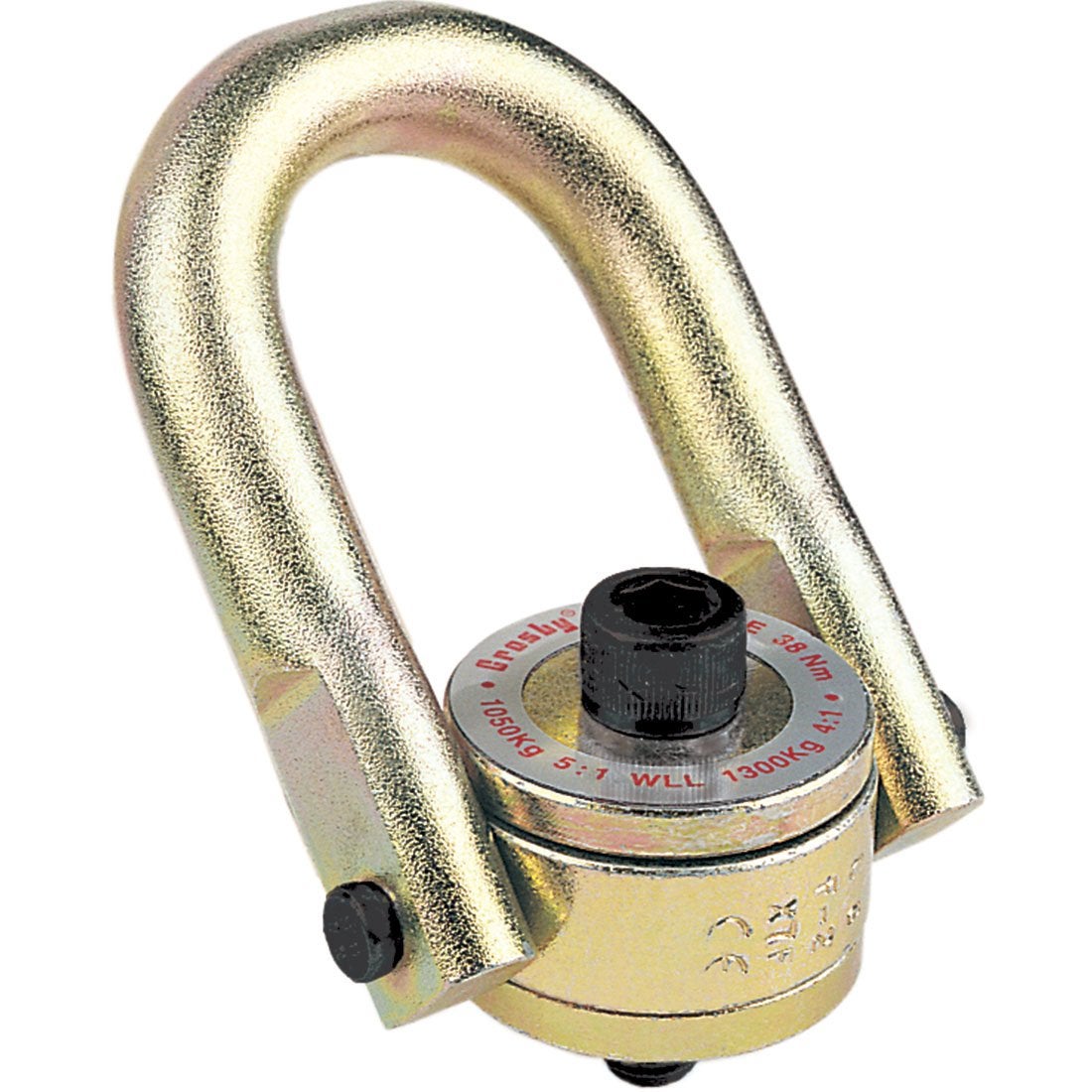

Crosby HR-125M Metric Swivel Hoist Ring / #1016612

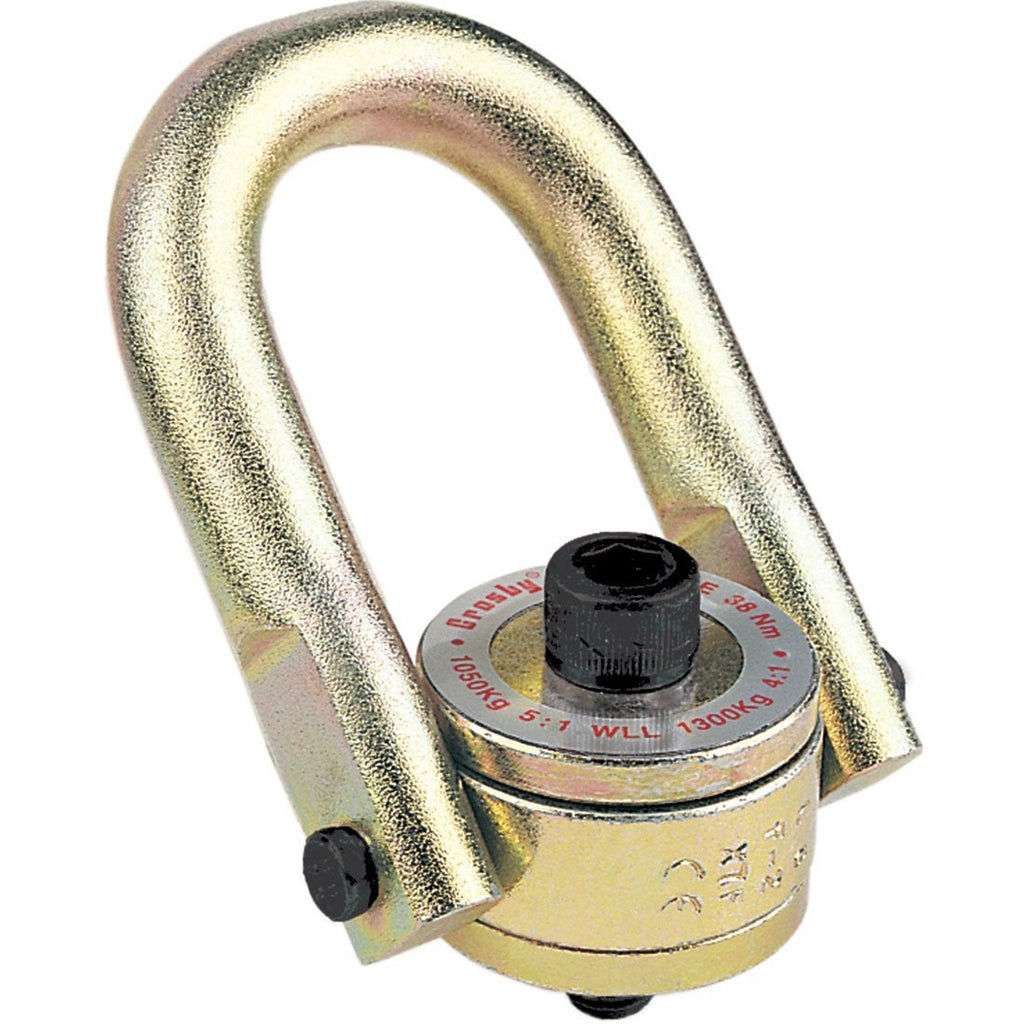

Crosby HR-125M Metric Swivel Hoist Ring

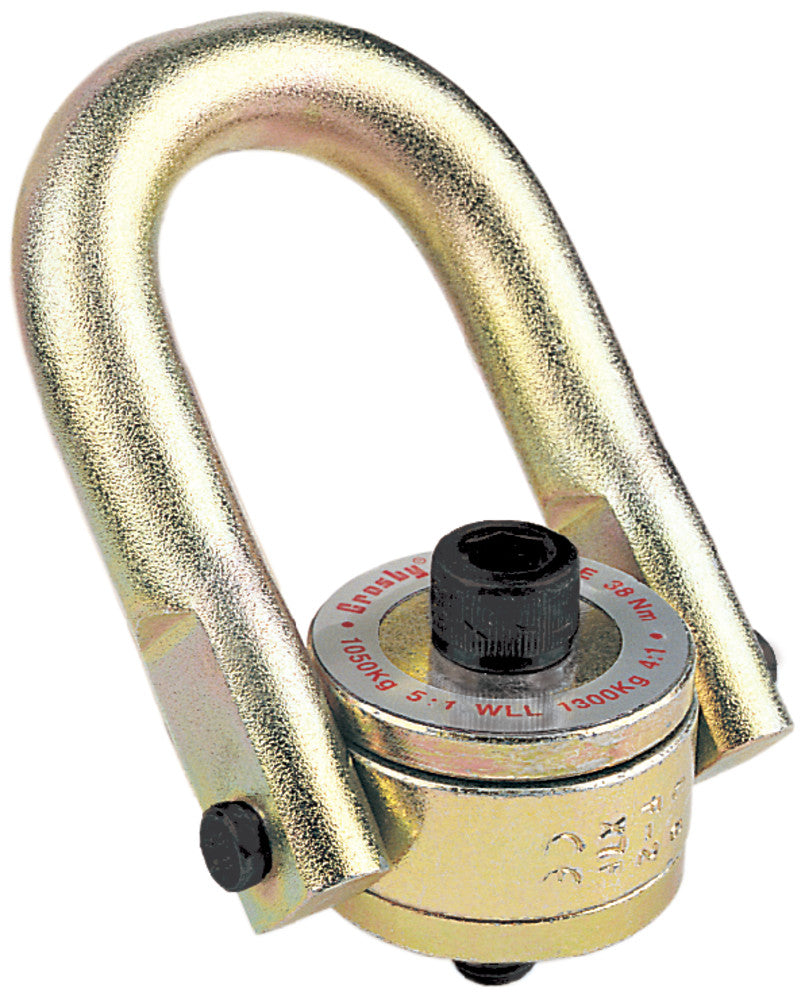

Crosby HR-125M Metric Swivel Hoist Ring - Image 2
Crosby HR-125M Metric Swivel Hoist Ring - Image 3
Roll over image to zoom in Click on image to zoom
Crosby HR-125M Metric Swivel Hoist Ring / #1016612Crosby HR-125M Metric Swivel Hoist RingCrosby HR-125M Metric Swivel Hoist Ring - Image 2Crosby HR-125M Metric Swivel Hoist Ring - Image 3

Crosby HR-125M Metric Swivel Hoist Ring

CrosbySKU: 1016602
Thread Size: M8 (WLL 400 kg (5:1) / 500 kg (4:1))
Price:
$345.00
🛠️ Ask our AI rigging specialist (bottom-right) OR email sales@slingcenter.com →

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

The manufacturer publishes this part at two design factors, and both columns below are theirs — neither is calculated by SlingCenter. The 5:1 column is the conservative rating and the one to design to; the 4:1 column permits a greater load on the same part and applies only where your specification explicitly allows that design factor. Minimum breaking load = design factor × WLL, so the two columns describe the same piece of steel, not two products.

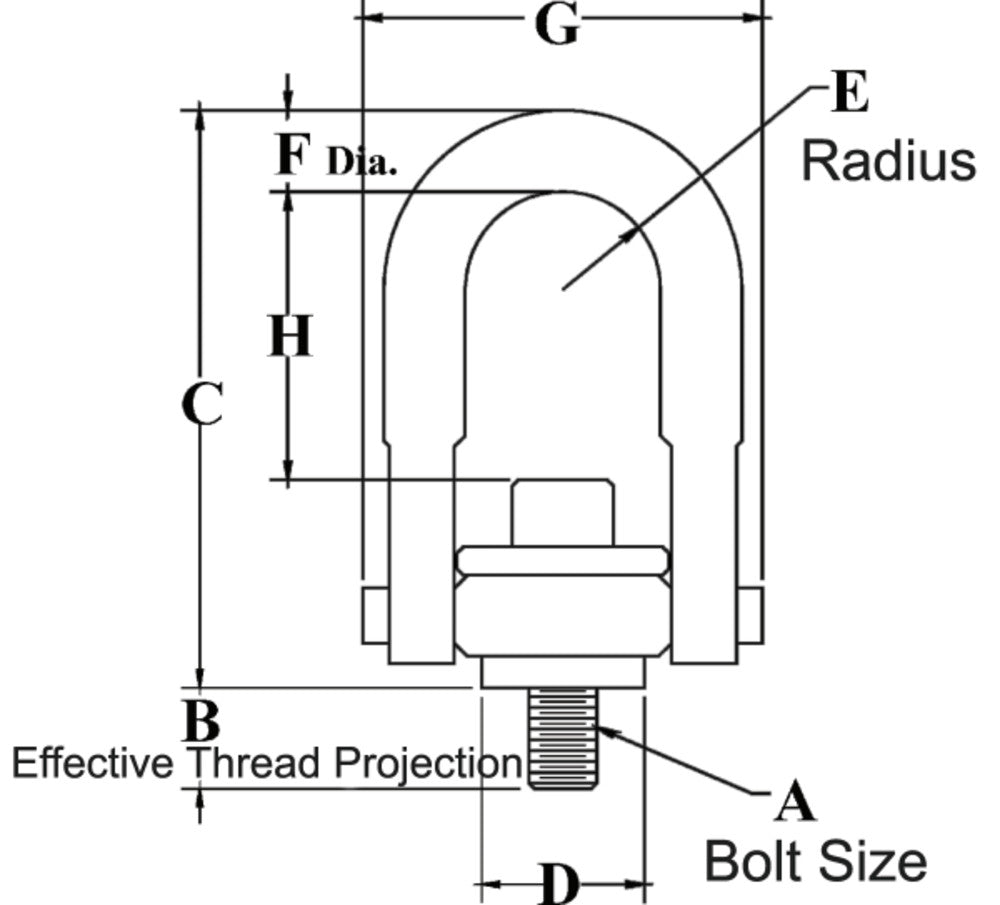

Crosby HR-125M Metric Swivel Hoist Ring dimensions
Dimension Legend
A
Bolt size
B
Effective thread projection
C
Overall height
D
Base width
E
Radius
F
Bail bar diameter
G
Overall width
H
Bail opening height
SizeWLL 5:1 (lb)(kg)WLL 4:1(lb)(kg)Weight (lb)(kg)AB (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)H (in)(mm)Stock #
M88814001,1025000.40.17M8x1.25x400.66516.92.75269.90.96924.60.46511.80.3358.51.8747.51.17729.91016602
M109924501,2125500.40.18M10x1.50x400.66516.92.75269.90.96924.60.46511.80.3358.51.8747.51.10628.11016613
M122,31410502,86613002.31.05M12x1.75x500.66516.94.8431231.96149.80.87822.30.68917.53.3585.12.37860.41016624
M164,18819005,29124002.41.11M16x2.00x601.05926.94.8431231.96149.80.87822.30.68917.53.3585.12.21756.31016635
M204,73921505,95227002.61.17M20x2.50x651.25631.94.8431231.96149.80.87822.30.68917.53.3585.12.05952.31016644
M206,61330008,26737506.83.09M20x2.50x751.09427.86.5751672.96175.21.36634.71.025.44.8821243.01676.61016657
M249,259420011,57452507.13.21M24x3.00x801.29132.86.5751672.96175.21.36634.71.025.44.8821242.77670.51016668
M3015,432700019,290875014.46.53M30x3.50x1202.42961.78.742223.70994.21.75244.51.20130.56.1811574.0161021016679
M3624,2501100030,3131375037.016.8M36x4.00x1502.12654.012.523184.7241202.3960.71.75244.58.4652155.5911421016690
M4227,5571250034,3921560038.417.4M42x4.50x1602.5264.012.523184.7241202.3960.71.75244.58.4652155.3541361016701
M4829,7621350037,2581690039.718.0M48x5.00x1602.91374.012.523184.7241202.3960.71.75244.58.4652155.1181301016712

Both Working Load Limit columns are published by the manufacturer for this part — neither is calculated by us. The 5:1 figure is the conservative one and the rating to design to. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 kg = 2.20462 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size. A column shown without a unit carries a designation rather than a measurement — a thread callout or a part type — so it reads the same in both views.

The Crosby HR-125M metric swivel hoist ring is the metric-thread version of the compact HR-125 series. Provides 360-degree swivel for self-alignment in metric-threaded applications.

Key Features

  • 360-degree swivel
  • Metric threads
  • Compact design
  • Forged alloy steel

Common Applications

  • Metric equipment lifting
  • International manufacturing and tooling

Standards & Compliance

Meets ASME B30.26. Made in the USA by Crosby.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 11 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Stock Qty Add
M8 (WLL 400 kg (5:1) / 500 kg (4:1)) 1016602 $345.00 ✓ In Stock
M10 (WLL 450 kg (5:1) / 550 kg (4:1)) 1016613 $356.00 ✓ In Stock
M12 (WLL 1050 kg (5:1) / 1300 kg (4:1)) 1016624 $436.00 ✓ In Stock
M16 (WLL 1900 kg (5:1) / 2400 kg (4:1)) 1016635 $446.00 ✓ In Stock
M20 (WLL 2150 kg (5:1) / 2700 kg (4:1)) 1016644 $453.00 ✓ In Stock
M24 (WLL 4200 kg (5:1) / 5250 kg (4:1)) 1016668 $925.00 ✓ In Stock
M30 (WLL 7000 kg (5:1) / 8750 kg (4:1)) 1016679 $1,579.00 ✓ In Stock
M36 (WLL 11000 kg (5:1) / 13750 kg (4:1)) 1016690 $1,646.00 ✓ In Stock
M20 (WLL 3000 kg (5:1) / 3750 kg (4:1)) 1016657 $916.00 ✓ In Stock
M42 (WLL 12500 kg (5:1) / 15600 kg (4:1)) 1016701 $2,072.00 Quote
M48 (WLL 13500 kg (5:1) / 16900 kg (4:1)) 1016712 $2,307.00 Quote
