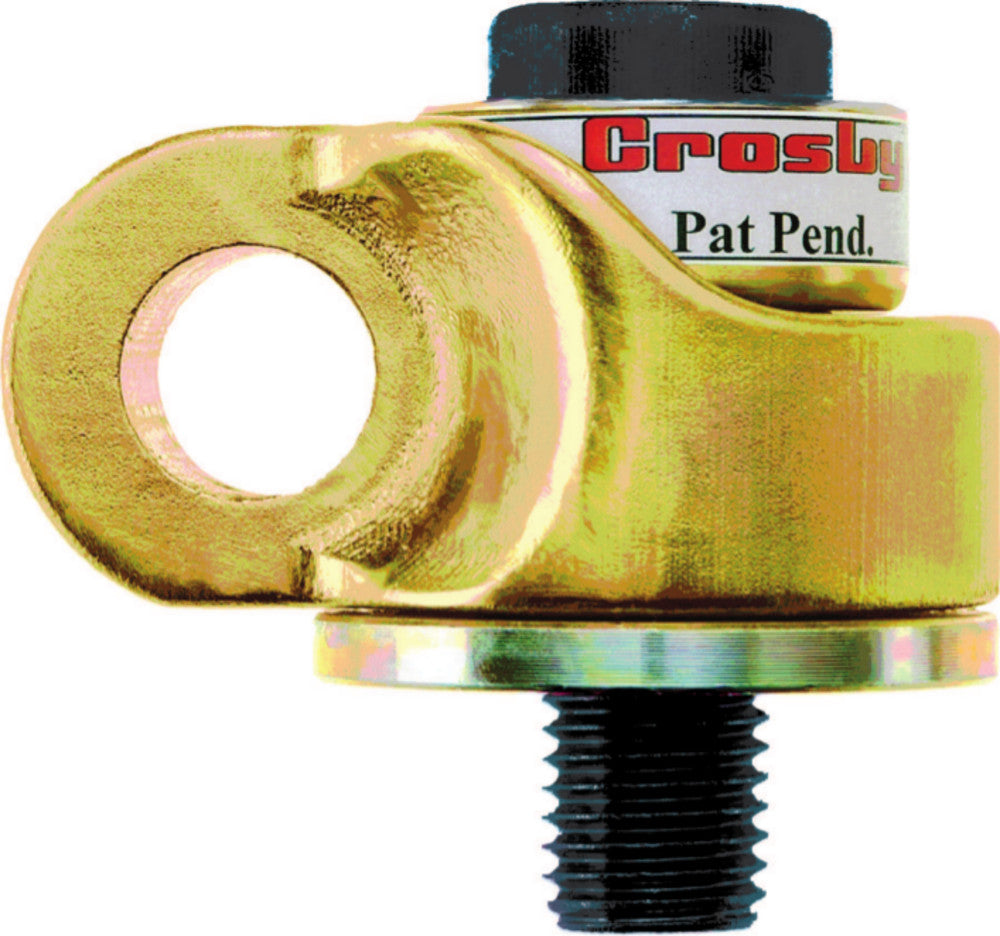

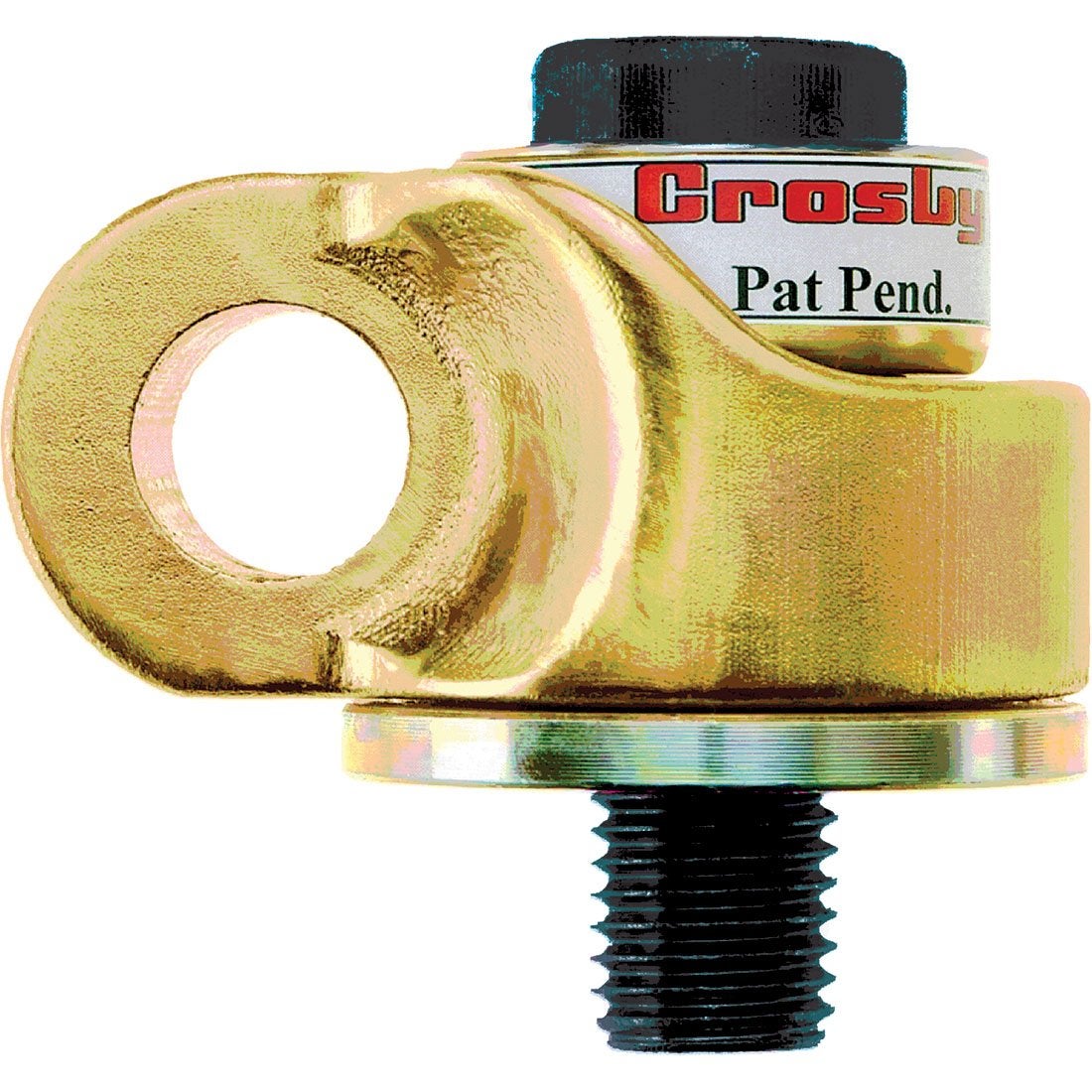

Crosby HR-1200M Side-Pull Hoist Ring - Metric Threads / #1067800
Crosby HR-1200M Side-Pull Hoist Ring - Metric
Roll over image to zoom in Click on image to zoom
Crosby HR-1200M Side-Pull Hoist Ring - Metric Threads / #1067800Crosby HR-1200M Side-Pull Hoist Ring - Metric

Crosby HR-1200M Side-Pull Hoist Ring - Metric Threads

CrosbySKU: 1067803
Thread Size: M8 (WLL 300 kg)
Price:
$290.00
🛠️ Ask our AI rigging specialist (bottom-right) OR email sales@slingcenter.com →

Manufacturer Documents

Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.

Specifications — Full Dimensions by Size

Working Load Limits below are as certified by the manufacturer at a 5:1 design factor — minimum breaking load = 5 × WLL.
Crosby HR-1200M Side-Pull Hoist Ring - Metric Threads dimensions
Dimension Legend
A
Bolt size
B
Effective thread projection
C
Overall width
D
Bracket width
E
Eye height
F
Radial (bail) clearance
G
Eye bore diameter
H
Base to eye centerline
I
Overall height
SizeWLL (lb)(kg)Weight (lb)(kg)AB (in)(mm)C (in)(mm)D (in)(mm)E (in)(mm)F (in)(mm)G (in)(mm)H (in)(mm)I (in)(mm)Stock #
M8661300 kg0.40.18M8x1.25x400.66516.91.92949.00.7218.31.025.41.55939.60.79920.30.8521.61.42936.31067803
M10881400 kg0.40.18M10x1.50x400.66516.91.92949.00.7218.31.025.41.55939.60.79920.30.8521.61.42936.31067807
M122,2041000 kg1.40.63M12x1.75x500.67717.22.96975.40.96924.62.050.82.1354.10.92923.61.07127.21.79145.51067811
M163,0861400 kg1.50.68M16x2.0x601.07127.22.96975.40.96924.62.050.82.1354.10.92923.61.07127.21.79145.51067815
M204,9602250 kg4.42.0M20x2.5x751.10628.14.3311101.33934.03.076.23.076.21.07127.21.35434.42.42161.51067823
M247,7163500 kg4.92.2M24x3.0x801.30333.14.3311101.33934.03.076.23.076.21.07127.21.35434.42.42161.51067827
M3013,7786250 kg9.94.5M30x3.5x1202.56365.15.5911421.57139.93.75295.33.90999.31.46937.31.92148.83.42186.91067831
M3617,0857750 kg22.910.4M36x4.0x1502.38660.67.3231862.05952.34.7641215.1971322.1153.62.40961.24.2911091067835
M4222,04610000 kg23.610.7M42x4.5x1602.7870.67.3231862.05952.34.7641215.1971322.1153.62.40961.24.2911091067839
M4828,66013000 kg24.311.0M48x5.0x1602.7870.67.3231862.05952.34.7641215.1971322.1153.62.40961.24.2911091067843

Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 kg = 2.20462 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size. A column shown without a unit carries a designation rather than a measurement — a thread callout or a part type — so it reads the same in both views.

The Crosby HR-1200M side-pull hoist ring with metric threads provides side-pull and horizontal load capability for metric-threaded equipment. Maintains full WLL during lateral pulling operations.

Key Features

  • Side-pull and horizontal load rated
  • Metric threads
  • 360-degree swivel
  • Forged alloy steel

Common Applications

  • Metric equipment tilting and positioning
  • Horizontal force applications
  • International manufacturing

Standards & Compliance

Meets ASME B30.26. Made in the USA by Crosby.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

  • ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
  • ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
  • ASME B30.10 — hooks
  • OSHA 1910.184 and 1926.251 — general industry and construction sling safety
  • WSTDA WS-2 and RS-1 — web and round sling design
  • 49 CFR 393.102 to 393.130 — DOT cargo tie-down
  • NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Order Sheet — 10 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾ SKU ▴▾ Price ▴▾ Stock Qty Add
M8 (WLL 300 kg) 1067803 $290.00 ✓ In Stock
M10 (WLL 400 kg) 1067807 $305.00 ✓ In Stock
M12 (WLL 1,000 kg) 1067811 $353.00 ✓ In Stock
M16 (WLL 1,400 kg) 1067815 $490.00 ✓ In Stock
M20 (WLL 2,250 kg) 1067823 $873.00 ✓ In Stock
M24 (WLL 3,500 kg) 1067827 $1,177.00 ✓ In Stock
M30 (WLL 6,250 kg) 1067831 $1,898.00 ✓ In Stock
M36 (WLL 7,750 kg) 1067835 $2,098.00 ✓ In Stock
M42 (WLL 10,000 kg) 1067839 $2,355.00 ✓ In Stock
M48 (WLL 13,000 kg) 1067843 $2,640.00 ✓ In Stock
