Manufacturer Documents
- 📄 Catalog pages — imperial (PDF)
- 📄 Catalog pages — metric (PDF)
- ⚠ Applications & warnings (PDF)
- ↗ Manufacturer product page
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
Open the catalog page (PDF)
| Size | WLL (lb)(kg) | Weight (lb)(kg) | A | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M12 x 1.75 x 55 | 1,818825 kg | 2.21 | M12 x 1.75 x 55 | 0.6115.6 | 6.32160.6 | 1.9649.7 | 1.2531.8 | 0.7519.1 | 4.2106.7 | 2.563.5 | 6630058 |
| M16 x 2.00 x 65 | 2,9761350 kg | 2.21 | M16 x 2.00 x 65 | 1.025.5 | 6.32160.6 | 1.9649.7 | 1.2531.8 | 0.7519.1 | 4.2106.7 | 2.563.5 | 6630059 |
| M20 x 2.50 x 80 | 4,9602250 kg | 11.025 | M20 x 2.50 x 80 | 1.025.3 | 8.59218.2 | 2.9675.1 | 1.6341.4 | 1.025.4 | 6.25158.8 | 3.2582.6 | 6630060 |
| M24 x 3.00 x 90 | 6,9993175 kg | 11.025 | M24 x 3.00 x 90 | 1.3935.4 | 8.59218.2 | 2.9675.1 | 1.6341.4 | 1.025.4 | 6.25158.8 | 3.2582.6 | 6630061 |
| M30 x 3.50 x 140 | 12,0155450 kg | 24.2511 | M30 x 3.50 x 140 | 2.5965.9 | 11.31287.3 | 3.794.1 | 2.050.8 | 1.4436.6 | 8.13206.5 | 4.0101.6 | 6630062 |
| M36 x 4.00 x 130 | 16,4247450 kg | 26.4612 | M36 x 4.00 x 130 | 2.2256.3 | 11.31287.3 | 3.794.1 | 2.050.8 | 1.4436.6 | 8.13206.5 | 4.0101.6 | 6630063 |
| M48 x 5.00 x 180 | 29,21113250 kg | 66.1430 | M48 x 5.00 x 180 | 2.7870.7 | 15.15384.9 | 4.0101.6 | 2.6968.3 | 1.7544.5 | 11.64295.6 | 5.0127.0 | 6630064 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 kg = 2.20462 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size. A column shown without a unit carries a designation rather than a measurement — a thread callout or a part type — so it reads the same in both views.

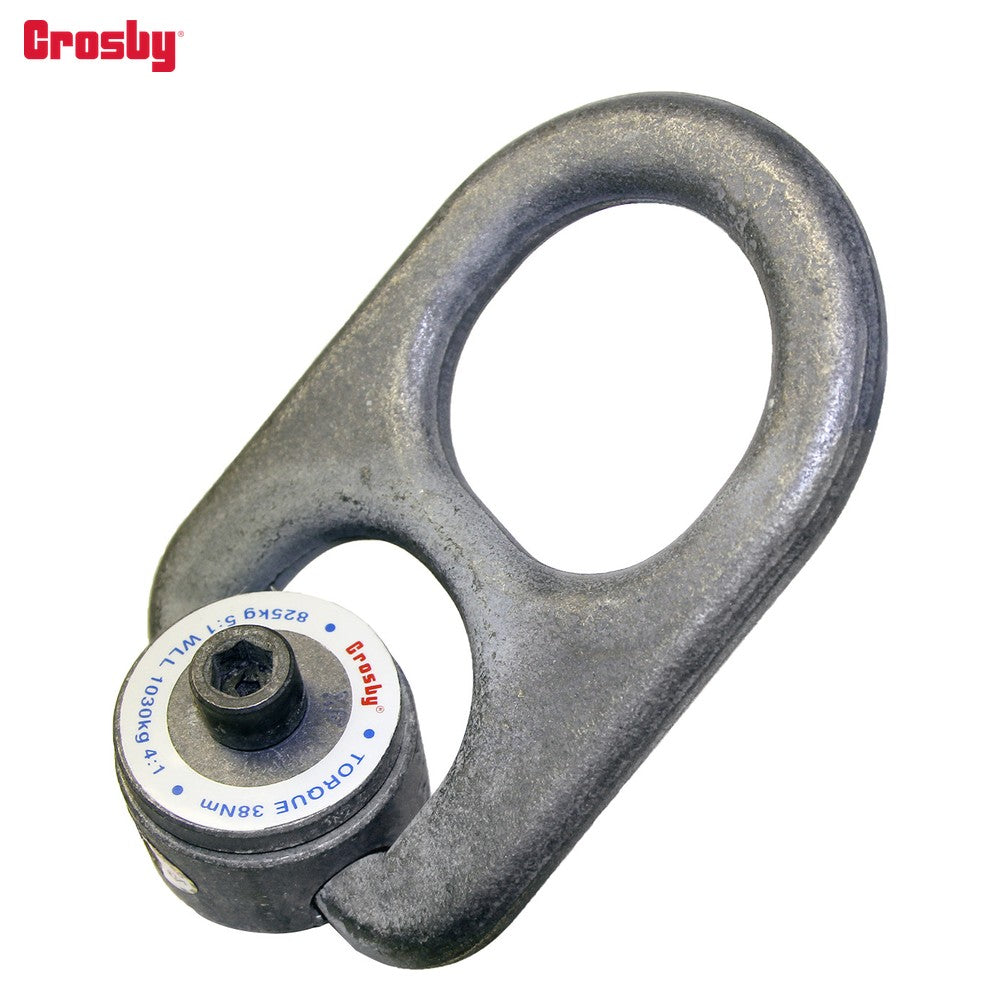

The Crosby HR-1000MCT COLD-TUFF® metric hoist ring combines metric threads with COLD-TUFF extreme cold-temperature rating. Rated to -60°F (-51°C) with full swivel and pivot capability for metric-threaded equipment in cold environments.
Key Features
- COLD-TUFF® rated to -60°F (-51°C)
- Metric threads
- 360-degree swivel and 180-degree pivot
- Forged alloy steel
Common Applications
- Metric equipment in cold environments
- Arctic operations with international equipment
- Cold storage facilities
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M12 x 1.75 x 55 (WLL 825 kg) | 6630058 | $1,044.00 | ✓ In Stock | ||
| M16 x 2.00 x 65 (WLL 1,350 kg) | 6630059 | $1,503.00 | ✓ In Stock | ||
| M20 x 2.50 x 80 (WLL 2,250 kg) | 6630060 | $2,398.00 | ✓ In Stock | ||
| M24 x 3.00 x 90 (WLL 3,175 kg) | 6630061 | $2,340.00 | ✓ In Stock | ||
| M30 x 3.50 x 140 (WLL 5,450 kg) | 6630062 | $3,864.00 | ✓ In Stock | ||
| M36 x 4.00 x 130 (WLL 7,450 kg) | 6630063 | $2,398.00 | ✓ In Stock | ||
| M48 x 5.00 x 180 (WLL 13,250 kg) | 6630064 | $4,040.00 | ✓ In Stock |
