Specifications — Full Dimensions by Size
Two further points from Crosby's own catalog page: every ring is individually proof loaded to 2-1/2 times the working load limit calculated on the 4:1 design factor, and the design factor falls to 4.5:1 when the ring is tested in the 90-degree orientation — so a side-pull application has less margin than the table suggests.
Open the catalog page (PDF)
| Size | WLL 5:1 (lb)(kg) | WLL 4:1(lb)(kg) | Weight (lb)(kg) | A | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M8 x 1.25 x 40 | 881400 | 1,102500 | 0.660.3 | M8 x 1.25 x 40 | 0.615.2 | 3.6993.7 | 0.9724.6 | 0.6215.7 | 0.4411.2 | 2.2757.7 | 1.3835.1 | 1068307 |
| M10 x 1.50 x 40 | 992450 | 1,212550 | 0.660.3 | M10 x 1.50 x 40 | 0.615.2 | 3.6993.7 | 0.9724.6 | 0.6215.7 | 0.4411.2 | 2.2757.7 | 1.3835.1 | 1068316 |
| M12 x 1.75 x 55 | 2,3141050 | 2,8661300 | 3.311.5 | M12 x 1.75 x 55 | 0.6115.5 | 6.38162 | 1.9649.8 | 1.2531.8 | 0.7519.1 | 4.21107 | 2.563.5 | 1068325 |
| M16 x 2.00 x 65 | 4,1881900 | 5,2912400 | 3.311.5 | M16 x 2.00 x 65 | 1.025.5 | 6.38162 | 1.9649.8 | 1.2531.8 | 0.7519.1 | 4.21107 | 2.563.5 | 1068334 |
| M20 x 2.50 x 70 | 4,7392150 | 5,9522700 | 3.531.6 | M20 x 2.50 x 70 | 1.230.5 | 6.38162 | 1.9649.8 | 1.2531.8 | 0.7519.1 | 4.21107 | 2.563.5 | 1068343 |
| M20 x 2.50 x 80 | 6,6133000 | 8,2673750 | 10.144.6 | M20 x 2.50 x 80 | 1.025.4 | 8.66220 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.26159 | 3.2582.6 | 1068352 |
| M24 x 3.00 x 90 | 9,2594200 | 11,5745250 | 10.584.8 | M24 x 3.00 x 90 | 1.3935.4 | 8.66220 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.26159 | 3.2582.6 | 1068361 |
| M30 x 3.50 x 140 | 15,4327000 | 19,2908750 | 21.389.7 | M30 x 3.50 x 140 | 2.6166.2 | 11.22285 | 3.7194.2 | 2.050.8 | 1.2531.8 | 7.83199 | 4.02102 | 1068370 |
| M36 x 4.00 x 130 | 24,25011000 | 30,31313750 | 22.4910.2 | M36 x 4.00 x 130 | 2.2156.2 | 11.22285 | 3.7194.2 | 2.050.8 | 1.2531.8 | 7.83199 | 4.02102 | 1068389 |
Both Working Load Limit columns are published by the manufacturer for this part — neither is calculated by us. The 5:1 figure is the conservative one and the rating to design to. Pound figures are converted by SlingCenter from the manufacturer’s metric rating at 1 kg = 2.20462 lb and rounded down — a unit conversion only, not a change of rating. The metric figure is the rating of record. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size. A column shown without a unit carries a designation rather than a measurement — a thread callout or a part type — so it reads the same in both views.

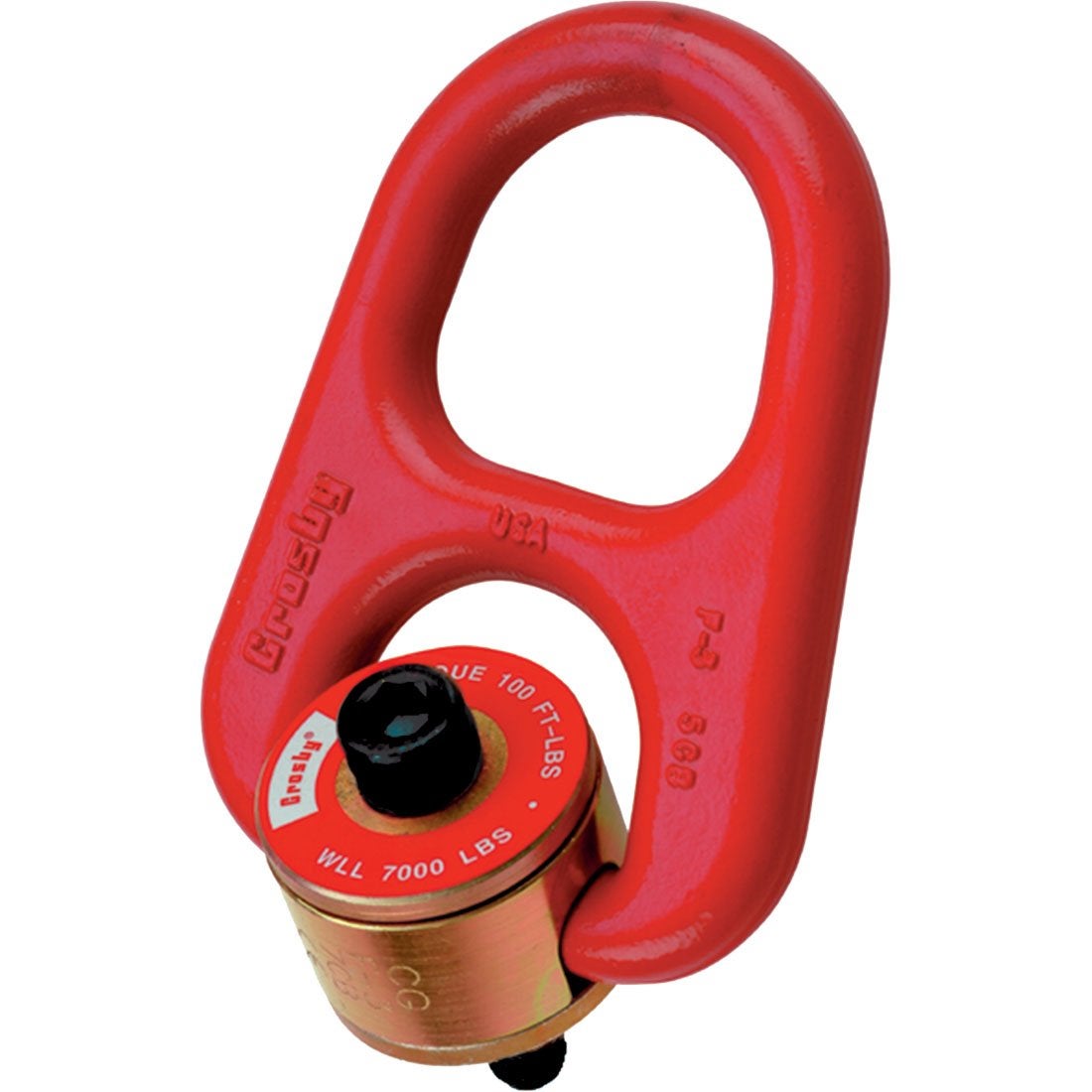

The Crosby HR-1000M metric swivel hoist ring is the metric-thread version of the industry-leading HR-1000 series. It provides full 360-degree swivel and 180-degree pivot with metric bolt threads for international and metric-specification equipment.
Key Features
- Metric threads for international equipment
- 360-degree swivel and 180-degree pivot
- Full WLL at any load angle
- Forged alloy steel
- Proof tested at 2x WLL
Common Applications
- Metric equipment and machinery lifting
- International manufacturing and tooling
- Mold and die handling
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 x 1.25 x 40 (WLL 400 kg) | 1068307 | $252.00 | ✓ In Stock | ||
| M10 x 1.50 x 40 (WLL 450 kg) | 1068316 | $259.00 | ✓ In Stock | ||
| M12 x 1.75 x 55 (WLL 1,050 kg) | 1068325 | $315.00 | ✓ In Stock | ||
| M16 x 2.00 x 65 (WLL 1,900 kg) | 1068334 | $323.00 | ✓ In Stock | ||
| M20 x 2.50 x 70 (WLL 2,150 kg) | 1068343 | $673.00 | ✓ In Stock | ||
| M20 x 2.50 x 80 (WLL 3,000 kg) | 1068352 | $685.00 | ✓ In Stock | ||
| M24 x 3.00 x 90 (WLL 4,200 kg) | 1068361 | $1,144.00 | ✓ In Stock | ||
| M30 x 3.50 x 140 (WLL 7,000 kg) | 1068370 | $1,197.00 | ✓ In Stock | ||
| M36 x 4.00 x 130 (WLL 11,000 kg) | 1068389 | $1,514.00 | ✓ In Stock |
