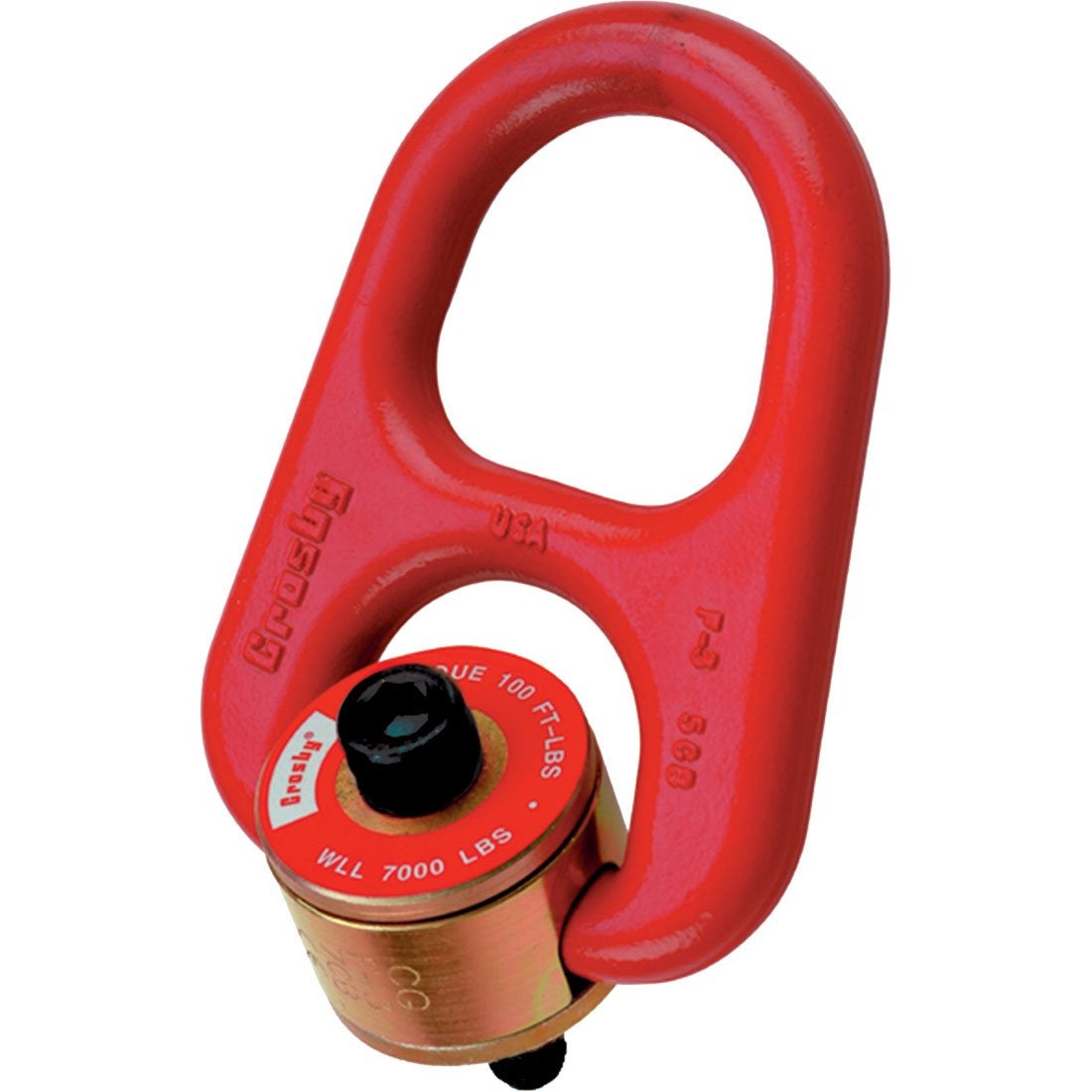

The Crosby HR-1000 swivel hoist ring provides a 360-degree swivel and 180-degree pivot lifting point that bolts directly to machinery, molds, and equipment. Unlike fixed eye bolts, the HR-1000 allows the load to self-align with the lifting force, eliminating dangerous side loading and maintaining full rated capacity at any angle.
Key Features
- 360-degree swivel and 180-degree pivot
- Full WLL maintained at any load angle
- Eliminates side-loading concerns of fixed eye bolts
- Forged alloy steel construction
- UNC thread for North American applications
- Proof tested at 2x WLL
Common Applications
- Mold and die lifting
- Machinery and equipment positioning
- Manufacturing fixtures and tooling
- Any application requiring a bolted lifting point
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

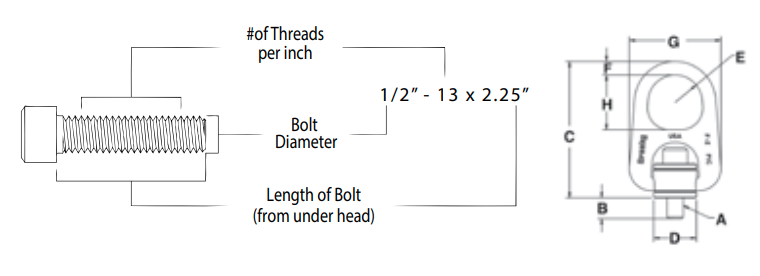

Specifications — Full Dimensions by Size
Request datasheet
| Size (in)(mm) | WLL (lb)(lb) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16-18 x 1.505/16-18 x 1.50 | 800 | 5:1 | 0.60.27 | 5/16-18 x 1.505/16-18 x 1.50 | 0.5213.2 | 3.6993.7 | 0.9724.6 | 0.6215.7 | 0.4411.2 | 2.2757.7 | 1.3835.1 | 1068002 |
| 3/8-16 x 1.503/8-16 x 1.50 | 1000 | 5:1 | 0.620.28 | 3/8-16 x 1.503/8-16 x 1.50 | 0.5213.2 | 3.6993.7 | 0.9724.6 | 0.6215.7 | 0.4411.2 | 2.2757.7 | 1.3835.1 | 1068006 |
| 1/2-13 x 2.251/2-13 x 2.25 | 2500 | 5:1 | 3.051.38 | 1/2-13 x 2.251/2-13 x 2.25 | 0.6917.5 | 6.26159.0 | 1.9649.8 | 1.2531.8 | 0.7519.0 | 4.2106.7 | 2.563.5 | 1068010 |
| 1/2-13 x 2.751/2-13 x 2.75 | 2500 | 5:1 | 3.071.39 | 1/2-13 x 2.751/2-13 x 2.75 | 1.1930.2 | 6.26159.0 | 1.9649.8 | 1.2531.8 | 0.7519.0 | 4.2106.7 | 2.563.5 | 1068014 |
| 5/8-11 x 2.255/8-11 x 2.25 | 4000 | 5:1 | 3.111.41 | 5/8-11 x 2.255/8-11 x 2.25 | 0.6917.5 | 6.26159.0 | 1.9649.8 | 1.2531.8 | 0.7519.0 | 4.2106.7 | 2.563.5 | 1068018 |
| 5/8-11 x 3.005/8-11 x 3.00 | 4000 | 5:1 | 3.181.44 | 5/8-11 x 3.005/8-11 x 3.00 | 1.4436.6 | 6.26159.0 | 1.9649.8 | 1.2531.8 | 0.7519.0 | 4.2106.7 | 2.563.5 | 1068022 |
| 3/4-10 x 2.503/4-10 x 2.50 | 5000 | 5:1 | 3.241.47 | 3/4-10 x 2.503/4-10 x 2.50 | 0.9423.9 | 6.26159.0 | 1.9649.8 | 1.2531.8 | 0.7519.0 | 4.2106.7 | 2.563.5 | 1068026 |
| 3/4-10 x 3.003/4-10 x 3.00 | 5000 | 5:1 | 3.31.5 | 3/4-10 x 3.003/4-10 x 3.00 | 1.4436.6 | 6.26159.0 | 1.9649.8 | 1.2531.8 | 0.7519.0 | 4.2106.7 | 2.563.5 | 1068030 |
| 3/4-10 x 3.003/4-10 x 3.00 | 7000 | 5:1 | 10.094.58 | 3/4-10 x 3.003/4-10 x 3.00 | 0.8521.6 | 8.66220.0 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.25158.8 | 3.2582.5 | 1068034 |
| 3/4-10 x 3.503/4-10 x 3.50 | 7000 | 5:1 | 10.214.63 | 3/4-10 x 3.503/4-10 x 3.50 | 1.3534.3 | 8.66220.0 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.25158.8 | 3.2582.5 | 1068038 |
| 7/8-9 x 3.007/8-9 x 3.00 | 8000 | 5:1 | 10.214.63 | 7/8-9 x 3.007/8-9 x 3.00 | 0.8521.6 | 8.66220.0 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.24158.5 | 3.2582.5 | 1068042 |
| 7/8-9 x 3.507/8-9 x 3.50 | 8000 | 5:1 | 10.44.72 | 7/8-9 x 3.507/8-9 x 3.50 | 1.3534.3 | 8.66220.0 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.24158.5 | 3.2582.5 | 1068046 |
| 1-8 x 3.501-8 x 3.50 | 10000 | 5:1 | 10.54.76 | 1-8 x 3.501-8 x 3.50 | 1.3534.3 | 8.66220.0 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.24158.5 | 3.2582.5 | 1068050 |
| 1-8 x 4.501-8 x 4.50 | 10000 | 5:1 | 10.724.86 | 1-8 x 4.501-8 x 4.50 | 2.3559.7 | 8.66220.0 | 2.9675.2 | 1.6341.4 | 1.025.4 | 6.24158.5 | 3.2582.5 | 1068054 |
| 1-1/4-7 x 5.001-1/4-7 x 5.00 | 15000 | 5:1 | 21.99.93 | 1-1/4-7 x 5.001-1/4-7 x 5.00 | 2.0953.1 | 11.21284.7 | 3.7194.2 | 2.050.8 | 1.2531.8 | 7.82198.6 | 4.0101.6 | 1068058 |
| 1-1/2-6 x 5.501-1/2-6 x 5.50 | 24000 | 5:1 | 23.010.43 | 1-1/2-6 x 5.501-1/2-6 x 5.50 | 2.5965.8 | 11.21284.7 | 3.7194.2 | 2.050.8 | 1.4436.6 | 7.82198.6 | 4.0101.6 | 1068062 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 16 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 5/16-18 x 1.50 (WLL 800 lb) | 1068002 | $190.60 | ✓ In Stock | ||
| 3/8-16 x 1.50 (WLL 1,000 lb) | 1068006 | $190.60 | ✓ In Stock | ||
| 1/2-13 x 2.25 (WLL 2,500 lb) | 1068010 | $238.00 | ✓ In Stock | ||
| 1/2-13 x 2.75 (WLL 2,500 lb) | 1068014 | $238.00 | ✓ In Stock | ||
| 5/8-11 x 2.25 (WLL 4,000 lb) | 1068018 | $238.00 | ✓ In Stock | ||
| 5/8-11 x 3.00 (WLL 4,000 lb) | 1068022 | $238.00 | ✓ In Stock | ||
| 3/4-10 x 2.50 (WLL 5,000 lb) | 1068026 | $238.00 | ✓ In Stock | ||
| 3/4-10 x 3.00 (WLL 5,000 lb) | 1068030 | $238.00 | ✓ In Stock | ||
| 3/4-10 x 3.00 (WLL 7,000 lb) | 1068034 | $536.00 | ✓ In Stock | ||
| 3/4-10 x 3.50 (WLL 7,000 lb) | 1068038 | $536.00 | ✓ In Stock | ||
| 7/8-9 x 3.00 (WLL 8,000 lb) | 1068042 | $536.00 | ✓ In Stock | ||
| 7/8-9 x 3.50 (WLL 8,000 lb) | 1068046 | $536.00 | ✓ In Stock | ||
| 1-8 x 3.50 (WLL 10,000 lb) | 1068050 | $551.00 | ✓ In Stock | ||
| 1-8 x 4.50 (WLL 10,000 lb) | 1068054 | $551.00 | ✓ In Stock | ||
| 1-1/4-7 x 5.00 (WLL 15,000 lb) | 1068058 | $824.00 | ✓ In Stock | ||
| 1-1/2-6 x 5.50 (WLL 24,000 lb) | 1068062 | $942.00 | ✓ In Stock |
