Specifications — Full Dimensions by Size
Open the catalog page (PDF)

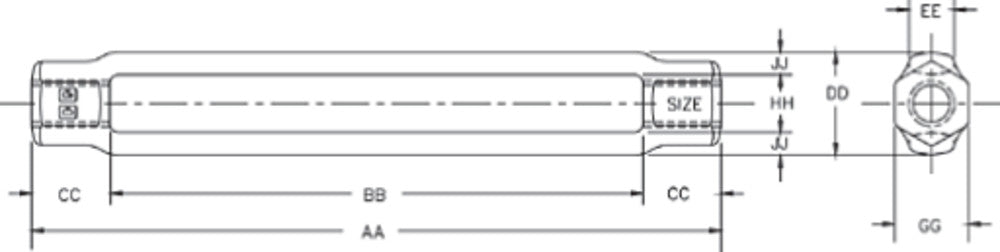

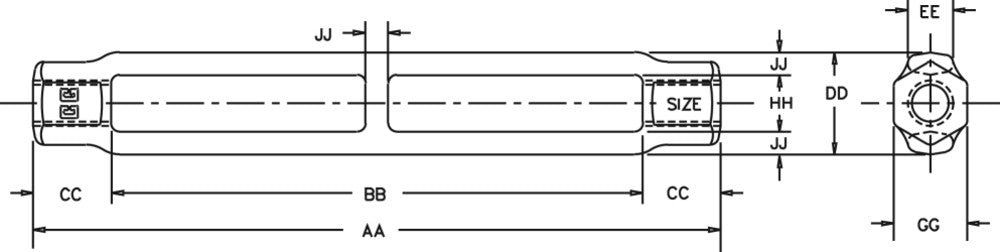

| Size | WLL (lb) | Weight (lb)(kg) | Take up (in)(mm) | AA (in)(mm) | BB (in)(mm) | CC (in)(mm) | DD (in)(mm) | EE (in)(mm) | GG (in)(mm) | HH (in)(mm) | JJ (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16 (7.9 mm) | 800 | 0.220.1 | 4.50114.3 | 5.59142.0 | 4.58116.3 | 0.5113.0 | 0.8220.8 | 0.389.7 | 0.5614.2 | 0.4411.2 | 0.194.8 | 1033919 |
| 3/8 (9.5 mm) | 1200 | 0.290.13 | 6.00152.4 | 7.29185.2 | 6.1154.9 | 0.615.2 | 0.8822.4 | 0.389.7 | 0.6316.0 | 0.512.7 | 0.194.8 | 1033937 |
| 1/2 (12.7 mm) | 2200 | 0.70.32 | 6.00152.4 | 7.7195.6 | 6.03153.2 | 0.8421.3 | 1.1930.2 | 0.6817.3 | 0.8120.6 | 0.6316.0 | 0.287.1 | 1033955 |
| 1/2 (12.7 mm) | 2200 | 1.030.47 | 9.00228.6 | 11.03280.2 | 9.36237.7 | 0.8421.3 | 1.1930.2 | 0.6817.3 | 0.8120.6 | 0.6316.0 | 0.287.1 | 1033973 |
| 1/2 (12.7 mm) | 2200 | 1.270.58 | 12.00304.8 | 14.03356.4 | 12.36313.9 | 0.8421.3 | 1.1930.2 | 0.6817.3 | 0.8120.6 | 0.6316.0 | 0.287.1 | 1033991 |
| 5/8 (15.9 mm) | 3500 | 1.110.5 | 6.00152.4 | 8.02203.7 | 6.03153.2 | 1.025.4 | 1.4336.3 | 0.8321.1 | 1.025.4 | 0.7519.0 | 0.348.6 | 1034017 |
| 5/8 (15.9 mm) | 3500 | 1.590.72 | 9.00228.6 | 11.38289.1 | 9.39238.5 | 1.025.4 | 1.4336.3 | 0.8321.1 | 1.025.4 | 0.7519.0 | 0.348.6 | 1034035 |
| 5/8 (15.9 mm) | 3500 | 1.960.89 | 12.00304.8 | 14.38365.3 | 12.39314.7 | 1.025.4 | 1.4336.3 | 0.8321.1 | 1.025.4 | 0.7519.0 | 0.348.6 | 1034053 |
| 3/4 (19 mm) | 5200 | 1.50.68 | 6.00152.4 | 8.26209.8 | 6.13155.7 | 1.0727.2 | 1.7444.2 | 0.9423.9 | 1.1328.7 | 0.9423.9 | 0.410.2 | 1034071 |
| 3/4 (19 mm) | 5200 | 2.170.98 | 9.00228.6 | 11.72297.7 | 9.59243.6 | 1.0727.2 | 1.7444.2 | 0.9423.9 | 1.1328.7 | 0.9423.9 | 0.410.2 | 1034099 |
| 3/4 (19 mm) | 5200 | 2.661.21 | 12.00304.8 | 14.72373.9 | 12.59319.8 | 1.0727.2 | 1.7444.2 | 0.9423.9 | 1.1328.7 | 0.9423.9 | 0.410.2 | 1034115 |
| 3/4 (19 mm) | 5200 | 3.631.65 | 18.00457.2 | 20.66524.8 | 18.53470.7 | 1.0727.2 | 1.7444.2 | 0.9423.9 | 1.1328.7 | 0.9423.9 | 0.410.2 | 1034133 |
| 7/8 (22.2 mm) | 7200 | 3.611.64 | 12.00304.8 | 14.62371.3 | 12.16308.9 | 1.2331.2 | 2.050.8 | 1.1328.7 | 1.3133.3 | 1.0626.9 | 0.4711.9 | 1034179 |
| 7/8 (22.2 mm) | 7200 | 5.272.39 | 18.00457.2 | 21.09535.7 | 18.63473.2 | 1.2331.2 | 2.050.8 | 1.1328.7 | 1.3133.3 | 1.0626.9 | 0.4711.9 | 1034197 |
| 1 (25.4 mm) | 10000 | 3.321.51 | 6.00152.4 | 9.0228.6 | 6.18157.0 | 1.4135.8 | 2.4562.2 | 1.2531.8 | 1.538.1 | 1.2531.8 | 0.615.2 | 1034213 |
| 1 (25.4 mm) | 10000 | 5.342.42 | 12.00304.8 | 15.0381.0 | 12.18309.4 | 1.4135.8 | 2.4562.2 | 1.2531.8 | 1.538.1 | 1.2531.8 | 0.615.2 | 1034231 |
| 1 (25.4 mm) | 10000 | 7.353.33 | 18.00457.2 | 21.0533.4 | 18.18461.8 | 1.4135.8 | 2.4562.2 | 1.2531.8 | 1.538.1 | 1.2531.8 | 0.615.2 | 1034259 |
| 1 (25.4 mm) | 10000 | 9.854.47 | 24.00609.6 | 27.66702.6 | 24.84630.9 | 1.4135.8 | 2.4562.2 | 1.2531.8 | 1.538.1 | 1.2531.8 | 0.615.2 | 1034277 |
| 1-1/4 (31.8 mm) | 15200 | 5.722.59 | 12.00304.8 | 15.4391.2 | 12.06306.3 | 1.6742.4 | 2.6266.5 | 1.2531.8 | 1.8847.8 | 1.538.1 | 0.5614.2 | 1034339 |
| 1-1/4 (31.8 mm) | 15200 | 7.583.44 | 18.00457.2 | 21.4543.6 | 18.06458.7 | 1.6742.4 | 2.6266.5 | 1.2531.8 | 1.8847.8 | 1.538.1 | 0.5614.2 | 1034357 |
| 1-1/4 (31.8 mm) | 15200 | 9.454.29 | 24.00609.6 | 27.96710.2 | 24.62625.3 | 1.6742.4 | 2.6266.5 | 1.2531.8 | 1.8847.8 | 1.538.1 | 0.5614.2 | 1034375 |
| 1-1/2 (38.1 mm) | 21400 | 8.013.63 | 12.00304.8 | 15.82401.8 | 12.32312.9 | 1.7544.4 | 2.9975.9 | 1.538.1 | 2.2557.1 | 1.7544.4 | 0.6215.7 | 1034437 |
| 1-1/2 (38.1 mm) | 21400 | 10.44.72 | 18.00457.2 | 21.82554.2 | 18.32465.3 | 1.7544.4 | 2.9975.9 | 1.538.1 | 2.2557.1 | 1.7544.4 | 0.6215.7 | 1034455 |
| 1-1/2 (38.1 mm) | 21400 | 12.95.85 | 24.00609.6 | 28.45722.6 | 24.94633.5 | 1.7544.4 | 2.9975.9 | 1.538.1 | 2.2557.1 | 1.7544.4 | 0.6215.7 | 1034473 |
| 1-3/4 (44.4 mm) | 28000 | 15.77.12 | 18.00457.2 | 22.44570.0 | 18.37466.6 | 2.0451.8 | 3.6291.9 | 1.7544.4 | 2.6266.5 | 2.1253.8 | 0.7519.0 | 1034552 |
| 1-3/4 (44.4 mm) | 28000 | 19.28.71 | 24.00609.6 | 28.44722.4 | 24.37619.0 | 2.0451.8 | 3.6291.9 | 1.7544.4 | 2.6266.5 | 2.1253.8 | 0.7519.0 | 1034570 |
| 2 (50.8 mm) | 37000 | 25.811.7 | 24.00609.6 | 29.13739.9 | 24.48621.8 | 2.3359.2 | 4.14105.2 | 2.050.8 | 3.076.2 | 2.3860.5 | 0.8822.4 | 1034632 |
| 2-1/2 (63.5 mm) | 60000 | 55.925.36 | 24.00609.6 | 31.66804.2 | 24.6624.8 | 3.5389.7 | 5.62142.7 | 2.7569.8 | 3.8898.6 | 3.1279.2 | 1.2531.8 | 1034678 |
| 2-3/4 (69.8 mm) | 75000 | 54.024.49 | 24.00609.6 | 31.66804.2 | 24.65626.1 | 3.5189.2 | 5.62142.7 | 2.7569.8 | 3.8898.6 | 4.48113.8 | 1.2531.8 | 1034696 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

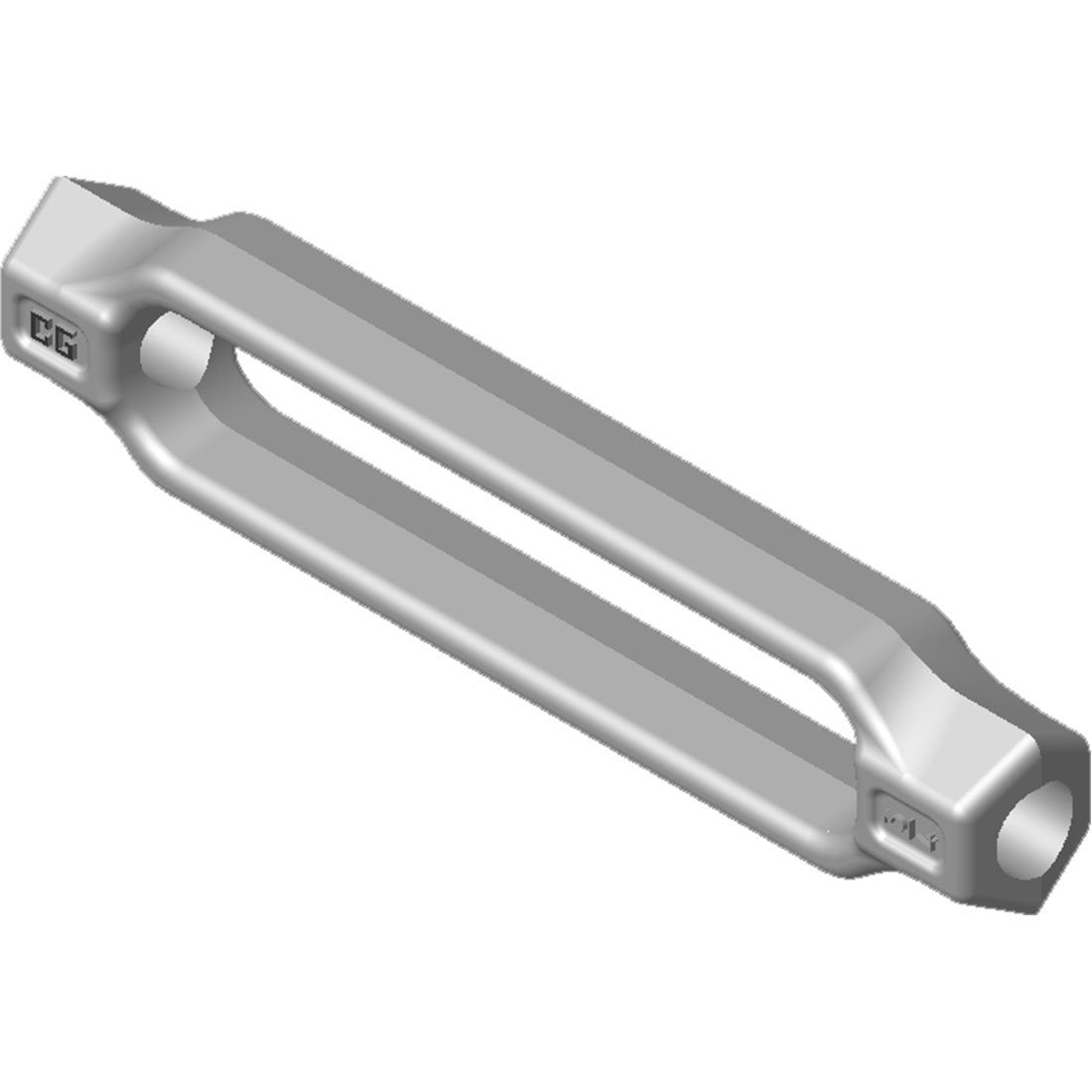

The Crosby HG-2510 turnbuckle body is a replacement or standalone body for Crosby turnbuckle assemblies. It accepts standard Crosby turnbuckle end fittings, allowing customized eye/jaw/stud configurations for specific applications.
Key Features
- Forged steel turnbuckle body
- Compatible with standard Crosby end fittings
- Hot-dip galvanized finish
- Allows customized end fitting combinations
Common Applications
- Replacement body for existing turnbuckle assemblies
- Custom turnbuckle configurations
- Structural tensioning systems
Standards & Compliance
Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 29 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 5/16 × 4.50" · 800 lb WLL | 1033919 | $25.15 | ✓ In Stock | ||
| 3/8 × 6.00" · 1,200 lb WLL | 1033937 | $25.30 | ✓ In Stock | ||
| 1/2 × 6.00" · 2,200 lb WLL | 1033955 | $28.80 | ✓ In Stock | ||
| 1/2 × 9.00" · 2,200 lb WLL | 1033973 | $40.50 | ✓ In Stock | ||
| 1/2 × 12.00" · 2,200 lb WLL | 1033991 | $51.40 | ✓ In Stock | ||
| 5/8 × 6.00" · 3,500 lb WLL | 1034017 | $35.60 | ✓ In Stock | ||
| 5/8 × 9.00" · 3,500 lb WLL | 1034035 | $57.30 | ✓ In Stock | ||
| 5/8 × 12.00" · 3,500 lb WLL | 1034053 | $67.10 | ✓ In Stock | ||
| 3/4 × 6.00" · 5,200 lb WLL | 1034071 | $47.90 | ✓ In Stock | ||
| 3/4 × 9.00" · 5,200 lb WLL | 1034099 | $63.90 | ✓ In Stock | ||
| 3/4 × 12.00" · 5,200 lb WLL | 1034115 | $97.10 | ✓ In Stock | ||
| 3/4 × 18.00" · 5,200 lb WLL | 1034133 | $136.10 | ✓ In Stock | ||
| 7/8 × 12.00" · 7,200 lb WLL | 1034179 | $105.00 | ✓ In Stock | ||
| 7/8 × 18.00" · 7,200 lb WLL | 1034197 | $156.50 | ✓ In Stock | ||
| 1 × 6.00" · 10,000 lb WLL | 1034213 | $79.80 | ✓ In Stock | ||
| 1 × 12.00" · 10,000 lb WLL | 1034231 | $124.60 | ✓ In Stock | ||
| 1 × 18.00" · 10,000 lb WLL | 1034259 | $199.90 | ✓ In Stock | ||
| 1 × 24.00" · 10,000 lb WLL | 1034277 | $240.00 | ✓ In Stock | ||
| 1-1/4 × 12" · 15,200 lb WLL | 1034339 | $170.80 | ✓ In Stock | ||
| 1-1/4 × 18" · 15,200 lb WLL | 1034357 | $270.00 | ✓ In Stock | ||
| 1-1/4 × 24" · 15,200 lb WLL | 1034375 | $372.00 | ✓ In Stock | ||
| 1-1/2 × 12" · 21,400 lb WLL | 1034437 | $257.00 | ✓ In Stock | ||
| 1-1/2 × 18" · 21,400 lb WLL | 1034455 | $369.00 | ✓ In Stock | ||
| 1-1/2 × 24" · 21,400 lb WLL | 1034473 | $492.00 | ✓ In Stock | ||
| 1-3/4 × 18" · 28,000 lb WLL | 1034552 | $472.00 | ✓ In Stock | ||
| 1-3/4 × 24" · 28,000 lb WLL | 1034570 | $947.00 | ✓ In Stock | ||
| 2 × 24" · 37,000 lb WLL | 1034632 | $925.00 | ✓ In Stock | ||
| 2-1/2 × 24" · 60,000 lb WLL | 1034678 | $2,340.00 | ✓ In Stock | ||
| 2-3/4 × 24" · 75,000 lb WLL | 1034696 | $2,361.00 | ✓ In Stock |
