Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
Terminations and weld-on fittings are commonly rated by efficiency, or by the strength of the assembly they are built into, rather than by a WLL design factor. Confirm the governing figure for your application before use, or email sales@slingcenter.com.
Crosby rates its wire rope clips by EFFICIENCY against the rope's catalog breaking strength, not by a Working Load Limit design factor: 80% for 3/16 in through 7/8 in, and 90% for 1 in through 1-1/2 in. The G-460 is a 3/4 in clip, so 80% applies. The governing figure for your assembly therefore comes from the rope, not from the clip — take the rope's catalog breaking strength, apply 80%, then apply the design factor your specification requires. Source: Crosby Wire Rope End Fittings catalog, page 183.
Open the catalog page (PDF)

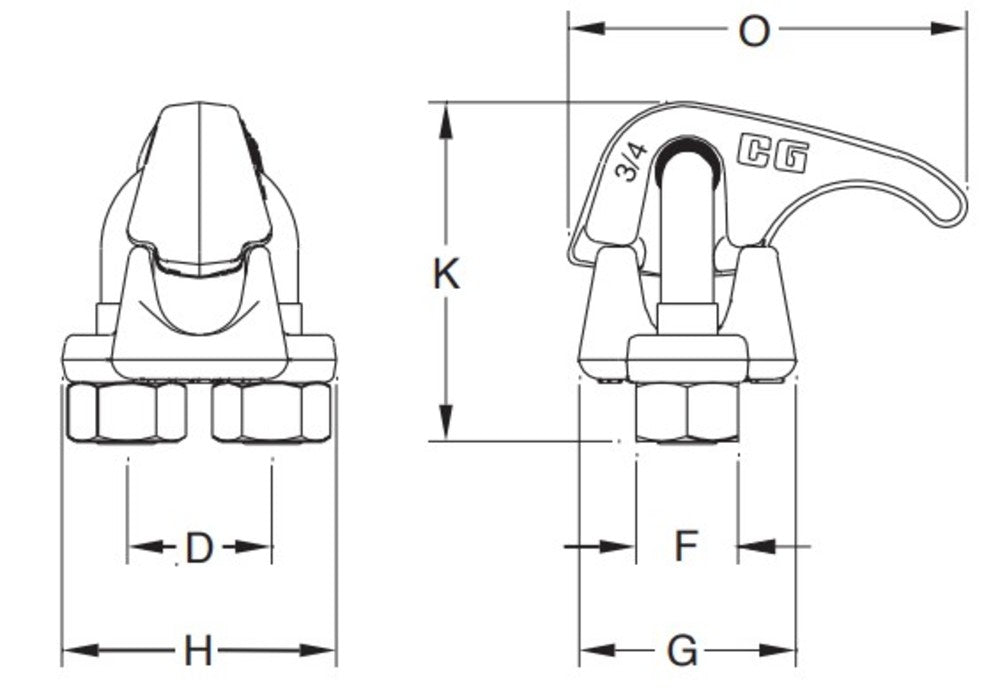

| Size | Weight (lb)(kg) | D (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | K (in)(mm) | O (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|
| 3/4 (18-20 mm) | 2.51.13 | 1.538.1 | 1.0626.9 | 2.2557.1 | 2.8472.1 | 3.588.9 | 4.13104.9 | 1010509 |
This fitting does not carry a Working Load Limit of its own — it is rated by the efficiency of the termination it forms with the rope, so the governing figure is a percentage of the rope’s breaking strength. Size the assembly from the rope, not from the fitting. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.
The Crosby G-460 forged wire rope clip is a heavy-duty U-bolt clip designed for larger wire rope sizes and applications requiring additional clamping force. Forged steel construction ensures consistent quality and reliable termination performance.
Key Features
- Heavy-duty forged steel construction
- Designed for larger wire rope diameters
- Hot-dip galvanized finish
- Marked with torque specifications
Common Applications
- Large wire rope terminations
- Heavy-duty lifting and rigging
- Structural cable installations
- Marine and offshore applications
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
