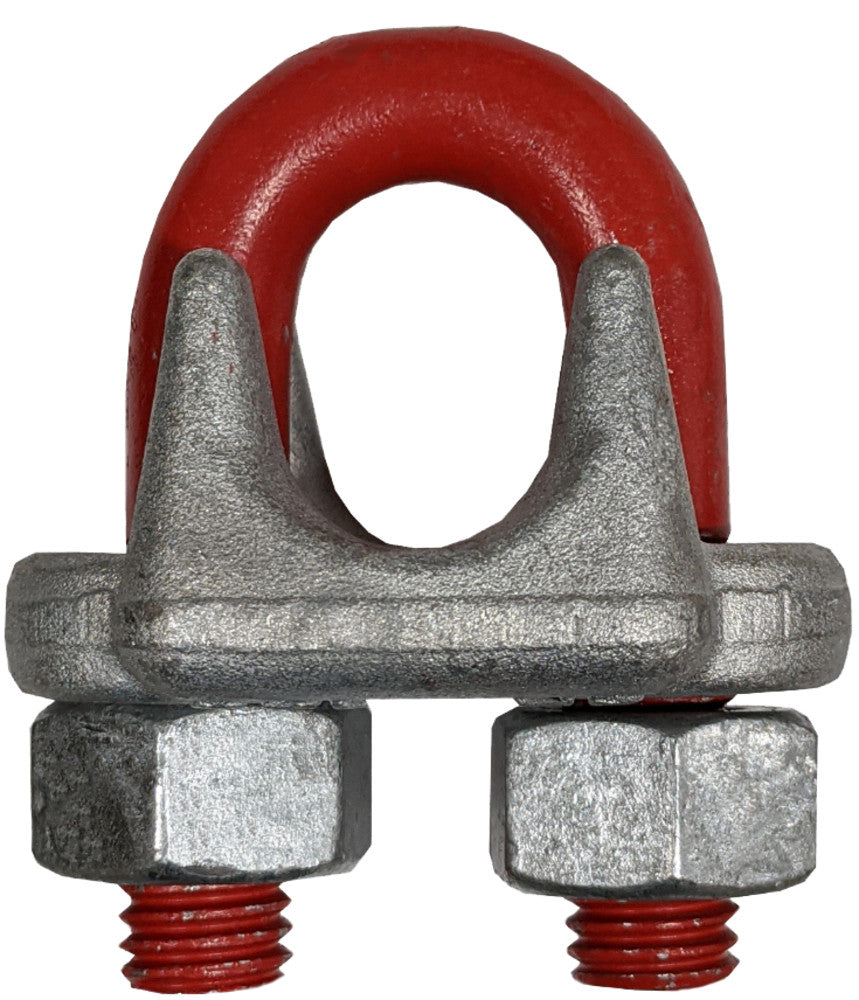

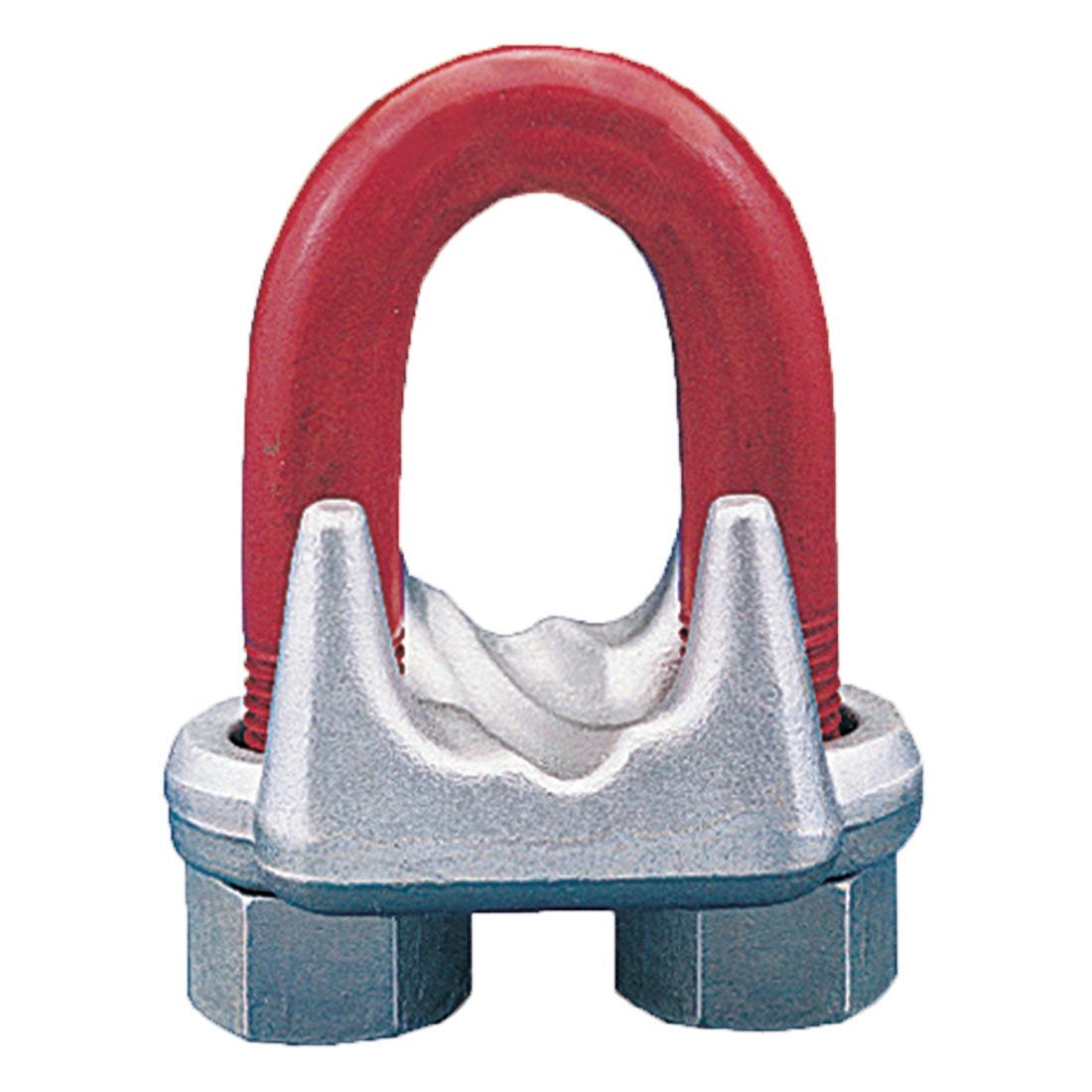

The Crosby G-450 is the most widely used forged wire rope clip in the world. Its drop-forged steel construction with hot-dip galvanized finish sets the standard for wire rope terminations. The saddle sits on the live end of the rope while the U-bolt goes on the dead end — "never saddle a dead horse."
Key Features
- Industry-standard forged wire rope clip
- Drop-forged steel with galvanized finish
- Proper saddle geometry for maximum efficiency
- Marked with correct torque specifications
- Available in sizes for all common wire rope diameters
Common Applications
- Wire rope eye terminations
- Lifting sling fabrication
- Guy wire and structural cable installations
- Marine rigging and mooring
Standards & Compliance
Meets ASME B30.26 and Federal Specification FF-C-450. Made in the USA by Crosby.
Safety & Standards

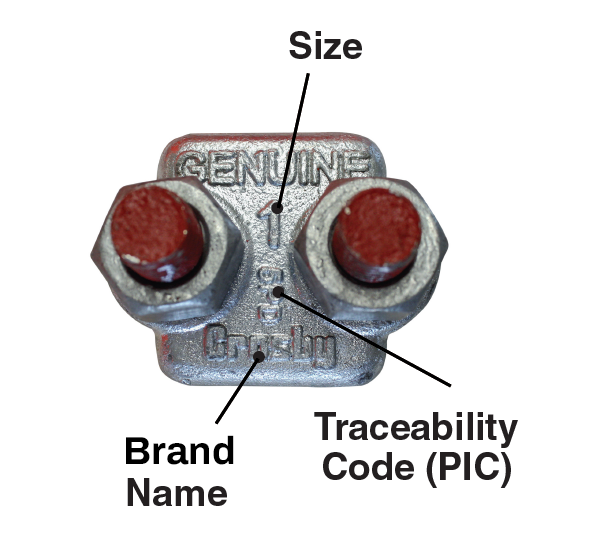

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

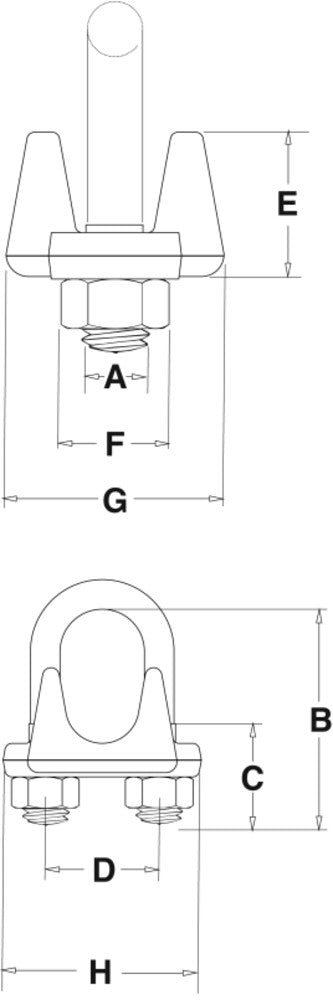

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (lb)(lb) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/83-4 | 2 clips · 4.5 ft·f | 0.060.027 | 0.225.6 | 0.7218.3 | 0.4411.2 | 0.4711.9 | 0.379.4 | 0.389.7 | 0.8120.6 | 0.9925.1 | 1010015 |
| 3/165 | 2 clips · 7.5 ft·f | 0.10.045 | 0.256.3 | 0.9724.6 | 0.5614.2 | 0.5915.0 | 0.512.7 | 0.4411.2 | 0.9423.9 | 1.1830.0 | 1010033 |
| 1/46-7 | 2 clips · 15 ft·f | 0.190.086 | 0.317.9 | 1.0326.2 | 0.512.7 | 0.7519.0 | 0.6616.8 | 0.5614.2 | 1.1930.2 | 1.4336.3 | 1010051 |
| 5/168 | 2 clips · 30 ft·f | 0.280.127 | 0.389.7 | 1.3835.1 | 0.7519.0 | 0.8822.4 | 0.7318.5 | 0.6917.5 | 1.3133.3 | 1.6642.2 | 1010079 |
| 3/89-10 | 2 clips · 45 ft·f | 0.480.218 | 0.4411.2 | 1.538.1 | 0.7519.0 | 1.025.4 | 0.9123.1 | 0.7519.0 | 1.6341.4 | 1.9449.3 | 1010097 |
| 7/16 - 1/211-13 | 2-3 clips · 65 ft·f | 0.80.363 | 0.512.7 | 1.8847.8 | 1.025.4 | 1.1930.2 | 1.1328.7 | 0.8822.4 | 1.9148.5 | 2.2857.9 | 1010131 |
| 9/16 - 5/814-16 | 3 clips · 95 ft·f | 1.10.499 | 0.5614.2 | 2.2557.1 | 1.2531.8 | 1.3133.3 | 1.3434.0 | 0.9423.9 | 2.0652.3 | 2.563.5 | 1010177 |
| 3/418-20 | 4 clips · 130 ft·f | 1.420.644 | 0.6215.7 | 2.7569.8 | 1.4436.6 | 1.538.1 | 1.3935.3 | 1.0626.9 | 2.2557.1 | 2.8472.1 | 1010195 |
| 7/822 | 4 clips · 225 ft·f | 2.120.962 | 0.7519.0 | 3.1279.2 | 1.6241.1 | 1.7544.4 | 1.5840.1 | 1.2531.8 | 2.4462.0 | 3.1680.3 | 1010211 |
| 124-26 | 5 clips · 225 ft·f | 2.521.143 | 0.7519.0 | 3.588.9 | 1.8146.0 | 1.8847.8 | 1.7745.0 | 1.2531.8 | 2.6366.8 | 3.4788.1 | 1010239 |
| 1-1/828-30 | 6 clips · 225 ft·f | 2.831.284 | 0.7519.0 | 3.8898.6 | 2.050.8 | 2.050.8 | 1.9148.5 | 1.2531.8 | 2.8171.4 | 3.5991.2 | 1010257 |
| 1-1/432-34 | 7 clips · 360 ft·f | 4.381.987 | 0.8822.4 | 4.44112.8 | 2.2256.4 | 2.3459.4 | 2.1755.1 | 1.4436.6 | 3.1379.5 | 4.13104.9 | 1010275 |
| 1-3/836 | 7 clips · 360 ft·f | 4.422.005 | 0.8822.4 | 4.44112.8 | 2.2256.4 | 2.3459.4 | 2.3158.7 | 1.4436.6 | 3.1379.5 | 4.19106.4 | 1010293 |
| 1-1/238 | 8 clips · 360 ft·f | 5.442.468 | 0.8822.4 | 4.94125.5 | 2.3860.5 | 2.5965.8 | 2.4462.0 | 1.4436.6 | 3.4186.6 | 4.44112.8 | 1010319 |
| 1-5/841-42 | 8 clips · 430 ft·f | 7.043.193 | 1.025.4 | 5.31134.9 | 2.6266.5 | 2.7569.8 | 2.6667.6 | 1.6341.4 | 3.6392.2 | 4.75120.6 | 1010337 |
| 1-3/444-46 | 8 clips · 590 ft·f | 9.344.237 | 1.1328.7 | 5.75146.0 | 2.7569.8 | 3.0677.7 | 2.9274.2 | 1.8146.0 | 3.8196.8 | 5.24133.1 | 1010355 |
| 248-52 | 8 clips · 750 ft·f | 13.05.897 | 1.2531.8 | 6.44163.6 | 3.076.2 | 3.3885.9 | 3.0377.0 | 2.050.8 | 4.44112.8 | 5.88149.4 | 1010373 |
| 2-1/456-58 | 8 clips · 750 ft·f | 16.07.257 | 1.2531.8 | 7.13181.1 | 3.1981.0 | 3.8898.6 | 3.1981.0 | 2.050.8 | 4.56115.8 | 6.38162.1 | 1010391 |
| 2-1/262-65 | 9 clips · 750 ft·f | 19.08.618 | 1.2531.8 | 7.69195.3 | 3.4487.4 | 4.13104.9 | 3.6993.7 | 2.050.8 | 4.69119.1 | 6.63168.4 | 1010417 |
| 2-3/468-72 | 10 clips · 750 ft·f | 23.010.433 | 1.2531.8 | 8.31211.1 | 3.5690.4 | 4.38111.3 | 4.88124.0 | 2.050.8 | 5.0127.0 | 6.88174.8 | 1010435 |
| 375-78 | 10 clips · 1200 ft·f | 31.014.061 | 1.538.1 | 9.19233.4 | 3.8898.6 | 4.75120.6 | 4.44112.8 | 2.3860.5 | 5.31134.9 | 7.61193.3 | 1010453 |
| 3-1/285-90 | 12 clips · 1200 ft·f | 40.018.144 | 1.538.1 | 10.75273.1 | 4.5114.3 | 5.5139.7 | 6.0152.4 | 2.3860.5 | 6.19157.2 | 8.38212.9 | 1010426 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 22 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/8 (2 clips) | 1010015 | $6.04 | ✓ In Stock | ||
| 3/16 (2 clips) | 1010033 | $6.45 | ✓ In Stock | ||
| 1/4 (2 clips) | 1010051 | $8.98 | ✓ In Stock | ||
| 5/16 (2 clips) | 1010079 | $9.40 | ✓ In Stock | ||
| 3/8 (2 clips) | 1010097 | $9.96 | ✓ In Stock | ||
| 7/16 - 1/2 (2-3 clips) | 1010131 | $15.84 | ✓ In Stock | ||
| 9/16 - 5/8 (3 clips) | 1010177 | $20.03 | ✓ In Stock | ||
| 3/4 (4 clips) | 1010195 | $26.05 | ✓ In Stock | ||
| 7/8 (4 clips) | 1010211 | $37.30 | ✓ In Stock | ||
| 1 (5 clips) | 1010239 | $43.10 | ✓ In Stock | ||
| 1-1/8 (6 clips) | 1010257 | $48.10 | ✓ In Stock | ||
| 1-1/4 (7 clips) | 1010275 | $69.50 | ✓ In Stock | ||
| 1-3/8 (7 clips) | 1010293 | $92.20 | ✓ In Stock | ||
| 1-1/2 (8 clips) | 1010319 | $95.10 | ✓ In Stock | ||
| 1-5/8 (8 clips) | 1010337 | $173.80 | ✓ In Stock | ||
| 1-3/4 (8 clips) | 1010355 | $228.00 | ✓ In Stock | ||
| 2 (8 clips) | 1010373 | $252.00 | ✓ In Stock | ||
| 2-1/4 (8 clips) | 1010391 | $372.00 | ✓ In Stock | ||
| 2-1/2 (9 clips) | 1010417 | $416.00 | ✓ In Stock | ||
| 3-1/2 (12 clips) | 1010426 | $1,387.00 | ✓ In Stock | ||
| 2-3/4 (10 clips) | 1010435 | $676.00 | ✓ In Stock | ||
| 3 (10 clips) | 1010453 | $838.00 | ✓ In Stock |
