Specifications — Full Dimensions by Size
This is below the 5:1 commonly specified for wire rope and synthetic sling systems (4:1 is standard for alloy chain components under ASME B30.9). Where a 5:1 column is shown it is SlingCenter’s derate — the manufacturer’s figure remains the rating of record.
Open the catalog page (PDF)
| Size | WLL 4:1 (lb) | WLL 5:1(lb) SlingCenter derate | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 (7 mm) | 1325 | 1060 | 0.06250.0283 | 0.287.1 | 0.8822.4 | 0.4411.2 | 0.4411.2 | 1.538.1 | 1.025.4 | 0.317.85 | 1013110 |
| 3/8 (10 mm) | 2750 | 2200 | 0.20.0907 | 0.4110.4 | 1.1328.7 | 0.5614.2 | 0.5614.2 | 2.0652.5 | 1.3835.1 | 0.4711.9 | 1013156 |
| 7/16 (11 mm) | 3625 | 2900 | 0.2750.125 | 0.4711.9 | 1.2832.5 | 0.5915.0 | 0.5915.0 | 2.3459.5 | 1.5338.9 | 0.5313.5 | 1013174 |
| 1/2 (13 mm) | 4750 | 3800 | 0.3750.17 | 0.5313.5 | 1.4737.3 | 0.6616.8 | 0.6616.8 | 2.6667.5 | 1.7243.7 | 0.5915.0 | 1013192 |
| 5/8 (16 mm) | 7250 | 5800 | 0.7250.329 | 0.6616.8 | 1.8146.0 | 0.7819.8 | 0.8120.6 | 3.3184.0 | 2.0953.0 | 0.7519.1 | 1013236 |
| 3/4 (19 mm) | 10250 | 8200 | 1.2250.555 | 0.7819.8 | 2.1354.0 | 0.9423.9 | 1.0626.9 | 3.8898.5 | 2.563.5 | 0.8822.4 | 1013254 |
| 7/8 (22 mm) | 12000 | 9600 | 1.750.794 | 0.9123.1 | 2.563.5 | 1.1328.7 | 1.1328.7 | 4.5114.3 | 2.9474.7 | 1.025.4 | 1013272 |
| 1 (26 mm) | 15500 | 12400 | 2.51.134 | 1.0326.2 | 2.7569.9 | 1.2531.8 | 1.2531.8 | 5.0127.0 | 3.3184.1 | 1.1328.7 | 1013290 |
The 4:1 column is the manufacturer’s published Working Load Limit and is the rating of record — the figure marked on the product. The 5:1 column is calculated by SlingCenter as WLL × 4 ÷ 5, for comparison against components rated at the 5:1 commonly specified for wire rope and synthetic sling systems. It is always the lower of the two. We never restate a Working Load Limit upward. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market; the millimetre figure beside it is the equivalent, not a different size.

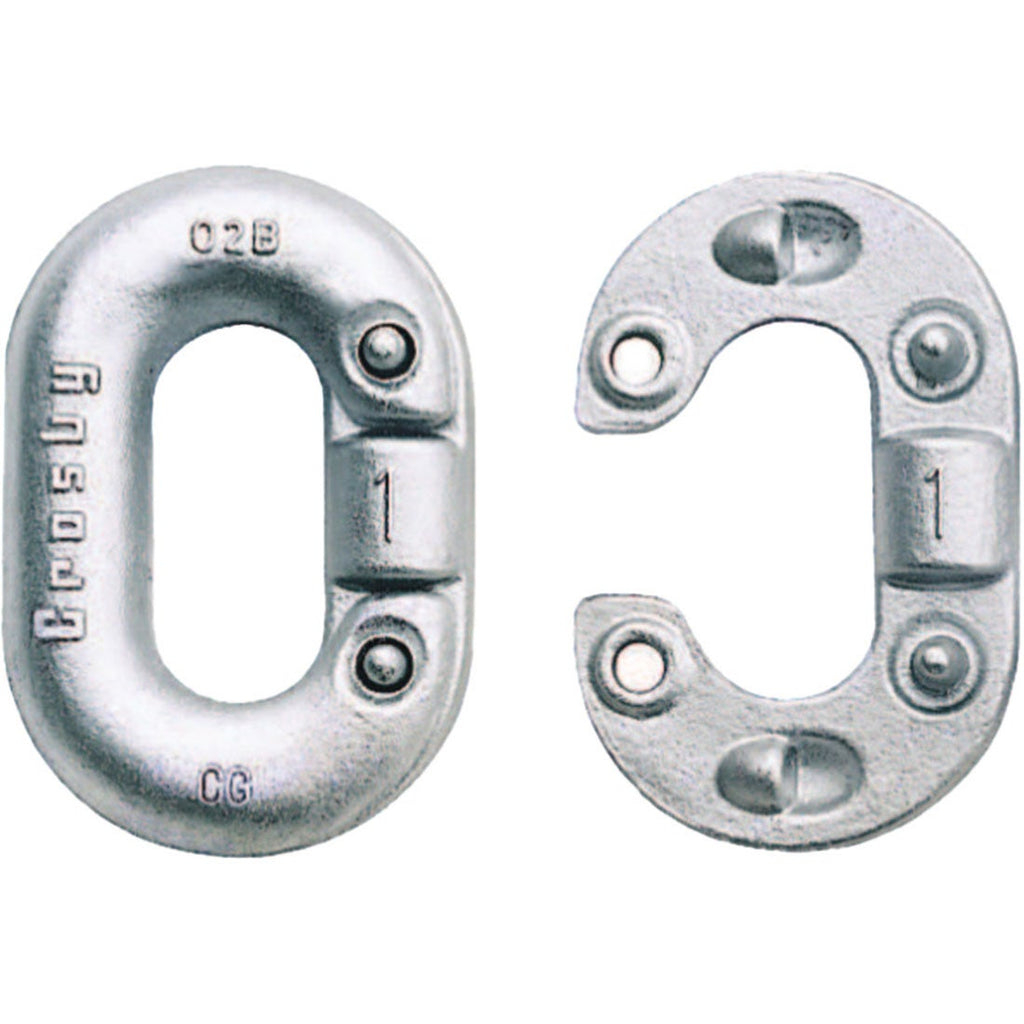

The Crosby G-335 "Missing Link" replacement link is a two-piece forged carbon steel repair link joined by integral rivets, used to rejoin chain or attach chain to fittings without welding.
Key Features
- Forged steel, quenched & tempered
- Integral rivets join the two halves
- All sizes have countersunk rivet holes
- 4:1 design factor
- Meets or exceeds Federal Specification RR-C-271G, Type II
Installation
After making connections, rivets must be peened.
Important Limitation
Not suitable for use with Grade 80 or Grade 100 chain and chain slings used in overhead lifting. This is a chain repair/replacement link, not an overhead lifting component. Source: Crosby & Gunnebo Industries Catalog, Imperial 2025-2026, p.178.
Origin
Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/4 (WLL 1,325 lb) | 1013110 | $12.71 | ✓ In Stock | ||
| 3/8 (WLL 2,750 lb) | 1013156 | $14.14 | ✓ In Stock | ||
| 7/16 (WLL 3,625 lb) | 1013174 | $17.86 | ✓ In Stock | ||
| 1/2 (WLL 4,750 lb) | 1013192 | $19.48 | ✓ In Stock | ||
| 5/8 (WLL 7,250 lb) | 1013236 | $27.55 | ✓ In Stock | ||
| 3/4 (WLL 10,250 lb) | 1013254 | $43.70 | ✓ In Stock | ||
| 7/8 (WLL 12,000 lb) | 1013272 | $52.10 | ✓ In Stock | ||
| 1 (WLL 15,500 lb) | 1013290 | $73.70 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
