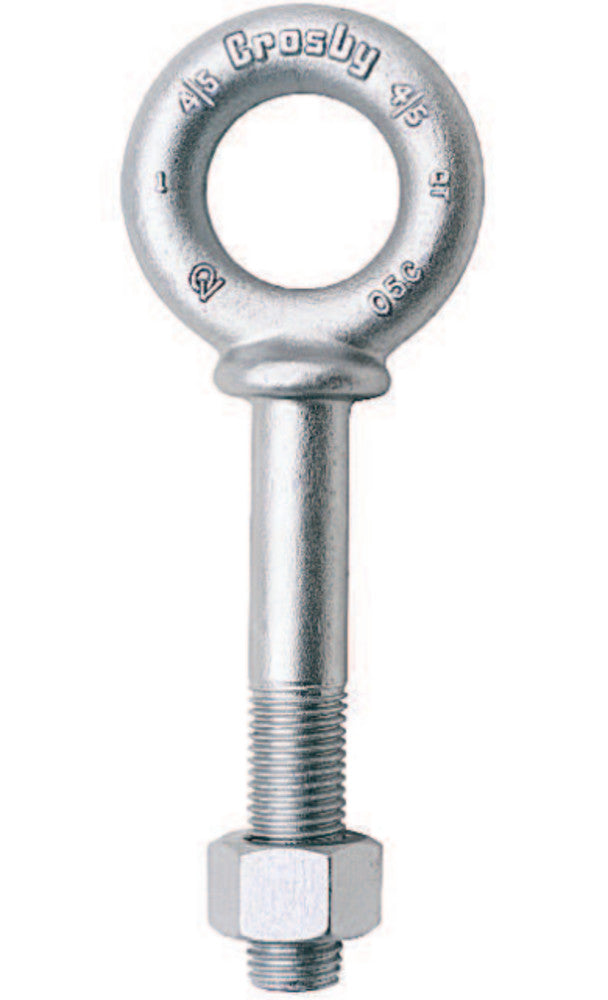

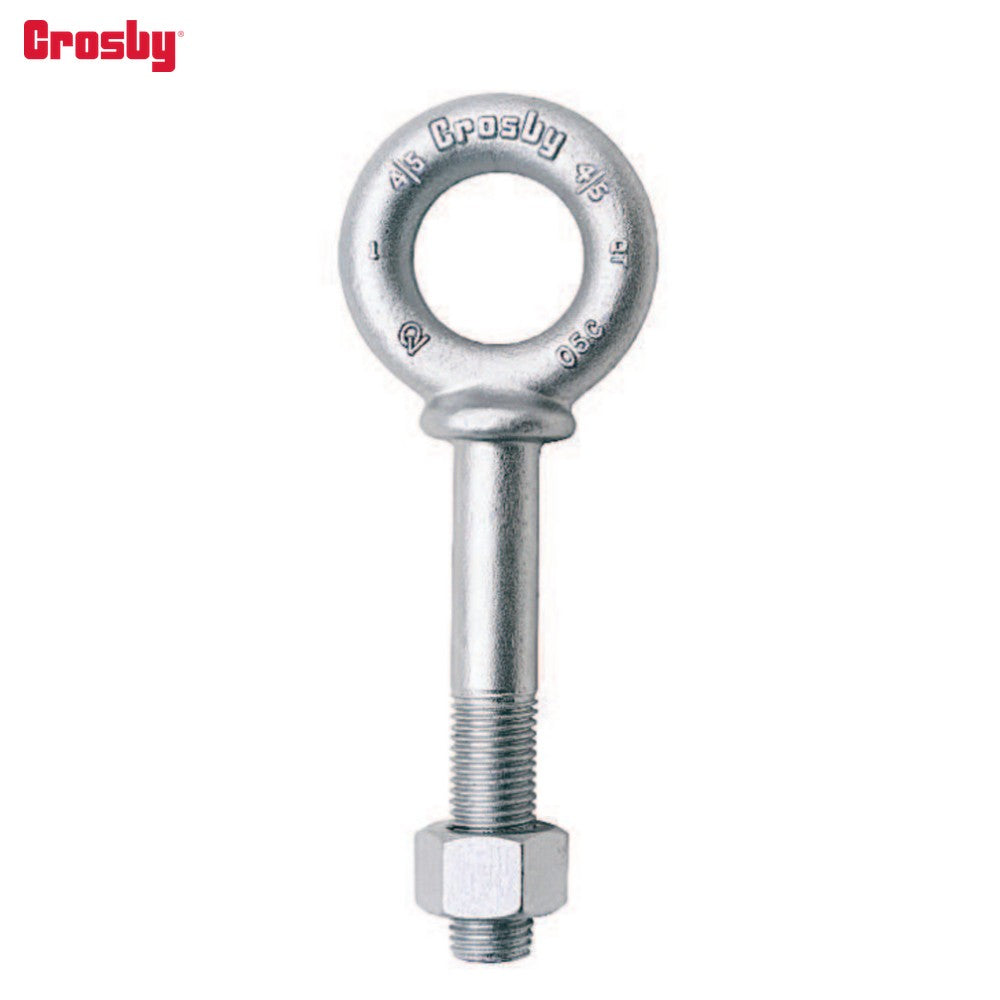

The Crosby G-277 forged shoulder eye bolt is designed for overhead lifting applications where a threaded attachment point is needed. The shoulder provides full 360-degree load bearing, and the forged steel construction ensures consistent strength. Critical: shoulder eye bolts must be loaded in-line with the plane of the eye — angular loads require load derating.
Key Features
- Forged steel shoulder construction for full 360-degree bearing
- Threaded shank for direct mounting to equipment and structures
- Hot-dip galvanized finish
- Proof tested at 2x WLL
- Embossed WLL markings
Common Applications
- Permanent lifting points on machinery and equipment
- Rigging attachment points on structural steel
- Mold and die handling
- Industrial equipment positioning
Standards & Compliance
Manufactured to ASME B18.15. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

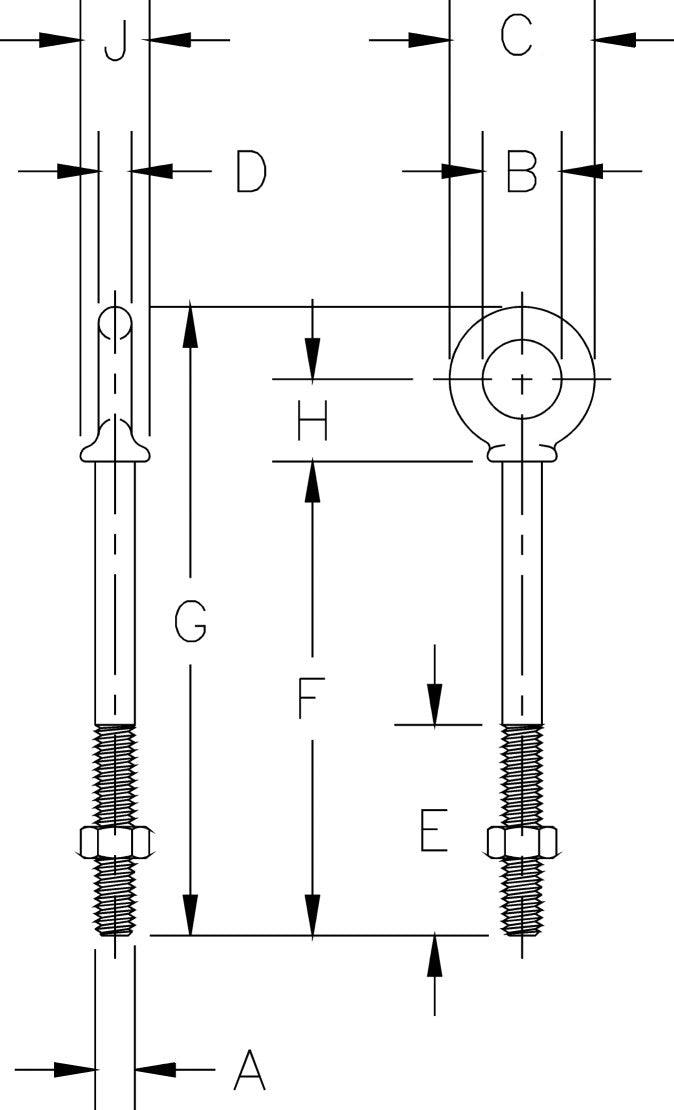

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (lb)(lb) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | J (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8 x 2-1/2 | 1550 | 5:1 | 0.210.1 | 0.389.7 | 0.7519.0 | 1.3835.1 | 0.317.9 | 1.538.1 | 2.563.5 | 3.97100.8 | 0.7819.8 | 0.6616.8 | 1045096 |
| 3/8 x 4-1/2 | 1550 | 5:1 | 0.250.11 | 0.389.7 | 0.7519.0 | 1.3835.1 | 0.317.9 | 2.563.5 | 4.5114.3 | 5.97151.6 | 0.7819.8 | 0.6616.8 | 1045112 |
| 1/2 x 3-1/4 | 2600 | 5:1 | 0.430.2 | 0.512.7 | 1.025.4 | 1.7544.4 | 0.389.7 | 1.538.1 | 3.2582.5 | 5.12130.0 | 1.025.4 | 0.9123.1 | 1045130 |
| 1/2 x 6 | 2600 | 5:1 | 0.570.26 | 0.512.7 | 1.025.4 | 1.7544.4 | 0.389.7 | 3.076.2 | 6.0152.4 | 7.88200.2 | 1.025.4 | 0.9123.1 | 1045158 |
| 5/8 x 4 | 5200 | 5:1 | 0.690.31 | 0.6215.7 | 1.2531.8 | 2.2557.1 | 0.512.7 | 2.050.8 | 4.0101.6 | 6.44163.6 | 1.3133.3 | 1.1228.4 | 1045176 |
| 5/8 x 6 | 5200 | 5:1 | 1.020.46 | 0.6215.7 | 1.2531.8 | 2.2557.1 | 0.512.7 | 3.076.2 | 6.0152.4 | 8.44214.4 | 1.3133.3 | 1.1228.4 | 1045194 |
| 3/4 x 4-1/2 | 7200 | 5:1 | 1.450.66 | 0.7519.0 | 1.538.1 | 2.7569.8 | 0.6215.7 | 2.050.8 | 4.5114.3 | 7.44189.0 | 1.5639.6 | 1.3835.1 | 1045210 |
| 3/4 x 6 | 7200 | 5:1 | 1.680.76 | 0.7519.0 | 1.538.1 | 2.7569.8 | 0.6215.7 | 3.076.2 | 6.0152.4 | 8.94227.1 | 1.5639.6 | 1.3835.1 | 1045238 |
| 7/8 x 5 | 10600 | 5:1 | 2.251.02 | 0.8822.4 | 1.7544.4 | 3.2582.5 | 0.7519.0 | 2.563.5 | 5.0127.0 | 8.46214.9 | 1.8446.7 | 1.5639.6 | 1045256 |
| 1 x 6 | 13300 | 5:1 | 3.661.66 | 1.025.4 | 2.050.8 | 3.7595.2 | 0.8822.4 | 3.076.2 | 6.0152.4 | 9.97253.2 | 2.0953.1 | 1.8146.0 | 1045292 |
| 1 x 9 | 13300 | 5:1 | 4.231.92 | 1.025.4 | 2.050.8 | 3.7595.2 | 0.8822.4 | 4.0101.6 | 9.0228.6 | 12.97329.4 | 2.0953.1 | 1.8146.0 | 1045318 |
| 1-1/4 x 8 | 21000 | 5:1 | 6.52.95 | 1.2531.8 | 2.563.5 | 4.5114.3 | 1.025.4 | 4.0101.6 | 8.0203.2 | 12.72323.1 | 2.4762.7 | 2.2857.9 | 1045336 |
| 1-1/4 x 12 | 21000 | 5:1 | 7.953.61 | 1.2531.8 | 2.563.5 | 4.5114.3 | 1.025.4 | 4.0101.6 | 12.0304.8 | 16.72424.7 | 2.4762.7 | 2.2857.9 | 1045354 |
| 1-1/2 x 15 | 24000 | 5:1 | 14.256.46 | 1.538.1 | 3.076.2 | 5.5139.7 | 1.2531.8 | 6.0152.4 | 15.0381.0 | 20.75527.0 | 3.076.2 | 2.7569.8 | 1045372 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 14 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 3/8 x 2-1/2 (WLL 1,550 lb) | 1045096 | $15.65 | ✓ In Stock | ||
| 1/2 x 3-1/4 (WLL 2,600 lb) | 1045130 | $24.71 | ✓ In Stock | ||
| 5/8 x 4 (WLL 5,200 lb) | 1045176 | $38.75 | ✓ In Stock | ||
| 3/4 x 4-1/2 (WLL 7,200 lb) | 1045210 | $44.45 | ✓ In Stock | ||
| 7/8 x 5 (WLL 10,600 lb) | 1045256 | $90.50 | ✓ In Stock | ||
| 1-1/4 x 8 (WLL 21,000 lb) | 1045336 | $241.00 | ✓ In Stock | ||
| 1-1/2 x 15 (WLL 24,000 lb) | 1045372 | $388.00 | ✓ In Stock | ||
| 3/8 x 4-1/2 (WLL 1,550 lb) | 1045112 | $19.22 | ✓ In Stock | ||
| 1/2 x 6 (WLL 2,600 lb) | 1045158 | $28.35 | ✓ In Stock | ||
| 5/8 x 6 (WLL 5,200 lb) | 1045194 | $43.00 | ✓ In Stock | ||
| 3/4 x 6 (WLL 7,200 lb) | 1045238 | $51.40 | ✓ In Stock | ||
| 1 x 6 (WLL 13,300 lb) | 1045292 | $120.00 | ✓ In Stock | ||
| 1 x 9 (WLL 13,300 lb) | 1045318 | $123.30 | ✓ In Stock | ||
| 1-1/4 x 12 (WLL 21,000 lb) | 1045354 | $265.00 | ✓ In Stock |
