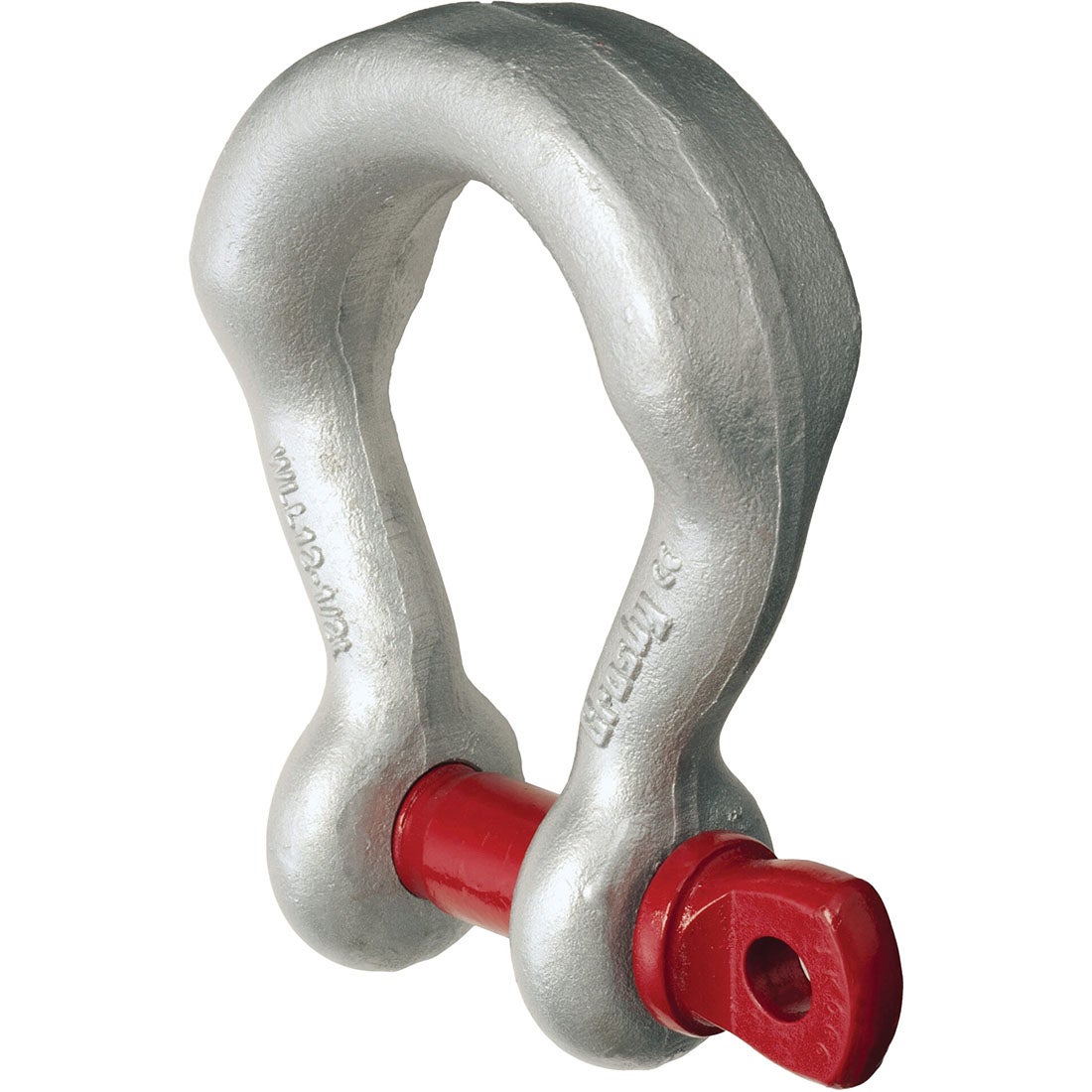

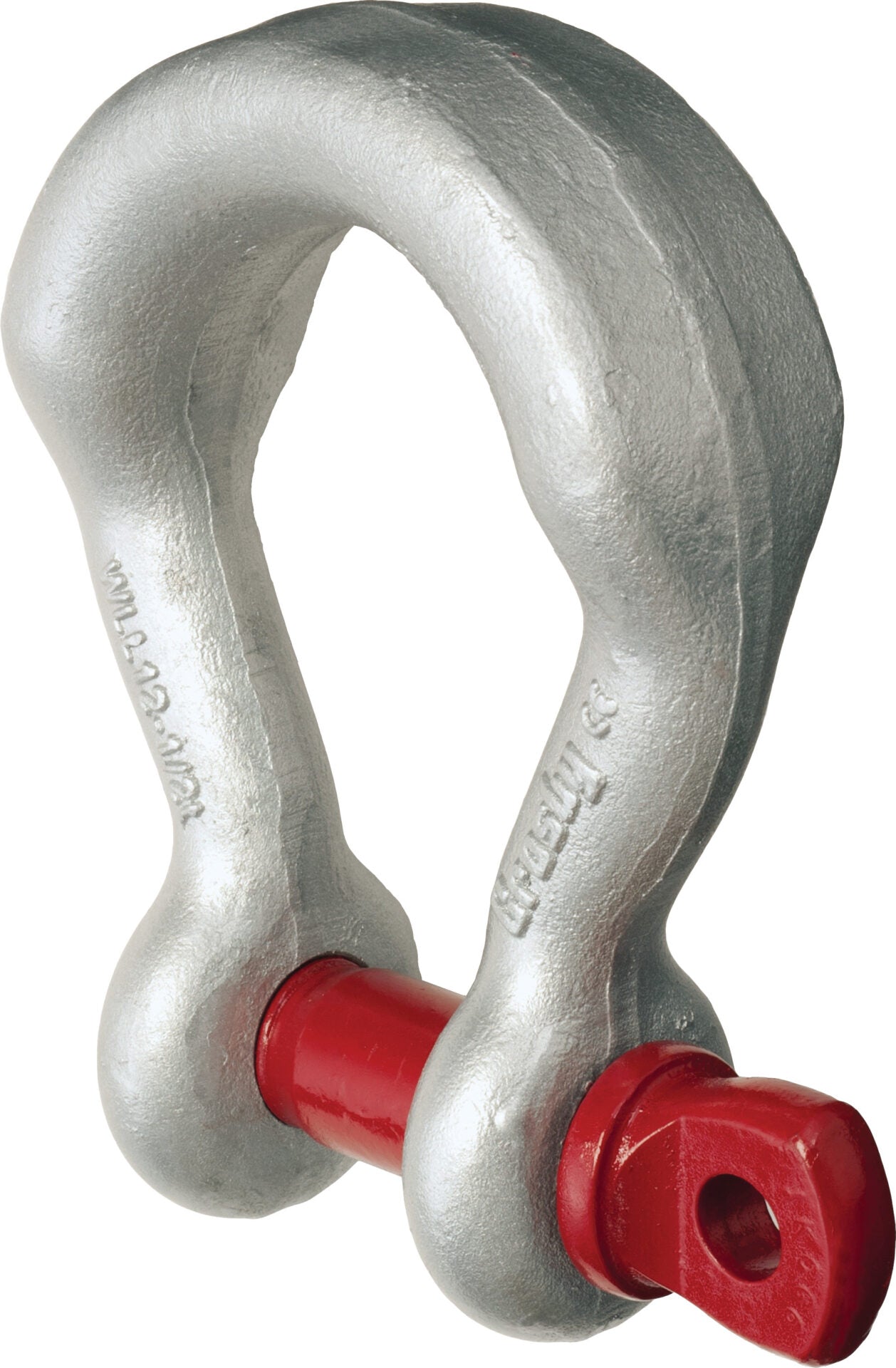

The Crosby G-2169 screw pin wide body sling shackle combines the wide jaw opening of sling shackles with the quick connect/disconnect convenience of a screw pin. Designed specifically for synthetic sling connections, the wide body prevents sling eye distortion and edge loading.
Key Features
- Wide body design for synthetic sling eye protection
- Screw pin for quick rigging changes
- Forged carbon steel, quenched and tempered
- Hot-dip galvanized for corrosion resistance
- Proof tested at 2x WLL
- 5:1 design factor per ASME B30.26
Common Applications
- Frequently changed synthetic sling connections
- Web sling and round sling terminations
- Construction rigging with synthetic slings
- Overhead crane operations
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

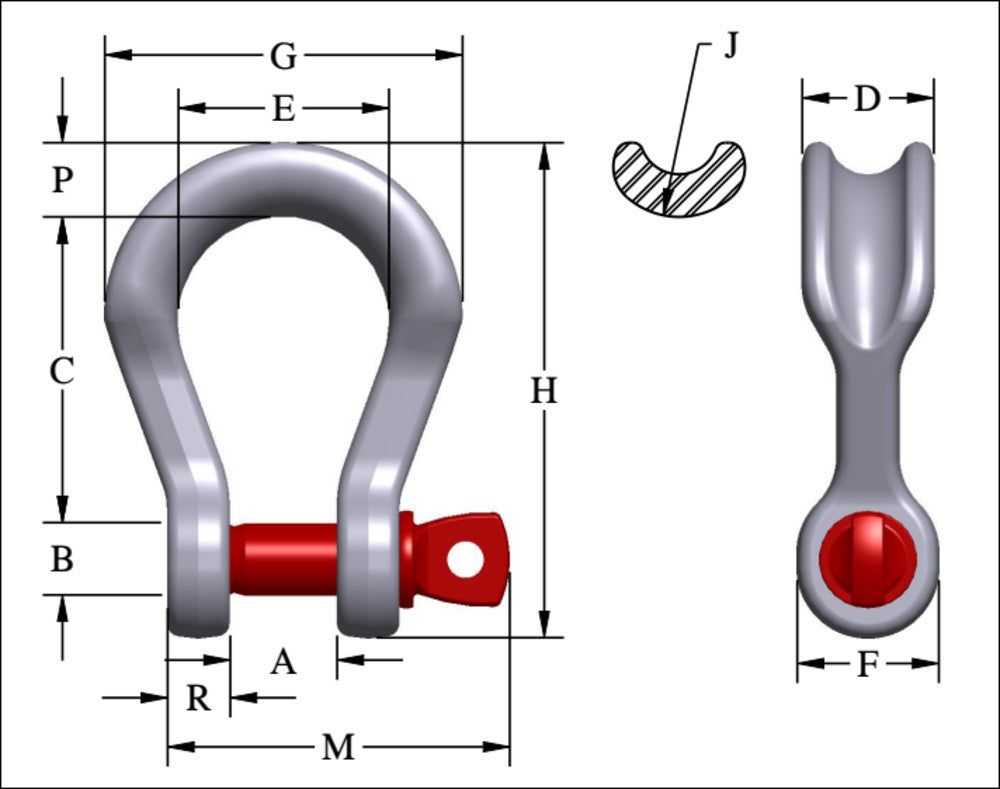

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | J (in)(mm) | K (in)(mm) | L (in)(mm) | M (in)(mm) | P (in)(mm) | R (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 t | 7 | 5:1 | 3.51.59 | 1.2531.8 | 0.8822.4 | 3.5690.4 | 1.640.6 | 2.563.5 | 1.8246.2 | 4.1104.1 | 5.87149.1 | 1.2531.8 | 1.2531.8 | 0.512.7 | 3.97100.8 | 0.9624.4 | 0.6917.5 | 1021655 |
| 12.5 t | 12.5 | 5:1 | 8.83.99 | 1.6942.9 | 1.1629.5 | 4.63117.6 | 2.1354.1 | 3.2682.8 | 2.3860.5 | 5.51140.0 | 7.63193.8 | 1.3734.8 | 1.6341.4 | 0.5614.2 | 5.13130.3 | 1.2531.8 | 0.9223.4 | 1021673 |
| 18 t | 18 | 5:1 | 135.9 | 2.0351.6 | 1.4135.8 | 5.81147.6 | 2.563.5 | 4.0101.6 | 2.6968.3 | 6.76171.7 | 9.38238.3 | 1.538.1 | 2.050.8 | 0.6917.5 | 6.25158.8 | 1.4135.8 | 1.1629.5 | 1021691 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 3 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 7 t (WLL 7) | 1021655 | $98.60 | ✓ In Stock | ||
| 12.5 t (WLL 12.5) | 1021673 | $227.00 | ✓ In Stock | ||
| 18 t (WLL 18) | 1021691 | $352.00 | ✓ In Stock |
