The Crosby G-209R Subsea/ROV shackle is purpose-built for underwater and remotely operated vehicle applications. Featuring an oversized pin with generous clearances and a captive design, it can be manipulated by ROV arms in deep-sea environments.
Key Features
- ROV-friendly design with oversized pin and wide jaw opening
- Captive pin prevents loss during subsea operations
- Alloy steel — quenched and tempered for subsea environments
- Proof tested at 2x WLL
- Full material traceability and DNV certification available
Common Applications
- Subsea lifting and rigging operations
- ROV-assisted installation and recovery
- Offshore oil & gas platform maintenance
- Anchor handling and mooring systems
Standards & Compliance
Engineered to Crosby subsea specifications. Meets ASME B30.26. Made in the USA.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

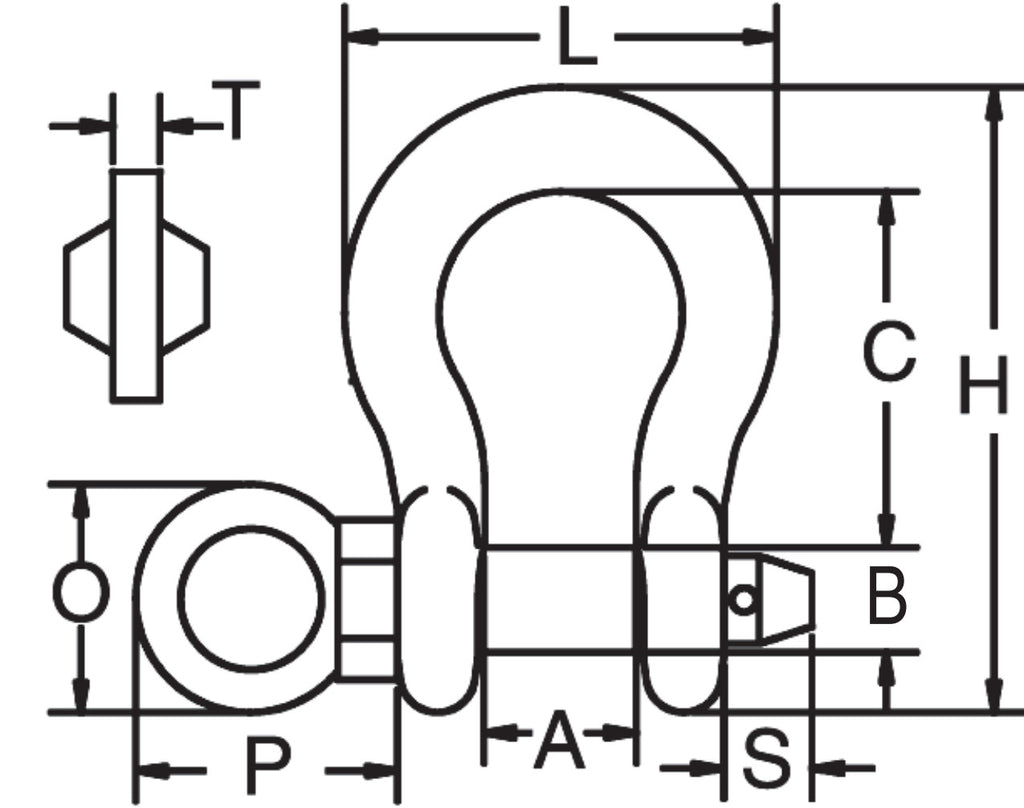

Specifications — Full Dimensions by Size
Request datasheet
| Size (in)(mm) | WLL (t)(t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | H (in)(mm) | L (in)(mm) | O (in)(mm) | P (in)(mm) | S (in)(mm) | T (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7/822.2 | 6.5 t | 5:1 | 3.621.64 | 1.4436.6 | 1.025.4 | 3.3184.1 | 5.83148.1 | 4.03102.4 | 1.1830.0 | 2.2857.9 | 0.6516.5 | 0.399.9 | 1020872 |
| 125.4 | 8.5 t | 5:1 | 5.032.28 | 1.6942.9 | 1.1328.7 | 3.7595.2 | 6.56166.6 | 4.69119.1 | 1.1830.0 | 2.461.0 | 0.7318.5 | 0.399.9 | 1020902 |
| 1-1/828.6 | 9.5 t | 5:1 | 7.413.36 | 1.8146.0 | 1.2531.8 | 4.25107.9 | 7.47189.7 | 5.16131.1 | 2.2857.9 | 3.2783.1 | 0.7519.0 | 0.4711.9 | 1020932 |
| 1-1/431.8 | 12 t | 5:1 | 9.54.31 | 2.0351.6 | 1.3835.1 | 4.69119.1 | 8.25209.5 | 5.75146.0 | 2.2857.9 | 3.3184.1 | 0.8922.6 | 0.4711.9 | 1020952 |
| 1-3/834.9 | 13.5 t | 5:1 | 13.536.14 | 2.2557.1 | 1.538.1 | 5.25133.3 | 9.16232.7 | 6.38162.1 | 2.3659.9 | 3.5890.9 | 0.9123.1 | 0.5915.0 | 1020972 |
| 1-1/238.1 | 17 t | 5:1 | 17.27.8 | 2.3860.5 | 1.6341.4 | 5.75146.0 | 10.0254.0 | 6.88174.8 | 2.3659.9 | 3.6693.0 | 1.1830.0 | 0.5915.0 | 1020992 |
| 1-3/444.4 | 25 t | 5:1 | 27.7812.6 | 2.8873.2 | 2.050.8 | 7.0177.8 | 12.34313.4 | 8.86225.0 | 2.1654.9 | 4.49114.0 | 1.1429.0 | 0.6917.5 | 1021102 |
| 250.8 | 35 t | 5:1 | 45.020.41 | 3.2582.5 | 2.2557.1 | 7.75196.8 | 13.68347.5 | 9.97253.2 | 2.666.0 | 5.12130.0 | 1.1830.0 | 0.7920.1 | 1021125 |
| 2-1/263.5 | 55 t | 5:1 | 85.7538.9 | 4.13104.9 | 2.7569.8 | 10.5266.7 | 17.84453.1 | 12.87326.9 | 2.7670.1 | 5.63143.0 | 1.538.1 | 0.9824.9 | 1021158 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 7/8 (WLL 6.5 t) | 1020872 | $283.00 | ✓ In Stock | ||
| 1 (WLL 8.5 t) | 1020902 | $346.00 | ✓ In Stock | ||
| 1-1/8 (WLL 9.5 t) | 1020932 | $433.00 | ✓ In Stock | ||
| 1-1/4 (WLL 12 t) | 1020952 | $498.00 | ✓ In Stock | ||
| 1-3/8 (WLL 13.5 t) | 1020972 | $569.00 | ✓ In Stock | ||
| 1-1/2 (WLL 17 t) | 1020992 | $597.00 | ✓ In Stock | ||
| 1-3/4 (WLL 25 t) | 1021102 | $878.00 | ✓ In Stock | ||
| 2 (WLL 35 t) | 1021125 | $1,358.00 | ✓ In Stock | ||
| 2-1/2 (WLL 55 t) | 1021158 | $2,859.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
