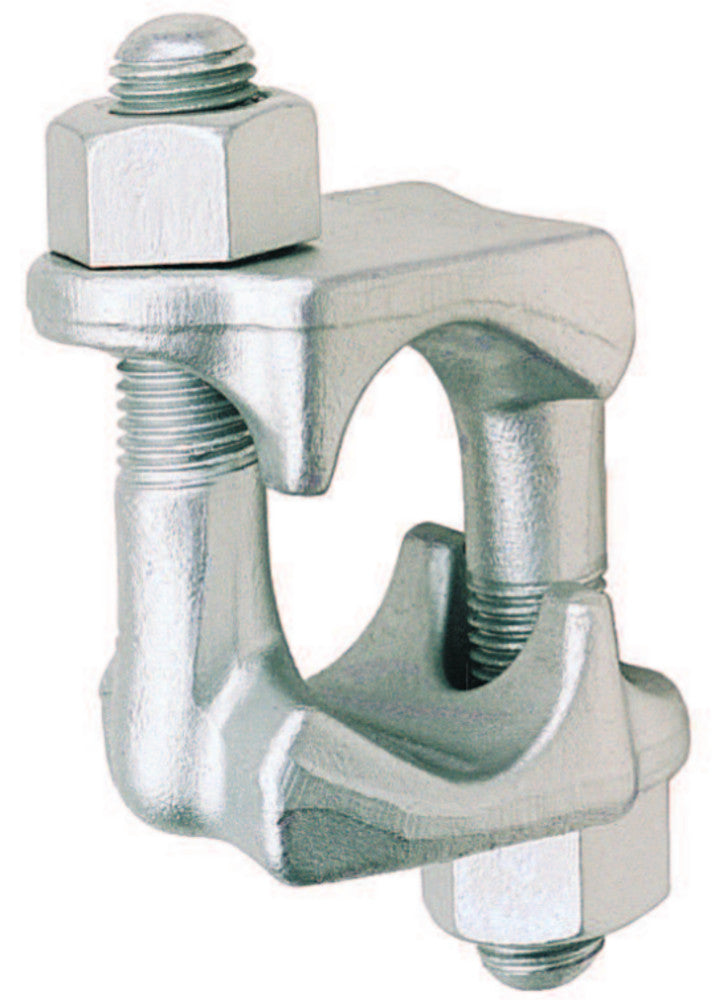

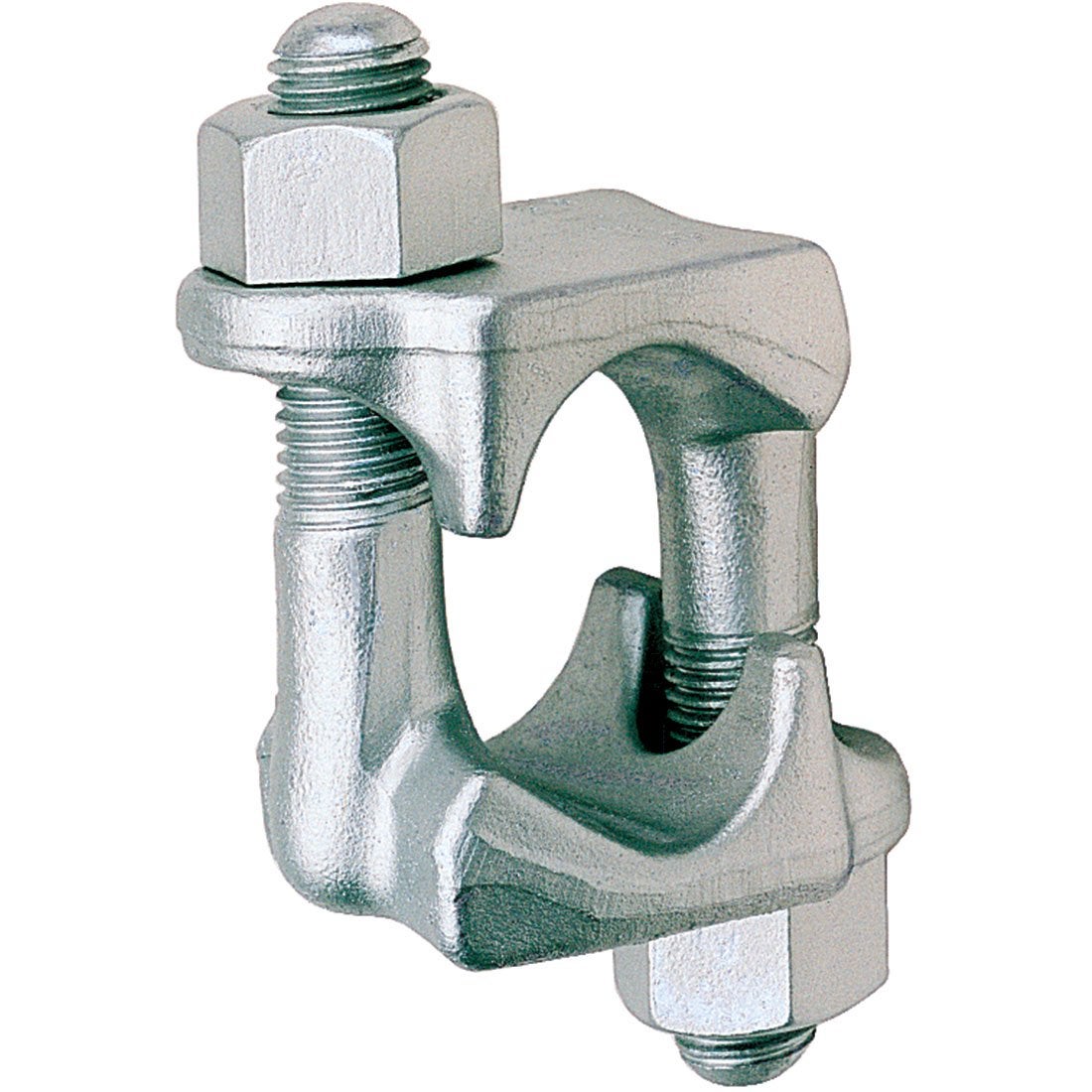

The Crosby Fist-Grip wire rope clip is an innovative single-piece clip that eliminates the need for proper dead-end/live-end orientation during installation. Unlike traditional U-bolt clips, the Fist-Grip design grips both rope legs equally, making it virtually impossible to install incorrectly — a critical safety advantage.
Key Features
- Single-piece design — cannot be installed incorrectly
- Grips both rope legs equally — no dead-end/live-end concern
- Forged steel construction
- Meets or exceeds efficiency of properly installed U-bolt clips
- Hot-dip galvanized finish
Common Applications
- Wire rope terminations and eye splices
- Applications where correct clip orientation is difficult to verify
- Field installations requiring simplified assembly
- Guy wire and structural cable terminations
Standards & Compliance
Meets ASME B30.26. Patented by Crosby. Made in the USA.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

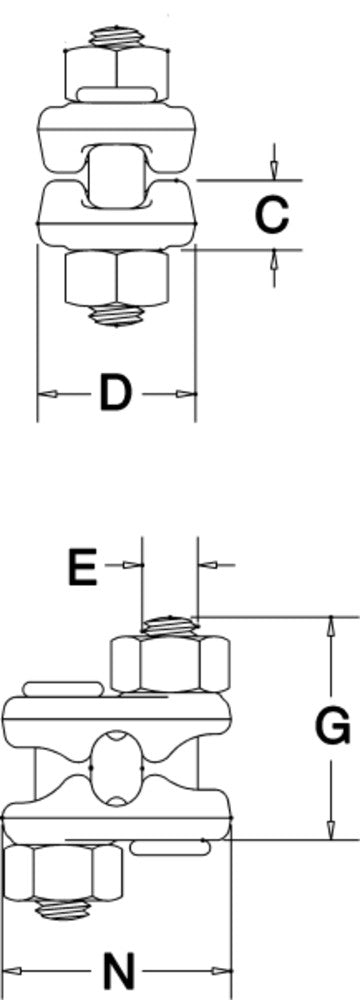

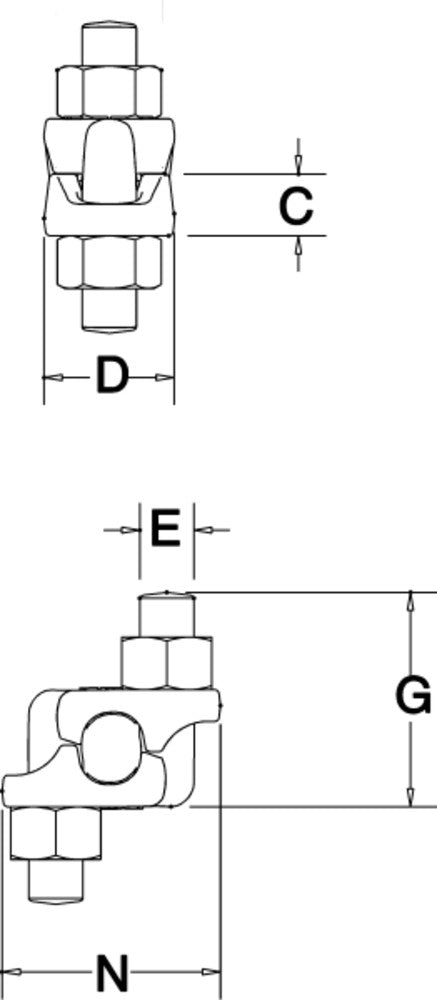

Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (lb)(lb) | Weight (lb)(kg) | C (in)(mm) | D (in)(mm) | E (in)(mm) | G (in)(mm) | N (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|
| 3/16 - 1/45-7 | 2 clips · 30 ft·f | 0.230.104 | 0.410.2 | 0.9423.9 | 0.389.7 | 1.4135.8 | 1.4436.6 | 1010471 |
| 5/168 | 2 clips · 30 ft·f | 0.280.127 | 0.4711.9 | 1.0626.9 | 0.389.7 | 1.538.1 | 1.5439.1 | 1010499 |
| 3/810 | 2 clips · 45 ft·f | 0.40.181 | 0.5113.0 | 1.0626.9 | 0.4411.2 | 1.8446.7 | 1.7845.2 | 1010514 |
| 7/16 - 1/211-13 | 2-3 clips · 65 ft·f | 0.620.281 | 0.5915.0 | 1.2531.8 | 0.512.7 | 2.2156.1 | 2.1554.6 | 1010532 |
| 9/16 - 5/814-16 | 3 clips · 130 ft·f | 1.030.467 | 0.7218.3 | 1.538.1 | 0.6316.0 | 2.7269.1 | 2.5765.3 | 1010550 |
| 3/418-20 | 3 clips · 225 ft·f | 1.750.794 | 0.8621.8 | 1.8146.0 | 0.7519.0 | 2.9474.7 | 2.6767.8 | 1010578 |
| 7/822 | 4 clips · 225 ft·f | 2.251.021 | 0.9724.6 | 2.1253.8 | 0.7519.0 | 3.3184.1 | 2.8672.6 | 1010596 |
| 124-26 | 5 clips · 225 ft·f | 3.01.361 | 1.1328.7 | 2.2557.1 | 0.7519.0 | 3.7294.5 | 3.0677.7 | 1010612 |
| 1-1/828-30 | 5 clips · 360 ft·f | 4.01.814 | 1.2832.5 | 2.3860.5 | 0.8822.4 | 4.22107.2 | 3.4487.4 | 1010630 |
| 1-1/432-34 | 6 clips · 360 ft·f | 4.01.814 | 1.3434.0 | 2.563.5 | 0.8822.4 | 4.25107.9 | 3.5690.4 | 1010658 |
| 1-3/8 - 1-1/236-40 | 6-7 clips · 500 ft·f | 7.03.175 | 1.5639.6 | 3.076.2 | 1.025.4 | 5.56141.2 | 4.12104.6 | 1010676 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 35 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/8" | 1010015 | $6.04 | ✓ In Stock | ||
| 3/16" | 1010033 | $6.45 | ✓ In Stock | ||
| 1/4" | 1010051 | $8.98 | ✓ In Stock | ||
| 5/16" | 1010499 | $20.84 | ✓ In Stock | ||
| 3/8" | 1010514 | $21.91 | ✓ In Stock | ||
| 7/16" | 1010131 | $15.84 | ✓ In Stock | ||
| 1/2" | 1010131 | $15.84 | ✓ In Stock | ||
| 9/16" | 1010177 | $20.03 | ✓ In Stock | ||
| 5/8" | 1010177 | $20.03 | ✓ In Stock | ||
| 3/4" | 1010578 | $52.60 | ✓ In Stock | ||
| 7/8" | 1010596 | $72.90 | ✓ In Stock | ||
| 1" | 1010612 | $85.00 | ✓ In Stock | ||
| 5/16" (8MM) | 1010079 | $9.40 | ✓ In Stock | ||
| 3/8" (9-10MM) | 1010097 | $9.96 | ✓ In Stock | ||
| 3/4" (18-20MM) | 1010195 | $26.05 | ✓ In Stock | ||
| 7/8" (22MM) | 1010211 | $37.30 | ✓ In Stock | ||
| 1" (24-26MM) | 1010239 | $43.10 | ✓ In Stock | ||
| 1-1/8" (28-30MM) | 1010257 | $48.10 | ✓ In Stock | ||
| 1-1/4" (32-34MM) | 1010275 | $69.50 | ✓ In Stock | ||
| 1-3/8" (36MM) | 1010293 | $92.20 | ✓ In Stock | ||
| 1-1/2" (38MM) | 1010319 | $95.10 | ✓ In Stock | ||
| 1-5/8" (41-42MM) | 1010337 | $173.80 | ✓ In Stock | ||
| 1-3/4" (44-46MM) | 1010355 | $228.00 | ✓ In Stock | ||
| 2" (48-52MM) | 1010373 | $252.00 | ✓ In Stock | ||
| 2-1/4" (56-58MM) | 1010391 | $372.00 | ✓ In Stock | ||
| 2-1/2" (62-65MM) | 1010417 | $416.00 | ✓ In Stock | ||
| 3-1/2" (85-90MM) | 1010426 | $1,387.00 | ✓ In Stock | ||
| 2-3/4" (68-72MM) | 1010435 | $676.00 | ✓ In Stock | ||
| 3" (75-78MM) | 1010453 | $838.00 | ✓ In Stock | ||
| 1/4" (5-7MM) | 1010471 | $19.54 | ✓ In Stock | ||
| 1/2" (11-13MM) | 1010532 | $27.20 | ✓ In Stock | ||
| 5/8" (14-16MM) | 1010550 | $38.25 | ✓ In Stock | ||
| 1-1/8" (28-30MM) / #1010630 | 1010630 | $116.50 | ✓ In Stock | ||
| 1-1/4" (32-34MM) / #1010658 | 1010658 | $123.60 | ✓ In Stock | ||
| 1-1/2" (36-40MM) | 1010676 | $209.00 | ✓ In Stock |
