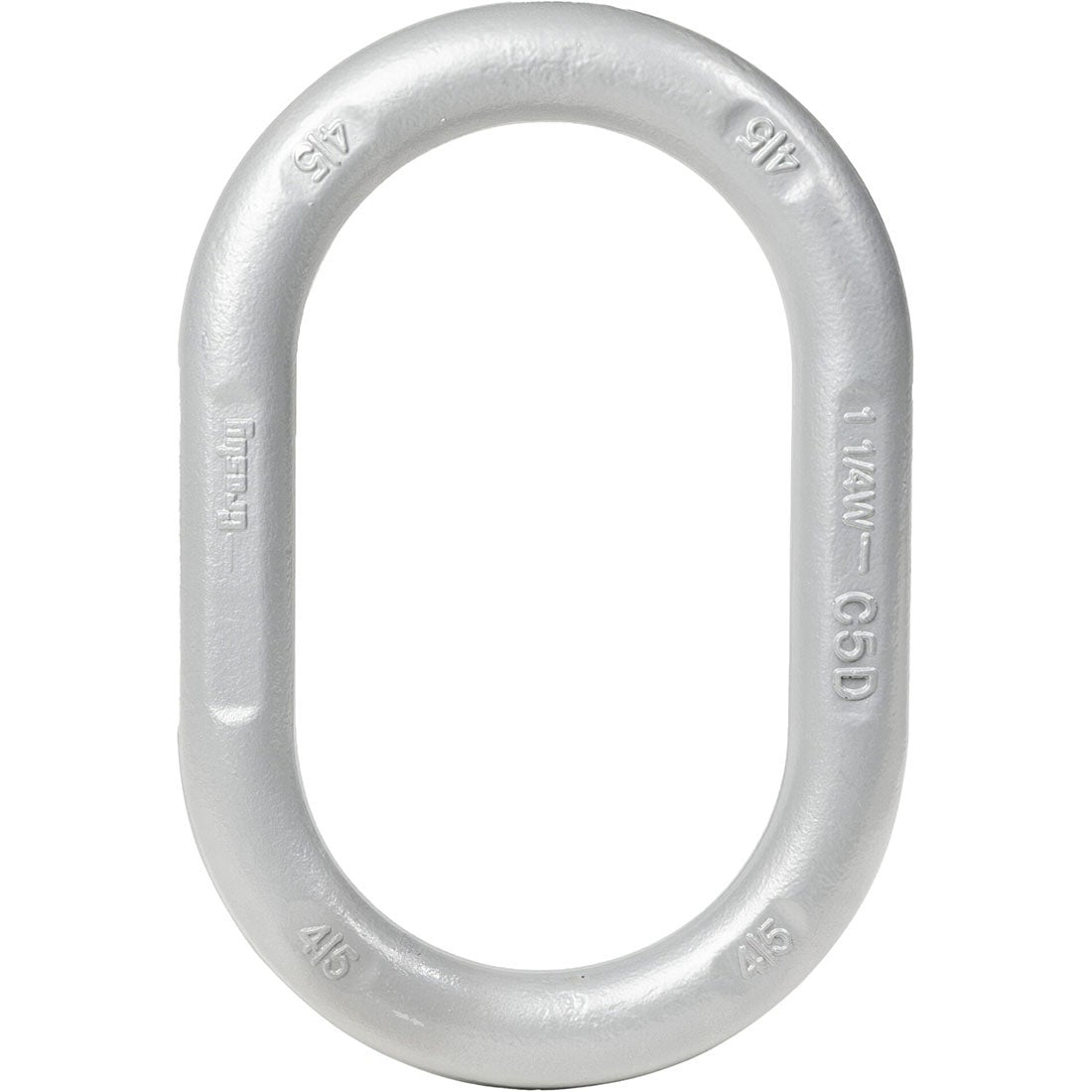

The Crosby A-342 weldless alloy master link (wide style) eliminates the potential weak point of a weld by using a single-piece forged construction. The wide body design accommodates multiple chain legs and provides excellent load distribution. Ideal where weld-free construction is specified or preferred.
Key Features
- Weldless single-piece forged construction — no weld weak points
- Wide body accommodates multiple sling legs
- Forged alloy steel, quenched and tempered
- Proof tested at 2x WLL
- 5:1 design factor
Common Applications
- Multi-leg chain and wire rope sling assemblies
- Applications requiring weld-free construction
- Heavy-capacity overhead lifting
- Critical lift rigging
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (lb)(lb) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|
| 1/2W13W | 7,400 | 5:1 | 1.30.59 | 0.6215.7 | 2.871.1 | 5.0127.0 | 1014266 |
| 5/816 | 9,000 | 5:1 | 1.50.68 | 0.6215.7 | 3.076.2 | 6.0152.4 | 1014280 |
| 3/4W19W | 12,300 | 5:1 | 2.00.91 | 0.7318.5 | 3.281.3 | 6.0152.4 | 1014285 |
| 7/8W22W | 15,200 | 5:1 | 3.31.5 | 0.8822.4 | 3.7595.2 | 6.38162.1 | 3522213 |
| 1W26W | 26,000 | 5:1 | 6.12.77 | 1.127.9 | 4.3109.2 | 7.5190.5 | 3522214 |
| 1-1/4W32W | 39,100 | 5:1 | 12.05.44 | 1.3333.8 | 5.5139.7 | 9.5241.3 | 3522215 |
| 1-1/2W38W | 61,100 | 5:1 | 18.68.44 | 1.6140.9 | 5.9149.9 | 10.5266.7 | 3522216 |
| 1-3/444 | 84,900 | 5:1 | 25.211.43 | 1.7544.4 | 6.0152.4 | 12.0304.8 | 3522217 |
| 251 | 102,600 | 5:1 | 37.016.78 | 2.050.8 | 7.0177.8 | 14.0355.6 | 3522218 |
| 2-1/457 | 143,100 | 5:1 | 54.124.54 | 2.2557.1 | 8.0203.2 | 16.0406.4 | 1014422 |
| 2-1/263 | 160,000 | 5:1 | 68.531.07 | 2.563.5 | 8.38212.9 | 16.0406.4 | 1014468 |
| 2-3/470 | 216,900 | 5:1 | 94.042.64 | 2.7569.8 | 9.88251.0 | 18.0457.2 | 1014440 |
| 376 | 228,000 | 5:1 | 11552.16 | 3.076.2 | 9.88251.0 | 18.0457.2 | 1014486 |
| 3-1/483 | 262,200 | 5:1 | 14565.77 | 3.2582.5 | 10.0254.0 | 20.0508.0 | 1014501 |
| 3-1/289 | 279,000 | 5:1 | 20090.72 | 3.588.9 | 12.0304.8 | 24.0609.6 | 1014529 |
| 3-3/495 | 336,000 | 5:1 | 19889.81 | 3.7595.2 | 10.0254.0 | 20.0508.0 | 1015051 |
| 4102 | 373,000 | 5:1 | 264119.75 | 4.0101.6 | 12.0304.8 | 24.0609.6 | 1015060 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 17 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1/2W (WLL 7,400 lb) | 1014266 | $50.60 | ✓ In Stock | ||
| 5/8 (WLL 9,000 lb) | 1014280 | $59.20 | ✓ In Stock | ||
| 3/4W (WLL 12,300 lb) | 1014285 | $64.10 | ✓ In Stock | ||
| 2-1/4 (WLL 143,100 lb) | 1014422 | $2,438.00 | ✓ In Stock | ||
| 2-3/4 (WLL 216,900 lb) | 1014440 | $3,341.00 | ✓ In Stock | ||
| 2-1/2 (WLL 160,000 lb) | 1014468 | $2,876.00 | ✓ In Stock | ||
| 3 (WLL 228,000 lb) | 1014486 | $4,423.00 | ✓ In Stock | ||
| 3-1/4 (WLL 262,200 lb) | 1014501 | $6,166.00 | ✓ In Stock | ||
| 3-1/2 (WLL 279,000 lb) | 1014529 | $8,507.00 | ✓ In Stock | ||
| 3-3/4 (WLL 336,000 lb) | 1015051 | $12,627.00 | ✓ In Stock | ||
| 4 (WLL 373,000 lb) | 1015060 | $14,461.00 | ✓ In Stock | ||
| 7/8W (WLL 15,200 lb) | 3522213 | $85.40 | Quote | ||
| 1W (WLL 26,000 lb) | 3522214 | $119.20 | Quote | ||
| 1-1/4W (WLL 39,100 lb) | 3522215 | $197.00 | Quote | ||
| 1-1/2W (WLL 61,100 lb) | 3522216 | $407.00 | Quote | ||
| 1-3/4 (WLL 84,900 lb) | 3522217 | $608.00 | Quote | ||
| 2 (WLL 102,600 lb) | 3522218 | $889.00 | Quote |
