Specifications — Full Dimensions by Size
| Size | WLL (lb) | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 13 (0.51 in) | 7,000 | 2.41.09 | 0.5113.0 | 2.3659.9 | 4.72119.9 | 0.5113.0 | 4.72119.9 | 2.3659.9 | 0.266.6 | 1256865 |
| 17 (0.67 in) | 9,000 | 3.51.59 | 0.6717.0 | 3.5489.9 | 6.3160.0 | 0.5113.0 | 4.72119.9 | 2.3659.9 | 0.266.6 | 1256868 |
| 19 (0.75 in) | 9,200 | 3.91.77 | 0.7519.0 | 3.5489.9 | 6.3160.0 | 0.5113.0 | 4.72119.9 | 2.3659.9 | 0.266.6 | 1256874 |
| 22.1 (0.87 in) | 15,400 | 7.33.31 | 0.8722.1 | 3.94100.1 | 7.09180.1 | 0.6717.0 | 6.3160.0 | 3.5489.9 | 0.338.4 | 1256878 |
| 22.1 (0.87 in) | 15,400 | 8.94.04 | 0.8722.1 | 5.71145.0 | 10.83275.1 | 0.6717.0 | 6.3160.0 | 3.5489.9 | 0.338.4 | 1256880 |
| 22.1 (0.87 in) | 18,700 | 8.43.81 | 0.8722.1 | 3.94100.1 | 7.09180.1 | 0.7519.0 | 6.3160.0 | 3.5489.9 | 0.338.4 | 1256876 |
| 24.9 (0.98 in) | 19,600 | 10.14.58 | 0.9824.9 | 4.53115.1 | 8.27210.1 | 0.7519.0 | 6.3160.0 | 3.5489.9 | 0.338.4 | 1256882 |
| 24.9 (0.98 in) | 19,600 | 11.45.17 | 0.9824.9 | 5.71145.0 | 10.83275.1 | 0.7519.0 | 6.3160.0 | 3.5489.9 | 0.338.4 | 1256892 |
| 27.9 (1.1 in) | 31,900 | 15.67.08 | 1.127.9 | 5.71145.0 | 10.83275.1 | 0.8722.1 | 7.09180.1 | 3.94100.1 | 0.4110.4 | 1256917 |
| 32 (1.26 in) | 37,400 | 21.29.62 | 1.2632.0 | 5.71145.0 | 10.83275.1 | 0.9824.9 | 8.27210.1 | 4.53115.1 | 0.5313.5 | 1256926 |
| 36.1 (1.42 in) | 52,000 | 2812.7 | 1.4236.1 | 6.1154.9 | 11.22285.0 | 1.127.9 | 7.48190.0 | 4.33110.0 | 0.5313.5 | 1256929 |
| 39.9 (1.57 in) | 61,900 | 40.618.42 | 1.5739.9 | 5.51140.0 | 10.63270.0 | 1.2632.0 | 10.83275.1 | 5.71145.0 | 0.6616.8 | 1256930 |
| 45 (1.77 in) | 84,400 | 58.626.58 | 1.7745.0 | 7.09180.1 | 13.39340.1 | 1.4236.1 | 11.22285.0 | 6.1154.9 | —— | 1256953 |
| 51.1 (2.01 in) | 99,200 | 78.235.47 | 2.0151.1 | 8.46214.9 | 15.35389.9 | 1.5739.9 | 10.63270.0 | 5.51140.0 | —— | 1256958 |
| 55.1 (2.17 in) | 147,600 | 134.661.05 | 2.1755.1 | 7.99202.9 | 15.98405.9 | 2.0151.1 | 15.35389.9 | 8.46214.9 | —— | 1256973 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings. Size is the manufacturer’s nominal trade size and does not change between unit views — this part is ordered and stamped by that size in every market, and the manufacturer designates it in millimetres; the inch figure beside it is the equivalent.

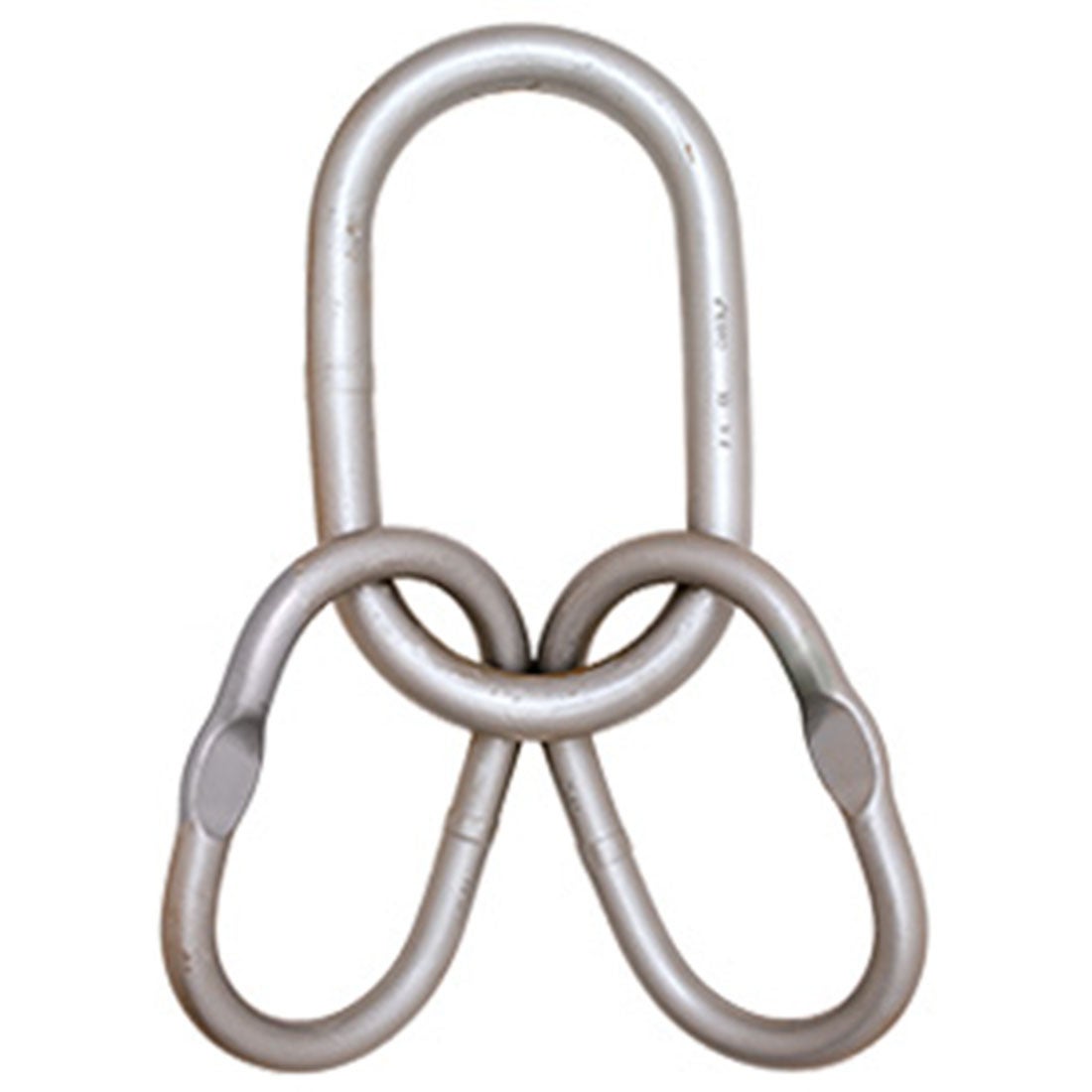

The Crosby A-1346 Grade 100 welded master link assembly is a high-capacity master link designed for Grade 100 chain sling systems. The higher-grade alloy provides increased WLL in a smaller, lighter package compared to Grade 80, making it ideal for demanding applications where maximum capacity and minimum weight are both critical.
Key Features
- Grade 100 alloy steel — highest capacity in smallest package
- Forged and welded construction
- Lighter weight than equivalent Grade 80 links
- Proof tested at 2x WLL
- 5:1 design factor
Common Applications
- Grade 100 chain sling assemblies
- High-capacity overhead lifting
- Weight-sensitive rigging applications
- Petrochemical and heavy industrial lifting
Standards & Compliance
Meets ASME B30.26. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 15 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 0.51 (WLL 7,000 lb) | 1256865 | $143.20 | ✓ In Stock | ||
| 0.67 (WLL 9,000 lb) | 1256868 | $178.90 | ✓ In Stock | ||
| 0.75 (WLL 9,200 lb) | 1256874 | $218.00 | ✓ In Stock | ||
| 0.87 (WLL 18,700 lb) | 1256876 | $291.00 | ✓ In Stock | ||
| 7/8" (22mm) · #1256878 | 1256878 | $262.00 | ✓ In Stock | ||
| 7/8" (22mm) · #1256880 | 1256880 | $277.00 | ✓ In Stock | ||
| 1" (25mm) | 1256882 | $300.00 | ✓ In Stock | ||
| 1" (25mm) · #1256892 | 1256892 | $311.00 | ✓ In Stock | ||
| 1.1 (WLL 31,900 lb) | 1256917 | $363.00 | ✓ In Stock | ||
| 1.26 (WLL 37,400 lb) | 1256926 | $427.00 | ✓ In Stock | ||
| 1.42 (WLL 52,000 lb) | 1256929 | $747.00 | ✓ In Stock | ||
| 1.57 (WLL 61,900 lb) | 1256930 | $1,286.00 | ✓ In Stock | ||
| 1.77 (WLL 84,400 lb) | 1256953 | $1,462.00 | ✓ In Stock | ||
| 2.01 (WLL 99,200 lb) | 1256958 | $1,675.00 | ✓ In Stock | ||
| 2.17 (WLL 147,600 lb) | 1256973 | $3,350.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
