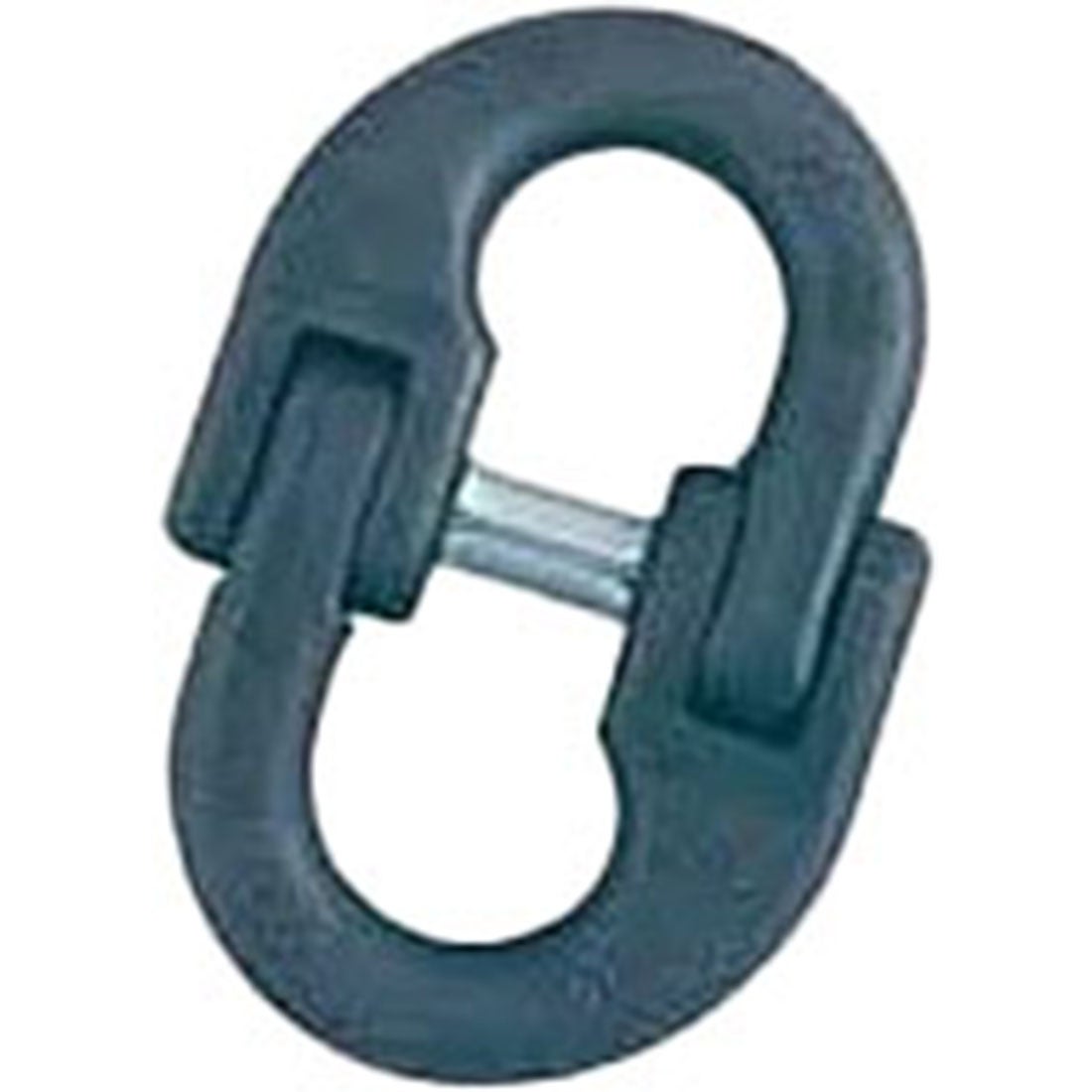

The Crosby A-1337 Lok-A-Loy connecting link is a forged alloy steel link designed for permanently connecting chain fittings in Grade 80 chain sling assemblies. The Lok-A-Loy design features a mechanical locking mechanism that secures without welding, allowing field assembly and reconfiguration of chain sling systems.
Key Features
- Lok-A-Loy mechanical locking — no welding required
- Forged alloy steel for Grade 80 chain systems
- Field-assemblable for flexible sling configuration
- Proof tested at 2x WLL
- 5:1 design factor per ASME B30.26
Common Applications
- Grade 80 chain sling assembly and repair
- Connecting chain to hooks, links, and fittings
- Field replacement of damaged chain components
- Industrial overhead lifting systems
Standards & Compliance
Meets ASME B30.26 and ASME B30.9 for chain sling components. Made in the USA by Crosby.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

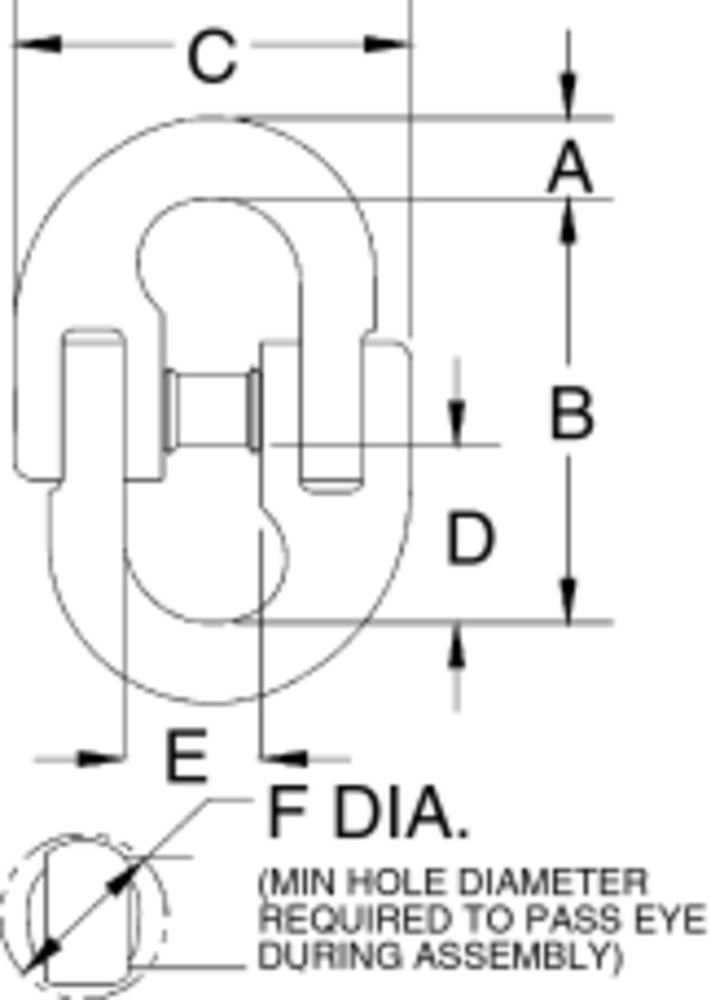

Specifications — Full Dimensions by Size
Request datasheet
| Size (in)(mm) | WLL (lb)(lb) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|
| 9/32 (1/4)7 | 4300 | 4:1 | 0.290.13 | 0.389.7 | 1.9449.3 | 2.050.8 | 0.820.3 | 0.6817.3 | 0.5313.5 | 1015104 |
| 5/168 | 5700 | 4:1 | 0.420.19 | 0.379.4 | 2.3659.9 | 2.1354.1 | 0.9925.1 | 0.7218.3 | 0.5915.0 | 1015113 |
| 3/810 | 8800 | 4:1 | 0.770.35 | 0.5113.0 | 2.6567.3 | 2.5564.8 | 1.0927.7 | 0.9123.1 | 0.7318.5 | 1015122 |
| 1/213 | 15000 | 4:1 | 1.60.73 | 0.6817.3 | 3.4687.9 | 3.3986.1 | 1.4536.8 | 1.1328.7 | 0.8922.6 | 1015136 |
| 5/816 | 22600 | 4:1 | 3.11.41 | 0.7819.8 | 4.25108.0 | 4.0101.6 | 1.7745.0 | 1.3434.0 | 1.230.5 | 1015145 |
| 3/420 | 35300 | 4:1 | 6.392.9 | 1.0125.7 | 5.14130.6 | 5.3134.6 | 2.1554.6 | 1.6441.7 | 1.5639.6 | 1015154 |
| 7/822 | 42700 | 4:1 | 7.853.56 | 1.0927.7 | 5.46138.7 | 5.78146.8 | 2.2757.7 | 1.9750.0 | 1.5539.4 | 1015163 |
| 126 | 59700 | 4:1 | 11.055.01 | 1.2431.5 | 5.94150.9 | 6.5165.1 | 2.4161.2 | 2.2156.1 | 1.8847.8 | 1015172 |
| 1-1/432 | 90400 | 4:1 | 21.09.53 | 1.5639.6 | 7.43188.7 | 7.6193.0 | 3.0778.0 | 2.5765.3 | 2.2256.4 | 1015181 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 9/32 (1/4) (WLL 4,300 lb) | 1015104 | $54.30 | ✓ In Stock | ||
| 5/16 (WLL 5,700 lb) | 1015113 | $59.50 | ✓ In Stock | ||
| 3/8 (WLL 8,800 lb) | 1015122 | $64.60 | ✓ In Stock | ||
| 1/2 (WLL 15,000 lb) | 1015136 | $101.40 | ✓ In Stock | ||
| 5/8 (WLL 22,600 lb) | 1015145 | $129.60 | ✓ In Stock | ||
| 3/4 (WLL 35,300 lb) | 1015154 | $187.10 | ✓ In Stock | ||
| 7/8 (WLL 42,700 lb) | 1015163 | $283.00 | ✓ In Stock | ||
| 1 (WLL 59,700 lb) | 1015172 | $590.00 | ✓ In Stock | ||
| 1-1/4 (WLL 90,400 lb) | 1015181 | $842.00 | ✓ In Stock |
