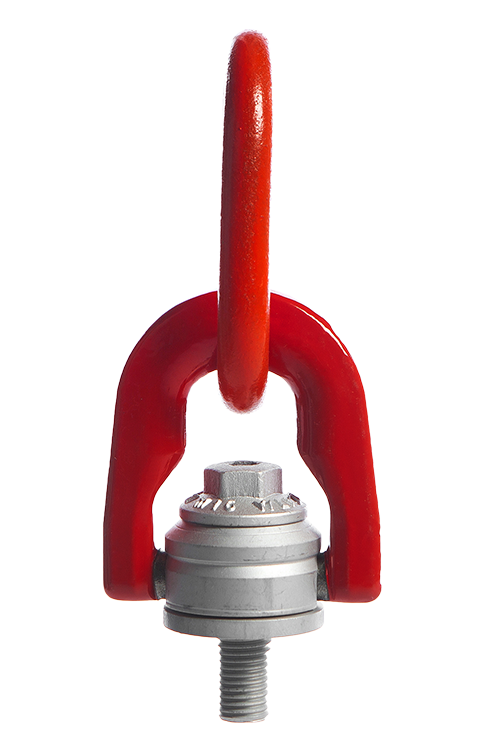

CodiPro TSR — Steel Triple Swivel Hoist Ring
The TSR is a triple-swivel ring with two pivots, engineered for smooth tilting, turning, and flipping. Its optimized geometry protects the sling and load during articulation and keeps perfect alignment with the sling.
- Material: alloy steel with anti-corrosion coating
- WLL: 0.40–22.0 t (1,000–50,000 lb)
- Thread: M8–M56 metric / 5/16″–2″ UNC (male)
- Safety factor: 4:1 and 5:1 (larger sizes rated at 4:1 — shown per size)
- Movement: triple swivel, two pivots — for tilting/turning/flipping
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number
- Note: not recommended for lengthy rotations of full loads (use DSR/DSS for continuous rotation)
- Origin: Made in Luxembourg by CodiPro
Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | • | • | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | ||||||||||||||||
| TSR M 8 | M8 x1.25 | 0.4 t | — | 6 Nm | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-5/8"41 | 1"25 | 3/8"10 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 0.880.4 |
| TSR M 10 | M10 x1.5 | 0.7 t | — | 10 Nm | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-5/8"41 | 1"25 | 3/8"10 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 0.880.4 |
| TSR M 12 | M12 x1.75 | 1.05 t | — | 15 Nm | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-5/8"41 | 1"25 | 3/8"10 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 0.880.4 |
| TSR M 14 | M14 x2 | 1.4 t | — | 30 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 1-7/8"48 | 1-5/16"34 | 5/8"16 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 2.431.1 |
| TSR M 16 | M16 x2 | 2.0 t | — | 50 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 1-7/8"48 | 1-5/16"34 | 5/8"16 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 2.651.2 |
| TSR M 18 | M18 x2.5 | 2.3 t | — | 70 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 1-7/8"48 | 1-5/16"34 | 5/8"16 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 2.651.2 |
| TSR M 20 | M20 x2.5 | 2.5 t | — | 100 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 1-7/8"48 | 1-5/16"34 | 5/8"16 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 2.651.2 |
| TSR M 22 (on request) | M22 x2.5 | 3.0 t | — | 120 Nm | 2-7/16"62 | 4-1/8"105 | 2-3/8"60 | 3-1/8"80 | 1-3/4"45 | 13/16"20 | 4-3/16"106 | 3/4"19 | 1-3/4"45 | 9/16"14 | 15/16"24 | 6.172.8 |
| TSR M 24 (on request) | M24 x3 | 4.0 t | — | 160 Nm | 2-7/16"62 | 4-1/8"105 | 2-3/8"60 | 3-1/8"80 | 1-3/4"45 | 13/16"20 | 4-3/16"106 | 3/4"19 | 1-3/4"45 | 9/16"14 | 15/16"24 | 6.392.9 |
| TSR M 27 (on request) | M27 x3 | 5.0 t | — | 200 Nm | 2-7/16"62 | 4-1/8"105 | 2-3/8"60 | 3-1/8"80 | 1-3/4"45 | 13/16"20 | 4-3/16"106 | 3/4"19 | 1-3/4"45 | 9/16"14 | 15/16"24 | 6.392.9 |
| TSR M 30 (on request) | M30 x3.5 | 6.3 t | — | 250 Nm | 2-7/16"62 | 4-1/8"105 | 2-3/8"60 | 3-1/8"80 | 1-3/4"45 | 13/16"20 | 4-3/16"106 | 3/4"19 | 1-3/4"45 | 9/16"14 | 15/16"24 | 6.613.0 |
| TSR M 36 (on request) | M36 x4 | 10.0 t | — | 320 Nm | 3-3/16"81 | 5-1/2"140 | 3-1/8"80 | 4-3/8"111 | 2-13/16"71 | 1-3/16"30 | 5-13/16"148 | 1-1/16"26.5 | 2-1/8"54 | 3/4"19 | 1-3/16"30 | 16.767.6 |
| TSR M 42 (on request) | M42 x4.5 | 12.5 t | — | 400 Nm | 3-5/16"84 | 5-3/4"146 | 3-1/8"80 | 4-3/8"111 | 2-13/16"71 | 1-3/16"30 | 5-13/16"148 | 1-1/16"26.5 | 2-5/16"58 | 3/4"19 | 1-3/16"30 | 17.27.8 |
| TSR M 48 | M48 x5 | — | 20.0 t | 600 Nm | 3-15/16"100 | 7"178 | 4-5/16"110 | 5-5/16"135 | 3-9/16"90 | 1-5/8"42 | 7-1/16"180 | 1-5/16"33 | 2-11/16"69 | 3/4"19 | 1-3/16"30 | 38.5817.5 |
| TSR M 56 | M56 x5.5 | — | 22.0 t | 600 Nm | 4-1/8"104 | 7-1/4"184 | 4-5/16"110 | 5-5/16"135 | 3-9/16"90 | 1-5/8"42 | 7-1/2"190 | 1-5/16"33 | 2-7/8"73 | 3/4"19 | 1-3/16"30 | 39.6818.0 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | ||||||||||||||||
| TSR U 516 | 5/16"-18 | 1000 lb | — | 7 ft-lb | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-5/8"41 | 1"25 | 3/8"10 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 0.880.4 |
| TSR U 038 | 3/8"-16 | 1300 lb | — | 8 ft-lb | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-5/8"41 | 1"25 | 3/8"10 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 0.880.4 |
| TSR U 050 | 1/2"-13 | 2400 lb | — | 12 ft-lb | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-5/8"41 | 1"25 | 3/8"10 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 0.880.4 |
| TSR U 058 | 5/8"-11 | 3900 lb | — | 40 ft-lb | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-3/16"56 | 1-7/16"37 | 9/16"14 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 2.431.1 |
| TSR U 075 | 3/4"-10 | 5250 lb | — | 80 ft-lb | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-3/16"56 | 1-7/16"37 | 9/16"14 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 2.651.2 |
| TSR U 078 (on request) | 7/8"-9 | 6600 lb | — | 90 ft-lb | 2-7/16"62 | 3-5/16"84 | 2-3/8"60 | 3-1/8"80 | 1-3/4"45 | 13/16"20 | 4-3/16"106 | 3/4"19 | 1-5/8"41 | 9/16"14 | 15/16"24 | 5.952.7 |
| TSR U 100 (on request) | 1"-8 | 10000 lb | — | 125 ft-lb | 2-7/16"62 | 3-5/16"84 | 2-3/8"60 | 3-1/8"80 | 1-3/4"45 | 13/16"20 | 4-3/16"106 | 3/4"19 | 1-5/8"41 | 9/16"14 | 15/16"24 | 6.172.8 |
| TSR U 125 (on request) | 1-1/4"-7 | 14000 lb | — | 200 ft-lb | 3-5/16"84 | 5-3/4"146 | 3-1/8"80 | 4-3/8"111 | 2-13/16"71 | 1-3/16"30 | 4-3/16"106 | 1-1/16"26.5 | 1-5/8"41 | 9/16"14 | 15/16"24 | 15.657.1 |
| TSR U 150 (on request) | 1-1/2"-6 | 20000 lb | — | 240 ft-lb | 3-5/16"84 | 5-3/4"146 | 3-1/8"80 | 4-3/8"111 | 2-13/16"71 | 1-3/16"30 | 5-13/16"148 | 1-1/16"26.5 | 2-1/8"54 | 3/4"19 | 1-3/16"30 | 16.987.7 |
| TSR U 200 | 2"-4.5 | — | 50000 lb | 450 ft-lb | 4-1/8"104 | 7-1/4"184 | 4-5/16"110 | 5-5/16"135 | 3-9/16"90 | 1-5/8"42 | 7-1/2"190 | 1-5/16"33 | 2-5/8"66 | 3/4"19 | 1-3/16"30 | 39.0217.7 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 25 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.40 t) | TSR M 8 | $0.00 | ✓ In Stock | ||
| M10 (0.70 t) | TSR M 10 | $0.00 | ✓ In Stock | ||
| M12 (1.05 t) | TSR M 12 | $0.00 | ✓ In Stock | ||
| M14 (1.40 t) | TSR M 14 | $0.00 | ✓ In Stock | ||
| M16 (2.00 t) | TSR M 16 | $0.00 | ✓ In Stock | ||
| M18 (2.30 t) | TSR M 18 | $0.00 | ✓ In Stock | ||
| M20 (2.50 t) | TSR M 20 | $0.00 | ✓ In Stock | ||
| M22 (3.00 t) | TSR M 22 | $0.00 | ✓ In Stock | ||
| M24 (4.00 t) | TSR M 24 | $0.00 | ✓ In Stock | ||
| M27 (5.00 t) | TSR M 27 | $0.00 | ✓ In Stock | ||
| M30 (6.30 t) | TSR M 30 | $0.00 | ✓ In Stock | ||
| M36 (10.00 t) | TSR M 36 | $0.00 | ✓ In Stock | ||
| M42 (12.50 t) | TSR M 42 | $0.00 | ✓ In Stock | ||
| M48 (20.00 t, SF 4:1) | TSR M 48 | $0.00 | ✓ In Stock | ||
| M56 (22.00 t, SF 4:1) | TSR M 56 | $0.00 | ✓ In Stock | ||
| 5/16" UNC (1,000 lb) | TSR U 516 | $0.00 | ✓ In Stock | ||
| 3/8" UNC (1,300 lb) | TSR U 038 | $0.00 | ✓ In Stock | ||
| 1/2" UNC (2,400 lb) | TSR U 050 | $0.00 | ✓ In Stock | ||
| 5/8" UNC (3,900 lb) | TSR U 058 | $0.00 | ✓ In Stock | ||
| 3/4" UNC (5,250 lb) | TSR U 075 | $0.00 | ✓ In Stock | ||
| 7/8" UNC (6,600 lb) | TSR U 078 | $0.00 | ✓ In Stock | ||
| 1" UNC (10,000 lb) | TSR U 100 | $0.00 | ✓ In Stock | ||
| 1-1/4" UNC (14,000 lb) | TSR U 125 | $0.00 | ✓ In Stock | ||
| 1-1/2" UNC (20,000 lb) | TSR U 150 | $0.00 | ✓ In Stock | ||
| 2" UNC (50,000 lb, SF 4:1) | TSR U 200 | $0.00 | ✓ In Stock |
