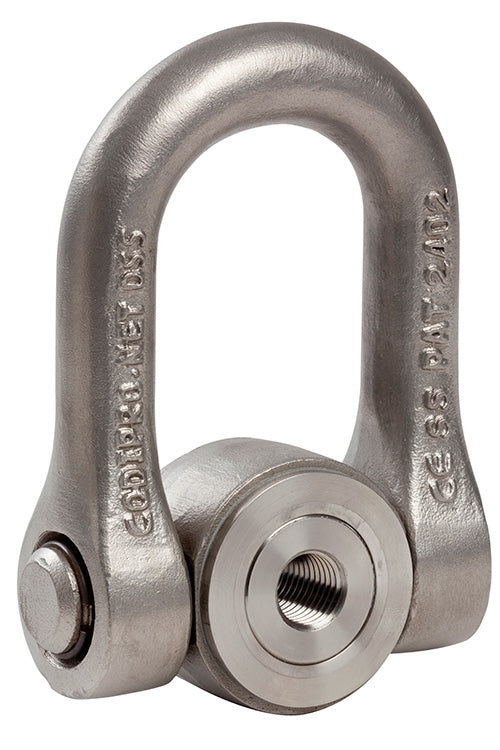

CodiPro SS.FE.DSS — Female 316L Stainless Steel Universal Double Swivel Hoist Ring
The SS.FE.DSS is the female (tapped) version of CodiPro's heavy stainless universal double-swivel ring, mounting onto a stud/male thread. Machined from 316L stainless steel for corrosive, offshore, and marine service. Rotates 360°, pivots 180°, swivels under load.
- Material: 316L stainless steel
- WLL: 2.70–5.0 t (6,000–11,000 lb)
- Thread: M24–M36 metric / 1″–1½″ UNC (female)
- Safety factor: 4:1 and 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Select your thread size below. Working Load Limit is shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||
| SS.FE.DSS M 24 | M24 x3 | 2.7 t | 2.7 t | 160 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 1-15/16"50 | 12.795.8 |
| SS.FE.DSS M 30 | M30 x3.5 | 3.5 t | 3.5 t | 250 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 1-15/16"50 | 12.795.8 |
| SS.FE.DSS M 33 | M33 x3.5 | 3.5 t | 3.5 t | 250 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 1-15/16"50 | 12.795.8 |
| SS.FE.DSS M 36 | M36 x4 | 5.0 t | 5.0 t | 320 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 1-15/16"50 | 12.795.8 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | |||||||||||||
| SS.FE.DSS U 100 | 1"-8 | 6000 lb | 6000 lb | 125 ft-lb | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 1-15/16"50 | 11.95.4 |
| SS.FE.DSS U 125 | 1-1/4"-7 | 7500 lb | 7500 lb | 200 ft-lb | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 1-15/16"50 | 11.95.4 |
| SS.FE.DSS U 138 | 1-3/8"-6 | 7500 lb | 7500 lb | 240 ft-lb | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 1-15/16"50 | 11.95.4 |
| SS.FE.DSS U 150 | 1-1/2"-6 | 11000 lb | 11000 lb | 240 ft-lb | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 2-3/8"60 | 26.4612.0 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M24 (2.70 t) | SS.FE.DSS M 24 | $0.00 | ✓ In Stock | ||
| M30 (3.50 t) | SS.FE.DSS M 30 | $0.00 | ✓ In Stock | ||
| M33 (3.50 t) | SS.FE.DSS M 33 | $0.00 | ✓ In Stock | ||
| M36 (5.00 t) | SS.FE.DSS M 36 | $0.00 | ✓ In Stock | ||
| 1" UNC (6,000 lb) | SS.FE.DSS U 100 | $0.00 | ✓ In Stock | ||
| 1-1/4" UNC (7,500 lb) | SS.FE.DSS U 125 | $0.00 | ✓ In Stock | ||
| 1-3/8" UNC (7,500 lb) | SS.FE.DSS U 138 | $0.00 | ✓ In Stock | ||
| 1-1/2" UNC (11,000 lb) | SS.FE.DSS U 150 | $0.00 | ✓ In Stock |
