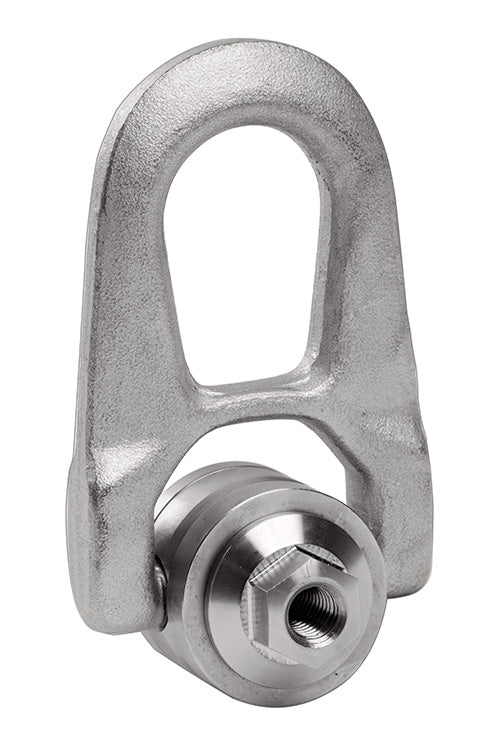

CodiPro SS.FE.DSR — Female 316L Stainless Steel Double Swivel Hoist Ring
The SS.FE.DSR is the female (tapped) version of CodiPro's stainless double-swivel ring — it mounts onto a stud/male thread rather than into a tapped hole. Machined from 316L stainless steel for corrosive and marine environments. Rotates 360°, pivots 180°, swivels under load.
- Material: 316L stainless steel
- WLL: 0.30–2.2 t (600–5,100 lb)
- Thread: M8–M22 metric / 5/16″–7/8″ UNC (female)
- Safety factor: 4:1 and 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Select your thread size below. Working Load Limit is shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | ||||||||||||||
| SS.FE.DSR M 8 | M8 x1.25 | 0.3 t | 0.3 t | 6 Nm | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR M 10 | M10 x1.5 | 0.5 t | 0.5 t | 10 Nm | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR M 12 | M12 x1.75 | 0.8 t | 0.8 t | 15 Nm | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR M 14 | M14 x2 | 1.0 t | 1.0 t | 30 Nm | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR M 16 | M16 x2 | 1.4 t | 1.5 t | 50 Nm | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR M 18 | M18 x2.5 | 1.4 t | 1.5 t | 70 Nm | 2-7/16"62 | 2-3/16"55 | 2-5/16"58 | 3-1/4"83 | 2-3/16"56 | 1"25 | 4-1/2"115 | 3/4"19 | 15/16"24 | 5.732.6 |
| SS.FE.DSR M 20 | M20 x2.5 | 1.4 t | 1.6 t | 100 Nm | 2-7/16"62 | 2-3/16"55 | 2-5/16"58 | 3-1/4"83 | 2-3/16"56 | 1"25 | 4-1/2"115 | 3/4"19 | 15/16"24 | 5.732.6 |
| SS.FE.DSR M 22 | M22 x2.5 | 2.2 t | 2.2 t | 120 Nm | 2-7/16"62 | 2-3/16"55 | 2-5/16"58 | 3-1/4"83 | 2-3/16"56 | 1"25 | 4-1/2"115 | 3/4"19 | 15/16"24 | 5.732.6 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | ||||||||||||||
| SS.FE.DSR U 516 | 5/16"-18 | 600 lb | 650 lb | 5 ft-lb | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR U 038 | 3/8"-16 | 1000 lb | 1000 lb | 8 ft-lb | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR U 050 | 1/2"-13 | 1800 lb | 1800 lb | 12 ft-lb | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR U 058 | 5/8"-11 | 2500 lb | 3000 lb | 40 ft-lb | 1-11/16"43 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 13/16"20 | 1.980.9 |
| SS.FE.DSR U 075 | 3/4"-10 | 3600 lb | 3800 lb | 80 ft-lb | 2-7/16"62 | 2-3/16"55 | 2-5/16"58 | 3-1/4"83 | 2-3/16"56 | 1"25 | 4-1/2"115 | 3/4"19 | 15/16"24 | 5.732.6 |
| SS.FE.DSR U 078 | 7/8"-9 | 5000 lb | 5100 lb | 90 ft-lb | 2-7/16"62 | 2-3/16"55 | 2-5/16"58 | 3-1/4"83 | 2-3/16"56 | 1"25 | 4-1/2"115 | 3/4"19 | 15/16"24 | 5.732.6 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 14 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.30 t) | SS.FE.DSR M 8 | $0.00 | ✓ In Stock | ||
| M10 (0.50 t) | SS.FE.DSR M 10 | $0.00 | ✓ In Stock | ||
| M12 (0.80 t) | SS.FE.DSR M 12 | $0.00 | ✓ In Stock | ||
| M14 (1.00 t) | SS.FE.DSR M 14 | $0.00 | ✓ In Stock | ||
| M16 (1.40 t) | SS.FE.DSR M 16 | $0.00 | ✓ In Stock | ||
| M18 (1.40 t) | SS.FE.DSR M 18 | $0.00 | ✓ In Stock | ||
| M20 (1.40 t) | SS.FE.DSR M 20 | $0.00 | ✓ In Stock | ||
| M22 (2.20 t) | SS.FE.DSR M 22 | $0.00 | ✓ In Stock | ||
| 5/16" UNC (600 lb) | SS.FE.DSR U 516 | $0.00 | ✓ In Stock | ||
| 3/8" UNC (1,000 lb) | SS.FE.DSR U 038 | $0.00 | ✓ In Stock | ||
| 1/2" UNC (1,800 lb) | SS.FE.DSR U 050 | $0.00 | ✓ In Stock | ||
| 5/8" UNC (2,500 lb) | SS.FE.DSR U 058 | $0.00 | ✓ In Stock | ||
| 3/4" UNC (3,600 lb) | SS.FE.DSR U 075 | $0.00 | ✓ In Stock | ||
| 7/8" UNC (5,000 lb) | SS.FE.DSR U 078 | $0.00 | ✓ In Stock |
