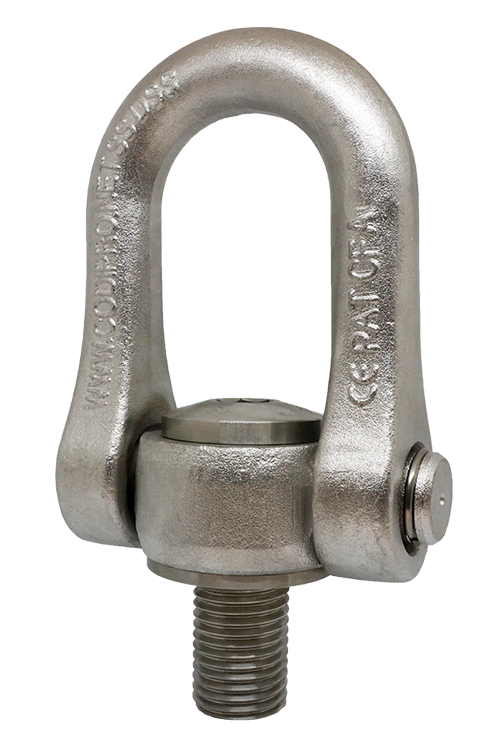

CodiPro SS.DSS — 316L Stainless Steel Universal Double Swivel Hoist Ring
The SS.DSS is CodiPro's heavy-duty universal double-swivel ring in 316L stainless steel. Built for wet, chemical, offshore, and marine service, it rotates 360° and pivots 180° to self-align with the sling and hold full rated load at any angle (approved at 0° and 90°). Swivels under load.
- Material: 316L stainless steel
- WLL: 2.70–8.0 t (6,000–14,000 lb)
- Thread: M24–M56 metric / 1″–2½″ UNC (male)
- Safety factor: 4:1 and 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Select your thread size below. Working Load Limit is shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | ||||||||||||
| SS.DSS M 24 | M24 x3 | 2.7 t | 2.7 t | 160 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS M 30 | M30 x3.5 | 3.5 t | 3.5 t | 250 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS M 33 | M33 x3.5 | 3.5 t | 3.5 t | 250 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS M 36 | M36 x4 | 5.0 t | 5.0 t | 320 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS M 36x3 | M36 x3 | 5.0 t | 5.0 t | 320 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS M 39 | M39 x4 | 5.0 t | 5.0 t | 320 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.95.4 |
| SS.DSS M 42 | M42 x4.5 | 6.0 t | 6.0 t | 400 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.95.4 |
| SS.DSS M 42x3 | M42 x3 | 6.0 t | 6.0 t | 400 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.95.4 |
| SS.DSS M 45 | M45 x4.5 | 6.0 t | 6.0 t | 400 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 12.575.7 |
| SS.DSS M 48 | M48 x5 | 6.4 t | 6.4 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 24.2511 |
| SS.DSS M 48x3 | M48 x3 | 6.4 t | 6.4 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 24.2511 |
| SS.DSS M 48x4 | M48 x4 | 6.4 t | 6.4 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 24.2511 |
| SS.DSS M 52 | M52 x5 | 6.4 t | 6.4 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 24.6911.2 |
| SS.DSS M 56 | M56 x5.5 | 8.0 t | 8.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 24.9111.3 |
| SS.DSS M 56x4 | M56 x4 | 8.0 t | 8.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 25.1311.4 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | ||||||||||||
| SS.DSS U 100 | 1″-8 | 6000 lb | 6000 lb | 125 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS U 125 | 1-1/4″-7 | 7500 lb | 7500 lb | 200 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS U 138 | 1-3/8″-6 | 7500 lb | 7500 lb | 240 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.465.2 |
| SS.DSS U 150 | 1-1/2″-6 | 11000 lb | 11000 lb | 240 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-3/16"30 | 11.95.4 |
| SS.DSS U 200 | 2″-4.5 | 14000 lb | 14000 lb | 450 ft-lb | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-5/8"41 | 24.4711.1 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 20 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M24 (2.70 t) | SS.DSS M 24 | $0.00 | ✓ In Stock | ||
| M30 (3.50 t) | SS.DSS M 30 | $0.00 | ✓ In Stock | ||
| M33 (3.50 t) | SS.DSS M 33 | $0.00 | ✓ In Stock | ||
| M36 (5.00 t) | SS.DSS M 36 | $0.00 | ✓ In Stock | ||
| M36x3 (5.00 t) | SS.DSS M 36x3 | $0.00 | ✓ In Stock | ||
| M39 (5.00 t) | SS.DSS M 39 | $0.00 | ✓ In Stock | ||
| M42 (6.00 t) | SS.DSS M 42 | $0.00 | ✓ In Stock | ||
| M42x3 (6.00 t) | SS.DSS M 42x3 | $0.00 | ✓ In Stock | ||
| M45 (6.00 t) | SS.DSS M 45 | $0.00 | ✓ In Stock | ||
| M48 (6.40 t) | SS.DSS M 48 | $0.00 | ✓ In Stock | ||
| M48x3 (6.40 t) | SS.DSS M 48x3 | $0.00 | ✓ In Stock | ||
| M48x4 (6.40 t) | SS.DSS M 48x4 | $0.00 | ✓ In Stock | ||
| M52 (6.40 t) | SS.DSS M 52 | $0.00 | ✓ In Stock | ||
| M56 (8.00 t) | SS.DSS M 56 | $0.00 | ✓ In Stock | ||
| M56x4 (8.00 t) | SS.DSS M 56x4 | $0.00 | ✓ In Stock | ||
| 1" UNC (6,000 lb) | SS.DSS U 100 | $0.00 | ✓ In Stock | ||
| 1-1/4" UNC (7,500 lb) | SS.DSS U 125 | $0.00 | ✓ In Stock | ||
| 1-3/8" UNC (7,500 lb) | SS.DSS U 138 | $0.00 | ✓ In Stock | ||
| 1-1/2" UNC (11,000 lb) | SS.DSS U 150 | $0.00 | ✓ In Stock | ||
| 2" UNC (14,000 lb) | SS.DSS U 200 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
