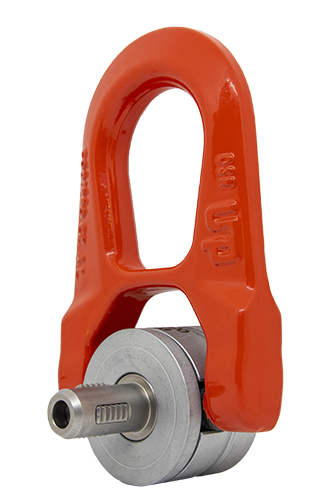

CodiPro QL.DSR — Quick Lift Ring (Push-Button Double Swivel)
The QL.DSR (QLR) is a double-swivel lifting ring built for particularly fast mounting: at the push of a button it clicks into the threaded hole — saving up to 80% of the time versus screwing in a conventional ring. Purely mechanical (no ball bearing, no circlips), so no complex maintenance. Its double swivel keeps perfect alignment with the sling.
- Material: GRADUP alloy steel
- WLL: 0.25–3.5 t (UNC 1/2″ = 1,300 lb)
- Thread: M8–M30 metric / 1/2″ UNC (male)
- Safety factor: 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Also available in stainless. Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||
| QL.DSR M 8 | M8 x1.25 | 0.25 t | 20 Nm | 1-1/4"31 | 1-3/16"30 | 1-3/16"30 | 1-1/2"38 | 1-1/16"27 | 9/16"14 | 2-1/16"53 | 3/8"9.5 | 11/16"18 | 0.660.3 |
| QL.DSR M 10 | M10 x1.5 | 0.4 t | 30 Nm | 1-1/4"31 | 1-3/16"30 | 1-3/16"30 | 1-1/2"38 | 1-1/16"27 | 9/16"14 | 2-1/16"53 | 3/8"9.5 | 11/16"18 | 0.660.3 |
| QL.DSR M 12 | M12 x1.75 | 0.65 t | 60 Nm | 1-9/16"40 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 1-1/16"27 | 1.980.9 |
| QL.DSR M 14 | M14 x2 | 0.7 t | 80 Nm | 1-9/16"40 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 1-1/16"27 | 1.980.9 |
| QL.DSR M 16 | M16 x2 | 1.05 t | 100 Nm | 1-9/16"40 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 1-1/16"27 | 1.980.9 |
| QL.DSR M 20 | M20 x2.5 | 1.7 t | 160 Nm | 2-3/16"55 | 2-3/16"55 | 2-3/8"60 | 3-1/4"83 | 2-3/16"55 | 1"25 | 4-1/2"115 | 3/4"19 | 1-9/16"40 | 5.732.6 |
| QL.DSR M 24 | M24 x3 | 2.5 t | 180 Nm | 2-3/16"55 | 2-3/16"55 | 2-3/8"60 | 3-1/4"83 | 2-3/16"55 | 1"25 | 4-1/2"115 | 3/4"19 | 1-9/16"40 | 5.732.6 |
| QL.DSR M 27 (in certification process) | M27 x3 | 3.0 t | — | 2-3/16"55 | 2-3/16"55 | 2-3/8"60 | 3-1/4"83 | 2-3/16"55 | 1"25 | 4-1/2"115 | 3/4"19 | 1-9/16"40 | 5.952.7 |
| QL.DSR M 30 | M30 x3.5 | 3.5 t | 200 Nm | 2-3/16"55 | 2-3/16"55 | 2-3/8"60 | 3-1/4"83 | 2-3/16"55 | 1"25 | 4-1/2"115 | 3/4"19 | 1-9/16"40 | 5.952.7 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | |||||||||||||
| QL.DSR U 050 | 1/2"-13 | 1300 lb | 45 ft-lb | 1-9/16"40 | 1-9/16"40 | 1-3/4"45 | 2-1/16"53 | 1-1/2"38 | 11/16"17 | 3"76 | 1/2"13 | 1-1/16"27 | 1.980.9 |
| QL.DSR U 075 (in certification process) | 3/4"-10 | 3400 lb | — | 2-3/16"55 | 2-3/16"55 | 2-3/8"60 | 3-1/4"83 | 2-3/16"55 | 1"25 | 4-1/2"115 | 3/4"19 | 1-9/16"40 | 5.732.6 |
| QL.DSR U 100 (in certification process) | 1"-8 | 5000 lb | — | 2-3/16"55 | 2-3/16"55 | 2-3/8"60 | 3-1/4"83 | 2-3/16"55 | 1"25 | 4-1/2"115 | 3/4"19 | 1-9/16"40 | 5.732.6 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 9 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.25 t) | QL.DSR M 8 | $0.00 | ✓ In Stock | ||
| M10 (0.40 t) | QL.DSR M 10 | $0.00 | ✓ In Stock | ||
| M12 (0.65 t) | QL.DSR M 12 | $0.00 | ✓ In Stock | ||
| M14 (0.70 t) | QL.DSR M 14 | $0.00 | ✓ In Stock | ||
| M16 (1.05 t) | QL.DSR M 16 | $0.00 | ✓ In Stock | ||
| M20 (1.70 t) | QL.DSR M 20 | $0.00 | ✓ In Stock | ||
| M24 (2.50 t) | QL.DSR M 24 | $0.00 | ✓ In Stock | ||
| M30 (3.50 t) | QL.DSR M 30 | $0.00 | ✓ In Stock | ||
| 1/2" UNC (1,300 lb) | QL.DSR U 050 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
